P9000-02 - Differential probe

€648.00

Content: 1 Each

In stock in Germany

€648.00

P9000-02 - Differential probe

Product number: P9000-02

Available stock: 1

GTIN/EAN: 4536036002856

Length: 22 mm

Width: 128 mm

Height: 36 mm

Weight: 0.17 kg

Product information P9000-02 - Differential probe

The Differential Probe P9000-02 combines waveform monitoring with AC RMS value output, offering increased versatility for high-voltage applications. With the capability to monitor waveforms and RMS values, it is suitable for industrial applications such as electric vehicle battery circuits, solar power systems, and commercial high-voltage circuits.

The probe is lightweight, compact, and offers high accuracy across a wide range of operating temperatures, ensuring durability and performance in demanding conditions.

Technical Specifications:

Measurement Functions: Waveform monitor output and AC RMS value output (switchable)
Frequency Characteristics (Wave Mode): DC to 100 kHz, -3 dB
Frequency Characteristics (RMS Mode): 30 Hz to 10 kHz
RMS Amplitude Accuracy: ±1% f.s. (30 Hz to 1 kHz); ±3% f.s. (1 kHz to 10 kHz)
Response Time (RMS Mode): 300 ms (rising), 500 ms (falling)

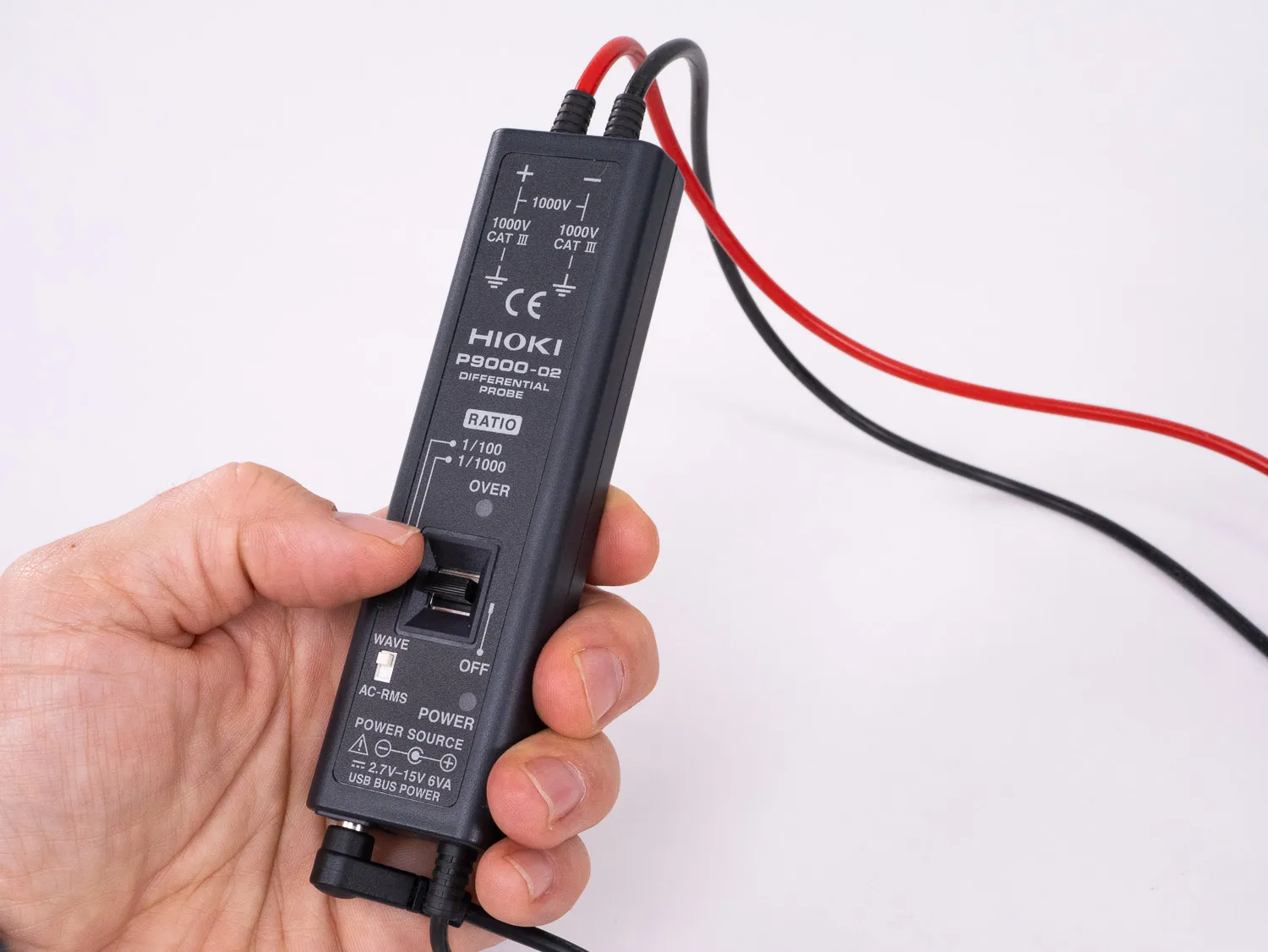

Division Ratio: 1000:1 or 100:1 (user selectable)
DC Amplitude Accuracy: ±0.5% f.s.
Input Resistance and Capacity: 10.5 MΩ, 5 pF or less (at 100 kHz)
Maximum Allowable Input: 1000 V AC/DC
Max. Rated Voltage to Earth: 1000 V AC/DC (CAT III)
Operating Temperature Range: -40°C to 80°C
Power Supply Options: o AC Adapter (Z1008), USB, External DC (2.7V to 15V DC)
Dimensions: 128 mm (W) × 36 mm (H) × 22 mm (D)
Mass: 170 g
Cord Length: Input 70 cm; Output 1.5 m
