HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors

Non-contact 3-phase 4-wire Clamp-on Power Logger, 90 V to 520 V at 50/60 Hz, 50 mA to 5 kA using external current sensors, harmonic measurement up to the 13th order, SD memory card slot (max. 8 GB), LAN and USB interface
Skip image gallery
HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors
HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors
HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors
HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors
HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors

€3,218.00

Content: 1 Each

Shipping costs : €9.90 (Standard)

In stock in Germany

  • Fast delivery across Europe
  • EU business invoices

€3,218.00

HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors
Product number: PW3365
Available stock: 3
GTIN/EAN: 4536036002207
Description

Product information HIOKI PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors


Key Specifications

  • Non-contact voltage and current measurement
  • Voltage measurement from 90 V to 520 V at 50/60 Hz
  • Current measurement from 50 mA to 5 kA using external sensors
  • Independent long-term data logging to SD card

Unique Advantages

  • Non-contact voltage sensing

Typical Applications

  • Energy Efficiency Optimization
  • Long-term power consumption monitoring
  • Equipment diagnostics and checks

Detailed Product Overview:

The PW3365 Clamp-on Power Logger measures voltages and currents safely and efficiently without direct contact with live circuits. Its innovative voltage clamp sensors attach easily to insulated wires, enabling non-intrusive measurements. Operating effectively within a voltage range of 90 to 520 V and a current range of 50 mA to 5 kA at 50/60 Hz, it minimizes risks like short circuits and electrical hazards. This makes it ideal for monitoring power consumption and demand across various installations, from single-phase to 3-phase 4-wire systems.

Thanks to its compact design, the PW3365 fits seamlessly into confined spaces, such as connection cabinets or switchboards. It provides precise readings and detailed insights to help identify and reduce energy losses. Equipped with an 8 GB SD memory card, it supports long-term stand-alone data logging. This versatility makes it suitable for energy audits, load studies, and equipment inspections, highlighting opportunities to enhance efficiency and cut costs.

To perform measurements, the PW3365 requires AC current sensors with a BNC connector. These current sensors are not included with the logger and are sold separately.

The following Hioki current sensors are compatible with the PW3365:

Model Load current Leak current
9660 9661 9669 9694 CT9667 9657-10 9675
Description AC Clamp-on Sensor 100 A AC Clamp-on Sensor 500 A AC Clamp-on Sensor 1000 A AC Clamp-on Sensor 5 A AC Flexible Current Sensor 5000 A AC Clamp-on leak sensor 10 A AC Clamp-on leak sensor 10 A
Bandwidth 40 Hz bis 5 kHz 10 Hz bis 20 kHz 40 Hz bis 5 kHz
Rated current 100 A 500 A 1000 A 5 A 500 A / 5000 A 10 A
Output rate 1 mV/A 0.5 mV/A 10 mV/A 1 mV/A (500 A)
0.1 mV/A (5000 A)		 100 mV/A
Basic accuracy ±0.3% / ±1.0% ±1.0% ±0.3% ±2.0% ±1.0% ±1.0%
Max. core diameter 15 mm 46 mm 55 mm 15 mm 100 mm bis 254 mm 40 mm 30 mm


By selecting the appropriate current sensor, the PW3365 can be tailored for specific power monitoring needs, ensuring reliable, high-precision energy measurements in various environments.

The PW3365 supports both load current and leak current logging, making it ideal for comprehensive power analysis. Load current logging captures the power consumption of machines, electrical panels, or entire facilities and helps identify inefficiencies. Leak current logging detects unintended leakage caused by insulation faults, incorrect wiring, or aging equipment. Monitoring these currents helps prevent electrical hazards, reduce fire risk, and ensure compliance with safety standards. This combination makes the PW3365 a valuable tool for spotting inefficiencies and detecting faults before they lead to failures.

The PW3365 comes with the Z1008 AC adapter for operation where mains power is available. If no outlet is accessible, the optional PW9002 Battery Set, which mounts on the back of the instrument, provides up to 3 hours of battery-powered operation. These flexible power options ensure reliable performance in both fixed installations and mobile applications.

Designed for energy consultants, facility managers, and service engineers, the PW3365 is a safe, reliable, and user-friendly solution for energy monitoring. Its compact form factor allows easy deployment in tight spaces, while non-contact voltage probes simplify setup and eliminate the risk of short circuits. Supports real-time monitoring via LAN and enables seamless connectivity with the free HIOKI Gennect One PC software, ensuring efficient and continuous power management.

Delivering all essential measurements, it supports precise monitoring of single-phase to 3- phase 4-wire systems. Whether for audits or continuous monitoring, the PW3365 offers dependable insights that drive energy savings and operational improvements

More than specs – find more details here:
What's in the Box
  • PW3365-20 Clamp-on Power Logger
  • PW9020 Safety Voltage Sensor (x4)
  • Z1008 AC adapter
  • USB A to USB mini-B cable
  • Instruction manual
  • Measurement guide
  • 4 color clip set (red, yellow, blue, white)
  • 10 spiral tubes for grouping clamp sensor cords

Dimensions & Packaging

Length 48 mm
Width 180 mm
Height 100 mm
Weight 0.55 kg
Skip product gallery

Related Products

HIOKI PW3360-20 - Compact Three-Phase Power Logger HIOKI PW3360-20 - Compact Three-Phase Power Logger
PW3360-20
HIOKI PW3360-20 - Compact Three-Phase Power Logger
Portable 3-phase 4-wire Clamp-on Power Logger, voltage range 600 V, current measurement with external sensors, ranges from 50 mA up to 5 kA, frequency measurement 40 to 70 Hz, with SD card slot, LAN and USB

€1,318.00
View product
HIOKI PW3360-21 - Compact Three-Phase Power Logger with Harmonic Analysis HIOKI PW3360-21 clamp on power-logger harmonics up to 40th order hands holding
PW3360-21
HIOKI PW3360-21 - Compact Three-Phase Power Logger with Harmonic Analysis
Portable 3-phase 4-wire Clamp-on Power Logger, voltage range 600 V, current measurement with external sensors, ranges from 50 mA up to 5 kA, frequency measurement 40 to 70 Hz, harmonic measurement up to the 40th order, SD card slot, LAN and USB

€1,978.00
View product
SF1001 - PC software for displaying, analyzing, and reporting measurement data from Hioki power loggers SF1001 - PC software for displaying, analyzing, and reporting measurement data from Hioki power loggers
SF1001
SF1001 - PC software for displaying, analyzing, and reporting measurement data from Hioki power loggers
Analysis software for evaluating energy data, including time-series display, harmonic analysis, and report generation, suitable for Hioki power loggers such as PW3360 and PW3365.

€358.00
View product

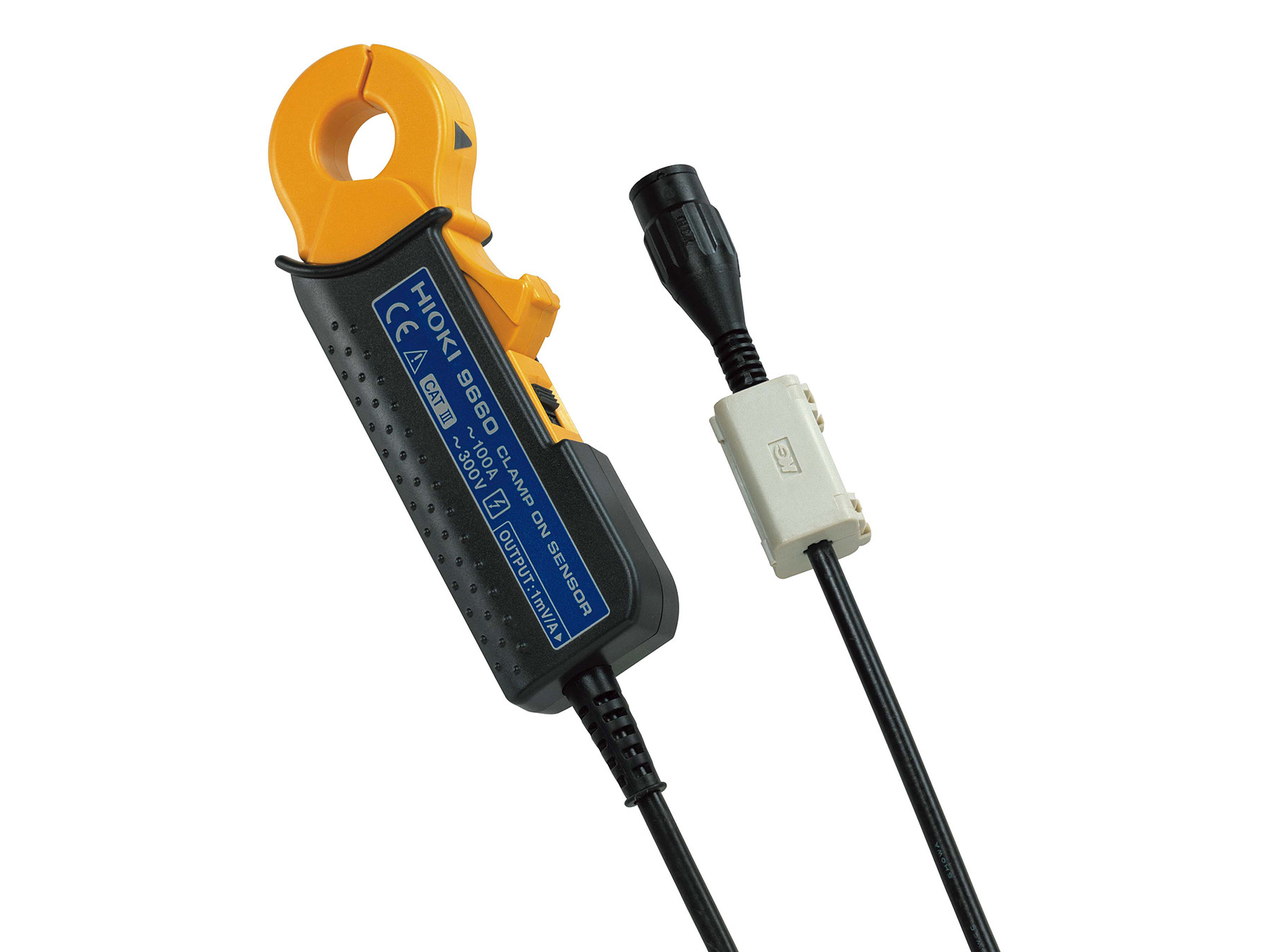

HIOKI 9660 - CLAMP ON SENSOR HIOKI 9660 - CLAMP ON SENSOR
9660
HIOKI 9660 - CLAMP ON SENSOR
The HIOKI 9660 Clamp On Sensor is designed for measuring AC currents with a rated measurement range of 100A. It is commonly used with power quality analyzers, power meters, and similar devices for load current measurements. With its compact design the sensor fits into narrow spaces and is ideal for use in commercial power lines and inverter devices. Technical Details: Measurement range: 100A AC (max continuous 130A, 45-66 Hz) Output rate: 1 mV AC per A Accuracy: ±0.3% of reading (45-66 Hz) Phase accuracy: ±1° (45 Hz to 5 kHz) Connector type: BNC Cable length: 3 meters Measurement category: CAT III 300VAC Max. core diameter: 15 mm

€268.00
View product
HIOKI 9661 – AC Clamp-On Sensor HIOKI 9661 – AC Clamp-On Sensor
9661
HIOKI 9661 – AC Clamp-On Sensor
The Hioki 9661 Clamp-On Sensor is designed to measure AC current up to 500 A with high precision. It features a voltage output, making it ideal for use with recorders or other instruments. The compact design with a 46 mm conductor diameter capacity ensures flexibility in various electrical environments. The sensor is robust, complying with CAT III 600V safety standards, making it safe for use in industrial settings. Technical Details: Rated current: AC 500 A Output rate: AC 1 mV/A Amplitude accuracy: ±0.3% rdg. ±0.01% f.s. (500 A, 45 Hz - 66 Hz, at jaw center) Phase accuracy: ±0.5° (45 Hz - 5 kHz) Frequency range: 40 Hz - 5 kHz Maximum current: 550 A (continuous) Dielectric strength: AC 7060 V (for 1 minute)Conductor diameter: 46 mm or less Operating temperature: 0°C to 50°C (80% RH or lower, non-condensing) Storage temperature: -10°C to 60°C Safety standards: EN61010, CAT III 600V Dimensions: 78 W x 152 H x 42 D mm Weight: Approx. 380 g • Cable length: 3 m

€298.00
View product
HIOKI 9669 - AC Clamp On Sensor, 1000A, 40 Hz to 5 kHz HIOKI 9669 - AC Clamp On Sensor, 1000A, 40 Hz to 5 kHz
9669
HIOKI 9669 - AC Clamp On Sensor, 1000A, 40 Hz to 5 kHz
AC current clamp, rated current 1000 A, basic accuracy ±1.0% rdg., operating temperature 0°C to 50°C, frequency bandwidth 40 Hz to 5 kHz, maximum conductor diameter 55 mm or bus bar up to 80 × 20 mm.

€398.00
View product
HIOKI 9694 - AC Clamp On Sensor, 5A, 40 Hz to 5 kHz HIOKI 9694 - AC Clamp On Sensor, 5A, 40 Hz to 5 kHz
9694
HIOKI 9694 - AC Clamp On Sensor, 5A, 40 Hz to 5 kHz
AC current probe, CAT III 300 V, measurement range up to 5 A AC, basic accuracy ±0.3% rdg., phase accuracy ±2°, frequency range 40 Hz to 5 kHz, max. conductor diameter 15 mm, operating temperature 0 °C to 50 °C

€298.00
View product
HIOKI CT9667-01 - AC FLEXIBLE CURRENT SENSOR HIOKI CT9667-01 - AC FLEXIBLE CURRENT SENSOR
CT9667-01
HIOKI CT9667-01 - AC FLEXIBLE CURRENT SENSOR
The CT9667-01 is a flexible AC current sensor that allows easy measurement of large conductors and cables. Its flexibility makes it ideal for confined spaces or irregular shapes.Technical Details: Rated current: 500 A, 5000 A AC Frequency range: 10 Hz to 20 kHz Amplitude accuracy: ±2% rdg, ±0.3% f.s. Diameter of conductors: 100 mm (3.94 in.) Cable length: 2 m, 1 m² (6.56 ft., 3.28 ft.) Operating temperature: -25°C to 65°C (-13°F to 149°F) CAT: 600 V CAT IV, 1000 V CAT III Output terminal: BNC

€568.00
View product
HIOKI CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz HIOKI CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
CT9667-02
HIOKI CT9667-02 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
Flexible Rogowski type AC Current Sensor, rated current (2 ranges) 500 A / 5000 A, continuous current (45 to 66 Hz) 10.000 A max., basic accuracy ±2.0% rdg., bandwidth 10 to 20 kHz, maximum conductor diameter 180mm, easy to route through complex wiring.

€578.00
View product
HIOKI CT9667-03 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz HIOKI CT9667-03 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
CT9667-03
HIOKI CT9667-03 - AC Flexible Current Sensor, 5000 A, 10 to 20 kHz
Banner SpecsRated measurement current: 500 A AC (500 A range) / 5000 A AC (5000 A range) Bandwidth: 10 to 20 kHz - Basic accuracy: ±2.0% rdg.,Output rate: 1 mV/A (500 A range), 0.1 mV/A (5000 A range)Max. conductor diameter: 254 mm Typical ApplicationsCurrent measurement in installations with limited spacing between conductors Measurements on hard-to-reach busbars Use in confined control cabinets and industrial environments Analysis of dynamic current waveforms under high load conditionsDetailed Product OverviewThe CT9667-02 is a flexible Rogowski current sensor designed for accurate measurement of high alternating currents in confined or complex installation environments. With its particularly slim sensing cable of only 7.4 mm in diameter, the measurement loop can be easily routed through tightly packed cable structures – ideal for use in control cabinets, industrial systems, or retrofit installations. Two selectable measurement ranges (500 A / 5000 A), combined with a wide frequency range from 10 Hz to 20 kHz, allow for detailed analysis of dynamic current waveforms. The basic accuracy of ±2.0% of reading provides reliable results even in demanding tasks such as power quality assessment or load analysis. The sensing loop can encircle conductors with diameters up to 254 mm, making it suitable for a wide range of applications – from standard cabling to large-scale busbars. The output is voltage-proportional and available via a BNC connector, providing 1 mV/A in the 500 A range and 0.1 mV/A in the 5000 A range, allowing for straightforward integration into existing measurement systems.The sensor can be powered either by batteries or via an external power source, offering flexibility for field applications. The sensing loop is rated IP54, making it suitable for use in harsh industrial environments.

€588.00
View product
HIOKI 9657-10 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz HIOKI 9657-10 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz
9657-10
HIOKI 9657-10 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz
AC current probe, measurement range up to 10 A AC, max. input 30 A, base accuracy ±1.0% rdg, phase accuracy ±3°, frequency range 40 Hz to 5 kHz, max. conductor diameter 40 mm, CAT III 300 V, BNC Connector

€298.00
View product
HIOKI 9675 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz HIOKI 9675 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz
9675
HIOKI 9675 - Precision AC clamp leak current sensor, 10 A, 40 Hz to 5 kHz
AC clamp sensor, rated current 10 A, frequency range 40 Hz–5 kHz, amplitude accuracy (45-66 Hz): ±1.0 % rdg., phase accuracy (50/60 Hz) ±5°, conductor diameters up to 30 mm, CAT III 300 V, isolated BNC output

€298.00
View product
HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer
9290-10
HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer
AC clamp adapter, primary current 1000 A AC continuous, 1500 A AC for 5 min, 10:1 current transformer, conductor diameter up to 55 mm, busbar capacity 80 × 20 mm, CAT III 600 V

€318.00
View product
HIOKI PW9002 - Battery Kit for PW3360 and PW3365 Power Loggers HIOKI PW9002 - Battery Kit for PW3360 and PW3365 Power Loggers
PW9002
HIOKI PW9002 - Battery Kit for PW3360 and PW3365 Power Loggers
Optional battery kit consisting of a battery case with protector and the 9459 battery pack, including mounting materials. Around 6 hours of operating time with PW3360-20 and PW3360-21, and around 3 hours with PW3365

€178.00
View product

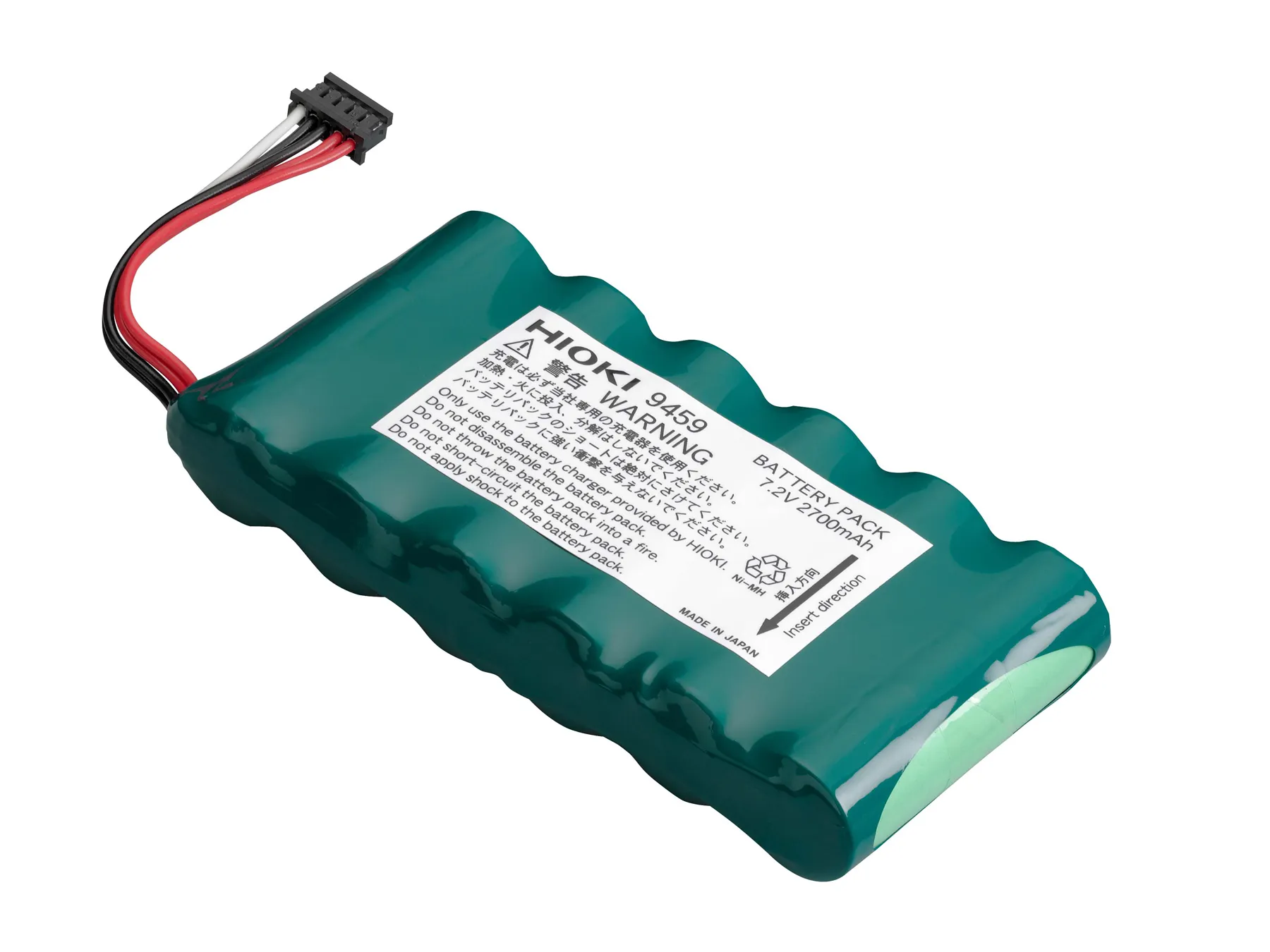

HIOKI 9459 - Replacement Battery Pack for PW3360 and PW3365
9459
HIOKI 9459 - Replacement Battery Pack for PW3360 and PW3365
Replacement battery pack with a voltage of 7.2 V and a capacity of 2700 mAh, for use with PW3360-20, PW3360-21 and PW3365 Power Loggers

€138.00
View product
HIOKI Z4001 - SD Memory Card 2GB HIOKI Z4001 sd memory card 2gb power logger accessory
Z4001
HIOKI Z4001 - SD Memory Card 2GB
The HIOKI Z4001 SD memory card provides 2 GB of industrial-grade storage, making it ideal for use with the HIOKI PW3360 Power Logger and similar products.

€138.00
View product
Z4003 - SD Memory Card 8GB
Z4003
Z4003 - SD Memory Card 8GB
The HIOKI Z4003 SD memory card is designed for use with Hioki instruments that support SD memory cards. With a storage capacity of 8 GB, it is ideal for data logging.

€368.00
View product

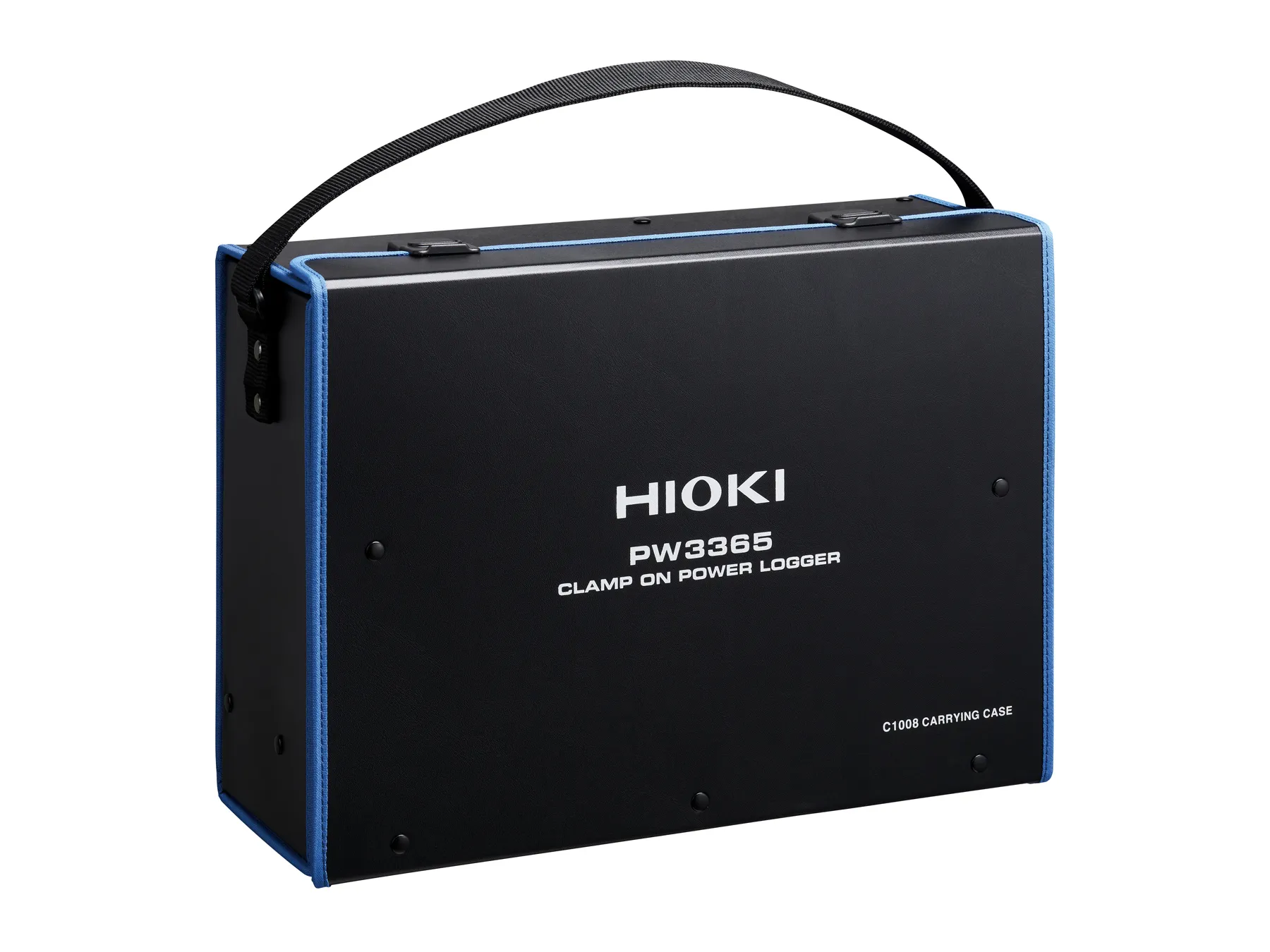

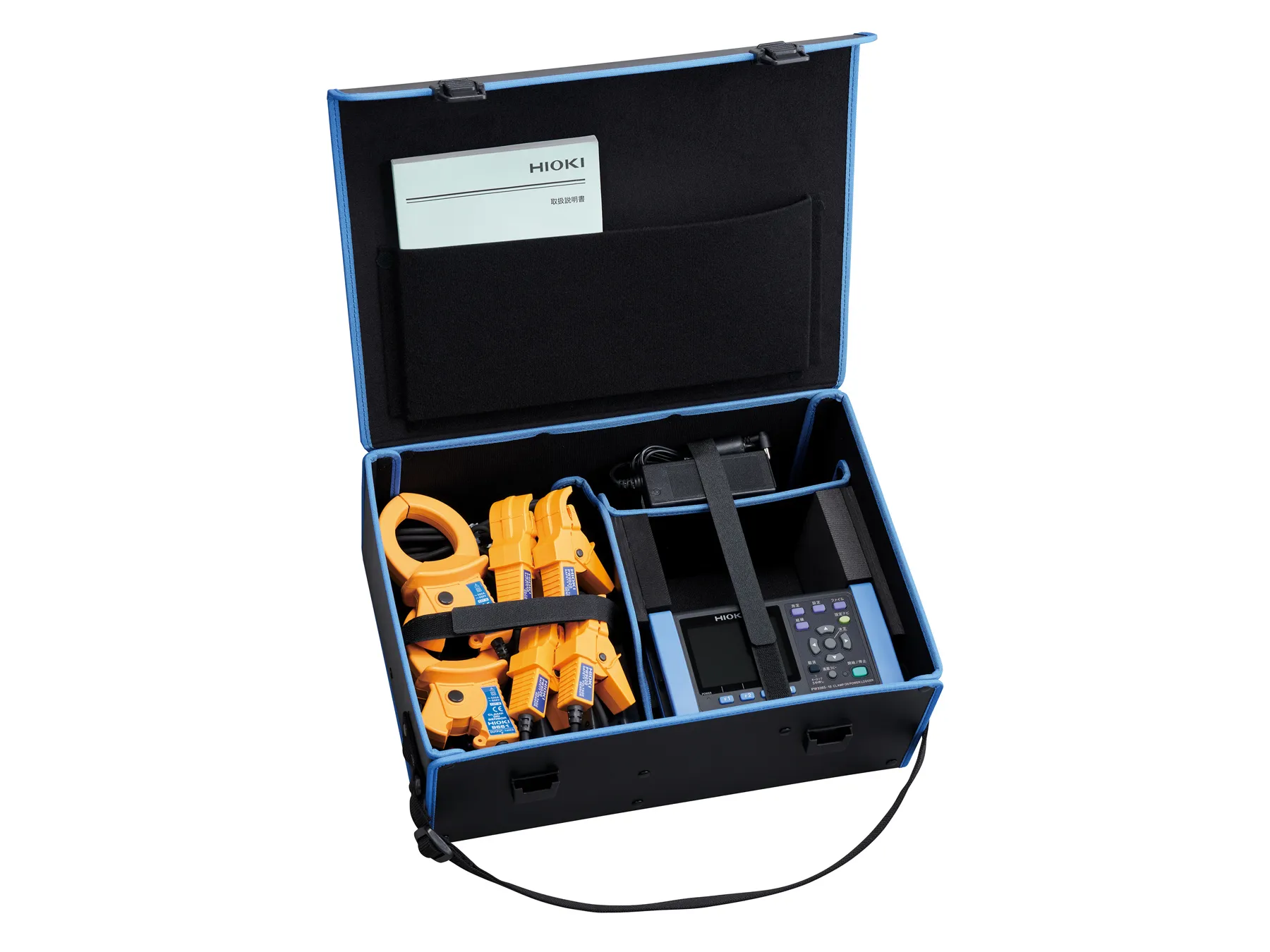

HIOKI C1008 - Lightweight carrying case for PW3365 Clamp-on Power Logger HIOKI C1008 - Lightweight carrying case for PW3365 Clamp-on Power Logger
