HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer

AC clamp adapter, primary current 1000 A AC continuous, 1500 A AC for 5 min, 10:1 current transformer, conductor diameter up to 55 mm, busbar capacity 80 × 20 mm, CAT III 600 V

€318.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

€318.00*

HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer

Available stock: 1

Product number: 9290-10

EAN: 4536036008001

Length: 99.5 mm

Width: 42 mm

Height: 188 mm

Weight: 0.58 kg

Product information HIOKI 9290-10 - AC Clamp Adapter, 1000 A, 10:1 Current Transformer

The 9290-10 is an AC clamp adapter for extending the current measurement capability of clamp meters and clamp power meters. It operates as a current transformer with a ratio of 10:1. A primary current of up to 1000 A AC continuous (1500 A AC for 5 minutes) is converted into a secondary current that can be measured by clamp meters with a lower current measurement range.

The adapter enables measurements on large conductors and busbars that cannot be accommodated by standard clamp jaws. The clamp opening accepts round conductors up to 55 mm in diameter and busbars up to 80 × 20 mm. The integrated secondary coil is designed to be clamped by a compatible clamp meter or clamp sensor.

With its wide frequency characteristics and stable phase behavior, the 9290-10 is suitable for current measurements and power measurements in electrical installations and industrial equipment. The adapter provides amplitude accuracy of ±1.5 % rdg. at 45 Hz to 66 Hz and maintains stable frequency and phase characteristics from 20 Hz to 5 kHz. It is rated for measurement environments up to CAT III 600 V.

Reusable numbered clips are included to mark conductors when performing sequential measurements on three-phase circuits. The 9290-10 is manufactured by HIOKI in Japan.

9290-10 Clamp Adapter
Numbered Clips (6 pcs)

Related Products

CM3286-50

CM3286-50 - Clamp Power Meter, 600 A, 360 kW

Clamp power meter for active, reactive and apparent power, power factor and phase angle, current 60 mA to 600 A, voltage 80 V to 600 V, single phase energy measurement, CAT IV 600 V, CAT III 1000 V, optional Bluetooth with Z3210

€678.00*

View product

PW3360-20

PW3360-20 - Compact Three-Phase Power Logger

Portable 3-phase 4-wire Clamp-on Power Logger, voltage range 600 V, current measurement with external sensors, ranges from 50 mA up to 5 kA, frequency measurement 40 to 70 Hz, with SD card slot, LAN and USB

€1,318.00*

View product

20 %

PW3360-21

HIOKI PW3360-21 - Compact Three-Phase Power Logger with Harmonic Analysis

Portable 3-phase 4-wire Clamp-on Power Logger, voltage range 600 V, current measurement with external sensors, ranges from 50 mA up to 5 kA, frequency measurement 40 to 70 Hz, harmonic measurement up to the 40th order, SD card slot, LAN and USB

€1,582.40* €1,978.00*

View product

PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors

PW3365-20

PW3365 - Compact Three-Phase Power Logger with non-contact voltage sensors

Non-contact 3-phase 4-wire Clamp-on Power Logger, 90 V to 520 V at 50/60 Hz, 50 mA to 5 kA using external current sensors, harmonic measurement up to the 13th order, SD memory card slot (max. 8 GB), LAN and USB interface

€3,218.00*

View product

PQ3100-94

PQ3100-94 - Power quality measuring device with 4 flexible current transformers

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis. Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments. Technical Details:Measurement Channels: 4 voltage channels, 4 current channels Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak Current Measurement Range: Up to 6000 A (with appropriate current sensors) Frequency Range: DC, 0.1 Hz to 700 kHz Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor) Event Detection: Transients, voltage fluctuations, harmonics, inrush currents Compliance: IEC61000-4-30 Class S Waveform Recording: Up to 11 seconds for detailed event analysis Display: 6.5-inch TFT color LCD Data Storage: Internal memory and SD card support Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation) Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) Weight: 2.6 kg

€4,888.00*

View product

PQ3198-94

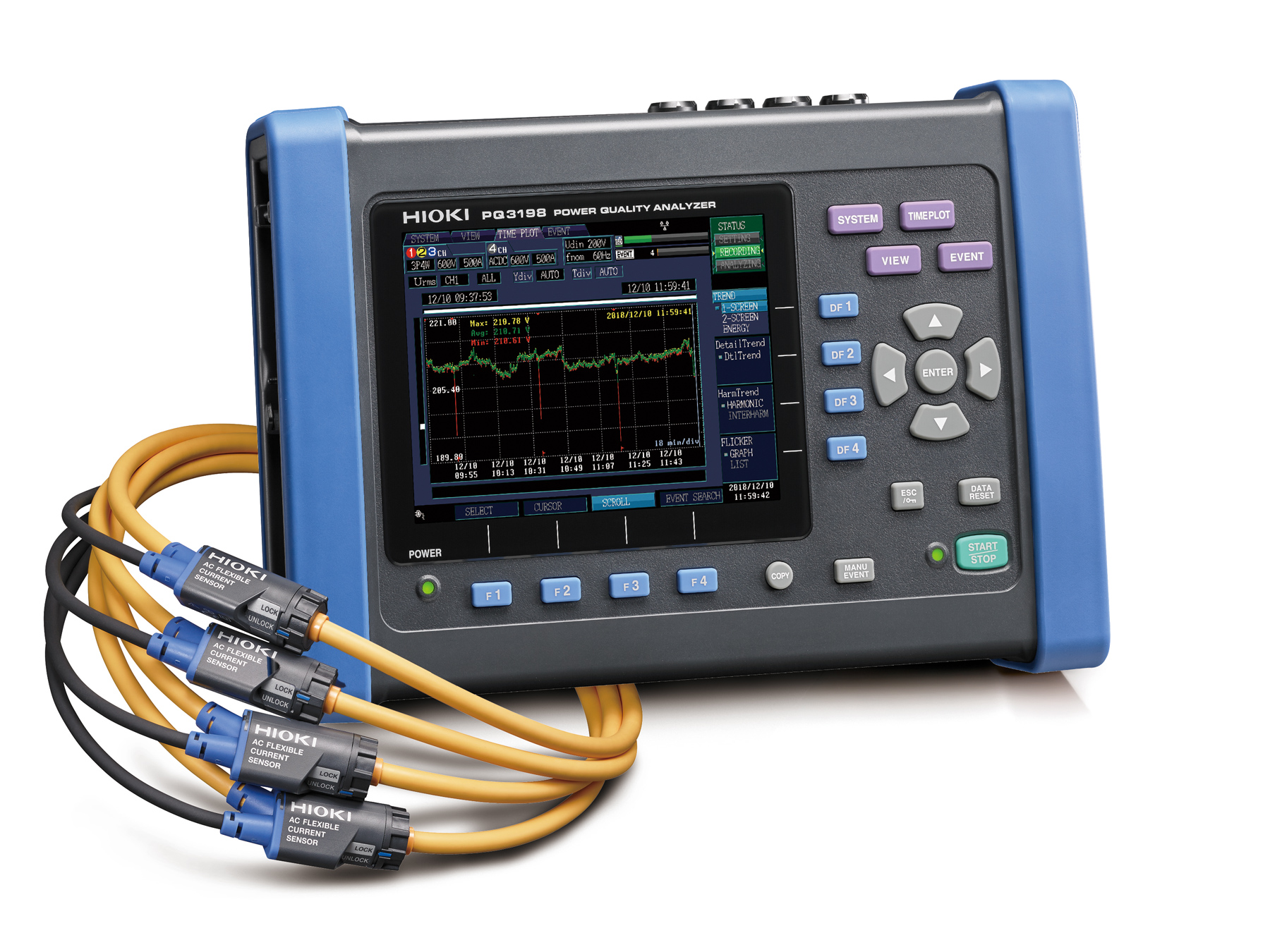

PQ3198-94 - Power quality analyzer kit with 4 flexible current clamps
