HIOKI PQ3100-94 - Power quality measuring device with 4 flexible current transformers

This product is no longer available.

Specifications may be dated. Please see the successor model.

Product information HIOKI PQ3100-94 - Power quality measuring device with 4 flexible current transformers

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis.

Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments.

Technical Details:

Measurement Channels: 4 voltage channels, 4 current channels
Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak
Current Measurement Range: Up to 6000 A (with appropriate current sensors)
Frequency Range: DC, 0.1 Hz to 700 kHz
Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor)
Event Detection: Transients, voltage fluctuations, harmonics, inrush currents
Compliance: IEC61000-4-30 Class S
Waveform Recording: Up to 11 seconds for detailed event analysis
Display: 6.5-inch TFT color LCD
Data Storage: Internal memory and SD card support
Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation)
Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D)
Weight: 2.6 kg

PQ3100 Power Quality Analyzer, 1x
CT7045 AC Flexible Current Sensor 6000 A, 4x
Z4001 SD Memory Card 2 GB, 1x
C1009 Carrying Case, 1x
L1000-05 Voltage Cord Set, 1x
Z1002 AC Adapter with power cord, 1x
Z1003 Battery Pack, 1x USB cable, 1x
Colour clips in red, yellow, blue and white for current sensor identification, 2x each
Black spiral tubes for bundling current sensor cables, 5x
Strap, 1x
Instruction Manual, 1x
Measurement Guide, 1x

Related Products

L1000-05

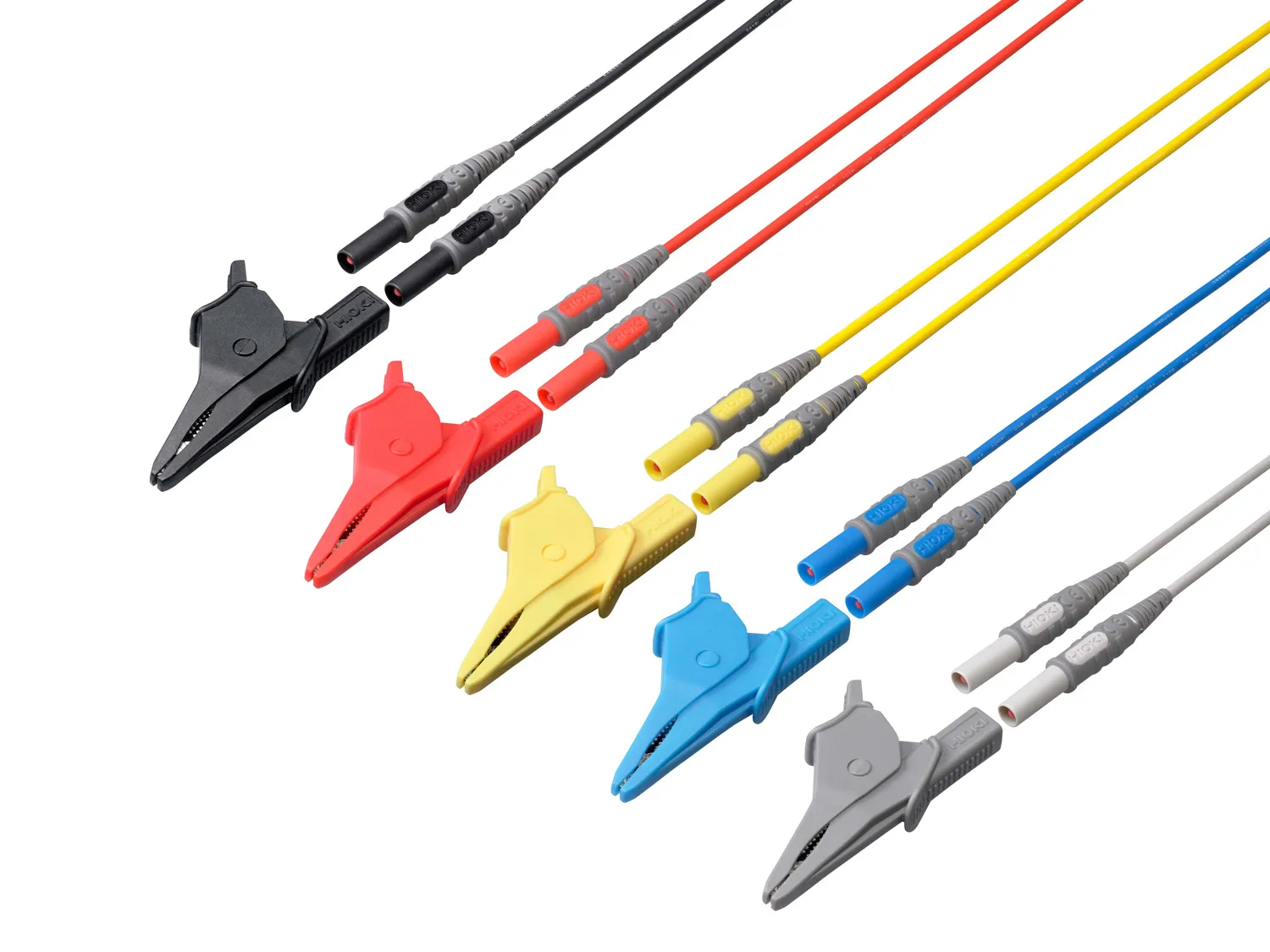

HIOKI L1000-05 - Voltage Cord Set
