HIOKI PD3259-50 - Non-Contact Digital Phase Rotation Tester with Integrated Voltmeter

Digital phase sequence tester with voltmeter and non-contact clamps for safe checks of phase sequence, line-to-line voltage, frequency, and missing-phase detection; CAT IV 600 V, IP54, optional Bluetooth (Z3210 required).
Skip image gallery
HIOKI PD3259-50 non-contact phase detector phase identification
HIOKI PD3259-50 non-contact phase detector live wire detection
HIOKI PD3259-50 non-contact phase detector contactless voltage

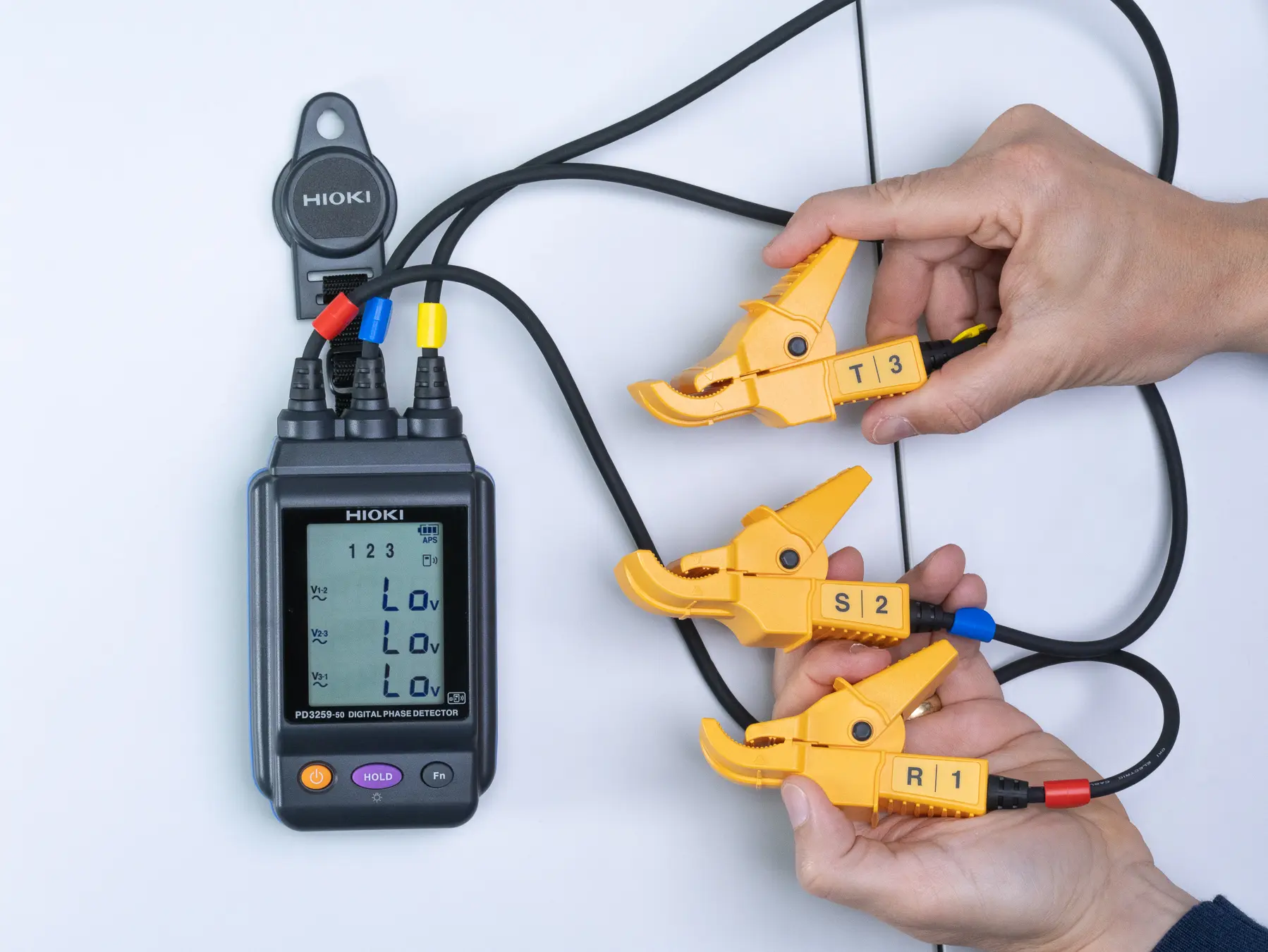

HIOKI PD3259-50 safe non contact phase rotation tester Z5020 magnetic strap compatible not included
HIOKI PD3259-50 non-contact phase detector compact design
HIOKI PD3259-50 non-contact phase detector phase identification
HIOKI PD3259-50 non-contact phase detector live wire detection
HIOKI PD3259-50 non-contact phase detector contactless voltage
HIOKI PD3259-50 safe non contact phase rotation tester Z5020 magnetic strap compatible not included
HIOKI PD3259-50 non-contact phase detector compact design

€1,198.00

Content: 1 Each

Shipping costs : €9.90 (Standard)

In stock in Germany

  • Fast delivery across Europe
  • EU business invoices

€1,198.00

HIOKI PD3259-50 - Non-Contact Digital Phase Rotation Tester with Integrated Voltmeter
Product number: PD3259-50
Available stock: 1
GTIN/EAN: 4536036013364
Description

Product information HIOKI PD3259-50 - Non-Contact Digital Phase Rotation Tester with Integrated Voltmeter

Key Specifications

  • 90 to 520 V AC measurement range
  • For insulated conductors from 6 mm to 30 mm diameter
  • CAT IV 600 V safety rating
  • IP54 dust/water resistant housing

Unique Advantages

  • Safe, non-contact voltage detection
  • Phase sequence detection with true line-to-line voltage measurement

Typical Applications

  • Installation and maintenance of three-phase wiring and equipment
  • Troubleshooting phase errors, supply interruptions, and missing phases
  • Verification of EV charging stations and infrastructure
  • Commissioning and inspection of machinery and plant systems

Detailed Product Overview

The PD3259-50 is a compact digital phase rotation tester for three-phase systems. Unlike basic devices that only indicate phase sequence, it also measures true line-to-line voltages, frequency, and missing phases. This provides technicians with reliable data to quickly identify supply issues and prevent potential equipment damage.

Faster, safer testing with non-contact clamps
The non-contact voltage clamps simply clip around insulated conductors, eliminating the need to expose live parts. This makes phase and voltage checks quicker, safer, and possible even in situations where direct electrical contact with the conductor would normally require higher qualifications or additional protective measures.

Rugged and field-ready, the instrument is rated CAT IV 600 V and IP54 for operation in demanding environments. For documentation and analysis, the optional Z3210 Bluetooth adapter can be added to connect the PD3259-50 to smart devices or a PC. Measurements can then be logged via HIOKI’s GENNECT Cross app on Android or iOS devices or transferred directly to Excel using the instrument’s HID (Human Interface Device) function.

Made in Japan
The PD3259-50 was designed and is manufactured in Japan at HIOKI’s own design center and factories, ensuring the highest standards of lasting precision, reliability, and quality.
What's in the Box
  • PD3259-50 Phase Rotation Meter
  • C0203 Carrying Case
  • 4 × LR6 alkaline batteries - Instruction manual / Safety notes
  • Spiral tubes (black)
  • Color-coded cable markers (white, red, blue, yellow; 2 each)

Dimensions & Packaging

Length 146 mm
Width 84 mm
Height 46 mm
Weight 0.59 kg
