HIOKI DT4261 DIGITAL MULTIMETER

HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 digital multimeter catalog ac dc current voltage
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 DIGITAL MULTIMETER

This video is hosted by YouTube. By clicking “Allow video”, you activate Marketing cookies and consent to data transfer to YouTube.

HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 digital multimeter catalog ac dc current voltage
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 DIGITAL MULTIMETER
HIOKI DT4261 DIGITAL MULTIMETER

€288.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 4
Product number: DT4261
EAN: 4536036013517
Width: 470 mm
Height: 1850 mm
Weight: 0.74 kg

Product information HIOKI DT4261 DIGITAL MULTIMETER

General-purpose digital multimeter with 10A direct input (expandable up to 1kA via optional HIOKI current clamp). Measurement of AC/DC current and voltage (True RMS), resistance, capacitance. Includes continuity and diode test.

Equipped with a 4-digit LCD (6000 counts), automatic measuring range changeover, filter function, hold function for display values, auto-hold, MAX/MIN/average value display, relative value display, auto power saving function (APS), USB communication (optional adapter). Featured with mis-insertion prevention shutters to prevent accidental wrong insertion of the measurement leads into the terminal contacts.

Measurement categories CAT III 1000V, CAT IV 600V. Basic accuracy, Voltage AC/DC: 0.9%/0.15%, Current AC/DC: 1.4%/0.5%. Z3210 module for wireless communication via Bluetooth(R) is available as an option.

Related products

Z3210 - Bluetooth Adapter Z3210 - Bluetooth Adapter
Z3210
Z3210 - Bluetooth Adapter
The HIOKI Z3210 Bluetooth Adapter allows wireless communication between compatible HIOKI products, enabling easy data transfer and remote operation.

€118.00*
View product
9132-50 - AC Current Probe 9132-50 - AC Current Probe
9132-50
9132-50 - AC Current Probe
The 9132-50 Clamp-on Probe is a versatile current sensor designed for accurate AC current measurements up to 1000 A. This clamp-on probe allows for non-intrusive measurements on live wires without needing to cut the conductor, making it ideal for industrial applications, power distribution analysis, and electrical diagnostics.The 9132-50 features a wide conductor diameter capacity and a BNC connector for easy integration with recorders or testers, ensuring high precision and ease of use.Technical Details: Measuring Range: 20/50/100/200/500/1000 A AC Output Voltage: 0.2 V full scale Maximum Rated Current: 1000 A rms Maximum Rated Voltage to Earth: 600 V AC (CAT III) Conductor Diameter: Less than 55 mm, or 80 mm × 20 mm busbar Basic Accuracy (45 Hz to 66 Hz): ±3% rdg. ±0.2% f.s.Frequency Characteristics: 40 Hz to 1 kHz, adds ±1% to basic accuracy Output Resistance: 160 Ω ±10% (20 A range) Dimensions: 100 mm (W) × 224 mm (H) × 35 mm (D) Weight: Approx. 600 g Cable Length: Approx. 3 m Output Connector: BNC Operating Temperature: -10°C to 50°C Storage Temperature: -10°C to 60°C

€288.00*
View product
9010-50 - AC Current Probe 9010-50 - AC Current Probe
9010-50
9010-50 - AC Current Probe
Economical Clamp Sensor for waveform recording, 40 to 1kHz, 10 to 500 A AC, +/-2%rdg. +/-1%f.s., 6 ranges, 46 mm core diameter, BNC output terminal

€168.00*
View product
9018-50 - AC Current Probe 9018-50 - AC Current Probe
9018-50
9018-50 - AC Current Probe
Überlegener Zangensensor für die Aufzeichnung von Wellenformen und die Analyse von Oberschwingungen, 40 Hz bis 3 kHz, 10 bis 500A AC, +/-1,5%rdg. +/-0,1%f.s., 46 mm Durchmesser, BNC-Ausgangsklemme

€338.00*
View product
HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters
C0202
HIOKI C0202 - Carrying Case for Digital Multimeters and Lux Meters
HIOKI C0202 carrying case for digital multimeters and luxmeters – durable protection and easy portability for test instruments on the go. Order now from HIOKI Europe.

€48.00*
View product
9804 - MAGNETIC ADAPTER 9804 - MAGNETIC ADAPTER
9804
9804 - MAGNETIC ADAPTER
The magnetic adapter 9804 is an optional accessory for all kind of FMI and PMI products that uses 4mm banana plug voltage cords. The adaptor is compatible to M6 pan screws. Technical details: Set of 9804-01 and 9804-02 (red/black) Compatible to 4mm banana plugs

€88.00*
View product
9704 - Adapter BNC socket 9704 - Adapter BNC socket
9704
9704 - Adapter BNC socket
The 9704 is a versatile banana to BNC conversion adapter accessory wherever this is required. It is suitable for example for Hioki digital multimeters where current probes can be connected, or where a banana to BNC test lead conversion is required for measurement applications.Dimensions: 63W×33H×13D mmConnector configuration: 2x Banana male, 1x BNC female Distance between banana plugs: 19 mmVoltage protection category: CAT III 600VCompatible AC clamp and flexible probes: 9010-50, 9018-50, 9132-50, CT9667-01, CT9667-02, CT9667-03 Compatible Digital Multimeters: DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Others: Connection Cable L9097

€38.00*
View product
DT4900-01 - COMMUNICATION PACKAGE (USB)
DT4900-01
DT4900-01 - COMMUNICATION PACKAGE (USB)
The Hioki DT4900-01 Communication Package enables seamless data transfer between compatible Hioki digital multimeters and a PC. It includes the essential communication cable for USB connection and allows users to remotely control measurement settings, view data in real-time, and export results to CSV or Excel. This tool is essential for professionals needing efficient data analysis and control. Technical Details: USB communication cable Real-time data viewing and control CSV/Excel export functionality Compatible with DT4250, DT4280, DT4261 series multimeters

€138.00*
View product
HIOKI L4930 - CONNECTION CABLE SET
L4930
HIOKI L4930 - CONNECTION CABLE SET
High-quality 1.2 m red/black cable set for HIOKI DT4280/DT4250 multimeters – ideal for professional testing. Order now from HIOKI Europe.

€28.00*
View product
L4933 - CONTACT PIN SET L4933 - CONTACT PIN SET
L4933
L4933 - CONTACT PIN SET
The L4933 Test Probe Set is fully insulated except for the front part of the tip. It can be fitted to Hioki's L9207-30, L9208, L9170-10 and DT4911 test leads and is an optional accessory for many Hioki multimeters and current clamps. Technical Details: Max Voltage: 60V DC, 30V AC Max Current: 3ALength over all: 95mm Tip length: 48mm Tip diameter (isolated section): 1.3mm Tip diameter (contact part): 1.0mm Tip blank part: 3mm Tip surface: gilded Compatible Multimeters: 3030-10, DM7275, DM7276, DT4223, DT4224, CM4141, CM4371, CM4373, CM4375, DT4223, DT4224, DT4261, DT4281, DT4282 Compatible Clamp Meters: 3280-10F, 3280-70F, CM3281, CM3289, CM3291, CM4141, CM4371, CM4373, CM4375

€28.00*
View product
L4934 - SMALL ALLIGATOR CLIP SET L4934 - SMALL ALLIGATOR CLIP SET
L4934
L4934 - SMALL ALLIGATOR CLIP SET
The L4934 set of small alligator clips is designed to attach to Hioki test probes and test leads with 2 mm tip diameter of the test probes and an optional accessory for many Hioki Multimeters and Clamp Meters. Technical Details: Imax = 3A Max. conductor diameter = 4mm Required Tip diameter: 2mm Attachable to: Test leads L9207, L9208, L9170-10, DT4911, test leads of DT4253, DT4255, DT4256, DT4261, DT4281, DT4282- multimeters. Compatible Multimeters: 3030-10, DM7275, DM7276, DT4223, DT4224, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Compatible Clamp Meters: 3280-10F, 3280-70F, CM3281, CM3286, CM3289, CM3291, CM4141, CM4371, CM4373, CM4375

€28.00*
View product
L4935 - ALLIGATOR CLIP SET L4935 - ALLIGATOR CLIP SET
L4935
L4935 - ALLIGATOR CLIP SET
The Hioki L4935 Alligator Clip Set is arranged for use with Hioki L4930 or L4940 test leads and it is an optional accessory for many Hioki Multimeters and Clamp Meters. With a 4 mm banana plug connection, these clips provide a secure and reliable attachment for general measurement tasks. Their robust construction ensures accurate measurements even in demanding environments, while the universal design allows for compatibility with various banana plug based test leads. Technical Information: Category: CAT IV 600 V, CAT III 1000 V Conductor Diameter: Max. 25 mmMax Current: 10 A Connector Type: 4 mm Banana Plug Compatible Multimeters: DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282 Compatible Clamp Meters: CM3286, CM4141, CM4371, CM4373, CM4375

€28.00*
View product
L9207-10 - Measuring lead set red/black L9207-10 - Measuring lead set red/black
L9207-10
L9207-10 - Measuring lead set red/black
The L9207-10 is a universal test lead for many Hioki Digital Multimeters and Clamp Meters 4mm banana type terminals. Technical information: Cable length: 900 mm Connector type: angeled banana plug 4mm Handle length: 137 mm (incl. tip length) Tip length (cover removed): 17.5 mm Tip Diameter: 2 mm Voltage safety category: CAT IV 600V, CAT III 1000V (with tip cover), CAt II 1000V (tip cover removed)Max. Current: 10 A Others: Tip cover gilded Compatible Products: DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, CM4375

€38.00*
View product
L9300 - TEST LEAD L9300 - TEST LEAD
L9300
L9300 - TEST LEAD
The L9300 measuring lead set is an optional accessory for Hioki DMMs and is suitable for current measurements up to 10A. The Test Lead L9300 incorporates integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard, eliminating the need to worry about losing caps. Technical Details: Test Lead Ratings: o CAT IV: 600V o CAT III: 1000V o CAT II: 1000V Maximum Current: 10A Length of lead (total): 955 mm ± 20

€48.00*
View product

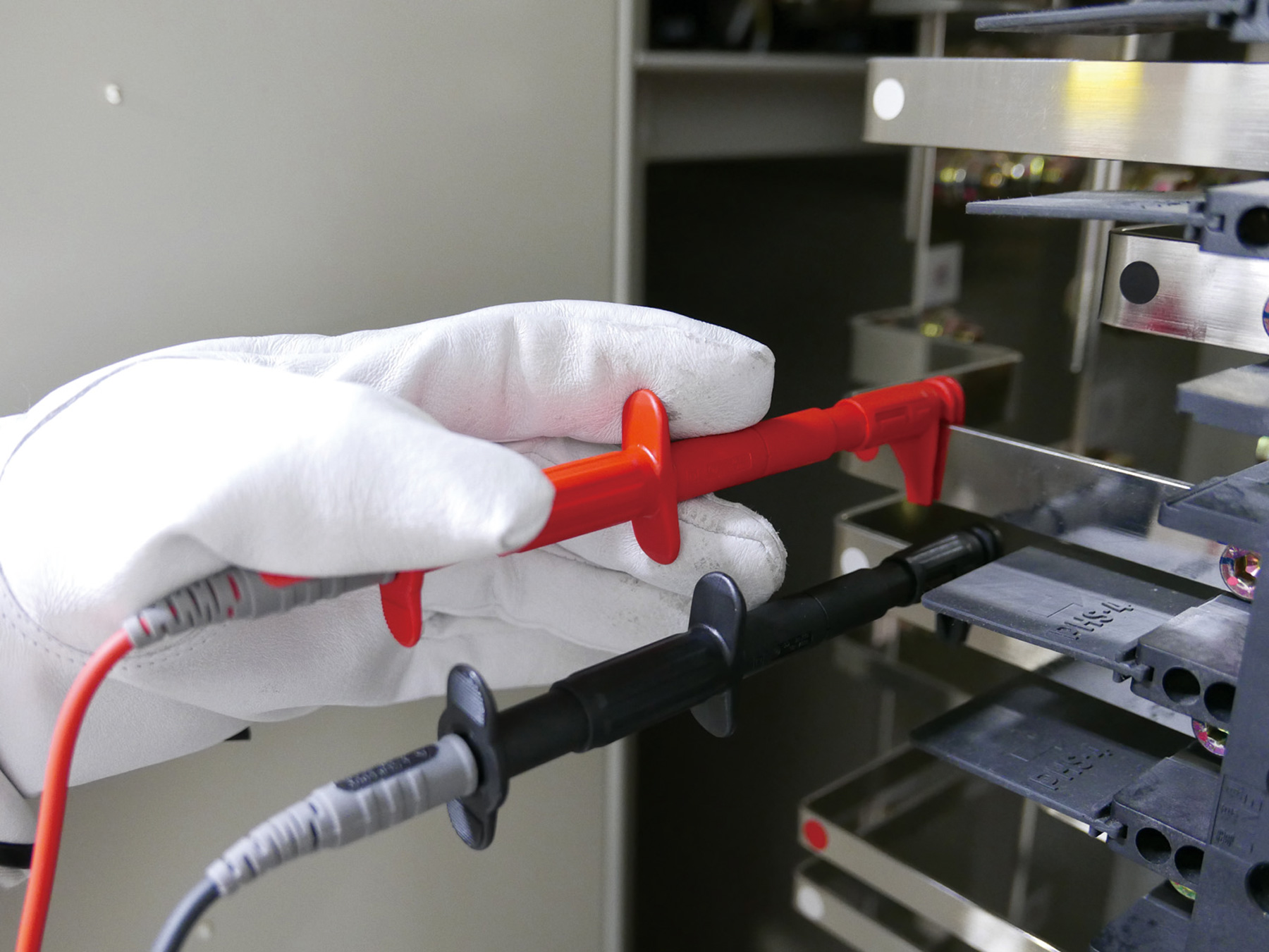

L4936 - Terminals for busbars
L4936
L4936 - Terminals for busbars
The L4936 set is a versatile accessory for all Hioki products that are suitable for measurements on busbars and where the available large crocodile clips are not able to make safe contact with the current-carrying cable or busbar, or where there is a risk of touching current conductors that carry a high voltage. Technical data: Length: 153 mm Maximum cable size: 30 mm Voltage safety category: CAT III 600V Imax: 5 A Compatible cables: L4930, L4940, banana cables corresponding to the CAT level and Imax level of L4936 Compatible products: P9000, DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, CM4375

€98.00*
View product
L4937 - Magnetic Adapter Set
L4937
L4937 - Magnetic Adapter Set
The L4937 Magnetic Adapter Set is designed for use with L4930 and L4940 test leads as well as the DT4280/DT4250 multimeters. It accommodates 4mm banana plugs and is compatible with M6 pan screws. This adapter set ensures secure and reliable connections in measurement setups. It is rated for CAT III 1000V, making it suitable for a wide range of electrical testing environments. Technical Details: Compatibility: L4930 and L4940 test leads, DT4280/DT4250 multimeters Fits: 4mm banana plugs Screw compatibility: M6 pan screws Measurement category: CAT III 1000V

€108.00*
View product
L4938 - TEST PIN SET
L4938
L4938 - TEST PIN SET
The L4938 isna Test pin set for banana plug equipped test cords like the Hioki L4930 and accesory test leads of the Hioki Digital Multi Meters and Clamp Meters. Safety laboratory test leads with 4 mm banana plugs and sliding sleeves can also be used.Technical Details: Imax = 10A Category: CAT II (Tip cover removed), CAT III 600V (Tip cover attached) Tip diameter: 1.8 mm Connector: 4 mm banana jack Digital Multi Meters and Clamp Meters: DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, CM4375

€28.00*
View product
