CT7731 - AC/DC Current Probe
Available stock:
1
Product details
Product number:
CT7731
EAN:
4536036004447
Width:
180 mm
Height:
1320 mm
Weight:
0.4 kg
Product information "CT7731 - AC/DC Current Probe"
The Hioki CT7731 is a versatile AC/DC current sensor designed for accurate measurements up to 100 A. With a wide frequency range from DC to 5 kHz, it is perfect for waveform analysis and real-time monitoring in various applications. The CT7731’s compact design and 33 mm conductor diameter allow for easy installation in confined spaces.
It features high precision with an accuracy of ±1.0% for DC measurements and ensures reliable performance in fluctuating temperature conditions. The sensor is compatible with Hioki's Memory Memory recorder and data loggers for efficient data collection and analysis.
Technical Information:
- Measurement range: 100 A AC/DC
- Frequency range: DC to 5 kHz
- Maximum conductor diameter: 33 mm
- Accuracy: ±1.0% for DC (45 Hz to 66 Hz)
- Operating temperature: −25°C to 65°C
- Safety category: CAT III 1000 V / CAT IV 600 V
- Output connector: HIOKI PL14
- CT7731
- Instruction Manual
-
Product catalog with data sheet, current sensors & current probes series (English)15,035 KB pdf
-
Product brochure with datasheet, Selection guide, Power Quality Analyzers / Power Loggers (English)3,584 KB pdf
-
Product brochure with data sheet, POWER QUALITY ANALYZER PQ3100, PQ3198 (English)14,260 KB pdf
-
Instruction Manual, AC/DC AUTO-ZERO CURRENT SENSOR CT7731, CT7736, CT7742 (English)1,171 KB pdf
Related products
MR8870-20
MR8870-20 - Portable data recorder
The Hioki MR8870-20 Data Recorder is a versatile, compact oscilloscope-like device designed for high-speed waveform recording and long-term RMS data capture. It features isolated inputs for safe measurement of power lines, and its real-time data-saving functionality ensures continuous monitoring with minimal interruptions.With up to 1 MS/s sampling rate and the ability to record fluctuations in RMS data, the MR8870-20 is ideal for applications such as motor startup analysis, inverter output waveform monitoring, and CB timing measurements. Its portable design makes it easy to use on-site. Technical Details: Channels: 2 analog, 4 logic channels Max Sampling Rate: 1 MS/s (1 µs) Memory Capacity: 12 bits × 2 M-Words/channel Storage: CF card (up to 2 GB, FAT/FAT32) Display: 4.3-inch TFT color LCD Operating Temperature: 0°C to 40°C Power Supply: AC adapter (100–240 V), Battery Pack 9780 Dimensions: 176 mm (W) × 101 mm (H) × 41 mm (D) Weight: 600 g (with battery pack)
MR8875
MR8875 - Portable memory recorder
The Hioki MR8875 Memory Recorder is a high-speed, multi-channel logger designed for long-term data recording and real-time waveform monitoring. It supports various input modules for mixed signal measurement, including voltage, temperature, strain, and CAN signals, with a sampling period as short as 2 µs. Its robust design is suitable for harsh environments, making it ideal for applications such as battery evaluation, motor testing, and power equipment analysis. Technical Details: Channels: Up to 60 channels with input modulesSampling Rate: 500 kS/sMemory Capacity: 32 MW (64 MB) Display: 8.4-inch TFT color LCD Storage: SD card, USB memory stick Dimensions: 298 mm × 224 mm × 84 mmWeight: 2.4 kg (excluding modules)
MR8880-20
MR8880 - Portable Memory Recorder, 4 Channels
The MR8880 is a 4 channel portable data acquisition system (DAQ) with a maximum sampling rate of 1Msamples/s on all analog channels simultaneously.
It has 4 analog direct input channels for voltages up to 600V and 8 logic channels.Technical Details: Complies CAT III 600V isolation for direct measure of 480V power line 4 complete isolated channels Operating temperature range of -10°C to 50°C Built to withstand mechanical shocks and vibrations PRESET function A memory capacity of 14bit × 1 M words/ch (1 word = 2 bytes)
20
%
LR8513
LR8513 - Bluetooth Current Logger
Compact 2-channel data logger, AC current logging with BNC current sensors, Bluetooth, max. 500 000 data points/channel, AC, DC or battery operation
LR8450
LR8450 - Modular multi-channel Data Logger
Multi-channel data logger, connect up to 4 plug-in modules with up to 120 analog channels, max. 1 ms update interval, max. 100 VDC, 8 inputs for pulse/logic/rotational speed, 7“ TFT-Display, GigabitLAN und USB / SD card, optional battery operation.
LR8450-01
LR8450-01 - Wireless modular multi-channel Data Logger
WLAN-fähiger Mehrkanal-Datenlogger mit bis zu 4 Einsteck- und 7 WLAN-Modulen (max. 330 Kanäle), 1 ms Intervall, 100 VDC, 8 Eingänge für Puls/Logik/Drehzahl, 7″ TFT, Gigabit-LAN, USB/SD, optionaler Batteriebetrieb.
PQ3198-94

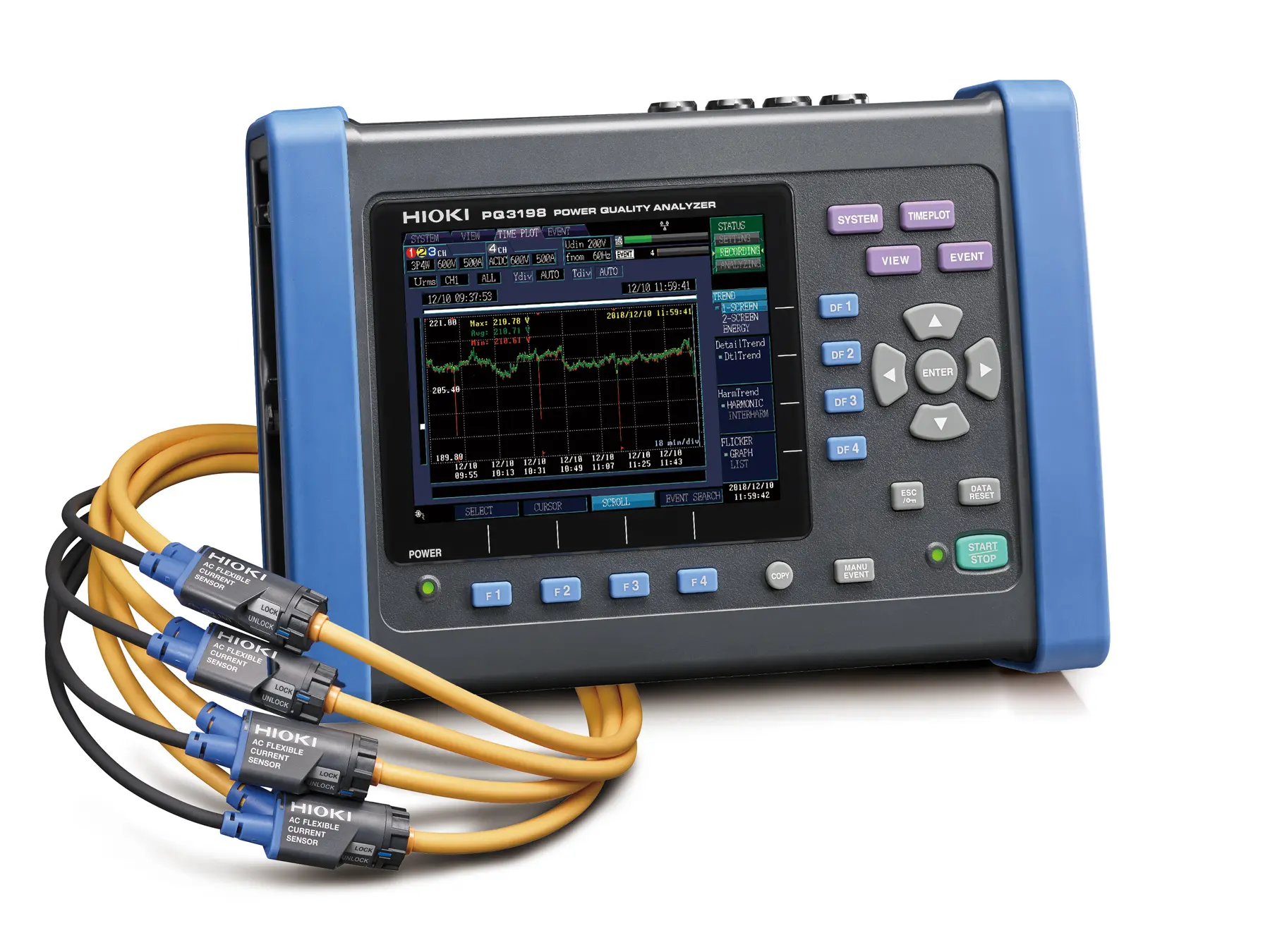

PQ3198-94 - Power quality analyser kit with 4 flexible current clamps
