CM3291 - AC Current clamp meter

€118.40*

% €148.00* (20% saved)

Content: 1 Each

In stock, delivery time: Ready for dispatch

Special price: The packaging may show slight external damage, it could be a discontinued model, or the items are surplus goods.

Available stock: 4

Product details

Product number: CM3291

EAN: 4536036012657

Width: 160 mm

Height: 1980 mm

Weight: 0.41 kg

Product information "CM3291 - AC Current clamp meter"

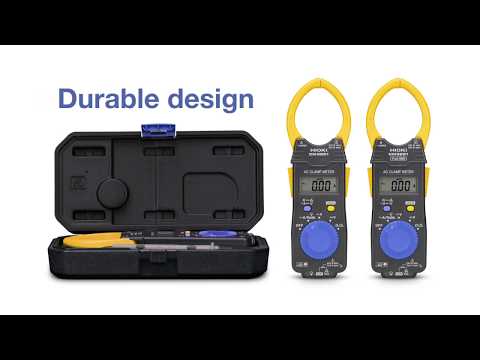

The CM3291 AC Clamp Meter is designed for high-accuracy current measurement, featuring True RMS technology for precise readings even with distorted waveforms. It can measure up to 2000 A AC with a large 46 mm jaw diameter, allowing for easy clamping of thick cables. The CM3291 is highly durable, capable of withstanding extreme temperatures from -25°C to 65°C, and it is drop-resistant up to 1 meter. This clamp meter is ideal for tough industrial environments, providing reliable and safe measurements across a broad range of applications.

Technical Details:

AC Current Measurement Range: 42.00 A, 420.0 A, 2000 A
Core Jaw Diameter: 46 mm
Frequency Range: 40 Hz to 1 kHz
Operating Temperature: -25°C to 65°C
Drop-Proof: 1 meter
Safety Rating: CAT IV 300 V, CAT III 600 V
Power Supply: CR2032 coin-type battery (70 hours continuous use)
Dimensions: 57 mm (W) × 198 mm (H) × 16 mm (D) Weight: 103 g

CM3291
Carrying case
Test lead L9208
Instruction manual
1x Coin type lithium battery CR2032 (for trial purposes only)
