Genuine HIOKI Accessories for Your Test Instruments

Complete your test and measurement gear!

Enhance your measurement solutions with high-quality accessories. Whether you need precise measuring cables, specialized adapters, or durable carrying cases – our extensive range of accessories and options offers exactly what you need to optimize and expand your HIOKI measuring devices. Increase your efficiency and achieve even more accurate results with perfectly matched accessories from HIOKI.

Cases, bags & protectors

Test fixtures

Test leads & probe tips

Power supplies

Connection cables

C0213

C0213 - Fabric bag for E-KFZ environment

Carrying case, bag type for EV maintenance instruments, EV maintenance manual included.

€198.00*

C1004

C1004 - Case with castors for MR8875

The C1004 is a rugged rolling hard case designed specifically for the MR8875. It features built-in wheels and a telescoping handle, providing excellent mobility for field use. The case includes dedicated compartments for both the main unit and additional accessories, ensuring secure and organized storage. This robust trunk-style case offers exceptional protection for your equipment during transport.Technical Information: Length: 5570 mm Width: 2380 mm Height: 3760 mm Weight: 6.3 kg Type: Rolling hard case with wheelsCompatibility: MR8875, includes compartment for accessories

€678.00*

9261-10

9261-10 - TEST FIXTURE

The test fixture 9261-10 is designed for use with IM3590, IM3570, IM3533, IM3523, and similar products. It consists of a test box and a 1-meter 4-pole BNC cable, offering an impedance characteristic of 50 Ohms. The fixture supports measurements within a range from DC to 8 MHz. It accommodates test objects with conductor diameters from 0.3 mm to 1.5 mm, making it suitable for various precision testing tasks. Technical Details: Compatible with: IM3590, IM3570, IM3533, IM3523, and similar products Components: Test box, 1m 4-pole BNC cable Impedance: 50 Ohms Measurement range: DC to 8 MHz Test object conductor diameter: 0.3 mm to 1.5 mm

€798.00*

9268-10

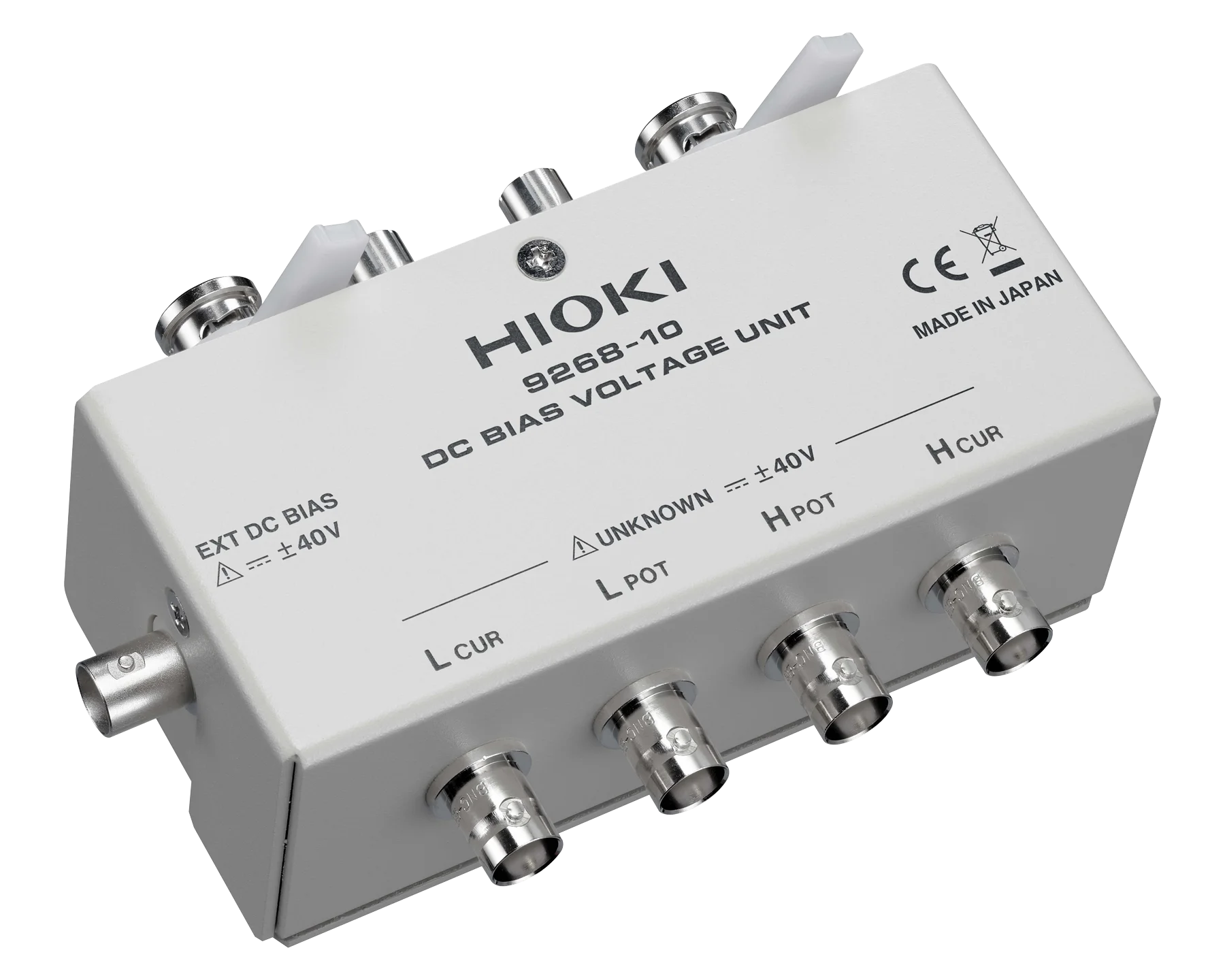

9268-10 - DC BIAS VOLTAGE UNIT

The 9268-10 is a DC-Bias voltage application unit that can apply up to 40 VDC, requiring an external power supply. It is easily attached between the impedance meter and the test fixture, providing a seamless setup for testing. With a bandwidth of 40 Hz to 8 MHz, the 9268-10 supports a wide range of measurement applications, accommodating both low and high-frequency testing needs. Technical Details: DC-Bias voltage: Up to 40 VDC (external power supply required) Bandwidth: 40 Hz to 8 MHz Connection: Easily attaches between impedance meter and test fixture Measurement applications: Supports low to high-frequency testing

€628.00*

Z1013

Z1013 - Power supply unit for Hioki SP3000 and SP7150

Z1013 is an accessory AC Adapter for CM4003, SP3000, SP7001-95, SP7150. Technical Details: AC Inlet:IEC-60320-C14Input range: 100VAC to 240VAC Output: 5VDC, 2.6A, Pmax 13W Ripple & Noise: 100mVpp DC plug: USB A TYPE

€128.00*

Z1007

Z1007 - Battery Pack for LR8450 Series

The Z1007 is a lithium-ion battery pack for data loggers and wireless logger modules of the HIOKI LR8450 series.The batteries charge while installed in the data logger or one of the wireless modules. If a wireless module is powered via an AC adapter and the power supply is interrupted during a measurement, the wireless module will automatically switch to battery power.The LR8450 and LR8450-01 data loggers can be equipped with either one or two Z1007 battery packs, while each wireless logger module requires one Z1007. Installing one Z1007 in a logger provides approximately 2 hours of measurement time on battery power, depending on the number of connected modules. Using two Z1007 packs roughly doubles the runtime to around 4 hours.When a Z1007 is installed in a wireless logger module, the approximate runtimes are as follows:LR8530: 9 hoursLR8531: 7 hoursLR8532: 9 hoursLR8533: 9 hoursLR8534: 5 hoursLR8535: 10 hours (5 hours when using two non-contact CAN sensors)LR8536: 5 hoursTechnical details: Battery type: Lithium ionFor use with: LR8450, LR8450-01, LR8530, LR8531, LR8532, LR8533, LR8534, LR3535, LR8536Replacement battery for: LR8410, LR8510, LR8511More than specs – find more details here:🔗 Measure, Analyze & Optimize Current Consumption

€158.00*

Z3210

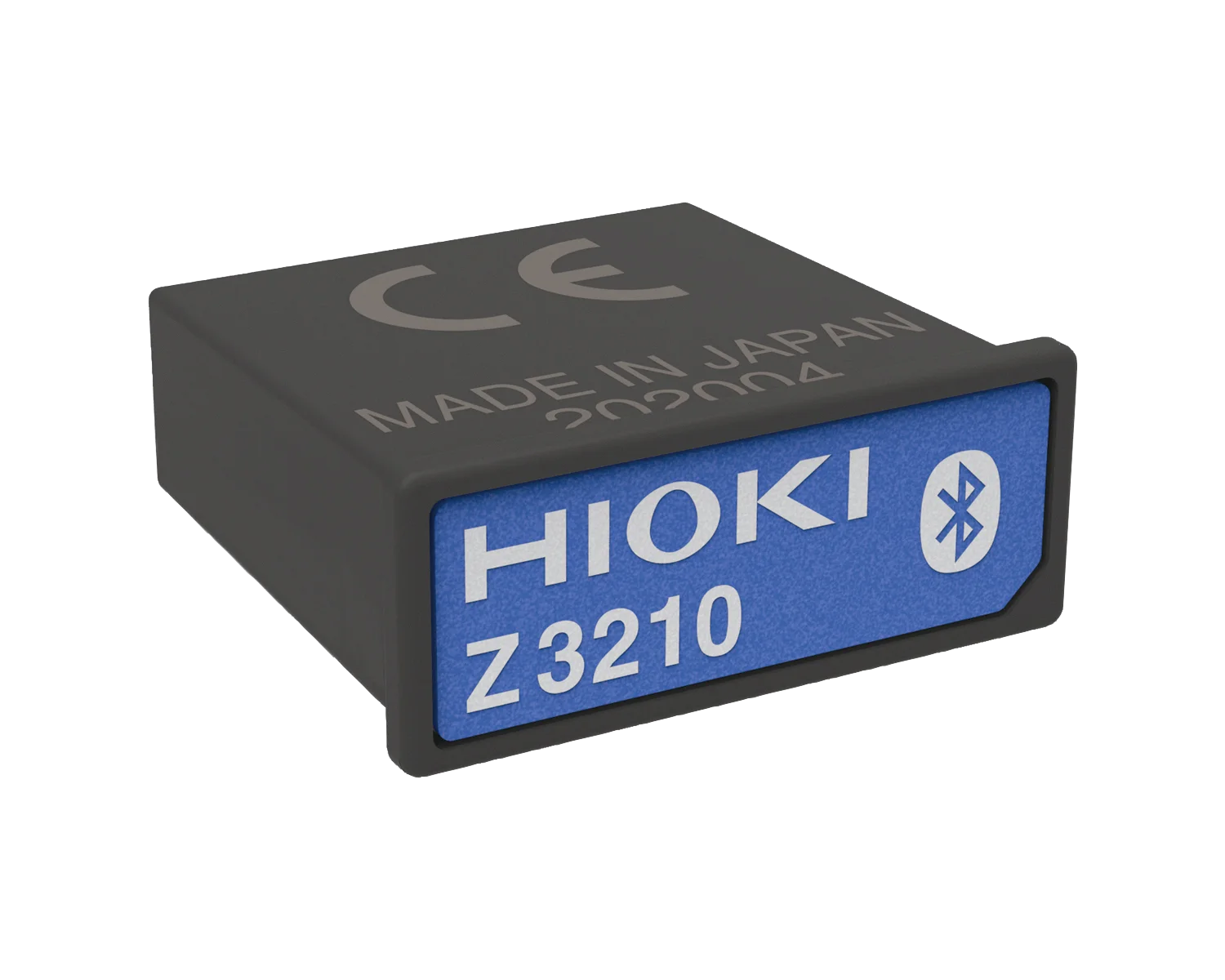

Z3210 - Bluetooth Adapter

Der Bluetooth-Adapter Z3210 ermöglicht die drahtlose Kommunikation zwischen kompatiblen HIOKI-Produkten und damit eine einfache Datenübertragung und Fernsteuerung.

€108.00*

RM9004

RM9004 - TEST FIXTURE

The RM9004 Test Fixture is designed exclusively for use with the Electrode Resistance Measurement System RM2610. It should be affixed to the RM9003 Press Unit prior to use. Technical details:Replacement part

€9,048.00*

9050

9050 - Earthing mat

9050 Earth Nets The Hioki 9050 Earth Nets are an essential accessory for improving earth resistance measurements on concrete surfaces. Specifically designed to enhance the conductivity of auxiliary earthing electrodes, they ensure reliable and accurate grounding measurements when traditional methods fall short.Ideal for use in environments where concrete’s conductivity can be leveraged, the 9050 Earth Nets offer a simple yet effective solution to achieve consistent results. Their compatibility with Hioki models, including the 3124, 3150, 3151, FT3151, and FT6031-03, makes them a versatile addition to your measurement tools.Technical Information: Product: Hioki 9050 Earth Nets Quantity: 2 sheets per set Dimensions: 300 mm × 300 mm Compatible models: Hioki 3124, 3150, 3151, FT3151, FT6031-03

€128.00*

L2101

L2101 - CLIP TYPE LEAD

The L2101 clip type lead features Kelvin clamps, providing precision measurements for resistance testing, designed specifically for the RM3544 and RM3545 series. Technical Details: Length: A: 250 mm, B: 84 mm, L: 1.5 m Compatibility: RM3544, RM3545 series

€168.00*

L9787

L9787 - TEST LEAD

The L9787 Test lead set is an option for Hioki Insulation Testers and Earth Testers, applicable for the simplified measurement method and indoor use only! Part of the set is a crocodile clip. Technical Information: Length: 1.2 m Cable and Tip colour: red/black Aligator clip: black, one pcs. Measurement Tips: one black, one red Usage: Indoor only Voltage safety category: Lead: CATIII 1000V, CATIV 600V, Tip /w cover CATII 600V, Tip w/o cover CATII 600V, Clip CATIII 1000V, CATIV 600V Max current: 10A Option for: IR4016, 3490, IR4016, IR4017, IR4018, IR4053, IR4056, IR4057-50, IR4059, IR4059, IR5050, IR5051, FT3151, FT6031-50, FT6041

€38.00*

CT9902

CT9902 - EXTENSION CABLE

The CT9902 is a 5-meter extension cable designed for use with ME15W-equipped current transformers (CTs), providing additional length for versatile installations. Technical Details: Length: 5 meters Connectors: ME15W(m 12pin) / ME15W(w 12pin) Compatibility: ME15W-equipped CTs

€228.00*
