9790-03 - Electronics measuring tips
€48.00*
Content:
1 Each
In stock, delivery time: Ready for dispatch
Available stock:
1
Product details
Product number:
9790-03
EAN:
4536036008438
Weight:
0.01 kg
Product information "9790-03 - Electronics measuring tips"

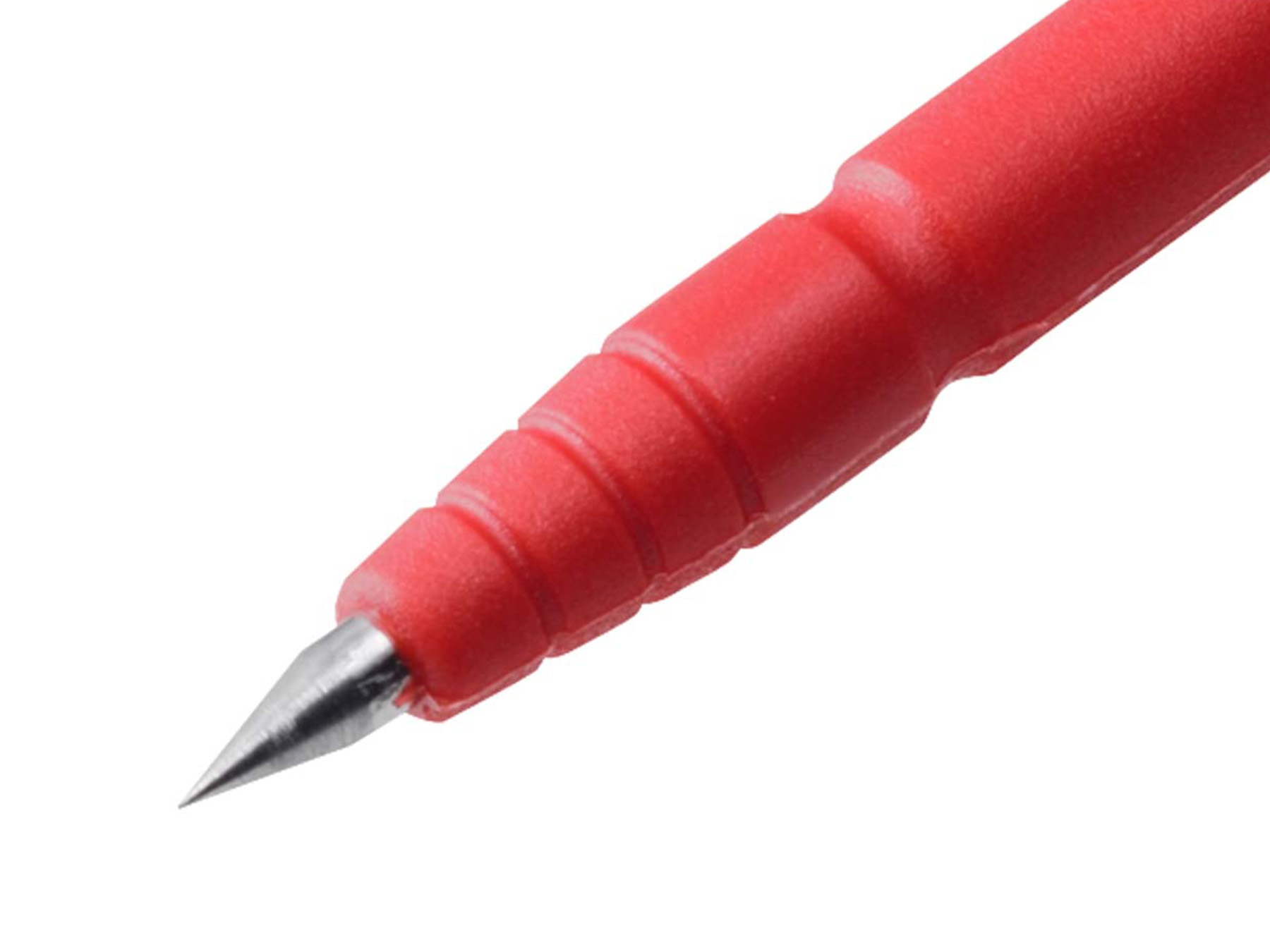

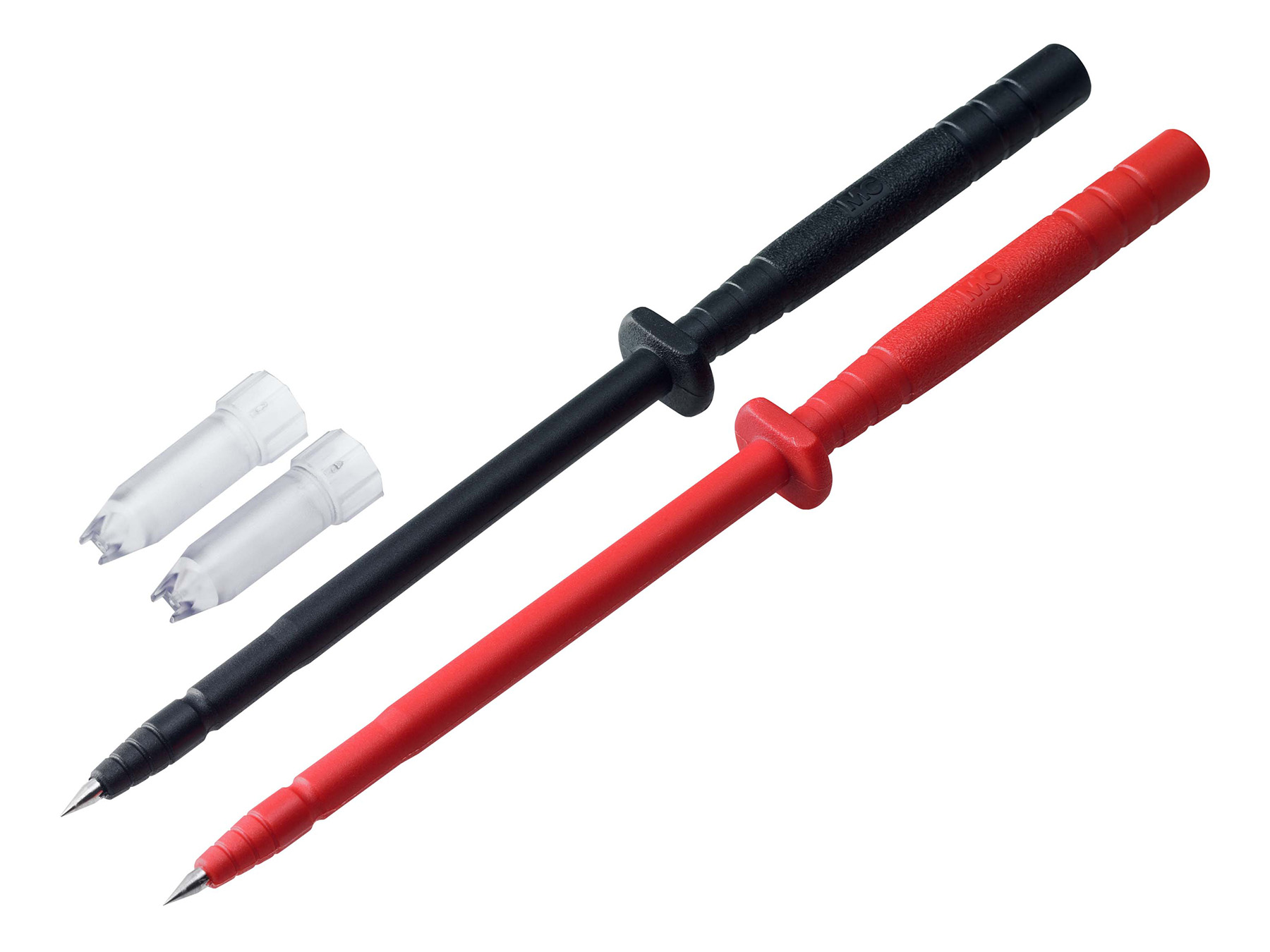

The 9790-03 is a set of measuring tips, consisting of one black and one red tip. They are designed for use with the L9790 measuring cable and ensure safe and precise testing. The included protective caps prevent short circuits in tight testing environments.
Technical Information:
- Overall length: Refer to the external diagram
- Contact pin diameter: Ø 2 mm
- Compatible with: L9790 cable
- Voltage limit: 300 V when attached to the L9790 cable
- 9790-03
