9790-02 - Hook clamps
€48.00*
Content:
1 Each
In stock, delivery time: Ready for dispatch
Available stock:
1
Product details
Product number:
9790-02
EAN:
4536036008421
Weight:
0.01 kg
Product information "9790-02 - Hook clamps"

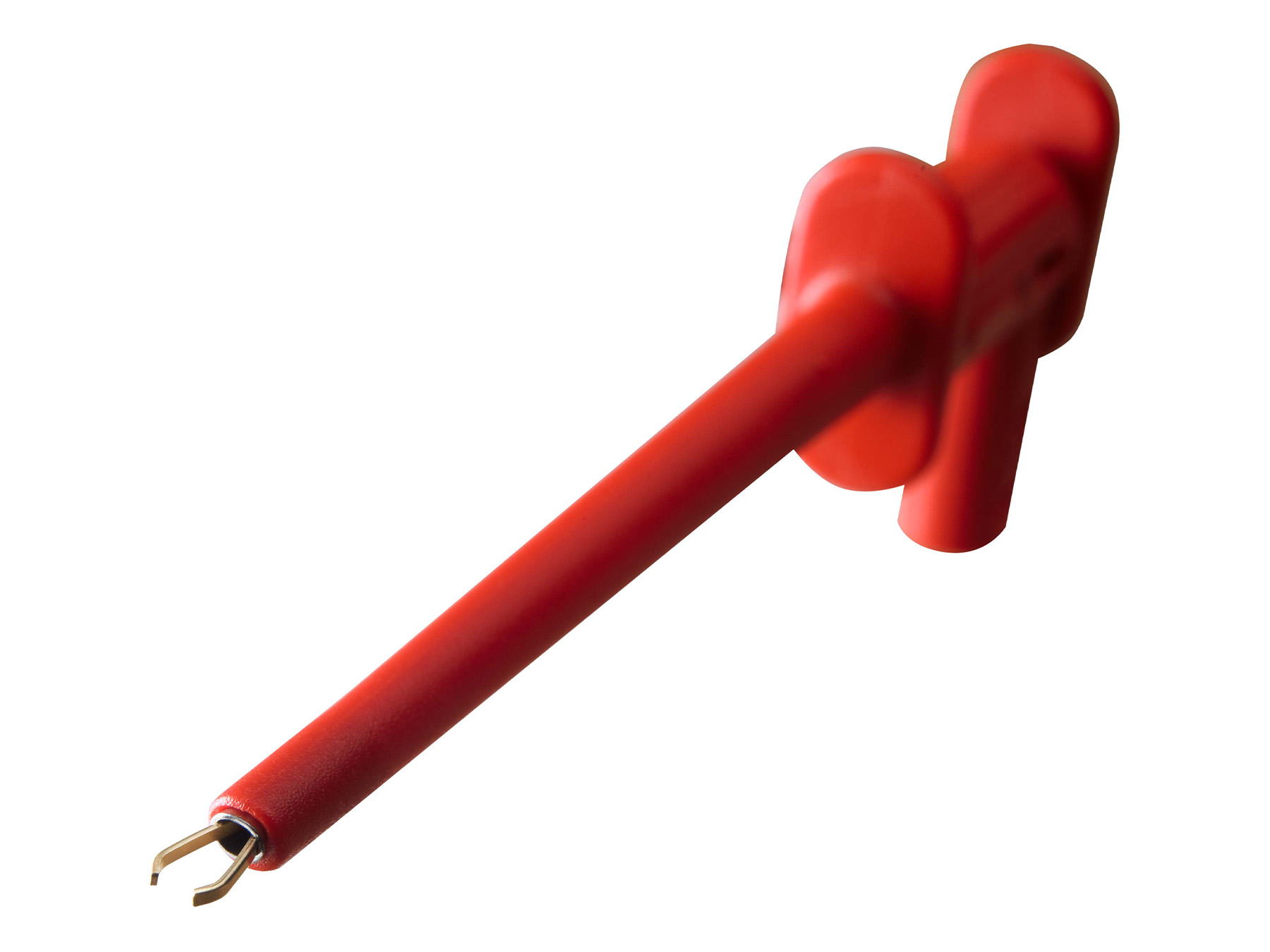

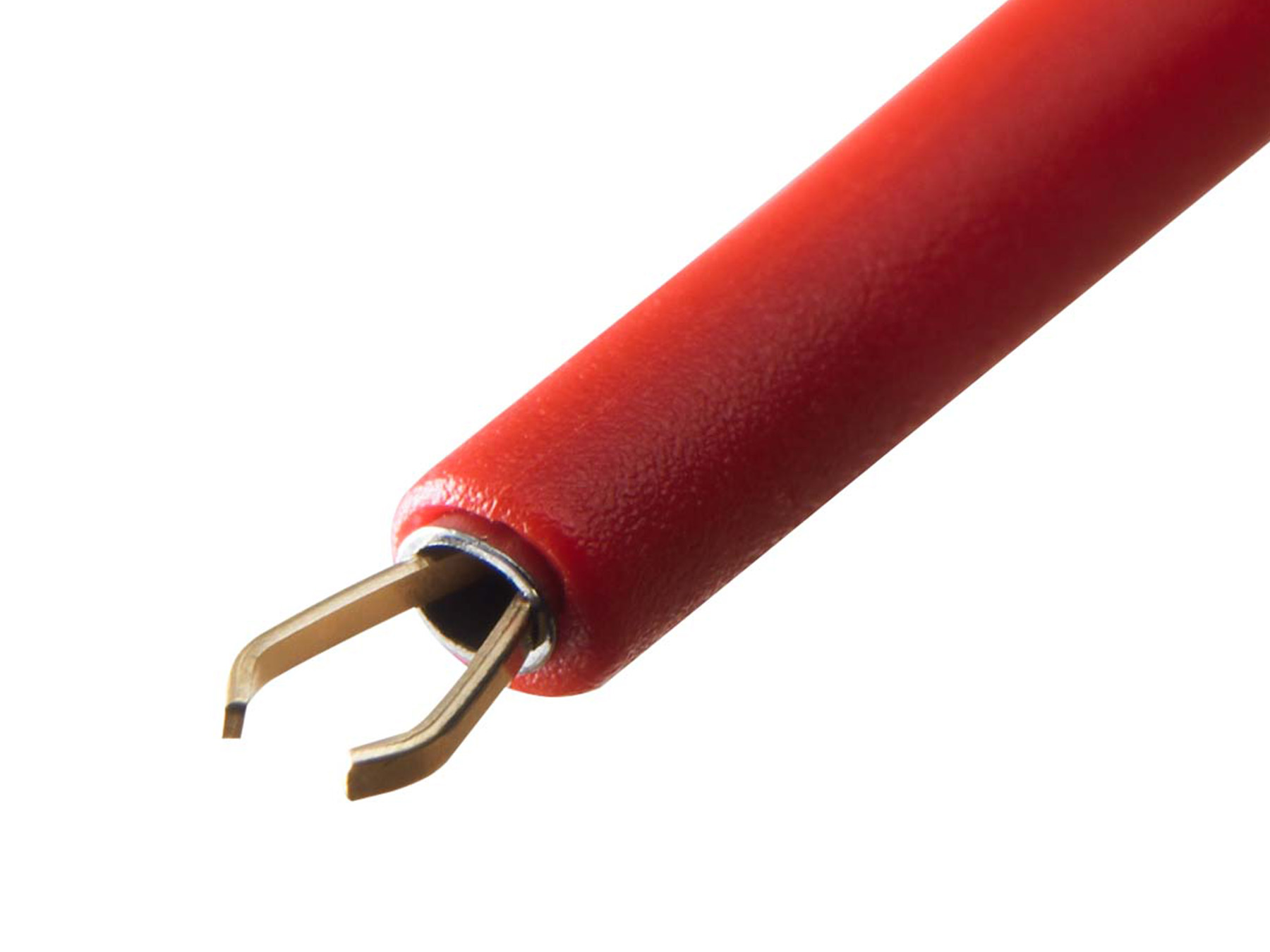

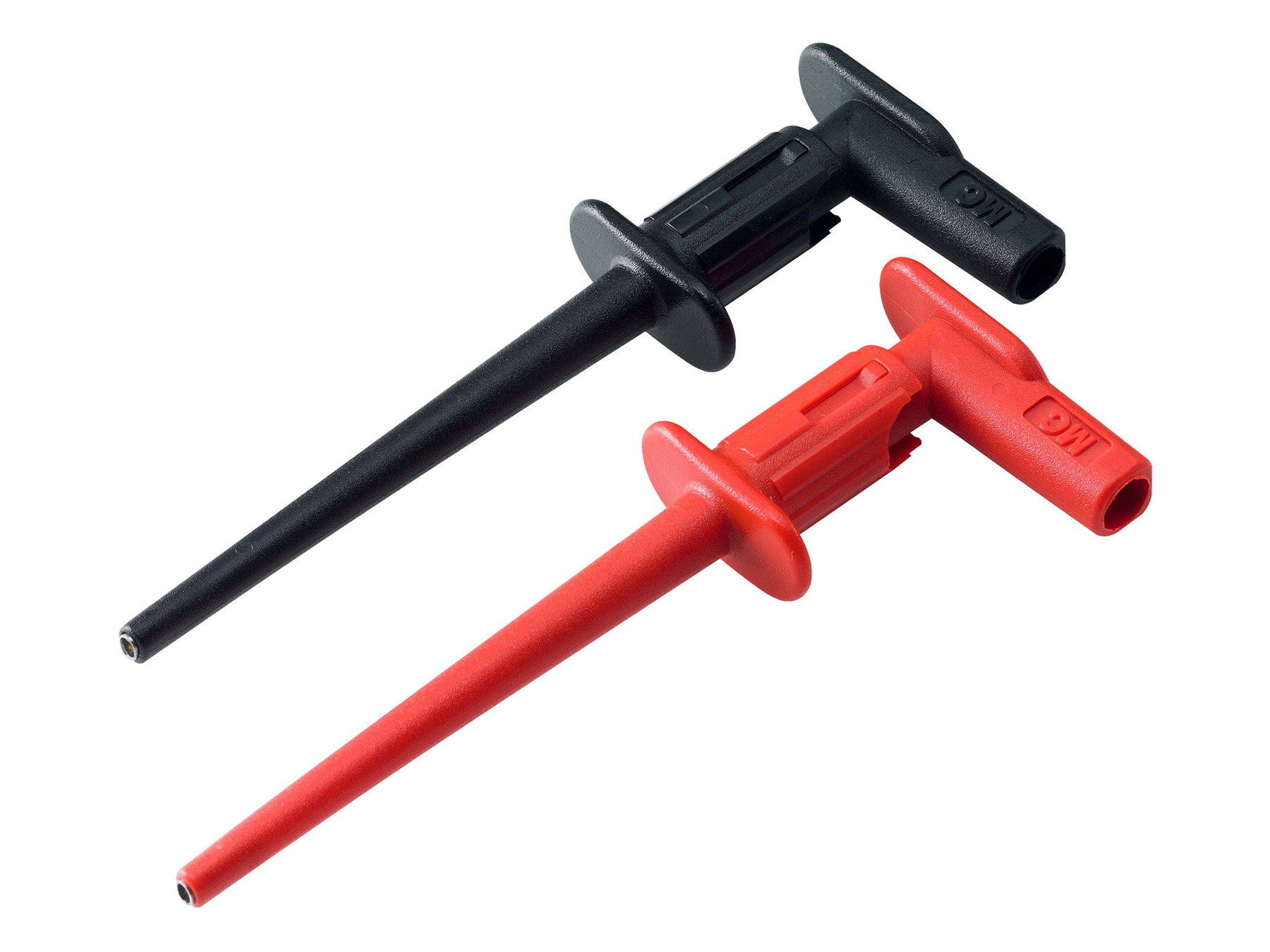

The 9790-02 hook clamps are a pair of grabber clips, fully insulated in red and black, designed to attach to the ends of the L9790 cable. These clamps offer secure and reliable connections in measurement applications, providing robust insulation and compatibility with spring-loaded Ø 2 mm plugs.
Technical Information:
- Overall length: 75 mm
- Socket diameter: Ø 2 mm
- Compatible with: L9790 cable
- Voltage limit: 300 V (CAT III) when attached to the L9790 cable
- 9790-02
