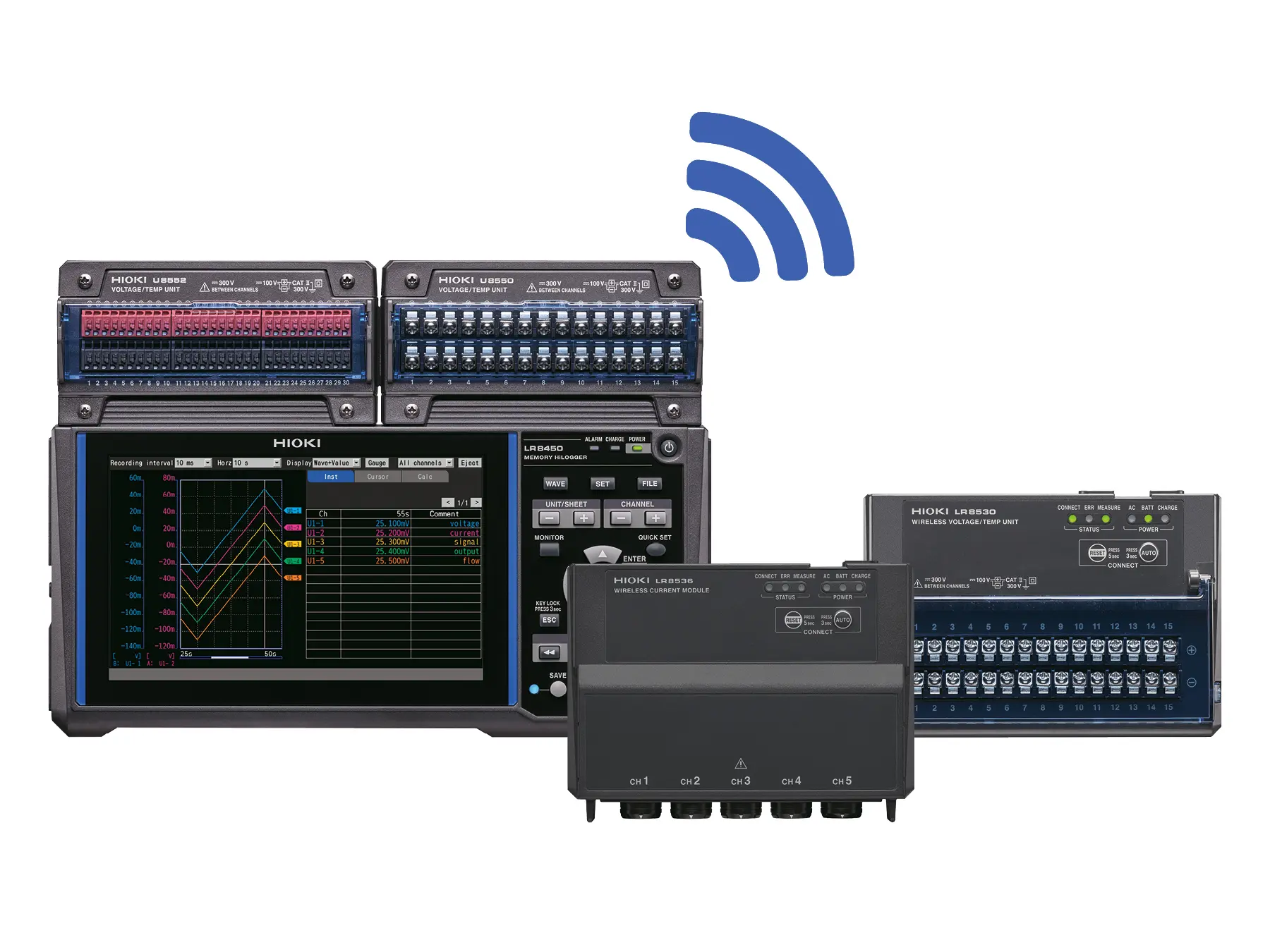

LR8536 - 5-channel wireless logger module for current sensors, 1 ms
5-channel wireless interface and signal conditioning module for the LR8450-01 Data Logger to connect HIOKI Current Sensors with a PL14 connector
Available stock:
1
Product number:
LR8536
EAN:
4536036015283
Length:
123 mm
Width:
154 mm
Height:
265 mm
Weight:
0.377 kg
Product information LR8536 - 5-channel wireless logger module for current sensors, 1 ms
Key Specifications
- 5 input channels with individual signal conditioning
- 1 ms simultaneous update interval
- Battery-powered wireless operation in tight spaces
- Operating temperature -20 oC to 55 oC
- Up to 7 modules can wirelessly connect to one LR8450-01 Data Logger
- Can be combined with a large variety of current sensors from 2 A to 6000 A
Unique Advantages
- Individual scaling for each current sensor
- Current logging from 100 µA to 2 kA DC in one device
- Up to 35 channels current logging with 1ms update interval
- High-voltage Electric Vehicle (EV) battery current logging and low power circuit current logging possible with a single device
- Compact size and wireless capability, perfect for use in confined spaces
Typical Applications
- Development and analysis tool for improving the fuel efficiency of EV
- Consumption monitoring of EV high-voltage batteries and low-voltage circuits like power steering, seat heating, interior lighting etc.
- Optimizing the overall energy consumption of EVs to extend the driving range
- Optimizing the overall energy consumption of electric construction vehicles or electric agricultural vehicles to extend the time between charging
Detailed Product Overview
The LR8536 Wireless Current Module is the interface between up to 5 clamp-on current sensors and the LR8450-01 Data Logger. Each current sensor input has its own signal conditioning which makes it possible to have individual scaling and simultaneous 1 ms recording. The module is exclusively designed to add current logging functionality to the highly versatile LR8450-01 Data Logger. Up to seven LR8536 modules can be connected wirelessly to a single LR8450-01 Data Logger.The module can be used with the ultra-compact yet high-precision current sensors CT7812 and CT7822 as well as with a variety of other HIOKI current sensor types reaching from 2 A to 6 kA. These can be used in any combination in accordance with the application and test requirements, providing extended usability of the data logger. All temperature-compensated HIOKI current sensors with a PL14 connector are suitable to be used in combination with the new LR8536 wireless current module.
Your Path to Better Energy Efficiency: Current Mapping
High Precision Current Logging. Ultra-Compact
Current Sensors for the LR8450 Data Logger Series
Get to know the LR8450-01
- LR8536
- Wireless LAN Adapter Z3230
- Instruction manual
- AC Adapter Z1008
- Mounting plate
- 2x M3×4 screw (for the mounting plate)
- 5 caps
-
Product catalog with data sheet, current sensors & current probes series (English)15,125 KB pdf
-
Product brochure with datasheet, Data Logger LR8450, LR8450-01 (English)21,561 KB pdf
-
Instruction Manual, Wireless Modules Dedicated to Data Logger LR8450-01 (English, Japanese)2,396 KB pdf
-
Product brochure with data sheet, comptact current probes/current sensors CT6830, CT6831, CT6833, CT6834, CT7812, CT7822 (English)2,439 KB pdf
-
Flyer, DATA LOGGER LR8450, LR8450-01 Current Measurement Solutions for EV Development (English)3,616 KB pdf
