HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz

Ultra-small, zero-flux clamp-on AC/DC Current Probe using flux gate detection, high accuracy ±0.3%, max. resolution 1 mA, wide temperature range -40 to 85 oC, measurable current up to 20 A, designed exclusively for LR8450 Series Data Logger
Skip image gallery
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz

€1,338.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
Also in stock at:
  • Fast delivery across Europe
  • EU business invoices

€1,338.00

HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz
Product number: CT7822
Available stock: 1
GTIN/EAN: 4536036015344
Description

Product information HIOKI CT7822 - Ultra-compact AC/DC Current Probe, 20 A / 100 kHz

Key Specifications

  • High accuracy ±0.3%
  • Measurable current 1 mA to 20 A
  • Ultra small size sensor with slide open/lock mechanism
  • Wide temperature range -40 to 85oC
  • DC to 5 kHz bandwidth with LR8450 Data Logger


Unique Advantages

  • Easy installation, even in tight spaces
  • Accurate low current measurement
  • Allows for stable measurement from Alaska to the Sahara


Typical Applications

  • Development and analysis tool for improving the energy efficiency of electric vehicles (EV)
  • Consumption monitoring of low power EV circuits like Engine Control Units (ECUs), wipers, entertainment system, seat heating etc.
  • Optimizing the overall energy consumption of low power circuits in EVs to extend the driving range
  • Optimizing the overall energy consumption of low power circuits in electric construction vehicles or agricultural vehicles to extend the time between charging

Detailed Product Overview

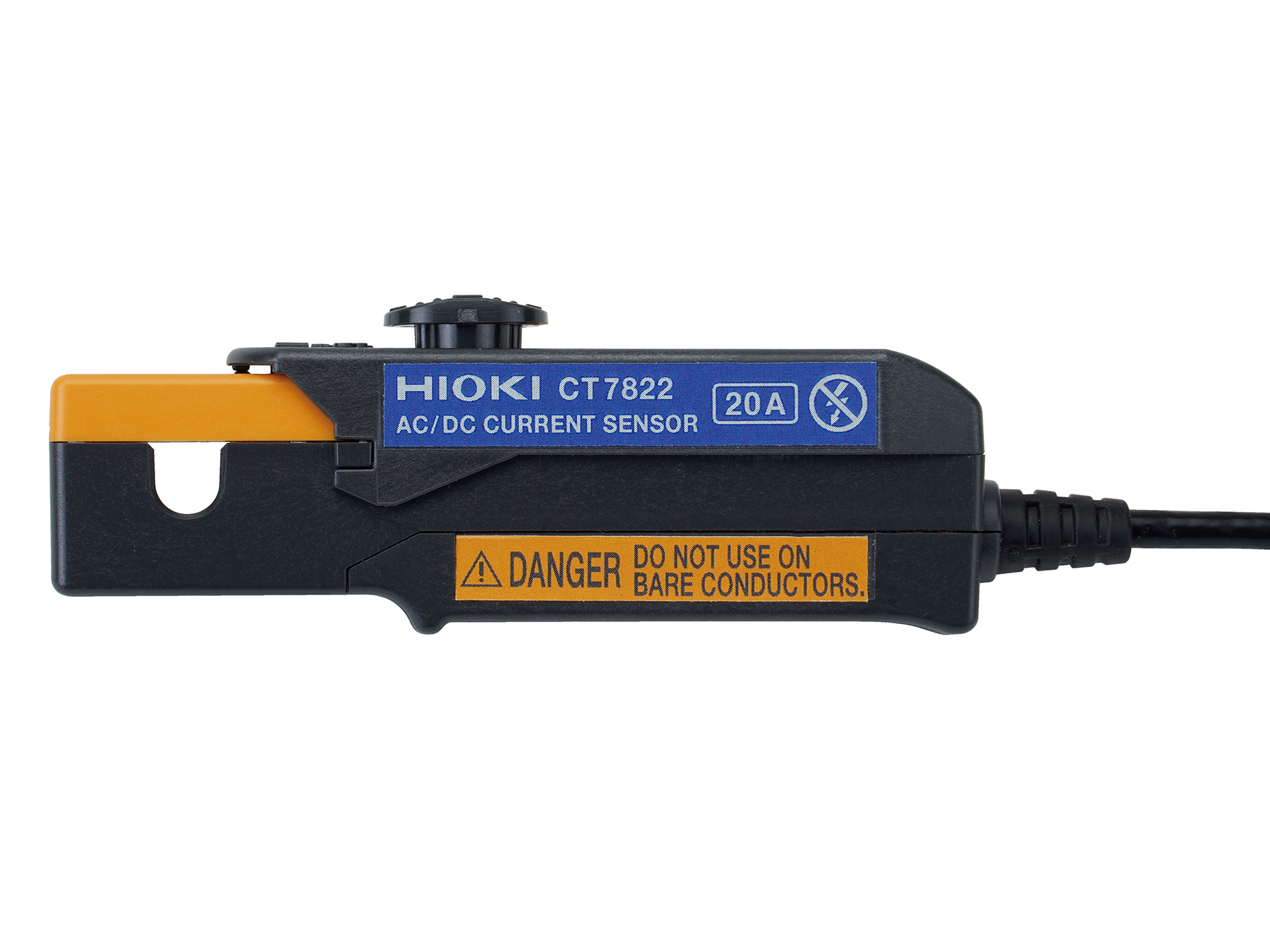

The ultra small CT7822 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents up to 20 A AC/DC is possible even in the most confined spaces with a basic accuracy of ±0.3 % and an impressive resolution of 1 mA (2 A range). It gives development engineers of EVs, electric trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor the energy consumption under the most extreme temperature conditions.

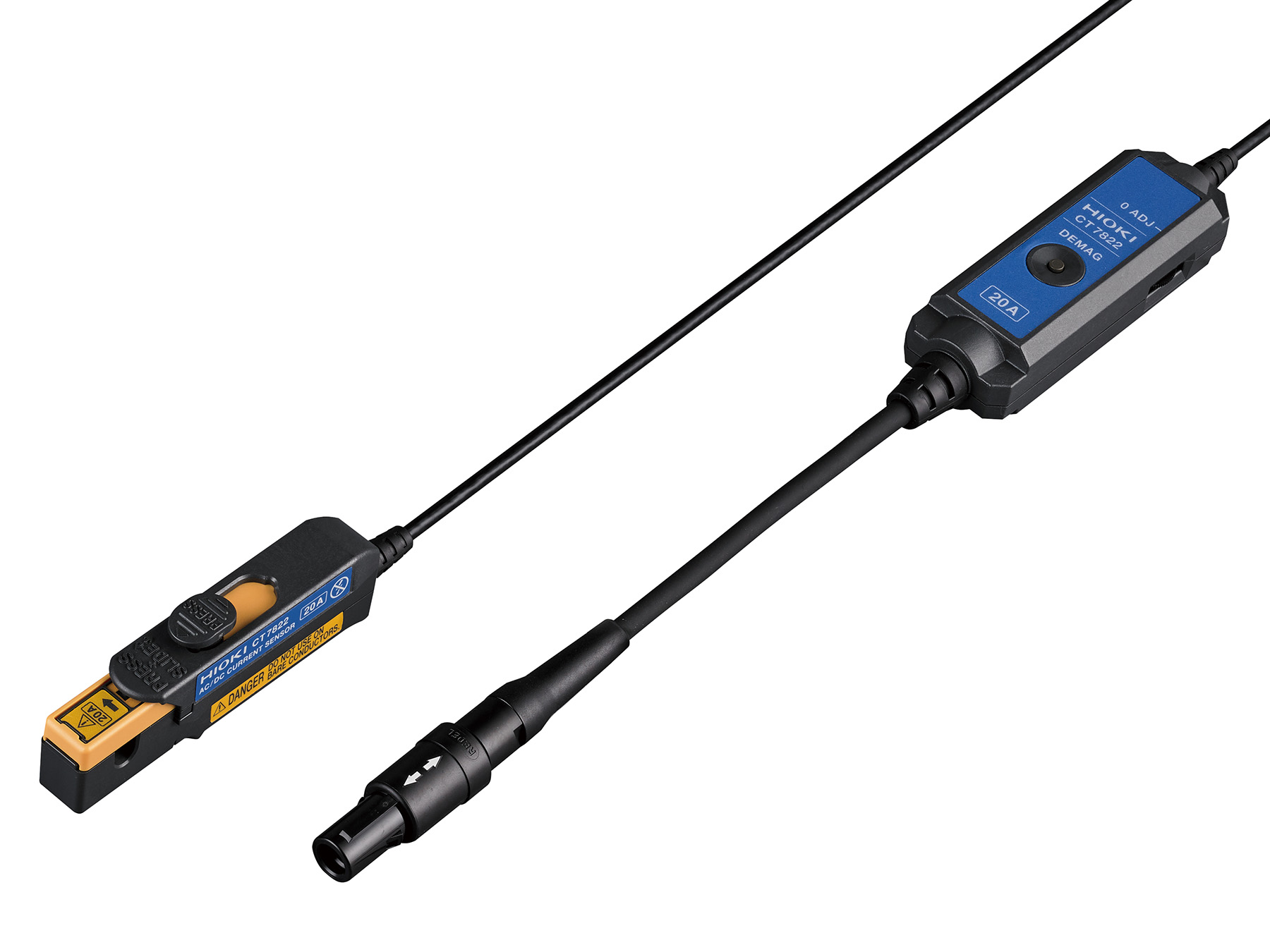

Exclusively designed to be used with the LR8450 Data Logger Series, up to 55 currents can be logged simultaneously on one device at a bandwidth of up to 5 kHz. Applications range from providing a detailed energy consumption insight of a vehicle under test to other complex electrical systems. The CT7822 with its PL14 connector can be used with the LR8450 Data Logger either in combination with the U8556 Plug-in Current Module or alternatively with the LR8536 Wireless Current Module (requires LR8450-01).


More than specs – find more details here:
What's in the Box
  • CT7822
  • Colored labels (for channel identification)
  • Carrying case
  • Instruction Manual
  • Operating Precautions

Dimensions & Packaging

Length 77 mm
Width 14 mm
Height 23 mm
Weight 0.14 kg
