LR8450 Data Logger Modules – Versatile. Flexible. Scalable.

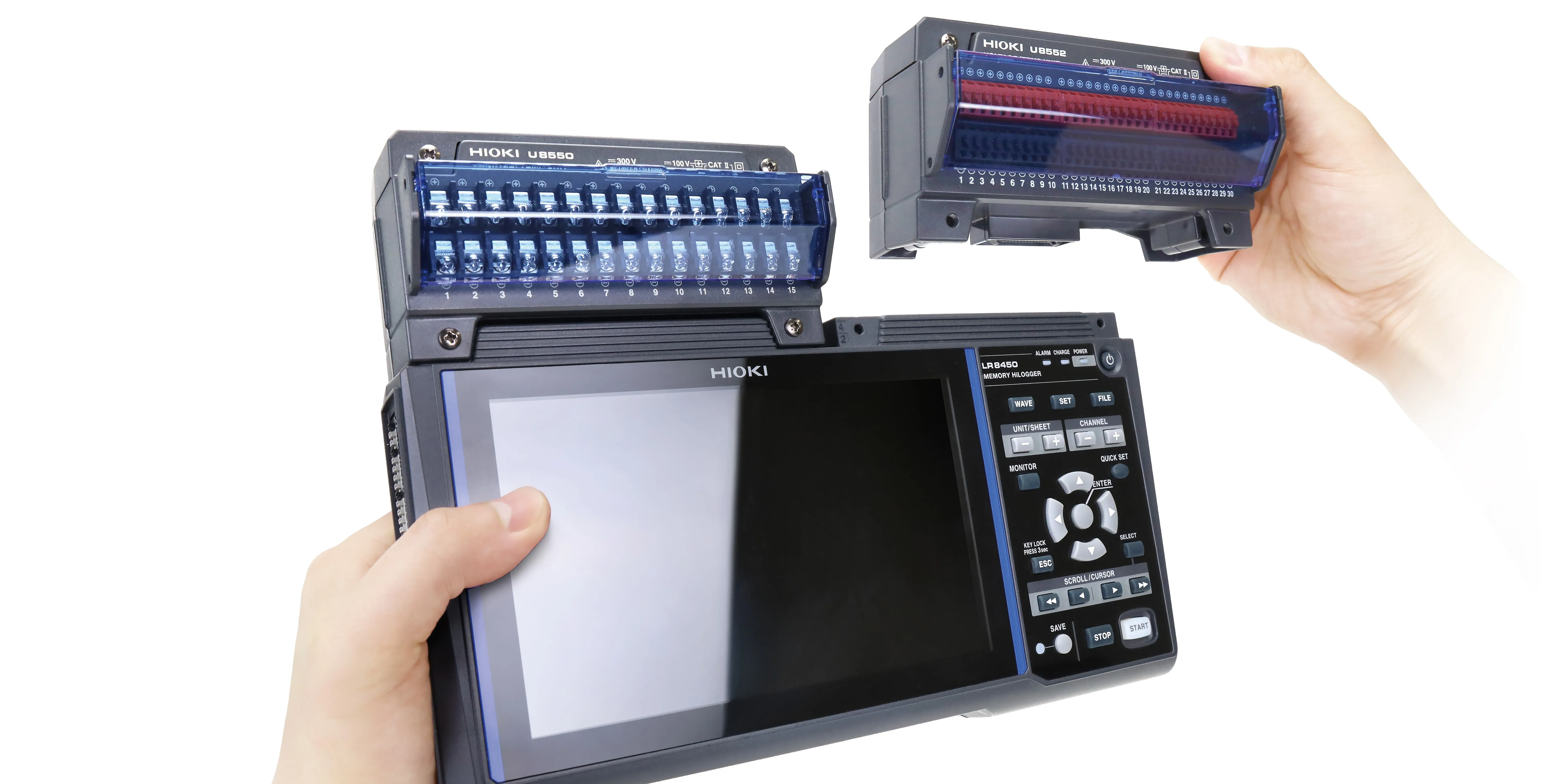

LR8450-module setting-IMG_4845

Configure your LR8450 measurement setup with the right combination of plug-in and wireless modules. The module lineup supports voltage, current, temperature, humidity, resistance, strain, pulse/logic signals, and CAN/CAN FD data.

Up to 4 plug-in modules can be connected directly, enabling up to 120 channels. With the LR8450-01 wireless model, up to 7 wireless modules can be added, expanding the system to a maximum of 330 channels.

2025-03-10-LR8450-icons_EN-01
2025-03-10-lr8450-icons-en-02_800
Skip product gallery

Plug-in modules

HIOKI U8550 - 15-ch logger module for voltage and temperature, 10 ms HIOKI U8550 - 15-ch logger module for voltage and temperature, 10 ms
U8550
HIOKI U8550 - 15-ch logger module for voltage and temperature, 10 ms
15-channel plug-in interface module for the LR8450 Data Logger Series, update interval 10 ms, for DC voltage, temperature, and humidity, 16 bits, 100 V direct input, 300 V isolation to earth and between channels

€718.00
View product
HIOKI U8551 - 15-ch logger module for voltage, temperature and resistance, 10 ms HIOKI U8551 - 15-ch logger module for voltage, temperature and resistance, 10 ms
U8551
HIOKI U8551 - 15-ch logger module for voltage, temperature and resistance, 10 ms
15-channel plug-in interface module for the LR8450 Data Logger Series, update interval 10 ms, for DC voltage, temperature, humidity and resistance, 16 bits, 100 V direct input, 300 V isolation to earth and between channels, spring-cage terminal block

€1,068.00
View product
HIOKI U8552 - 30-ch logger module for voltage and temperature, 10 ms HIOKI U8552 - 30-ch logger module for voltage and temperature, 10 ms
U8552
HIOKI U8552 - 30-ch logger module for voltage and temperature, 10 ms
30-channel plug-in interface module for the LR8450 Data Logger Series, update interval up to 10 ms, for DC voltage, temperature, and humidity, 16 bits, 100 V direct input, 300 V isolation to earth and between channels, spring-cage terminal block

€1,068.00
View product
HIOKI U8553 - 5-ch logger module for voltage, 1 ms HIOKI U8553 - 5-ch logger module for voltage, 1 ms
U8553
HIOKI U8553 - 5-ch logger module for voltage, 1 ms
5-channel plug-in interface module for the LR8450 Data Logger Series, update interval 1 ms, for DC voltage, 16 bits, 100 V direct input, 300 V isolation to earth and between channels, M3 screw terminal block

€1,068.00
View product
HIOKI U8554 - 5-ch logger module for strain gauges, 1 ms HIOKI U8554 - 5-ch logger module for strain gauges, 1 ms
U8554
HIOKI U8554 - 5-ch logger module for strain gauges, 1 ms
5-channel plug-in interface module for LR8450 Data Logger Series, update interval 1 ms, for strain gauges, 16 bits, 1/2/4-gauge method, spring-cage terminal block

€2,268.00
View product
HIOKI U8555 - Logger module for CAN and CAN FD signals, 10 ms HIOKI U8555 - Logger module for CAN and CAN FD signals, 10 ms
U8555
HIOKI U8555 - Logger module for CAN and CAN FD signals, 10 ms
Plug-in interface module for LR8450 Data Logger Series, update interval 10 ms, for CAN and CAN FD signals input and output, 2 ports, max. 500 channels, D-sub 9-pin male connectors

€2,268.00
View product
HIOKI U8556 - 5-channel logger module for current sensors, 1 ms HIOKI U8556 logger module 5channel 1ms compatible with lr8450
U8556
HIOKI U8556 - 5-channel logger module for current sensors, 1 ms
5-channel plug-in interface and signal conditioning module for the LR8450 Series Data Logger to connect HIOKI Current Sensors with a PL14 connector

€1,388.00
View product
HIOKI U8557 – 15-channel logger module for resistance and thermistor measurement, 50 ms HIOKI U8557 – 15-channel logger module for resistance and thermistor measurement, 50 ms
U8557
HIOKI U8557 – 15-channel logger module for resistance and thermistor measurement, 50 ms
15-channel plug-in module for LR8450 Data Loggers, update interval 50 ms, measurement of temperature via thermistors and resistance, max 200 kΩ, 100 V direct input, 300 V isolation to earth and between channels, spring-cage terminal block

€1,068.00
View product
Skip product gallery

Wireless modules

HIOKI LR8530 - 15-ch wireless logger module for voltage and temperature, 10 ms HIOKI LR8530 - 15-ch wireless logger module for voltage and temperature, 10 ms
LR8530
HIOKI LR8530 - 15-ch wireless logger module for voltage and temperature, 10 ms
15-channel wireless interface module for LR8450-01 Data Logger, update interval 10 ms, for DC voltage and temperature, 16 bits, 100 V direct input, 300 V isolation, AC or battery operation, M3 screw terminal block

€1,428.00
View product
HIOKI LR8531 - 15-ch wireless logger module for voltage, temperature and resistance, 10 ms HIOKI LR8531 - 15-ch wireless logger module for voltage, temperature and resistance, 10 ms
LR8531
HIOKI LR8531 - 15-ch wireless logger module for voltage, temperature and resistance, 10 ms
15-channel wireless interface module for LR8450-01 Data Logger, update interval 10 ms, for DC voltage, temperature, humidity and resistance, 16 bits, 100 V direct input, 300 V isolation, AC or battery operation, spring-cage terminal block

€1,698.00
View product
HIOKI LR8532 - 30-ch wireless logger module for voltage and temperature, 10 ms HIOKI LR8532 - 30-ch wireless logger module for voltage and temperature, 10 ms
LR8532
HIOKI LR8532 - 30-ch wireless logger module for voltage and temperature, 10 ms
30-channel wireless interface module for LR8450-01 Data Logger, update interval 10 ms, for DC voltage and temperature, 16 bits, 100 V direct input, 300 V isolation, AC or battery operation, spring-cage terminal block

€2,048.00
View product
HIOKI LR8533 - 5-ch wireless logger module for voltage, 1 ms HIOKI LR8533 - 5-ch wireless logger module for voltage, 1 ms
LR8533
HIOKI LR8533 - 5-ch wireless logger module for voltage, 1 ms
5-channel wireless interface module for LR8450-01 Data Logger, update interval 1 ms, for DC voltage, 16 bits, 100 V direct input, 300 V isolation, AC or battery operation, M3 screw terminal block

€1,668.00
View product
HIOKI LR8534 - 5-ch wireless logger module for strain gauges, 1 ms HIOKI LR8534 - 5-ch wireless logger module for strain gauges, 1 ms
LR8534
HIOKI LR8534 - 5-ch wireless logger module for strain gauges, 1 ms
5-channel wireless interface module for LR8450-01 Data Logger, update interval 1 ms, for strain gauges, 16 bits, 1/2/4-gauge method, AC or battery operation, spring-cage terminal block

€2,858.00
View product
HIOKI LR8535 - Wireless logger module CAN and CAN FD signals, 10 ms HIOKI LR8535 - Wireless logger module CAN and CAN FD signals, 10 ms
LR8535
HIOKI LR8535 - Wireless logger module CAN and CAN FD signals, 10 ms
Wireless interface module for LR8450-01 Data Logger, update interval 10 ms, for CAN and CAN FD signals input, 2 ports, max. 500 channels, AC or battery operation, D-sub 9-pin male connectors

€2,828.00
View product
HIOKI LR8536 - 5-channel wireless logger module for current sensors, 1 ms HIOKI LR8536 - 5-channel wireless logger module for current sensors, 1 ms
LR8536
HIOKI LR8536 - 5-channel wireless logger module for current sensors, 1 ms
5-channel wireless interface and signal conditioning module for the LR8450-01 Data Logger to connect HIOKI Current Sensors with a PL14 connector

€1,958.00
View product
HIOKI LR8537 – Wireless 15-channel logger module for resistance and thermistor measurement, 50 ms HIOKI LR8537 – Wireless 15-channel logger module for resistance and thermistor measurement, 50 ms
LR8537
HIOKI LR8537 – Wireless 15-channel logger module for resistance and thermistor measurement, 50 ms
Wireless 15-channel module for LR8450-01 Wireless Data Logger, update interval 50 ms, measurement of temperature via thermistors and resistance, max 200 kΩ, 100 V direct input, 300 V isolation, AC or battery operation, spring-cage terminal block

€1,698.00
View product

Select the Modules for Your Measurement Tasks

Choose plug-in or wireless modules -or combine both- to capture exactly the data you need. Thanks to automatic module recognition, setup is quick and effortless. Swap modules as needed and stay flexible for any measurement task.

Choose from eight different module types -wireless or plug-in- to fit your application.

Plug-in / Wireless U8550 /
LR8530		 U8551 /
LR8531		 U8552 /
LR8532		 U8553 /
LR8533		 U8554 /
LR8434		 U8555 /
LR8535		 U8556 /
LR8536		 U8557 /
LR8537
Name Voltage/Temp Module Universal Module Voltage/Temp Module High-Speed Voltage Module Strain Module CAN Module Current Module Thermistor Module
Meas. items Voltage, temperature (thermocouples),
4-20 mA, heat flow, humidity 		Voltage, temperature (thermocouples, RTDs), 4-20 mA, heat flow, humidity, resistance Voltage, temperature (thermocouples),
4-20 mA, heat flow, humidity 		Voltage Voltage, strain CAN and CAN FD
input or output 		Current (instantaneous, RMS) Temperature (thermistors), resistance
Channels 15 15 30 5 5 2 ports
500 ch. 		5 15
Update interval 10 ms 10 ms 10 ms / 20 ms 1 ms 1 ms 10 ms (50 ch.)
100 ms (500 ch.) 		1 ms 50 ms
Terminal M3 screw Spring-cage Spring-cage M3 screw Spring-cage D-sub, 9-way,
pin, male 		HIOKI PL14
current sensors 		Spring-cage
Max. input voltage ±100 V DC ±0.5 V DC - - -
Max. voltage between terminals 300 V DC Non-isolated - - -
Max. rated voltage to earth 300 V AC, DC CAT II 300 V AC, DC CAT II 300 V AC, DC CAT II 300 V AC, DC CAT II 30 Vrms AC or 60 V DC - Non-isolated 300 V AC, DC
*only U8555
