L4934 - Small Alligator Clip Set for Test Leads
Small alligator clip set for attachment to HIOKI test leads DT4911, L9207-10, L9208 and
L9300, also compatible with L4932, connection diameter 2 mm to 4 mm, maximum 3 A, CAT
II 600 V, CAT III 300 V
Available stock:
7
Product number:
L4934
EAN:
4536036000975
Weight:
0.01 kg
Product information L4934 - Small Alligator Clip Set for Test Leads
Detailed Product Overview
The L4934 small alligator clip set is an attachment for HIOKI test leads designed for temporary, hands free connection to conductors, terminals and component leads during measurements.The alligator clips are designed for attachment to the HIOKI test leads DT4911, L9207-10,
L9208 and L9300 and can also be connected to the L4932 accessory. When used with
DT4911, L9207-10 and L9208, the protective tip cap fitted to the test lead, which is required
for measurements in higher measurement categories, is removed and replaced by the
alligator clip. When used with the L9300, the protective tip cap is unlocked and slid back
before attaching the alligator clip.
The clip design supports connection to test points with diameters up to 4 mm. The L4934 is
rated for a maximum current of 3 A and is suitable for measurements up to CAT II 600 V and
CAT III 300 V when used as specified. When used with the compatible test leads or
accessories, it is compatible with a wide range of HIOKI digital multimeters and clamp
meters.
- L4934 Small Alligator Clip Set
-
Product catalog with data sheet, Clamp Meter Series (English)9,946 KB pdf
-
Product brochure with data sheet, Digital Multimeter DT4200 Series (English)10,849 KB pdf
-
Product Catalog with data sheet, Field Measuring Instruments (English)39,121 KB pdf
-
Product brochure with datasheet, AC CLAMP METER CM3281, CM3291 (English)2,162 KB pdf
-
Product brochure with data sheet, DIFFERENTIAL PROBE P9000 (English)1,687 KB pdf
-
Product brochure with data sheet, AC CLAMP METER CM3289 (English)2,476 KB pdf
Related products
20
%
DT4911
DT4911 - Test Leads for DT4223 and DT4223 Multimeters
Test leads for HIOKI digital multimeters. Supplied as standard with DT4223 and DT4224 and
available separately as a replacement accessory. Also compatible with DT4221 and DT4222Technical Details: Connector type: 4 mm Length: 54 cm
L4932

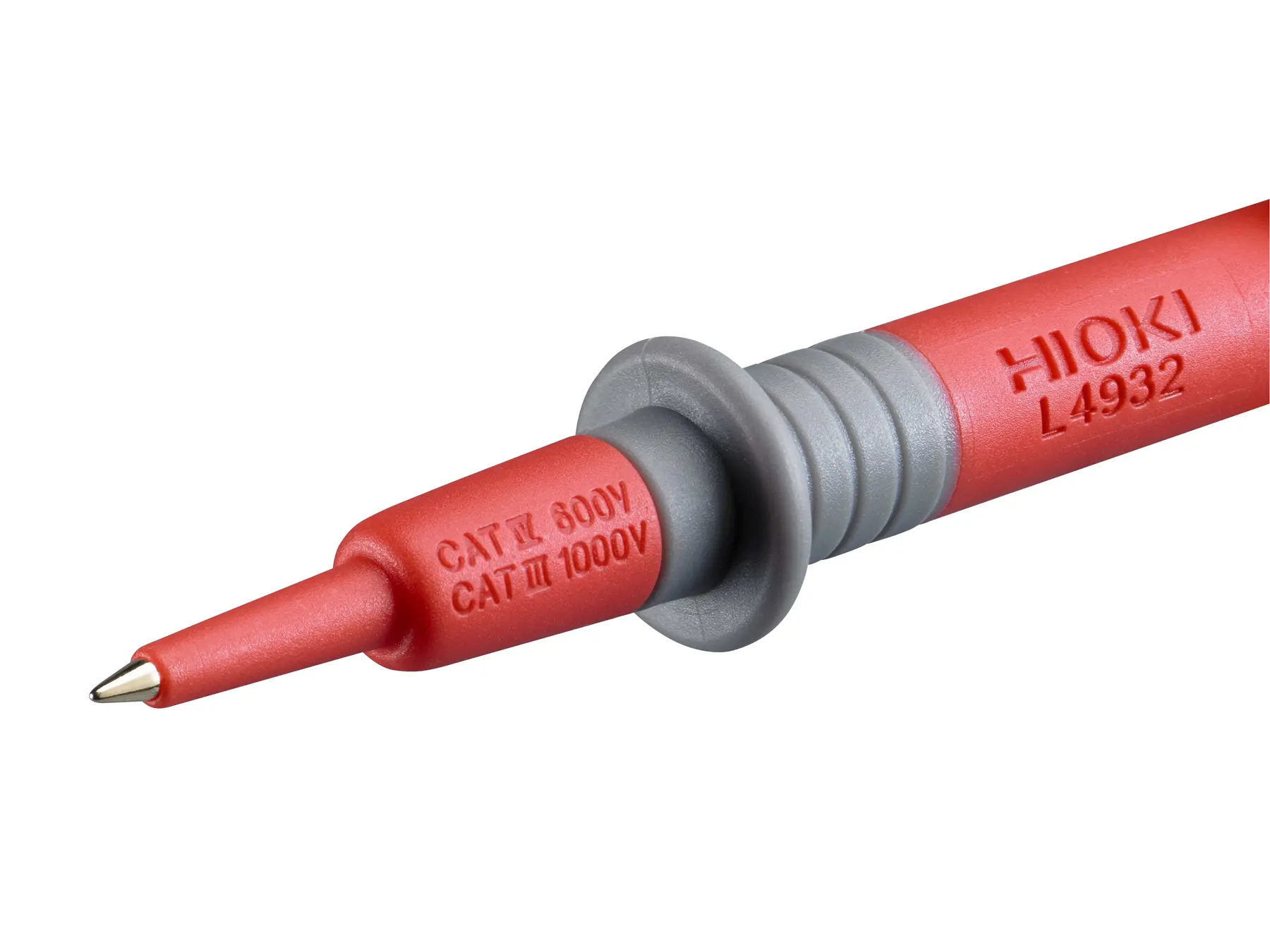

L4932 - Test Pin Set for Multimeters and Clamp Meters
Test pin set for multimeters and clamp meters, suitable for L4930 and similar measurement leads
L9207-10
L9207-10 - Measuring lead set red/black
The L9207-10 is a universal test lead for many Hioki Digital Multimeters and Clamp Meters 4mm banana type terminals. Technical information: Cable length: 900 mm Connector type: angeled banana plug 4mm Handle length: 137 mm (incl. tip length) Tip length (cover removed): 17.5 mm Tip Diameter: 2 mm Voltage safety category: CAT IV 600V, CAT III 1000V (with tip cover), CAt II 1000V (tip cover removed)Max. Current: 10 A Others: Tip cover gilded Compatible Products: DM7275, DM7276, DT4252, DT4253, DT4255, DT4256, DT4261, DT4281, DT4282, CM3286, CM4141, CM4371, CM4373, CM4375
L9208
L9208 - TEST LEAD
The L9208 measuring lead is an accessory for Hioki clamp testers such as the 3287, 3288, 3280-10F, CM3281, CM3289, CM3291, CM4371-50. Technical details: Test lead length: 700 mm Handle length: 135 mm Length of tip: 17.5 mm Diameter of the tip: 2 mm Maximum current: 10 A Voltage protection categories: With protective cap CAT IV 600V, CAT III 1000V, protective cap removed CAT II 1000V
L9300
L9300 - TEST LEAD
The L9300 measuring lead set is an optional accessory for Hioki DMMs and is suitable for current measurements up to 10A. The Test Lead L9300 incorporates integrated caps for greater convenience and safety. The design lets you change the measurement category simply by sliding the test lead’s protective finger guard, eliminating the need to worry about losing caps. Technical Details: Test Lead Ratings: o CAT IV: 600V o CAT III: 1000V o CAT II: 1000V Maximum Current: 10A Length of lead (total): 955 mm ± 20
