L9208 - Test Leads for HIOKI Clamp Meters

Test leads for HIOKI clamp meters CM3281, 3280-10F, CM3289, CM3291, 3287, 3288 and 3288-20, proprietary dual connector, 70 cm lead length, CAT IV 600 V / CAT III 1000 V

€28.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

€28.00*

L9208 - Test Leads for HIOKI Clamp Meters

Available stock: 12

Product number: L9208

EAN: 4536036004263

Length: 880 mm

Weight: 0.055 kg

Product information L9208 - Test Leads for HIOKI Clamp Meters

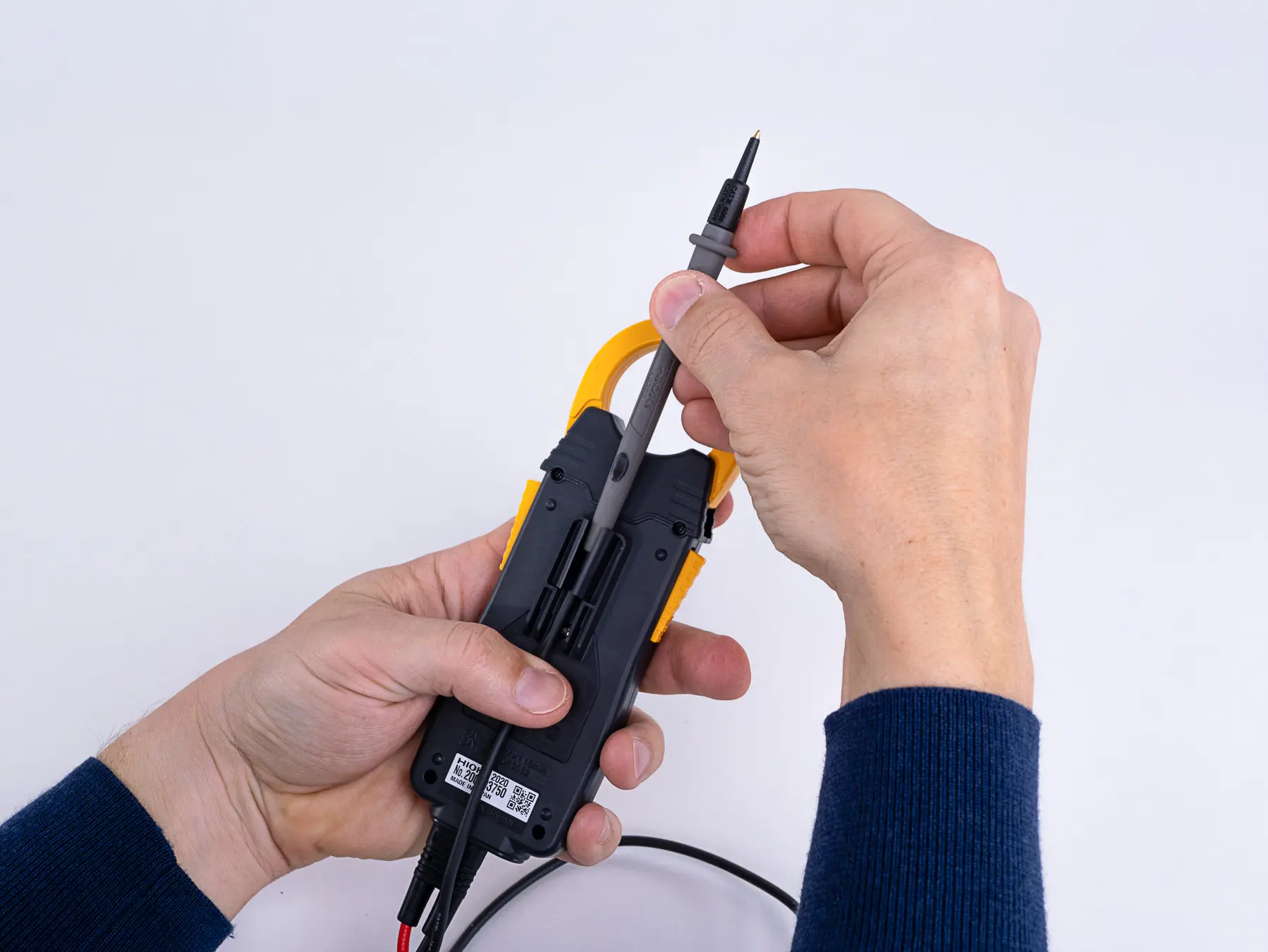

Test leads for the HIOKI clamp meters CM3281, 3280-10F, CM3289, CM3291, 3287, 3288 and 3288-20. The L9208 test leads are supplied as standard with these instruments and are also available separately as a replacement accessory.

The L9208 consists of two test leads, one red and one black, with a proprietary polarity protected dual connector on the instrument side for compatible HIOKI clamp meters. The total lead length is 70 cm. Removable protective caps define the measurement category. With protective caps installed the leads are rated for CAT IV 600 V and CAT III 1000 V. With the protective caps removed the rating is CAT II 1000 V.

The L9208 test leads are compatible with the HIOKI accessories L4934 and L4933. The L4934 enables temporary hands free connection to conductors and terminals up to 4 mm in diameter, while the L4933 provides partially insulated, extra thin contact pins for measurements at closely spaced test points.

L9208 Test Leads
