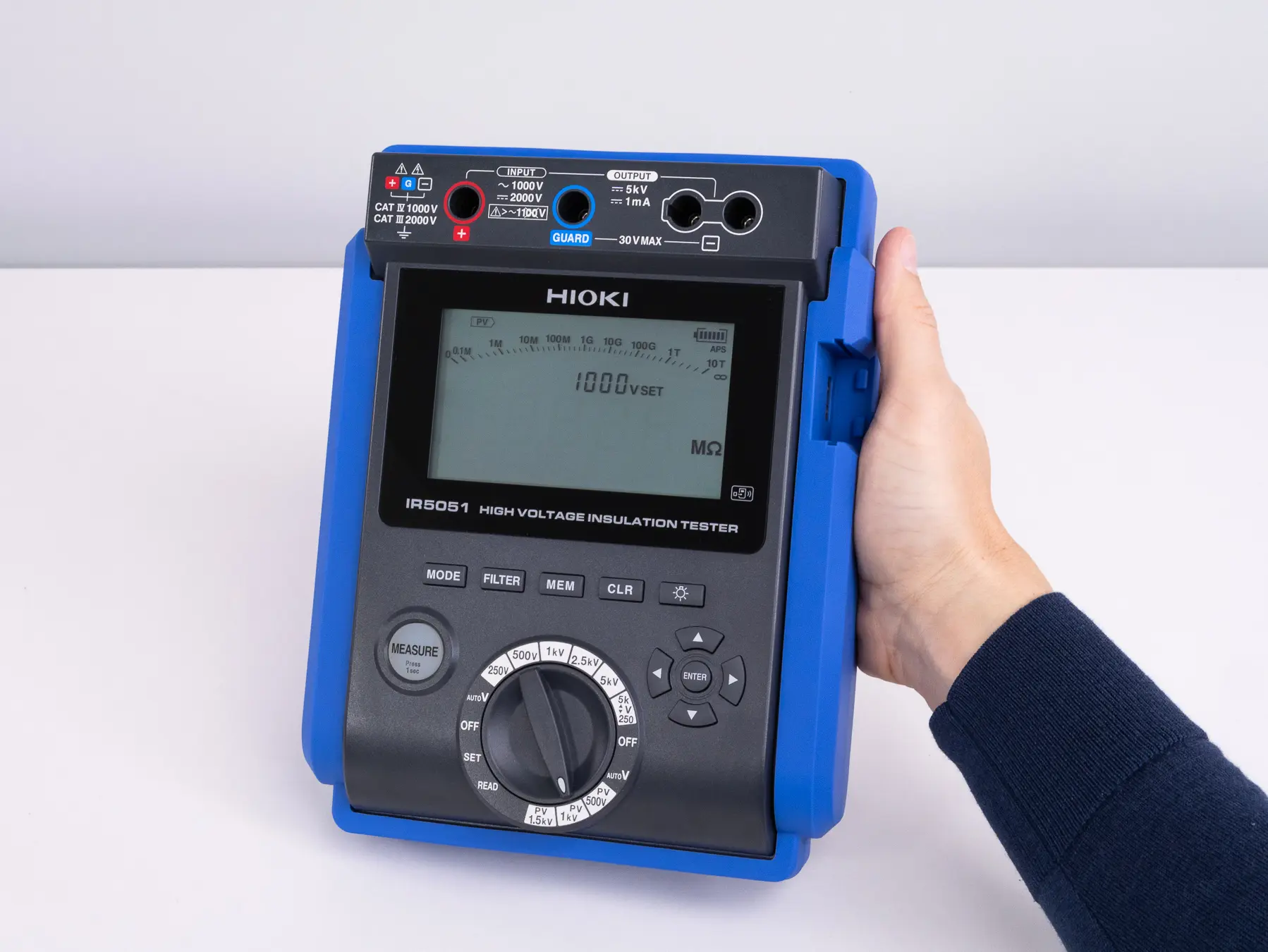

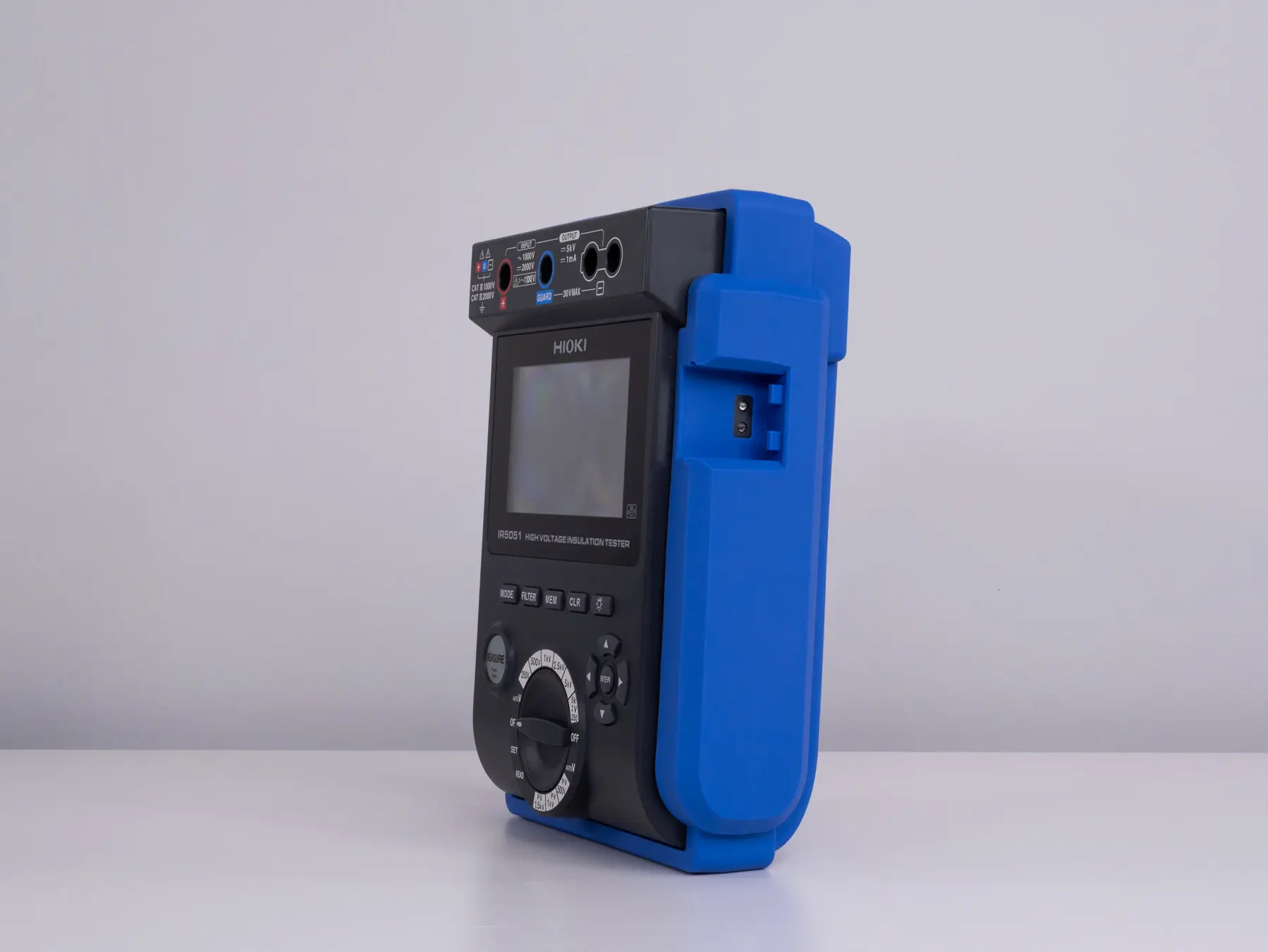

IR5051-90 - Portable high voltage PV insulation tester with Z3210

Portable high voltage insulation tester with dedicated PV function and Bluetooth, insulation testing up to 5 kV and 10 TΩ, PV testing up to 2000 V even during power generation, IP65 rated, CAT III 2000 V

€2,118.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 1

Product number: IR5051-90

EAN: 4536036015399

Length: 345 mm

Width: 195 mm

Height: 370 mm

Weight: 1 kg

Product information IR5051-90 - Portable high voltage PV insulation tester with Z3210

Key Specifications

Insulation test voltage range: 250 V to 5 kV
Insulation resistance range: 10 MΩ to 10 TΩ
PV insulation test voltage range: 250 V to 2 kV
PV insulation resistance range: 10 MΩ to 100 GΩ
PV insulation resistance measurement speed: 4 sec

Unique Advantages

Performs PV insulation resistance testing at up to 2000 V even during power generation within 4 seconds, compliant with 2000 V CAT III safety standards

Typical Applications

Insulation testing of PV systems up to 2000 V during daytime operation
Localization of ground faults in a string of PV panels
Insulation testing for cables, motors, and transformers

Detailed Product Overview

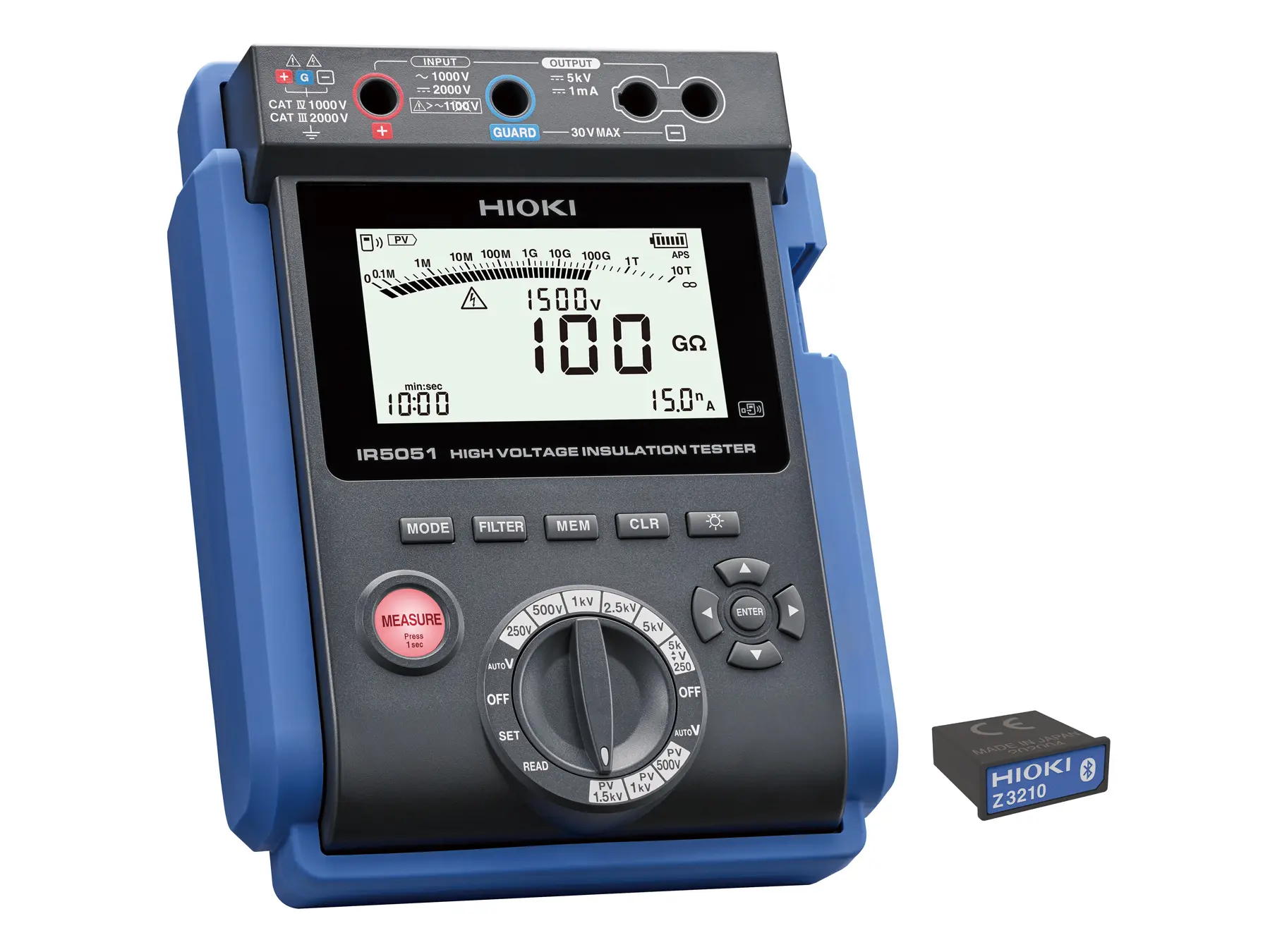

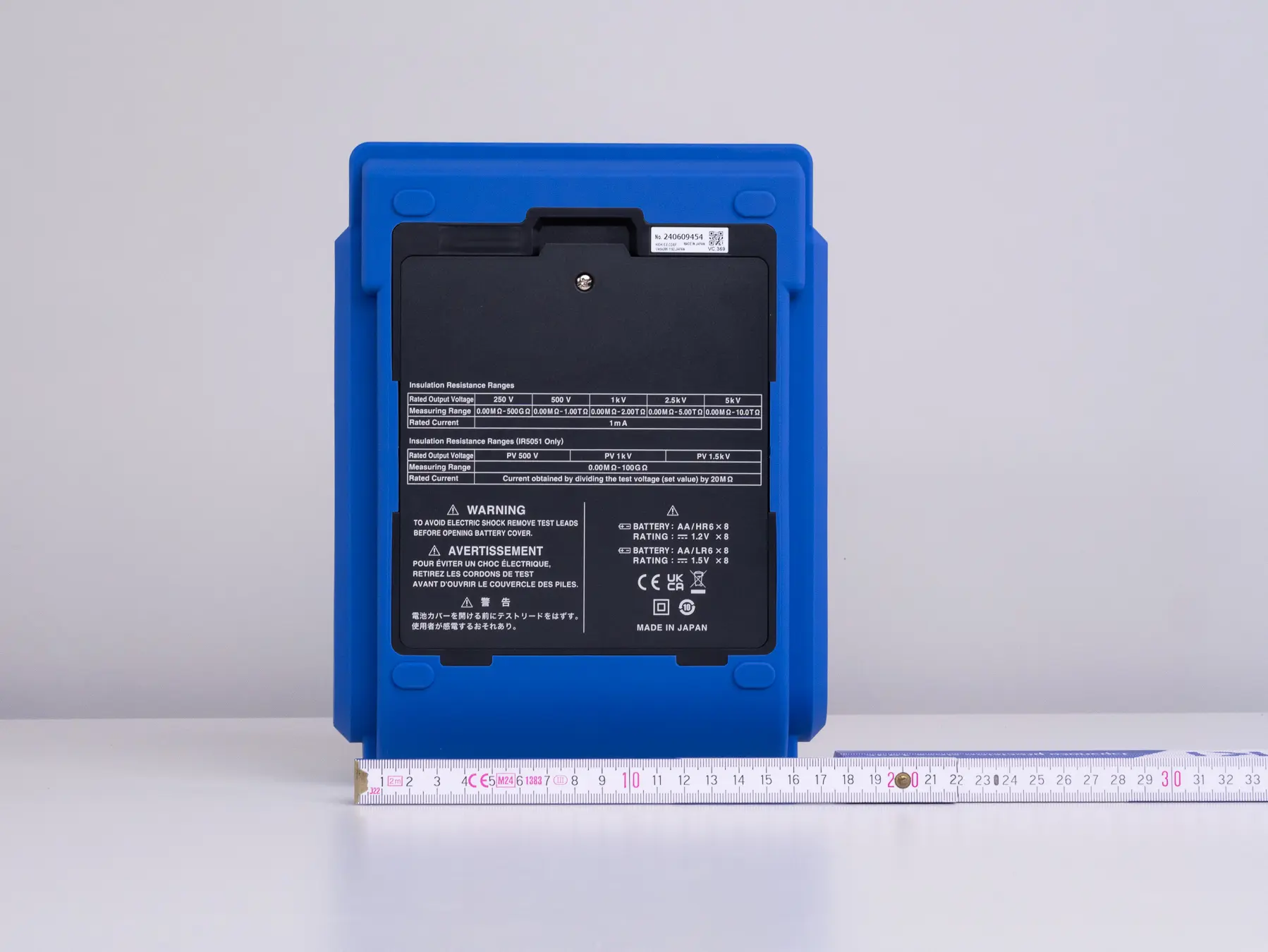

The IR5051-90 is a portable high-voltage insulation tester consisting of the IR5051 instrument and the Z3210 Bluetooth adapter. It combines standard insulation measurement functions with a dedicated PV testing mode, enabling insulation resistance testing of photovoltaic systems even during active power generation. The instrument offers five test voltage ranges from 250 V to 5 kV and seven resistance ranges from 10 MΩ to 10 TΩ. Bluetooth connectivity allows direct data transfer to smartphones or tablets for fast and efficient documentation.

What sets the IR5051 apart is its physically separate measurement section dedicated to photovoltaic (PV) insulation testing. This specialized section allows insulation resistance measurements on PV systems with test voltages up to 2000 V and insulation resistance ranges up to 100 GΩ. The best part: there is no need to wait until nightfall or interrupt power generation, as the IR5051 can perform PV insulation resistance measurements during daytime and while power is being generated – and it can do it in just 4 seconds. Imagine the time savings when measuring hundreds of inspection points on a larger PV system.

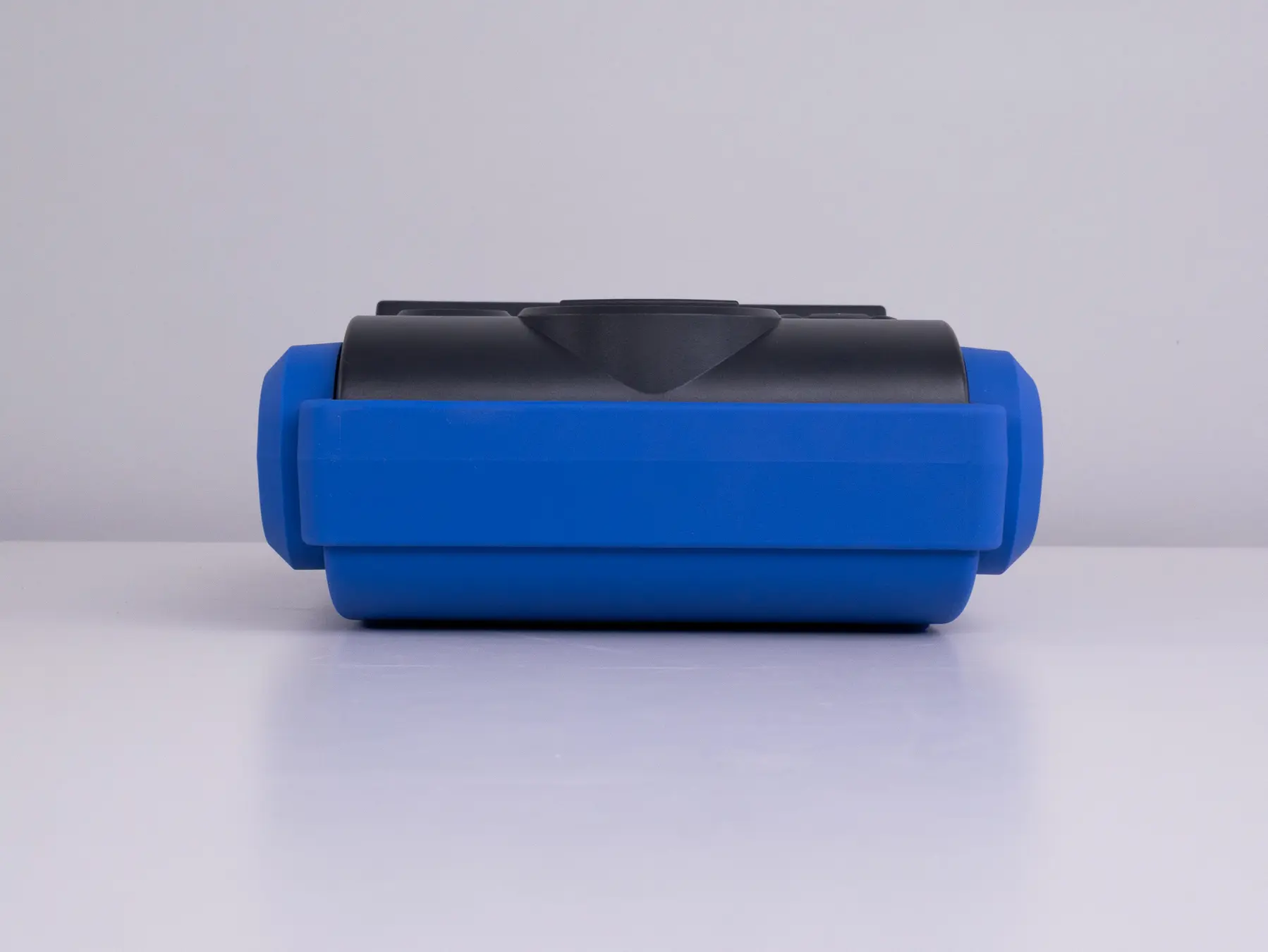

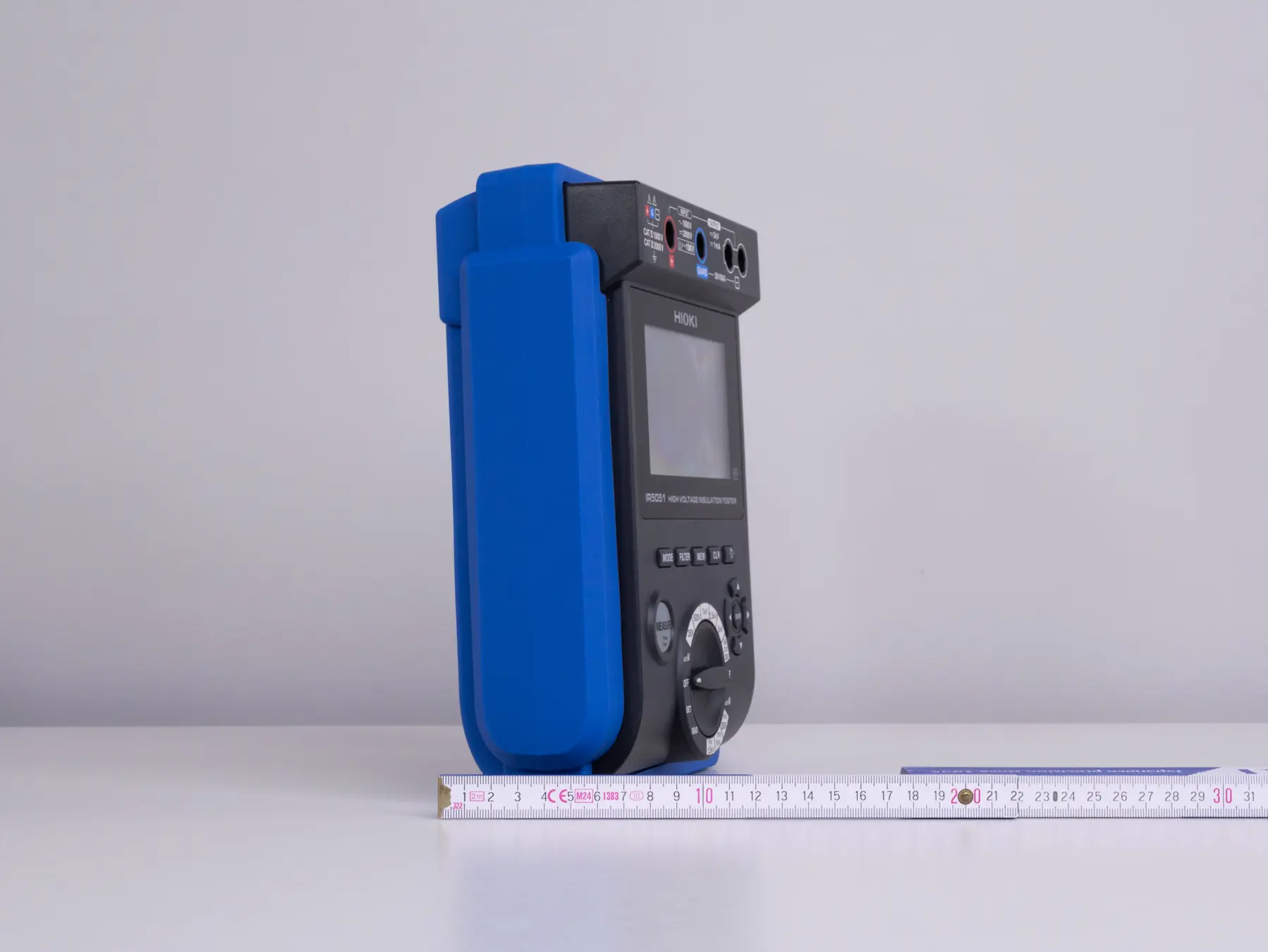

The IR5051’s compact, lightweight design makes it an ideal tool for on-site use. The included hard case ensures suitability for IP65 environments, providing protection against dust and water. With a 2000 V CAT III safety rating, it guarantees safe measurements for PV systems classified under CAT III. An automatic discharge function adds extra safety by discharging residual charge after measurements, while shielded cables and a built-in guard circuit minimize noise influence for stable, reliable results.

While insulation resistance values offer a quick assessment, they are not sufficient on their own to evaluate long-term issues such as aging, moisture intrusion, or contamination. Resistance values also fluctuate with temperature and humidity, making a single measurement unreliable for diagnosing insulation degradation over time. To address this, the IR5051 provides additional measurement modes: Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD). These functions offer a more comprehensive picture of insulation condition.

PI evaluates insulation resistance over time to identify signs of aging and surface contamination. DAR offers a faster alternative for detecting the effects of moisture and contamination. DD analyzes the discharge behavior of accumulated charges to uncover degradation deep within the insulation. Together, these functions support a more accurate assessment of insulation health, helping to increase equipment reliability and reduce the risk of failure.

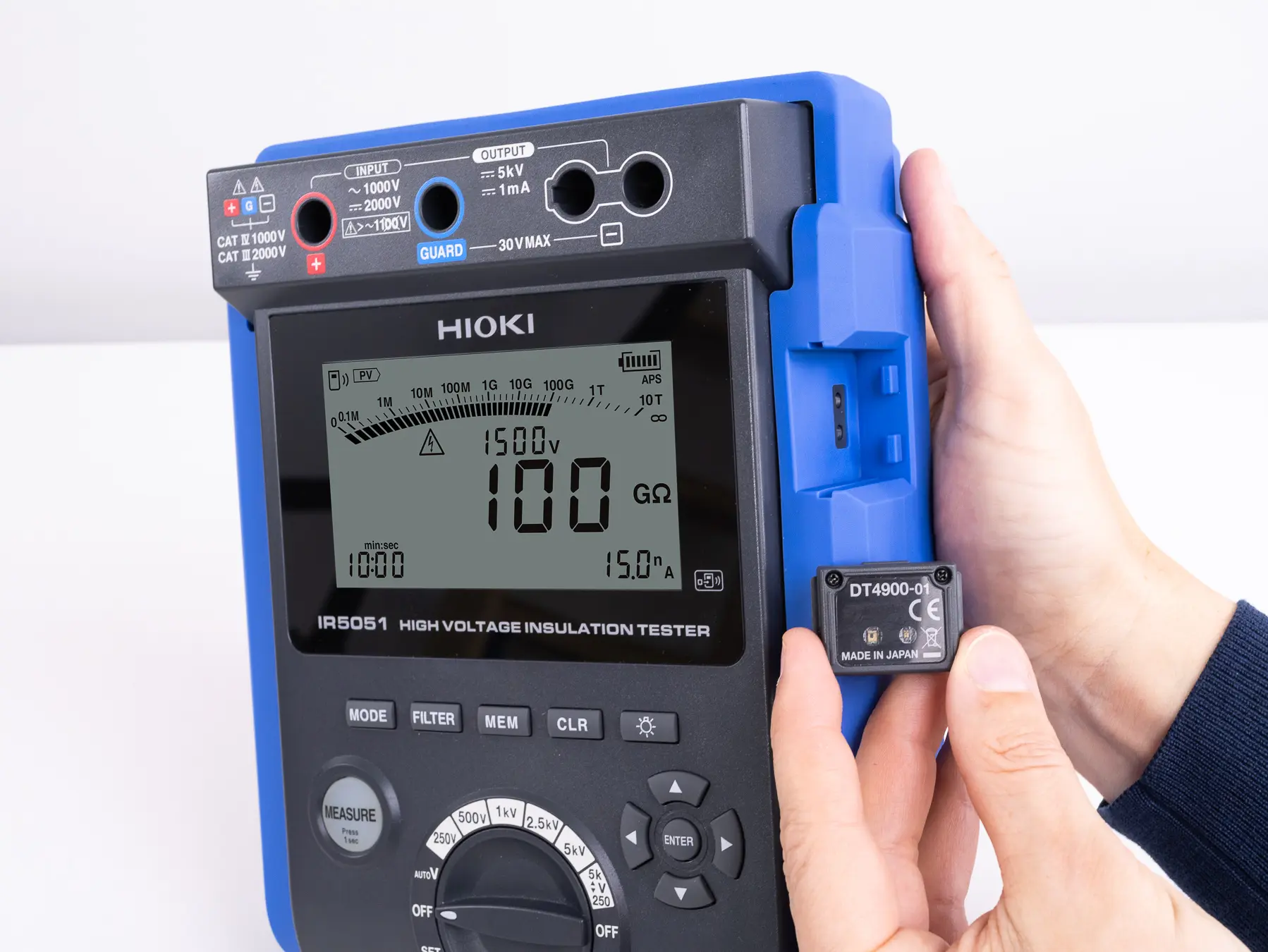

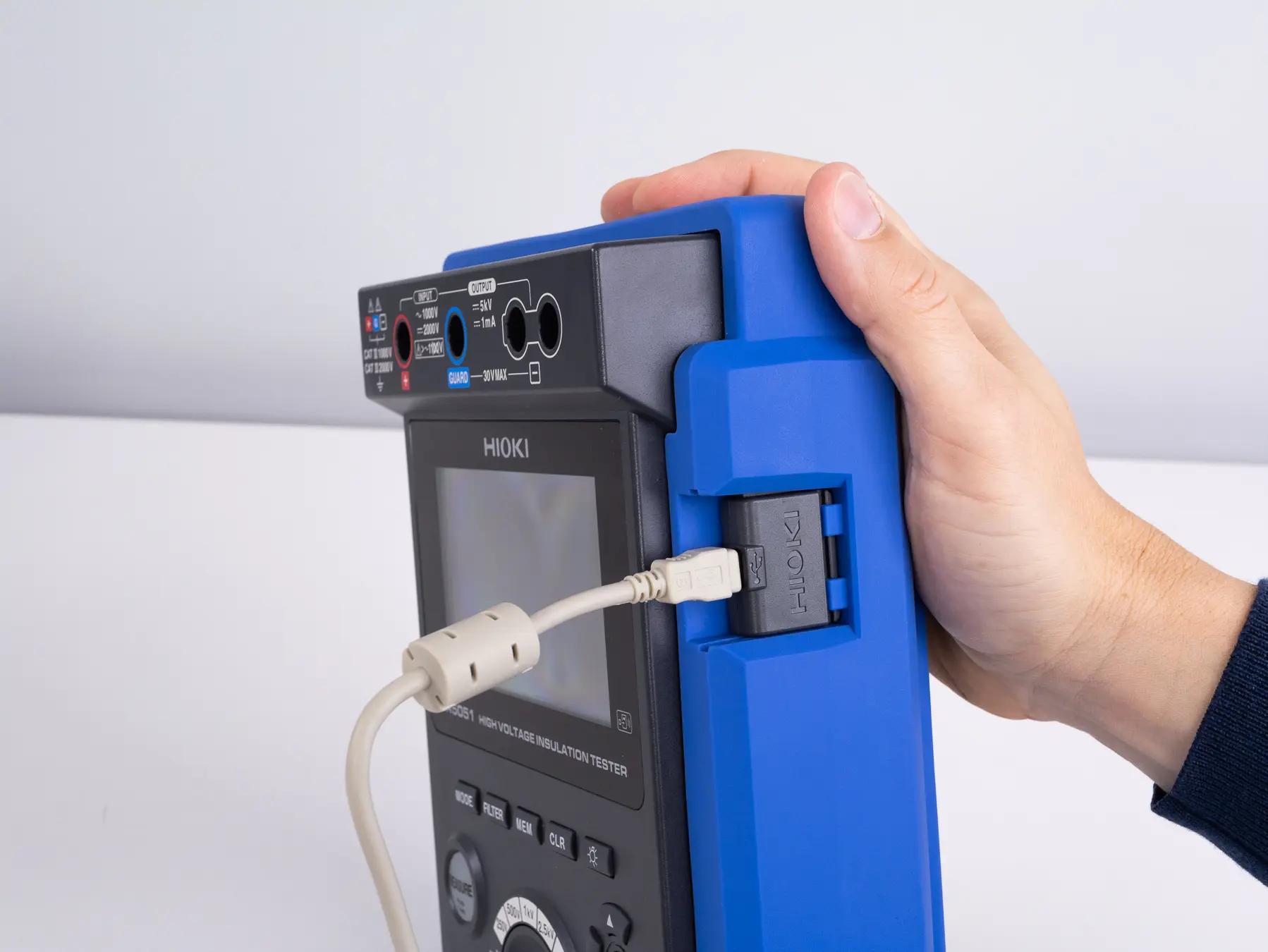

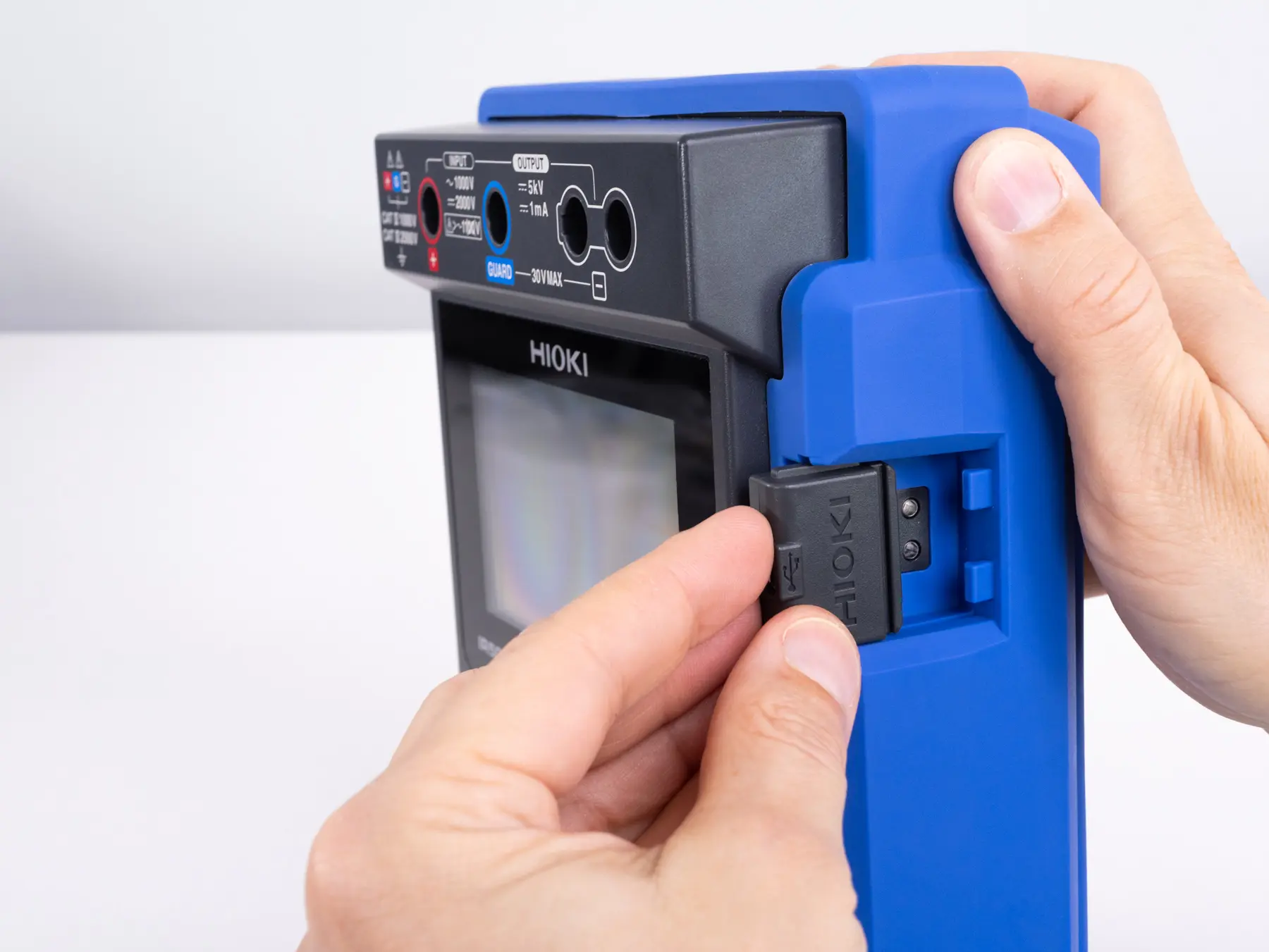

The IR5051-90 is a set that includes the Z3210 Bluetooth adapter. Bluetooth connectivity enables measurement data to be transferred wirelessly to a PC or tablet, simplifying data storage and analysis while improving overall workflow efficiency.

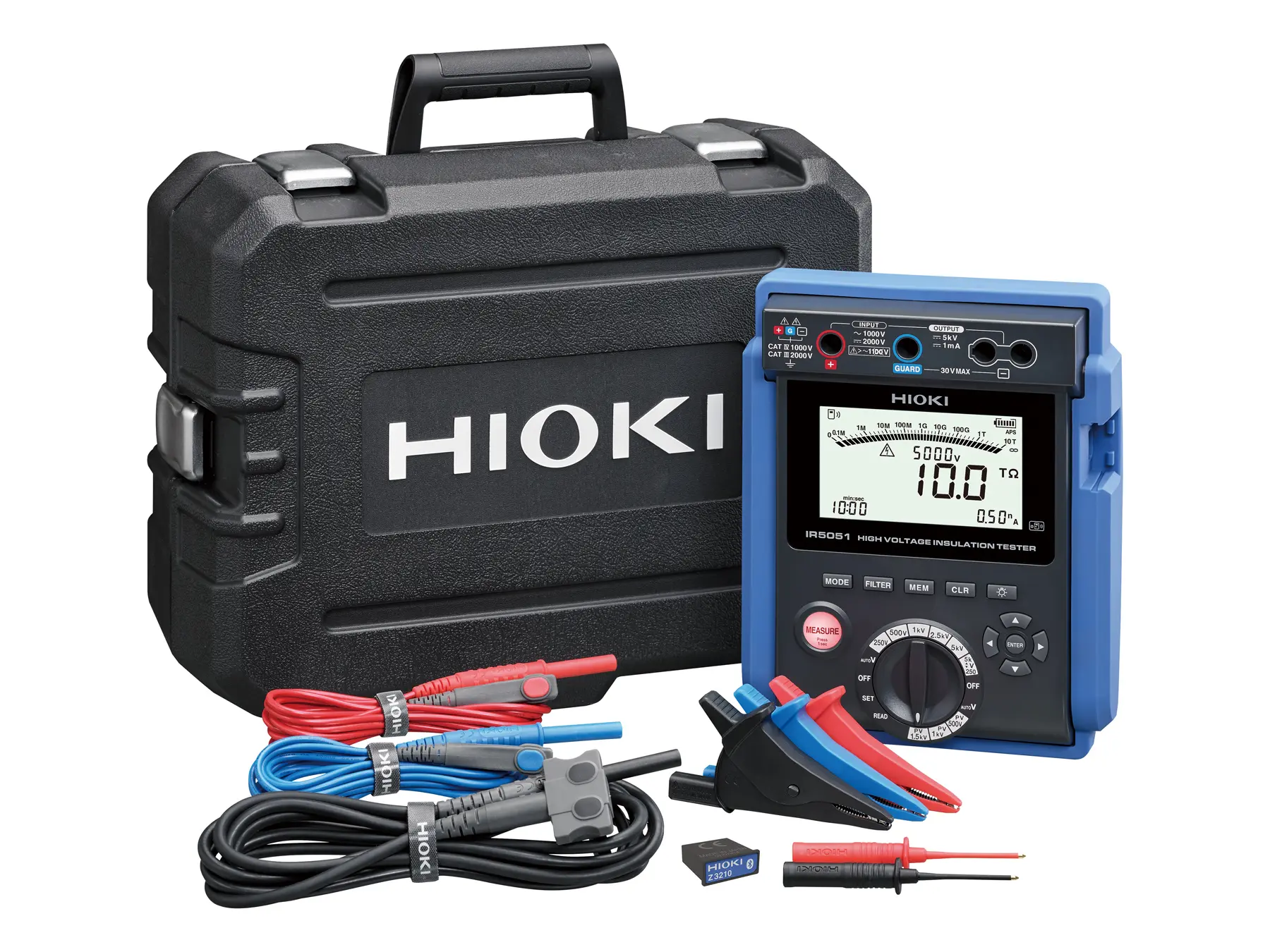

IR5051 High Voltage Insulation Tester
Z3210 Bluetooth Adapter
C0212 Carrying Case
L9850-01 Red Test Lead 3 meter
L9850-02 Black Test Lead 3 meter, shielded
L9850-03 Blue Test Lead 3 meter
L9851-01 Red Alligator Clip (plugged to L9850-01)
L9851-02 Black Alligator Clip (plugged to L9850-02)
L9851-03 Blue Alligator Clip (plugged to L9850-03)
L9852 Test Pin Set (Red and Black)
LR6 Alkaline Batteries x8 - Instruction Manual

Related products

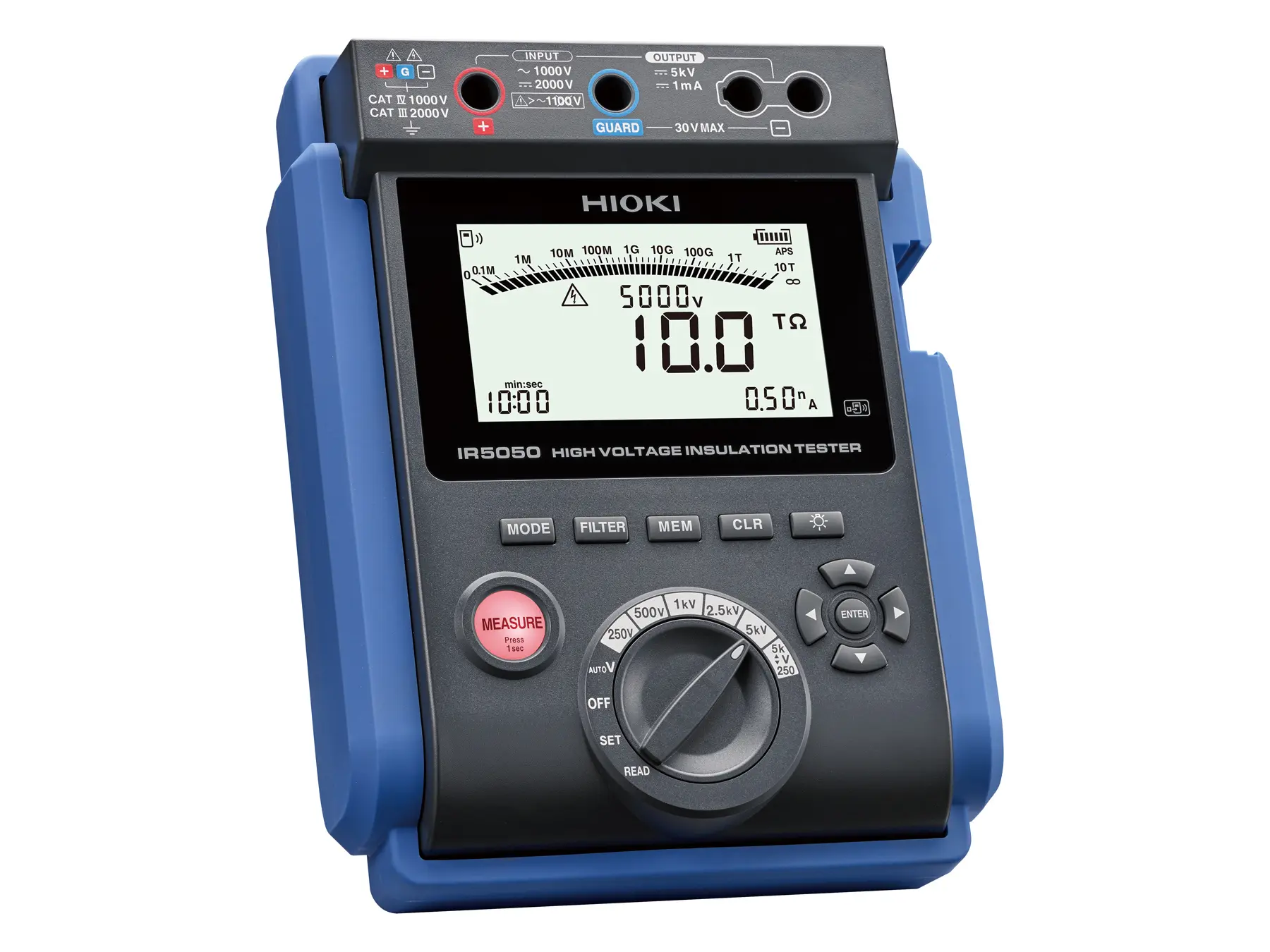

IR5050

IR5050 - Portable 5 kV high voltage insulation tester

Portable high voltage insulation tester, five test voltage ranges from 250 V to 5 kV, seven insulation resistance ranges from 10 MΩ to 10 TΩ, CAT III 2000 V, CAT IV 1000 V, IP65, optional Bluetooth communication

€1,958.00*

View product

IR5051

IR5051 - Portable high voltage insulation tester with PV function

Portable high voltage insulation tester with dedicated PV function, insulation testing up to 5 kV and 10 TΩ, PV testing up to 2000 V even during power generation, IP65 rated, CAT III 2000 V, optional Bluetooth communication

€2,058.00*

View product

Z3210

Z3210 - Bluetooth Adapter

The HIOKI Z3210 Bluetooth Adapter allows wireless communication between compatible HIOKI products, enabling easy data transfer and remote operation.

€108.00*

View product

L9850-01

L9850-01 - Test lead

The test Lead L9850-01 is made for High Voltage Insulation Testers. It has on one end a straight banana plug on the other end a angeld type banana plug. Technical Details Length: 3mVoltage safety category: CAT III 2000V, CAT IV 1000VImax: 4A Compatible Products: IR5050, IR5051 Lead color: Red

€48.00*

View product

L9850-02

L9850-02 - Test lead

The L9850-02 measurement lead is designed for high-voltage insulation testers. It is a shielded cable equipped with a right-angle 2-pin banana plug on one end and a straight banana plug on the other end.Technical Details:Length: 3mVoltage safety category: CAT III 2000V, CAT IV 1000V Imax: 4A Compatible Products: IR5050, IR5051 Lead color: Black

€68.00*

View product

L9850-03

L9850-03 - Test lead

The test Lead L9850-03 is made for High Voltage Insulation Testers. It has on one end a straight banana plug on the other end a angeld type banana plug. Technical DetailsLength: 3m Voltage safety category: CAT III 2000V, CAT IV 1000VImax: 4A Compatible Products: IR5050, IR5051Lead color: Blue

€48.00*

View product

L9850-11

L9850-11 - Test lead

The test Lead L9850-01 is made for High Voltage Insulation Testers. It has on one end a straight banana plug on the other end a angeld type banana plug. Technical DetailsLength: 10 m Voltage safety category: CAT III 2000V, CAT IV 1000VImax: 4A Compatible Products: IR5050, IR5051Lead color: Red

€138.00*

View product

L9850-12

L9850-12 - Measuring cable black 10m

The L9850-02 measurement lead is designed for high-voltage insulation testers. It is a shielded cable equipped with a right-angle 2-pin banana plug on one end and a straight banana plug on the other end. Technical Details: Length: 10 mm Voltage safety category: CAT III 2000V, CAT IV 1000VImax: 4A Compatible Products: IR5050, IR5051 Lead color: Black

€178.00*

View product

L9850-13

L9850-13 - Test lead

The test Lead L9850-03 is made for High Voltage Insulation Testers. It has on one end a straight banana plug on the other end a angeld type banana plug. Technical Details: Length: 10 m Voltage safety category: CAT III 2000V, CAT IV 1000V Imax: 4A Compatible Products: IR5050, IR5051 Lead color: Blue

€138.00*

View product

L9851-01

L9851-01 - Alligator Clip red

The L9851-01 is an insulated crocodile clip in red colour. It is suitable for all types of measuring accessories with 4 mm banana plugs, including contact protection variants. Technical data: Dimensions 115.5 x 58.5 x 18.2. Max. Opening: 30mm Max. Conductor diameter: 23.0mm Connector: 4mm banana Max. Current: 4A Safety category: KAT. IV 1000V, CAT. III, 1000V Colour of insulation: red

€18.00*

View product

L9851-02

L9851-02 - Aligator clip black

The L9851-02 is an insulated crocodile clip in black colour. It is suitable for all types of measuring accessories with 4 mm banana plugs, including contact protection variants. Technical data: Dimensions 115.5 x 58.5 x 18.2. Max. Opening: 30mm Max. Conductor diameter: 23.0mm Connector: 4mm banana Max. Current: 4A Safety category: KAT. IV 1000V, CAT. III, 1000V Colour of insulation: black

€18.00*

View product

L9851-03

L9851-03 - Crocodile clips blue

The L9851-03 is an insulated crocodile clip in blue color. It is suitable for all types of measuring accessories with 4 mm banana plugs, including contact protection variants. Technical data: Dimensions 115.5 x 58.5 x 18.2. Max. Opening: 30mm Max. Conductor diameter: 23.0mm Connector: 4mm banana Max. Current: 4A Safety category: KAT. IV 1000V, CAT. III, 1000V Colour of insulation: blue

€18.00*

View product

L9852

L9852 - Test pin set

The L9852 Test Pin Set is an accessory set consisting of two measurement Tips attachable to the L9850 Test Leads. Technical Information: Length: 111.5 mm Tip Diameter: 2.6 mm Color: Black / Red Voltage safety categories: Cat III 2000V, CAT IV 1000VImax: 4 A Use with: L9850 Test Leads

€18.00*

View product

DT4900-01

DT4900-01 - COMMUNICATION PACKAGE (USB)

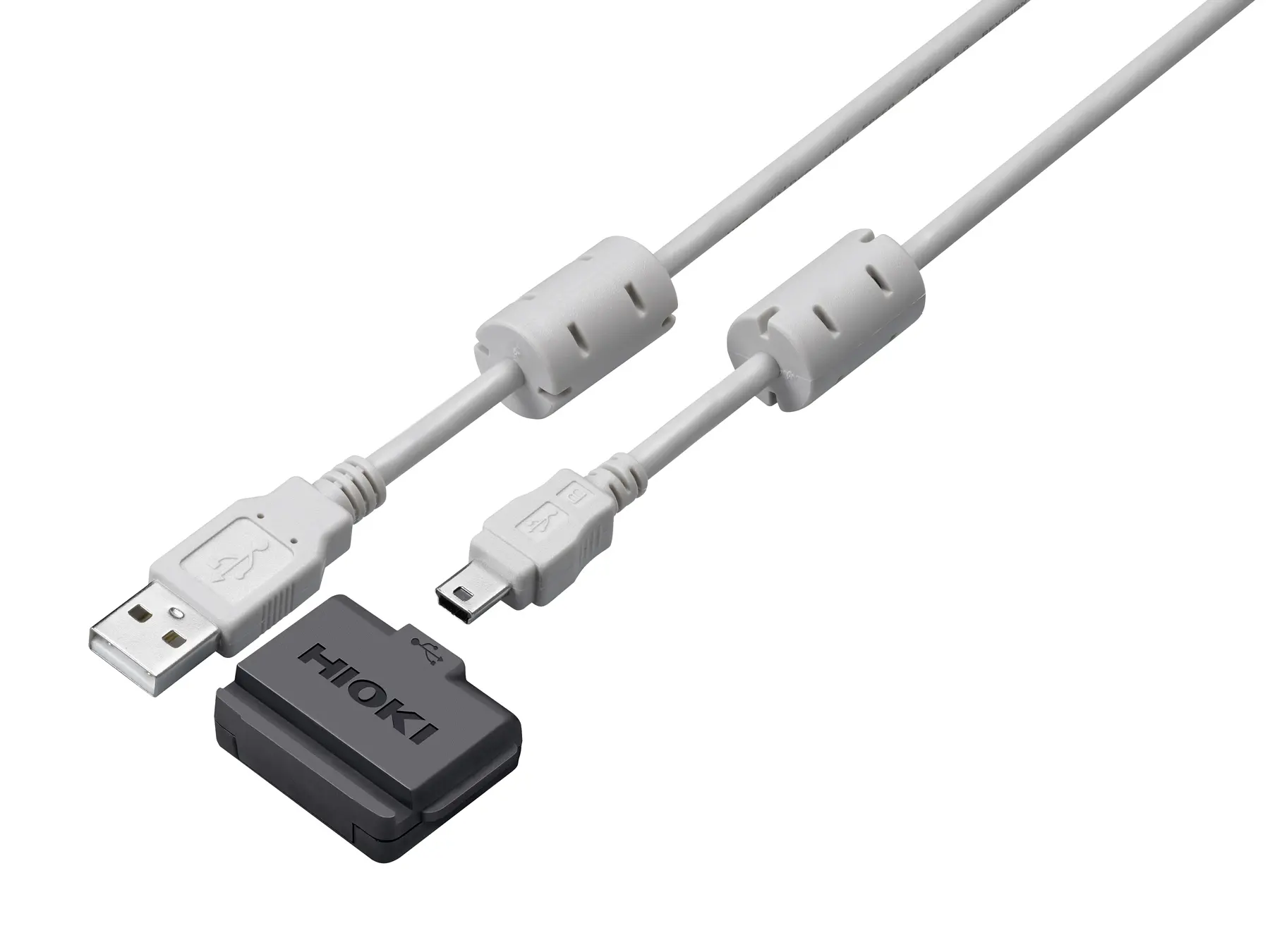

The Hioki DT4900-01 Communication Package enables seamless data transfer between compatible Hioki digital multimeters and a PC. It includes the essential communication cable for USB connection and allows users to remotely control measurement settings, view data in real-time, and export results to CSV or Excel. This tool is essential for professionals needing efficient data analysis and control. Technical Details: USB communication cable Real-time data viewing and control CSV/Excel export functionality Compatible with DT4250, DT4280, DT4261 series multimeters
