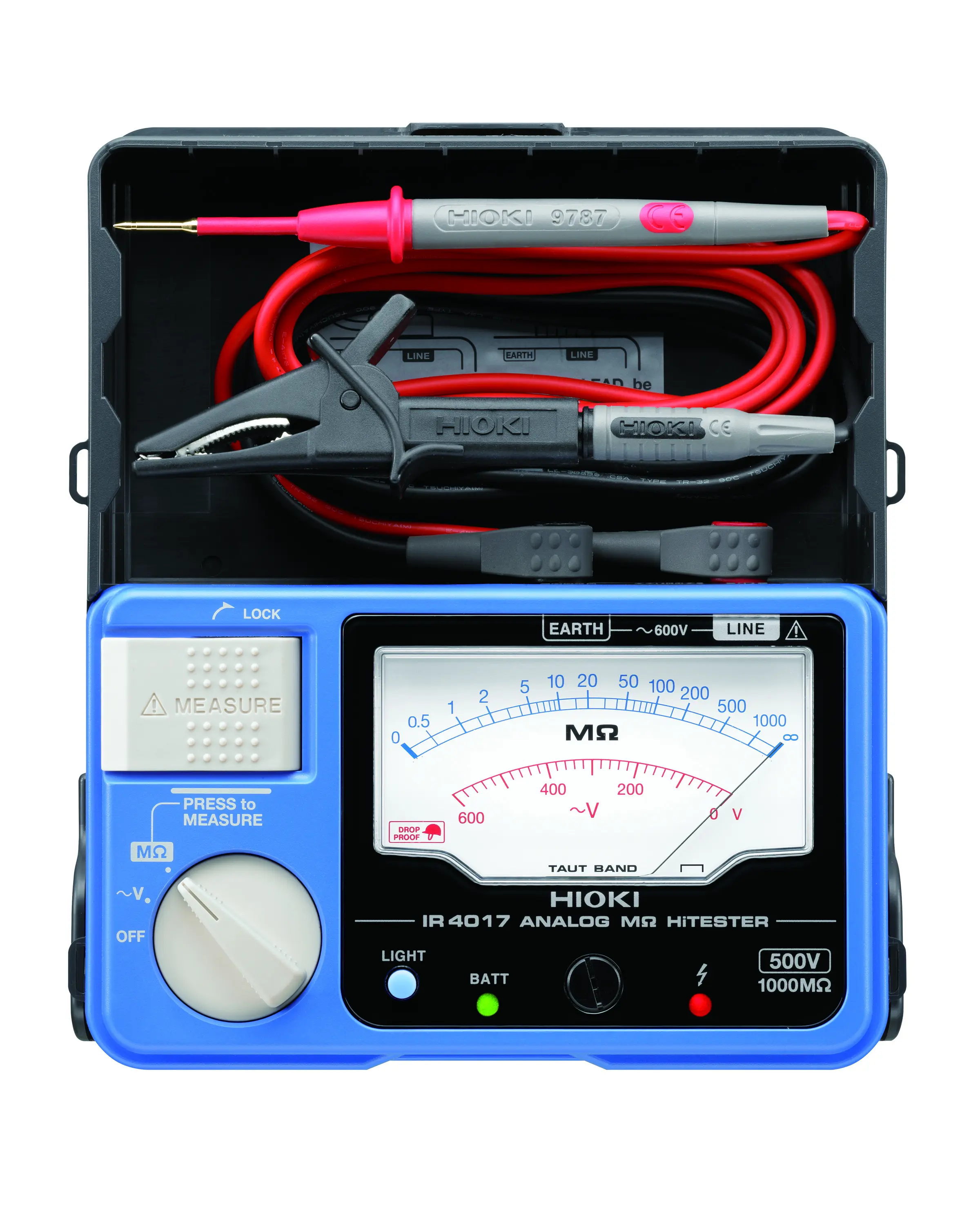

IR4017 - Analog Insulation Tester

€198.40*

% €248.00* (20% saved)

Content: 1 Each

*Prices excl. VAT plus shipping costs

Special price: The packaging may show slight external damage, it could be a discontinued model, or the items are surplus goods.

€198.40*

% €248.00* (20% saved)

IR4017 - Analog Insulation Tester

Available stock: 2

Product number: IR4017-20

EAN: 4536036000128

Weight: 0.84 kg

Product information IR4017 - Analog Insulation Tester

Key Specifications

Insulation resistance measurement (500 V DC) up to 1000 MΩ
Voltage measurement up to 600 V AC
Measurement category: CAT III 600 V
Display: illuminated analog meter

The HIOKI IR4017-20 is a rugged analog insulation tester designed for fast and reliable insulation resistance testing in electrical installations and equipment. With a 500 V DC test voltage and a measurement range up to 1000 MΩ, it is ideal for maintenance, service, and safety inspections in the field.

The easy-to-read illuminated analog meter enables quick and confident evaluation of insulation measurements, even in low-light environments. For added safety, the integrated live circuit indicator reliably warns when hazardous voltage is present. After testing, the automatic discharge function ensures safe discharge of the device under test.

Built for demanding everyday use, the IR4017-20 is drop-proof (1 m onto concrete) and meets the requirements of CAT III 600 V. Its IP40 protection rating (excluding terminals) makes it well suited for typical maintenance work. In addition, the instrument features AC voltage measurement up to 600 V and a practical housing design that allows test leads to be stored quickly without disconnecting them.

A wide range of optional accessories is available for the IR4017-20, including test pins, alligator clips, and additional connection adapters. Especially useful are the remote switch test lead (L9788-10) or the complete set including an additional black lead (L9788-11).

IR4017-20
Test Lead L9787 (1.2 m)
Shoulder strap
LR6 (AA) alkaline batteries × 4
Instruction manual
Operatig Precautions
