HIOKI SM7120 - Super Megohm Meter
Description
Product information HIOKI SM7120 - Super Megohm Meter
Technical Apecifications
- Resistance measurement: 1 kΩ to 2×1019 Ω
- Output voltage: 0.1 V to 2000 V
- Current measurement resolution: 0.1 fA
- Minimum inspection time: 6.4 ms
- Functions: Contact check, comparator
- Interfaces: USB, RS-232C, GP-IB, EXT I/O
Super megohm meter for resistance measurements from 1 kΩ to 2 × 10¹⁹ Ω with selectable output voltage up to 2000 V and current measurement resolution of 0.1 fA for evaluation of high-resistance materials and insulation properties.
The instrument includes a contact check function to verify proper electrical contact, a current limiter for protection of the device under test, and a comparator function for automated pass/fail evaluation. Short inspection times enable high-throughput measurements in production lines with high unit volumes. Improved noise resistance allows stable measurements in laboratory and production environments.
Interfaces include USB, RS-232C, GP-IB, and EXT I/O for integration into automated test systems.
Suitable for insulation resistance testing of lithium-ion batteries and other high-resistance components.
What's in the Box
- SM7120 Super Megohm Meter
- Power cord
- EXT I/O male connector
- Shorting plug
- Instruction manual
-
Product Catalog, Measuring Instruments for the Battery Industry (English)6,753 KB pdf
-
Product brochure with data sheet, SUPER MEGOHM METER SM7110, SM7120, SM7420 (English)3,194 KB pdf
-
Flyer Lithium-ion Battery Production and Testing (English)1,699 KB pdf
-
Instruction Manual, Super Megohm Meter SM7110, SM7120 (English)7,374 KB pdf
Skip product gallery
Regular price:
€548.00
Regular price:
€88.00
Regular price:
€358.00
Regular price:
€88.00
Related Products
SM7110
HIOKI SM7110 - Super Megohm Meter
Technical Specifications Resistance measurement: 1 kΩ to 2×1019 Ω Output voltage: 0.1 V to 1000 V Current measurement resolution: 0.1 fA Minimum inspection time: 6.4 msFunctions: Contact check, comparator Interfaces: USB, RS-232C, GP-IB, EXT I/O Super megohm meter for resistance measurements from 1 kΩ to 2 × 10¹⁹ Ω with selectable output voltage up to 1000 V and current measurement resolution of 0.1 fA for evaluation of high-resistance materials and insulation properties. The instrument includes a contact check function to verify proper electrical contact, a current limiter for protection of the device under test, and a comparator function for automated pass/fail evaluation. Short inspection times enable high-throughput measurements in production lines with high unit volumes. Improved noise resistance allows stable measurements in laboratory and production environments. Interfaces include USB, RS-232C, GP-IB, and EXT I/O for integration into automated test systems. Suitable for insulation resistance testing of lithium-ion batteries and other high-resistance components.
L2232

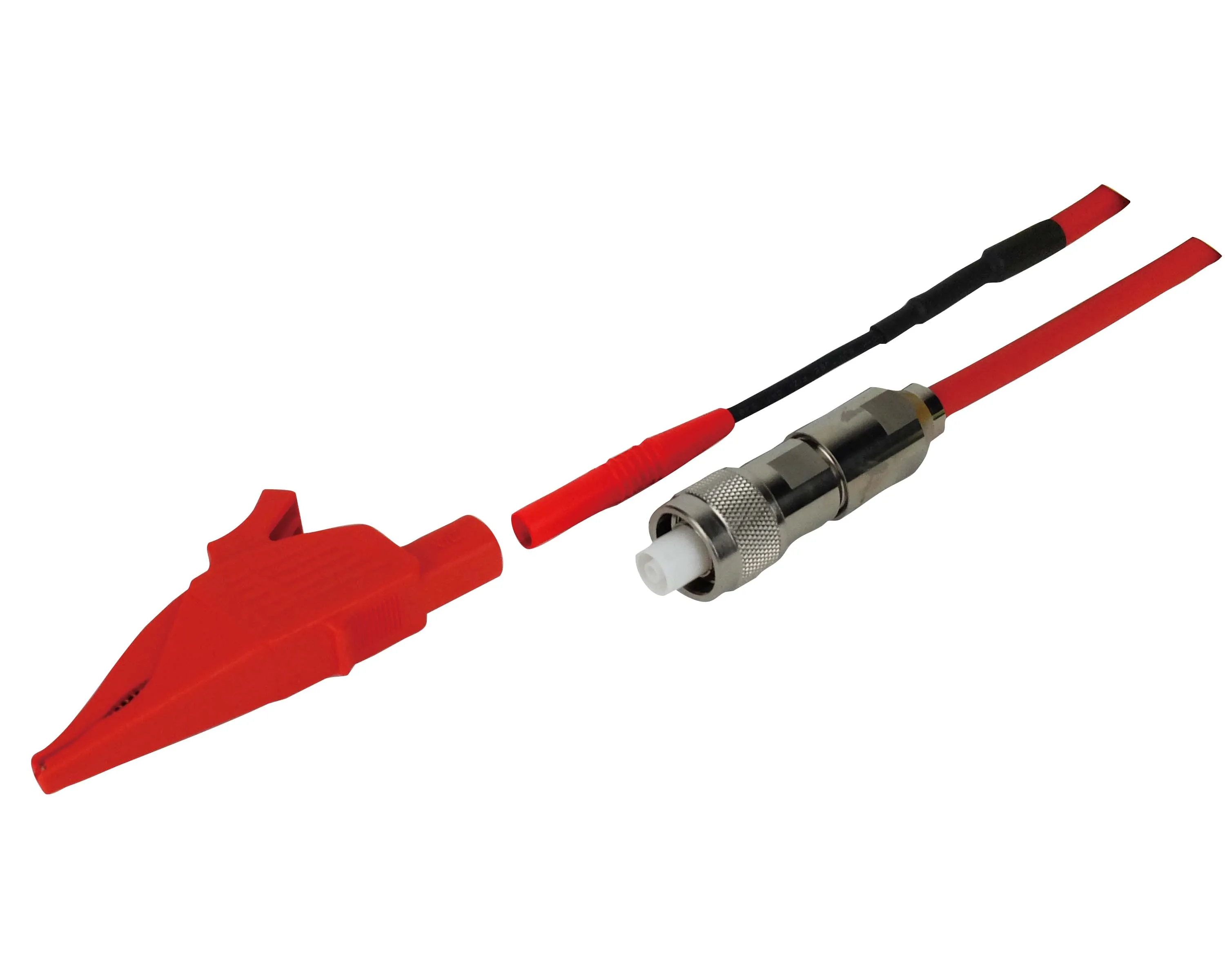

L2232 - Test Lead for Super Megohm Meters
The L2232 Test Lead is a specialized connection lead designed for high-precision resistance and insulation measurements with the HIOKI SUPER MEGOHM Meters SM7110, SM7120, and SM7420. It is intended for use in laboratory, testing, and quality-assurance environments where secure contact, low leakage currents, and effective shielding are essential. The test lead features a flexible triaxial cable design with a cable diameter of approx. 7 mm, providing effective shielding while ensuring easy handling during daily measurement tasks. On the instrument side, it is equipped with a triaxial connector that helps reduce leakage currents and external interference. The outer diameter of the coupling nut is 20 mm, allowing clear mechanical identification and a secure connection to the instrument.At the other end, a touch-proof 4 mm safety banana plug ensures safe electrical connection. The measurement side additionally features a fully insulated, detachable connection clamp, providing secure contact with the test object and flexibility for different measurement tasks. A robust design with strain relief ensures high reliability and long service life in daily use. Key Specifications
Instrument connection: Triax connector, coupling nut outer diameter 20 mm Other end connection: Touch-proof (finger-safe) 4 mm safety banana plug Measurement connection: Fully insulated, detachable connection clamp (red)Cable length: Approx. 1 m
L2233
L2233 - Test Lead Set
The L2233 Test Lead Set is an optional black connection accessory for resistance and insulation measurements with the HIOKI Super Megohm Meters SM7110, SM7120, and SM7420. It consists of a test lead and an alligator clip, forming a complete set for flexible measurement setups.The test lead is equipped with extended, touch-proof 4 mm banana plugs on both ends. The design with a plug length of 115 mm each ensures a secure electrical connection with the recessed contacts of the input terminals of the HIOKI Super Megohm Meters, where standard banana plugs do not provide reliable contact. The included alligator clip can be attached to the banana plug when required, allowing flexible and secure connection to the test object. Key Specifications
Connections: 2 × touch-proof 4 mm banana plugsPlug design: Extended, plug length 115 mm each Cable length: Approx. 1.3 m Compatibility: HIOKI Super Megohm Meters SM7110, SM7120, and SM7420
L2234

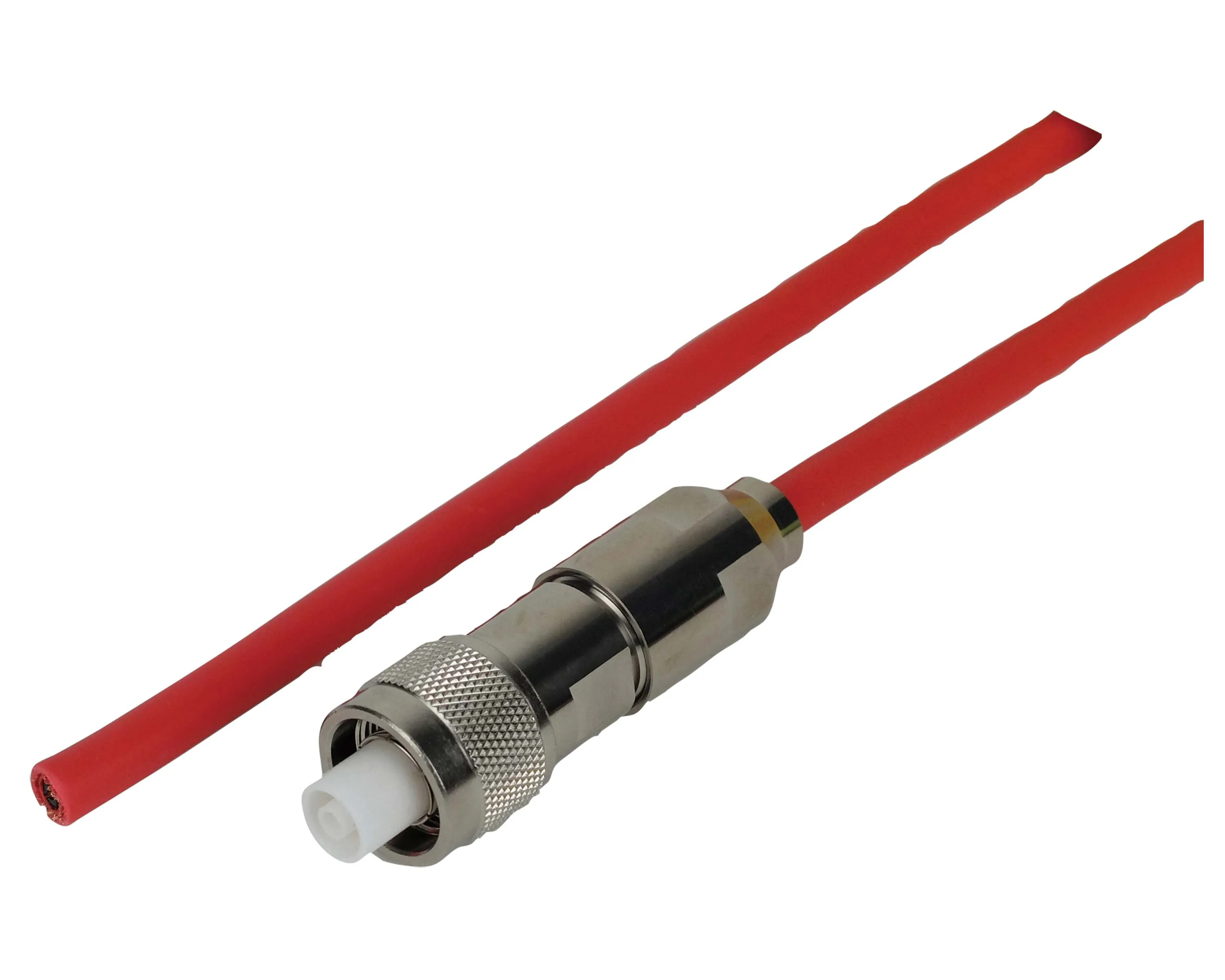

L2234 - Test Lead with Open End
The L2234 Test Lead is a connection lead designed for high-precision resistance and insulation measurements with the HIOKI SUPER MEGOHM Meters SM7110, SM7120, and SM7420. It is based on the design of the L2232, but features an open cable end, allowing users to implement a connection tailored to their specific application requirements.The test lead features a flexible triaxial cable design with a cable diameter of approx. 7 mm, providing effective shielding and supporting accurate measurement of very high resistance values. On the instrument side, it is equipped with a triaxial connector that reduces leakage currents and external interference. The outer diameter of the coupling nut is 20 mm, enabling clear mechanical identification and a secure connection to the instrument.The open cable end offers maximum flexibility for integration into custom test setups, such as fixed wiring, special terminals, or application-specific contacts. A robust design with strain relief ensures high reliability and long service life in professional use. Key SpecificationsInstrument connection: Triax connector, coupling nut outer diameter 20 mm Cable end: Open, for customer-specific terminationCable design: Flexible triaxial cable, diameter approx. 7 mmCable length: Approx. 3 m
L2235

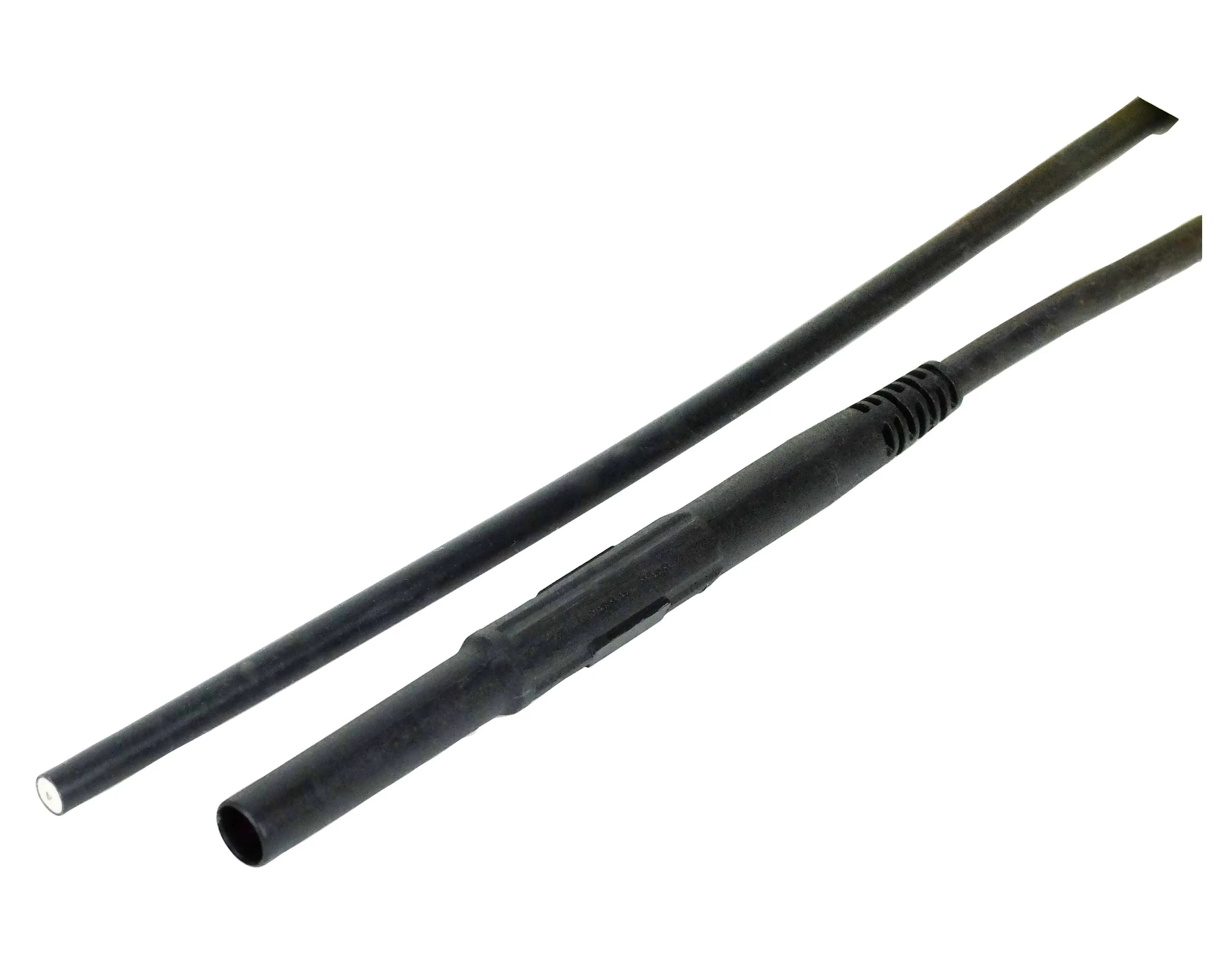

L2235 - Test Lead with Open End
The L2235 Test Lead is an optional black connection lead for resistance and insulation measurements with the HIOKI Super Megohm Meters SM7110, SM7120, and SM7420. It is functionally based on the L2233 but features an open cable end and is supplied without an alligator clip.The test lead is equipped with an extended, touch-proof 4 mm banana plug on the instrument side. The design with a plug length of 115 mm ensures a secure electrical connection with the recessed contacts of the input terminals of the HIOKI Super Megohm Meters, where standard banana plugs do not provide reliable contact. The open cable end allows for customer-specific termination, such as fixed wiring, special clamps, or custom adapter solutions, making the L2235 suitable for customized test setups and special applications. Key SpecificationsInstrument connection: Touch-proof 4 mm banana plug, extended (115 mm) Cable end: Open, for customer-specific termination Cable length: Approx. 3 mCompatibility: HIOKI Super Megohm Meters SM7110, SM7120, and SM7420
