HIOKI L9910 – Conversion Cable for HIOKI Measuring Instruments

Skip image gallery

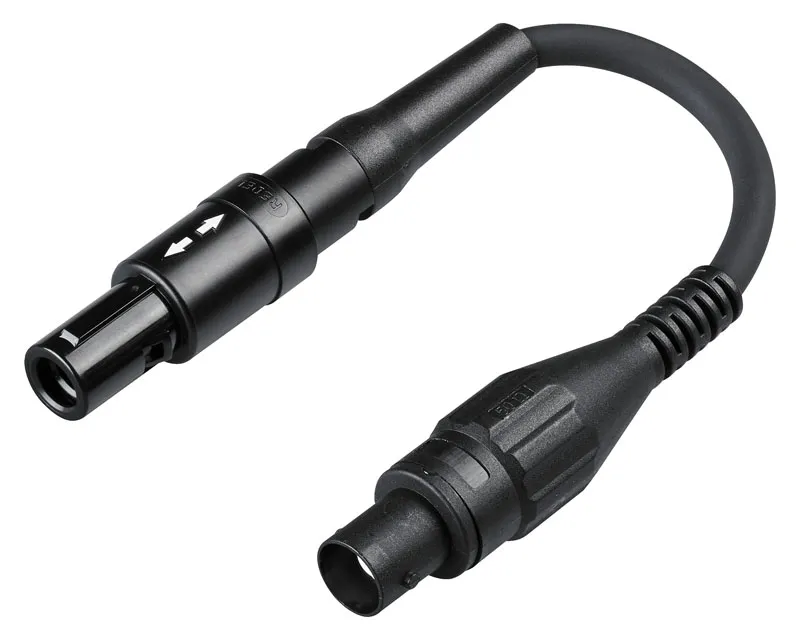

HIOKI L9910 conversion cable BNC to PL14
HIOKI L9910 conversion cable for PQ3100
HIOKI L9910 conversion cable for PQ3198
HIOKI L9910 conversion cable BNC to PL14
HIOKI L9910 conversion cable for PQ3100
HIOKI L9910 conversion cable for PQ3198

€78.00

Content: 1 item

Shipping costs : €9.90 (Standard)

In stock in Germany

Any questions?
  • Fast delivery across Europe
  • EU business invoices

€78.00

HIOKI L9910 – Conversion Cable for HIOKI Measuring Instruments
Product number: L9910
Available stock: 1
GTIN/EAN: 4536036005840
Description

Product information HIOKI L9910 – Conversion Cable for HIOKI Measuring Instruments

The L9910 conversion cable is an accessory for the power quality analyzers PQ3100 and PQ3198. It is an adapter cable for connecting current sensors with BNC terminals to instruments with PL14 input terminals. It enables the connection of current sensors that are not listed as standard optional accessories and provides the required electrical and mechanical interface for integration into the measurement system. The conversion cable allows the use of various Hioki current sensors with BNC connectors, expanding the range of compatible sensors beyond the standard options.

Compatible current sensors:

  • Flexible current sensors: CT9667-01, CT9667-02, CT9667-03
  • Clamp / general current sensors: 9657-10, 9675, 9660, 9661, 9669
  • AC current sensors: 9694, 9695-02, 9695-03

Technical specifications:

  • Type: Conversion cable (BNC to PL14)
  • Overall length: 196 mm

What's in the Box
  • L9910

Dimensions & Packaging

Length 196 mm
Weight 0.03 kg
