HIOKI BT5525 - Battery Insulation Tester

€5,198.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

Available in 21 days

€5,198.00*

HIOKI BT5525 - Battery Insulation Tester

Product number: BT5525

EAN: 4536036014477

Length: 215 mm

Width: 306.5 mm

Height: 80 mm

Weight: 2.8 kg

Product information HIOKI BT5525 - Battery Insulation Tester

Battery Insulation Tester, Break Down Detection (BDD), contact check function, use in combination with Test Leads L2130 and L2131 for benchtop testing, use in combination with L2132 and L2133 for production line testing.

Technical specifications

Test voltage: 25 V to 500 V
Charging current: 50 mA maximum

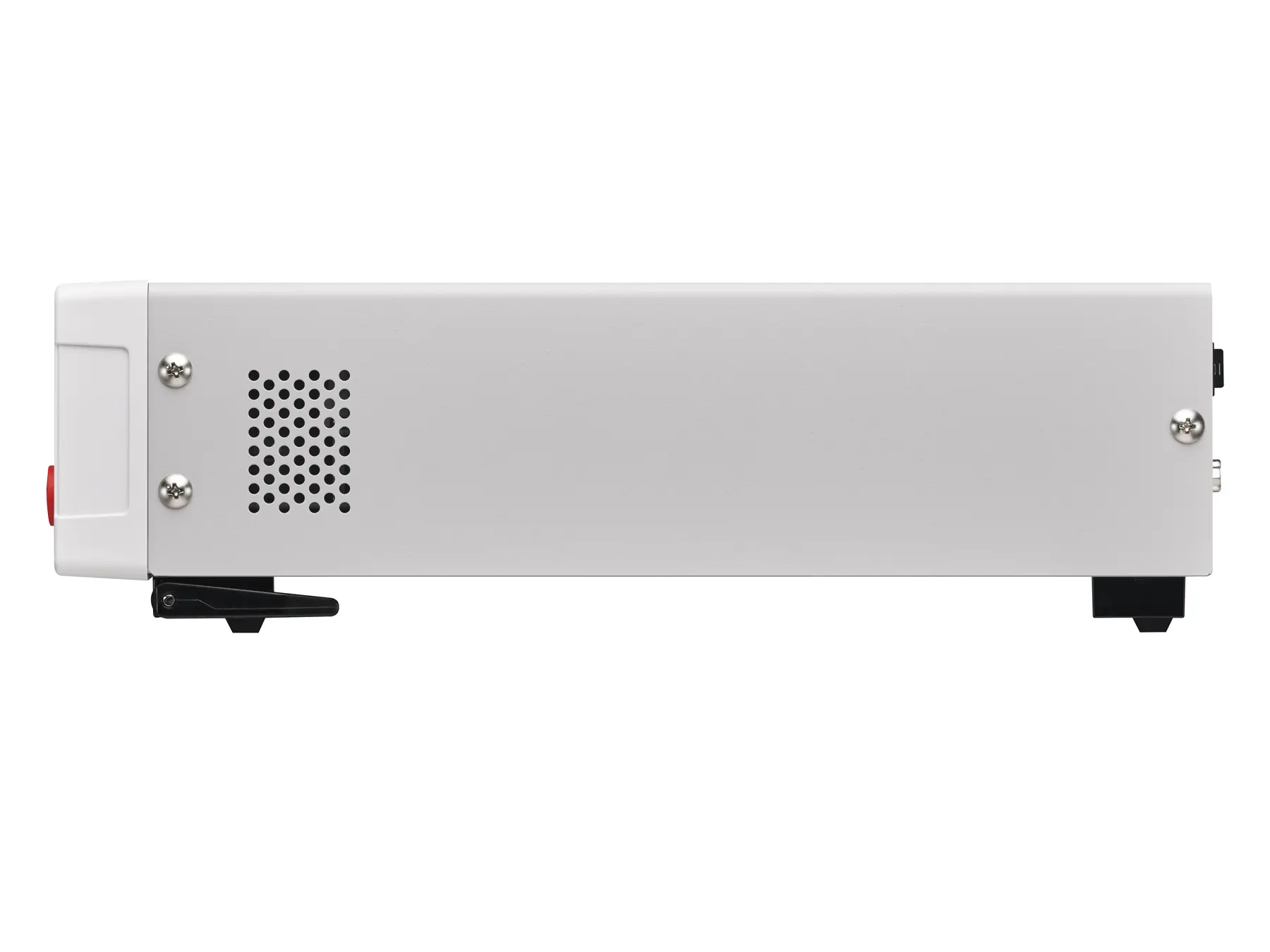

Insulation resistance measurement: up to 9999 MΩ

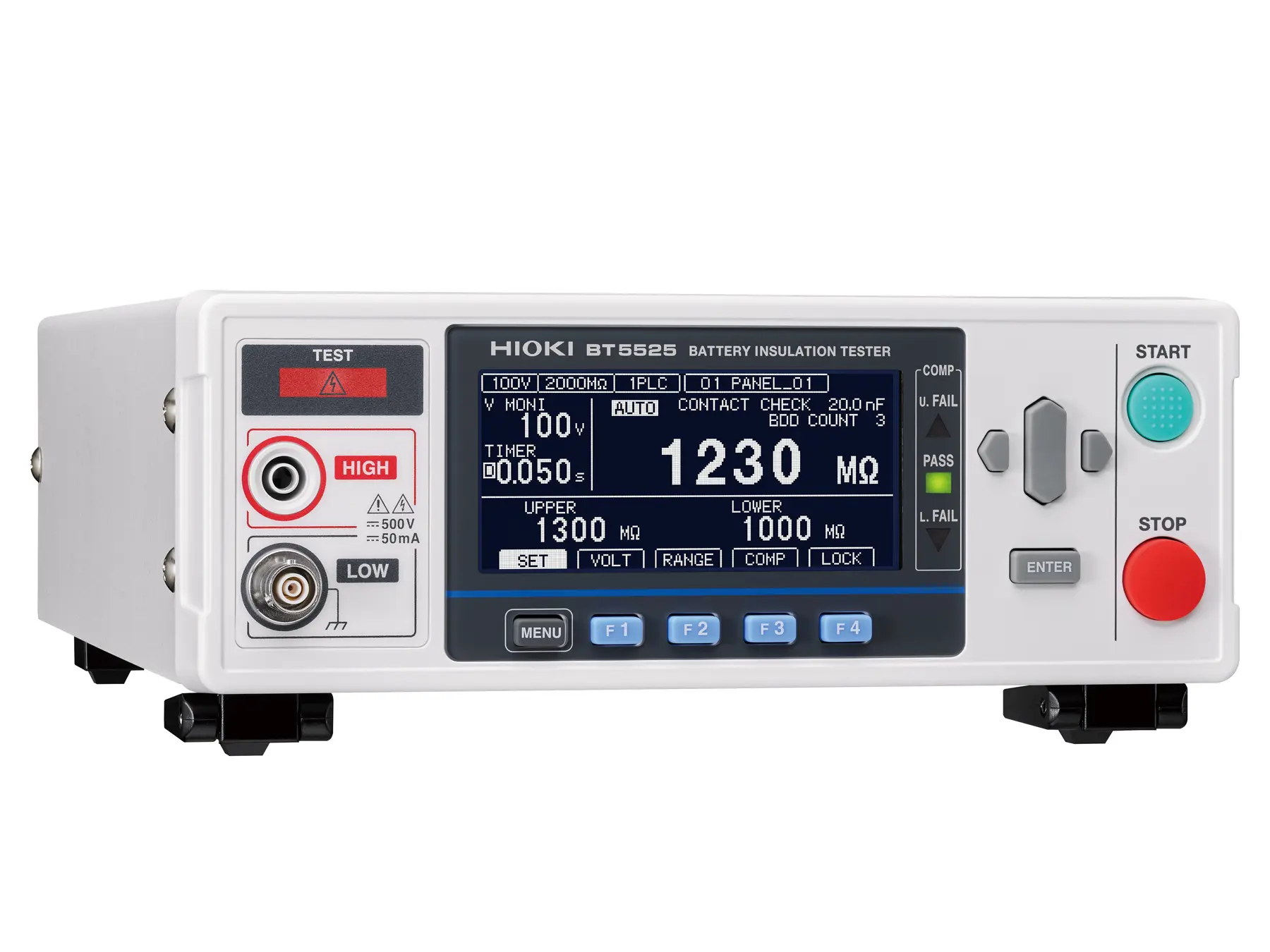

Contact check function

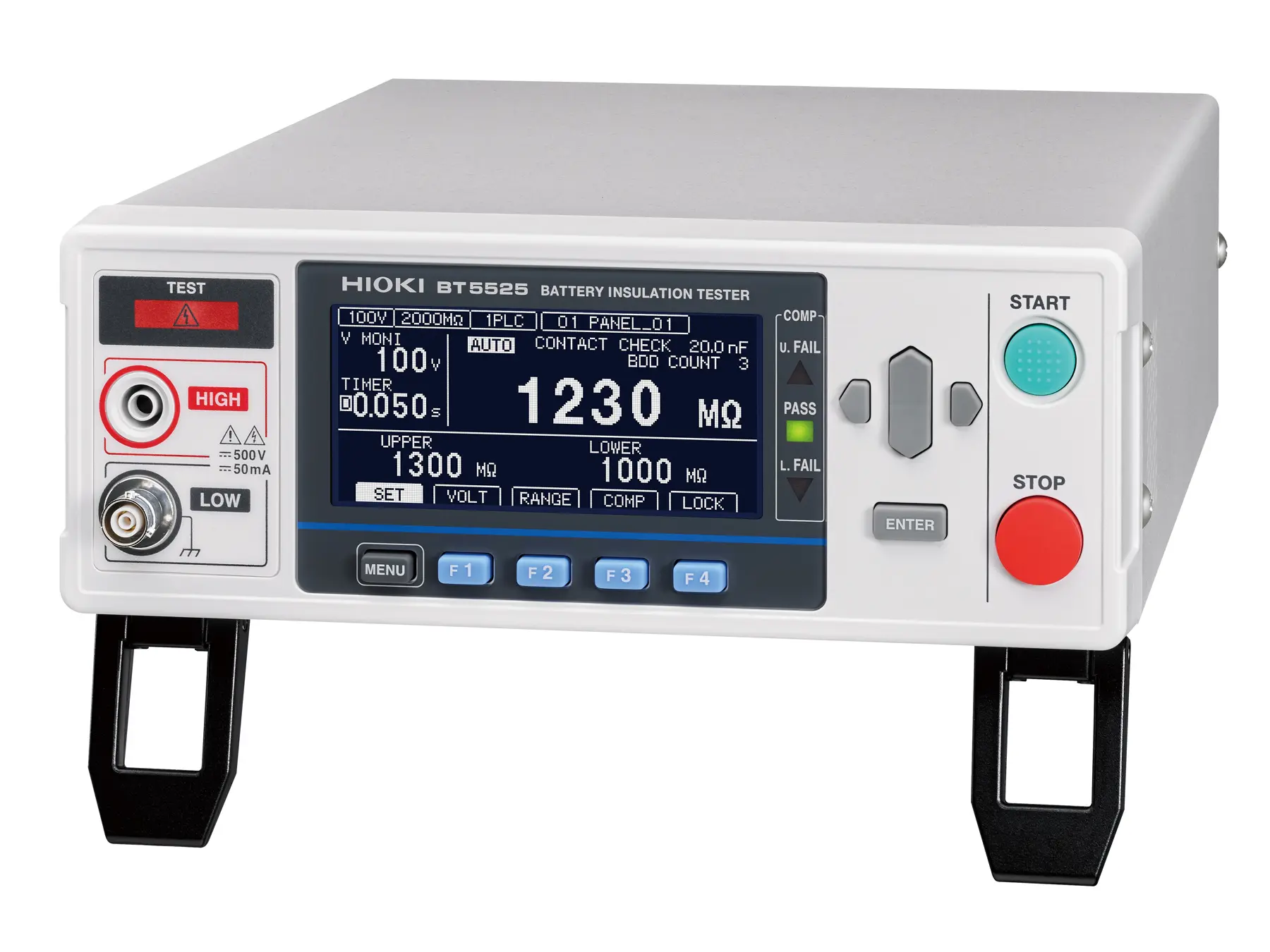

Break Down Detect (BDD) function

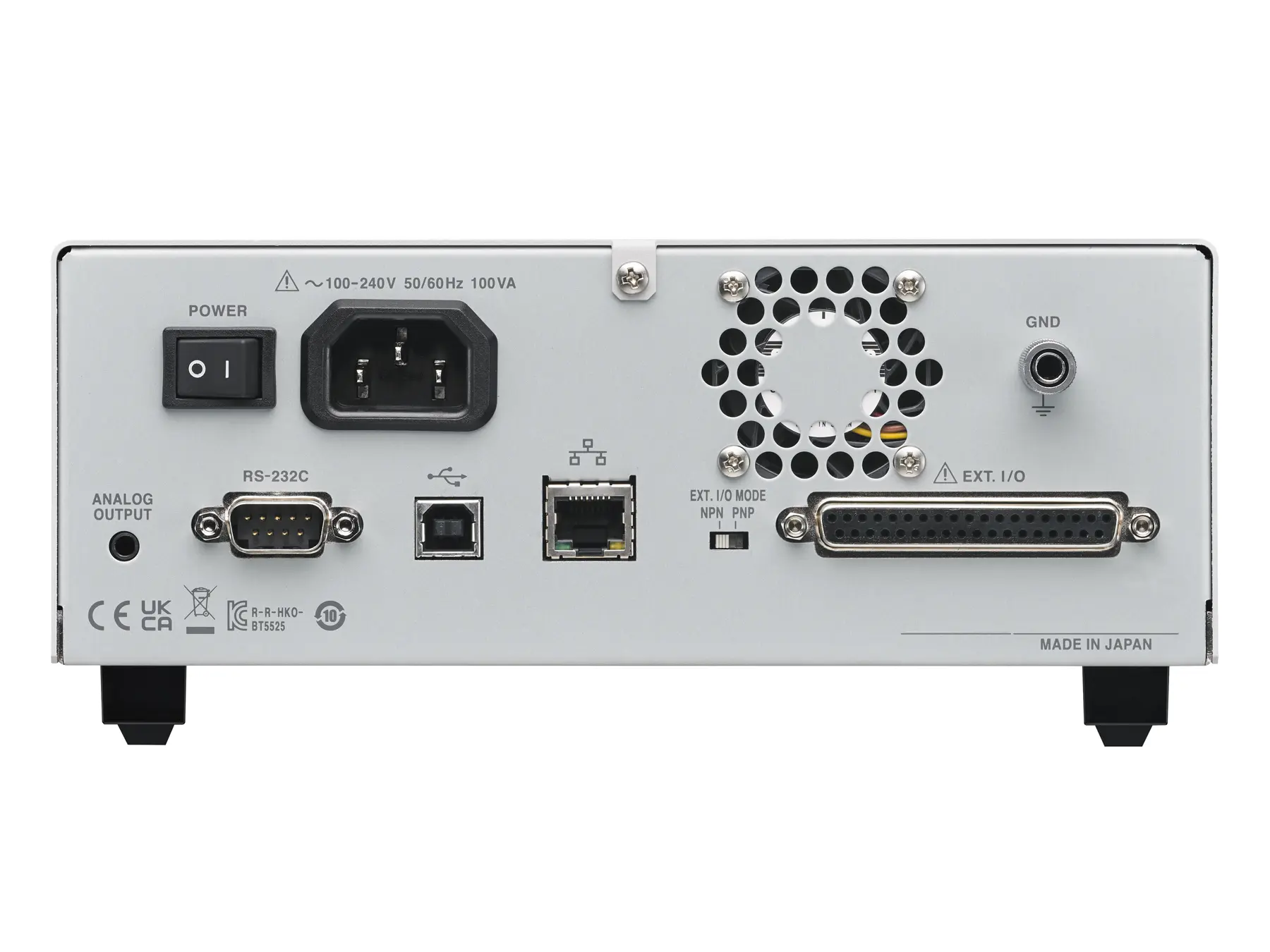

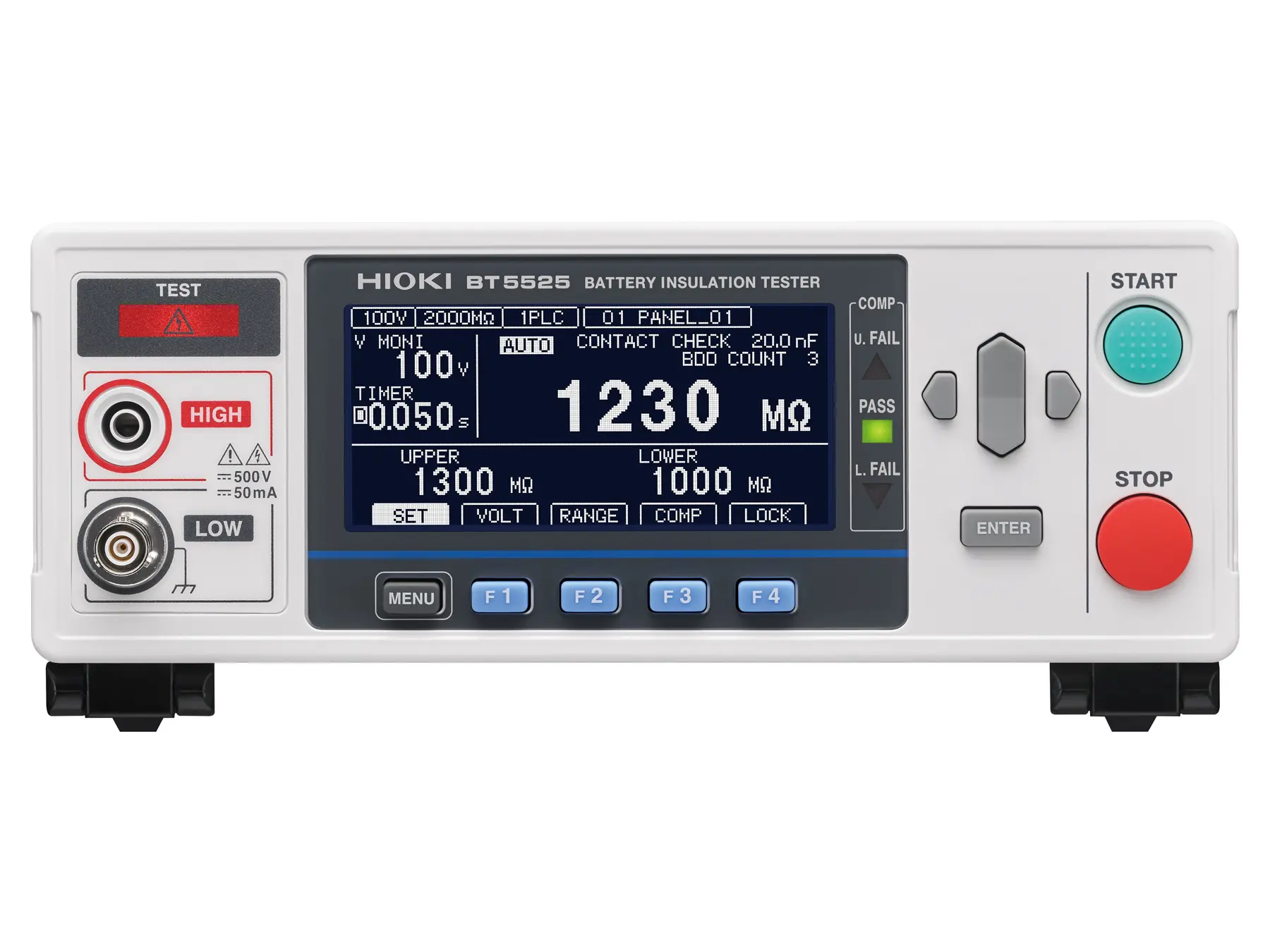

Interfaces: USB, LAN, RS-232C, EXT. I/O

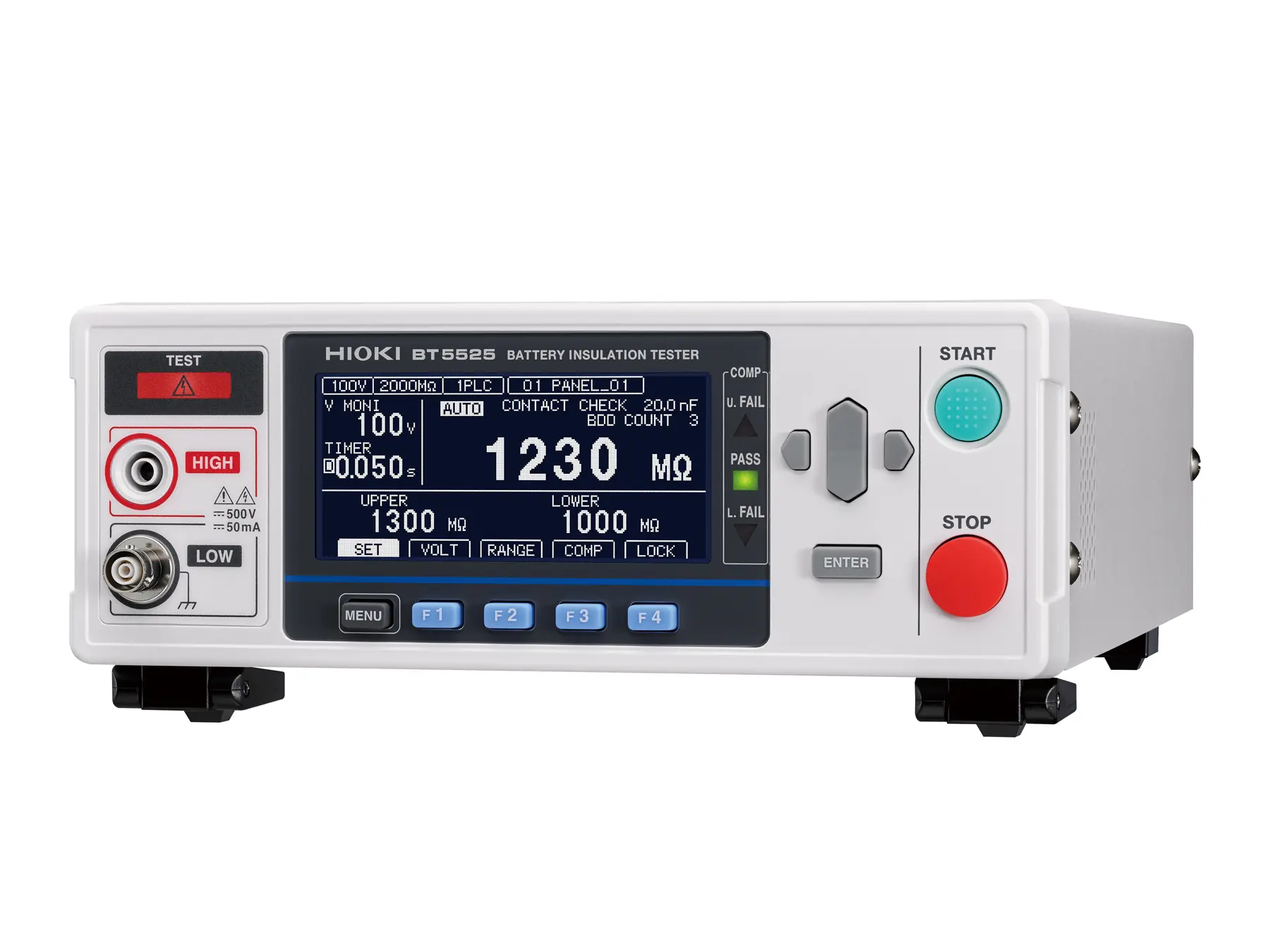

Use in combination with Test Leads L2130 and L2131 for benchtop testing, use in combination with L2132 and L2133 for production line testing.
Helps prevent shipment of batteries with latent insulation defects that could lead to fire
Enables easy system integration and automation via multiple interfaces
Offers a wide range of functions for convenient and reliable measurements

BT5525 Battery Insulation Tester
Power cord
EXT. I/O male connector
EXT. I/O connector cover
EXT. I/O interlock cancellation jig
Startup Guide

Related Products

ST5520

ST5520 - Insulation Tester

The ST5520 is an insulation resistance tester designed for fast, accurate testing in production lines. It is ideal for high-throughput environments where rapid, reliable measurements are crucial.

€1,428.00*

View product

L2130

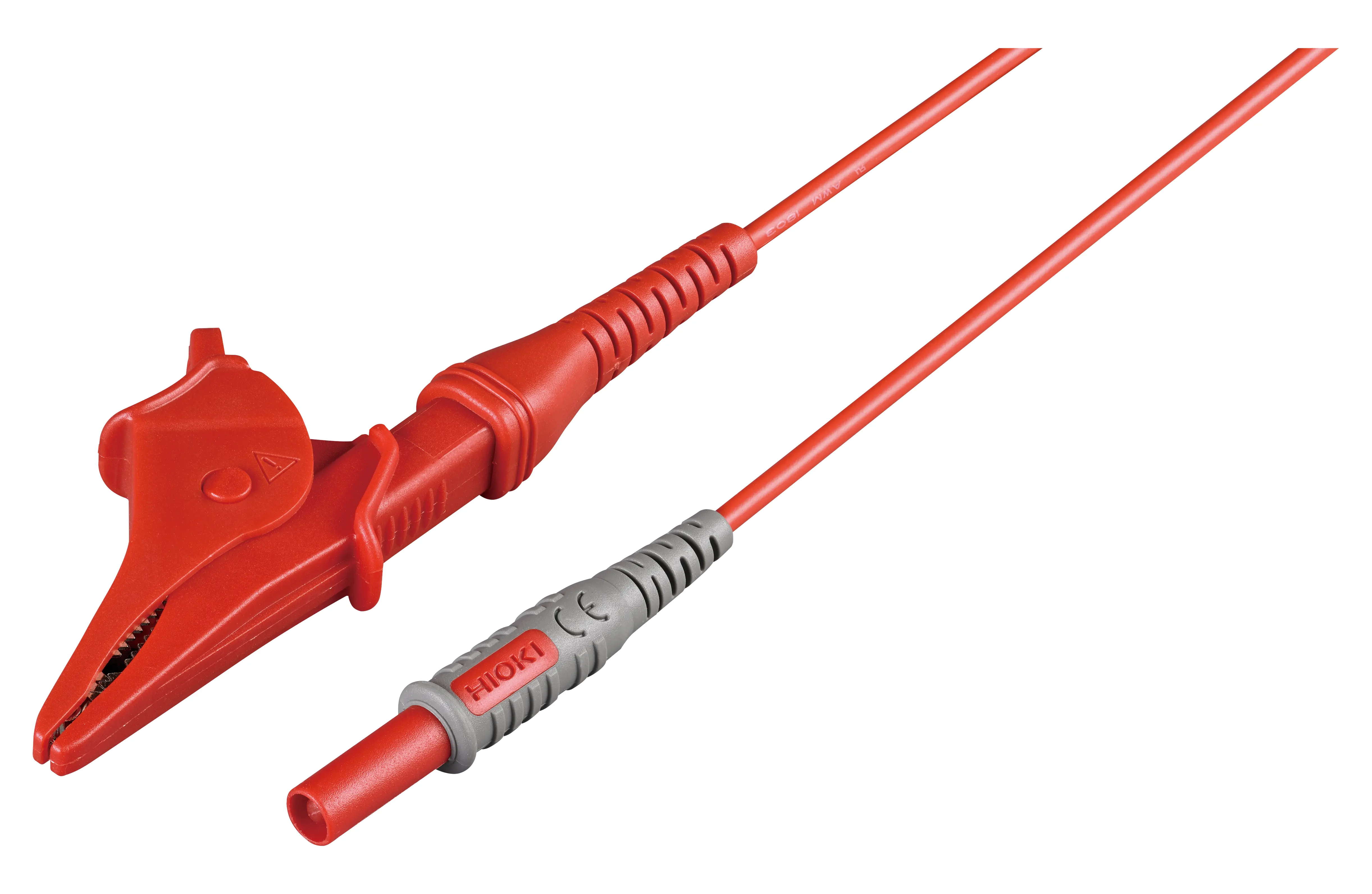

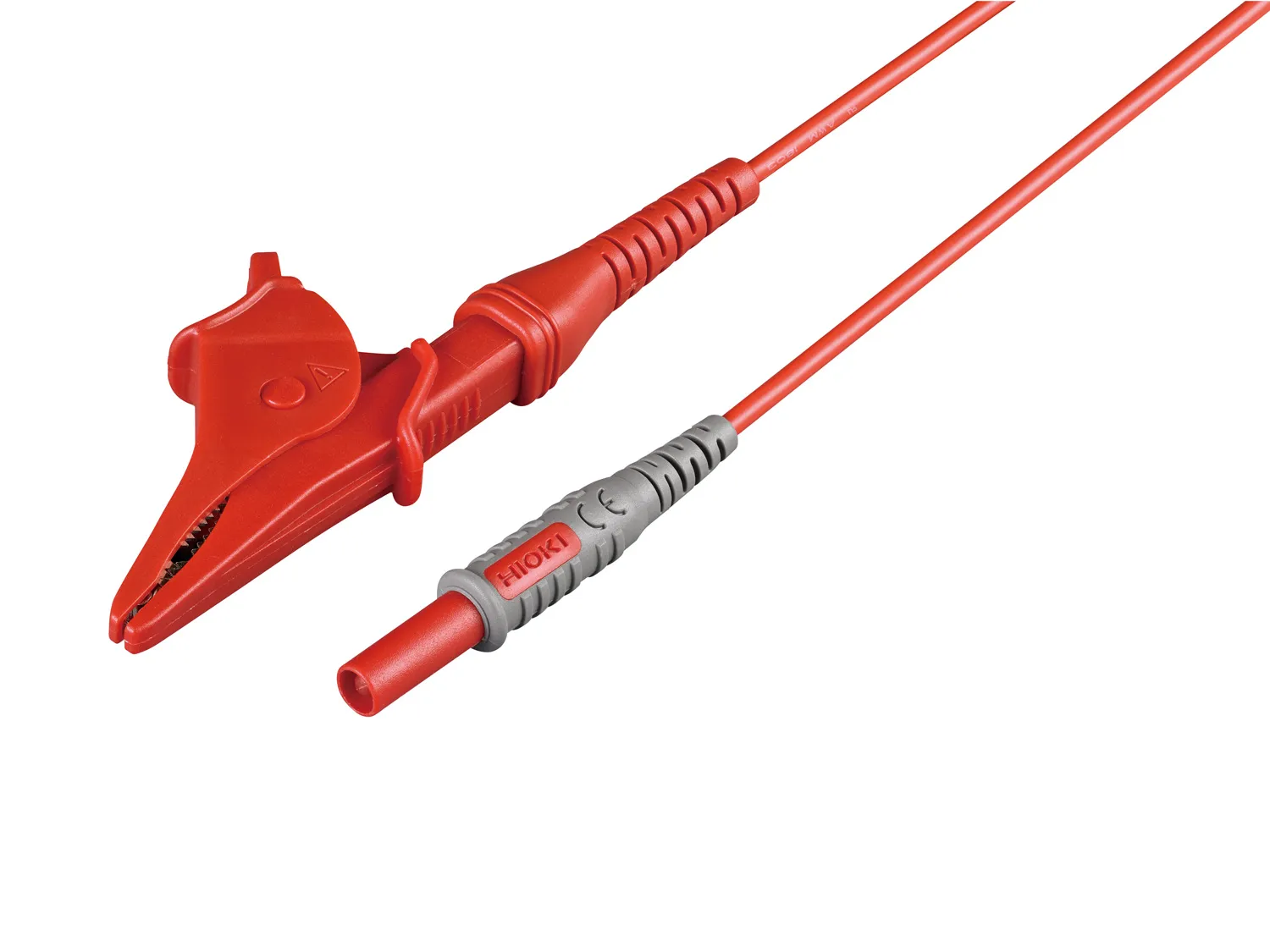

L2130 - Clip Type Lead (red)

The L2130 is a clip type measurement lead designed for connection to the HIGH terminal of compatible Hioki instruments. It is equipped with a banana plug on the instrument side and a clip on the DUT side. The lead has a total cable length of 1.5 m. Key Specifications Connector type: Banana plug to clip Terminal assignment: HIGHCable length: 1.5 mColor: Red Rated voltage: 500 V Rated current: 50 mA Standard: EN 61010 Type A Operating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€58.00*

View product

L2131

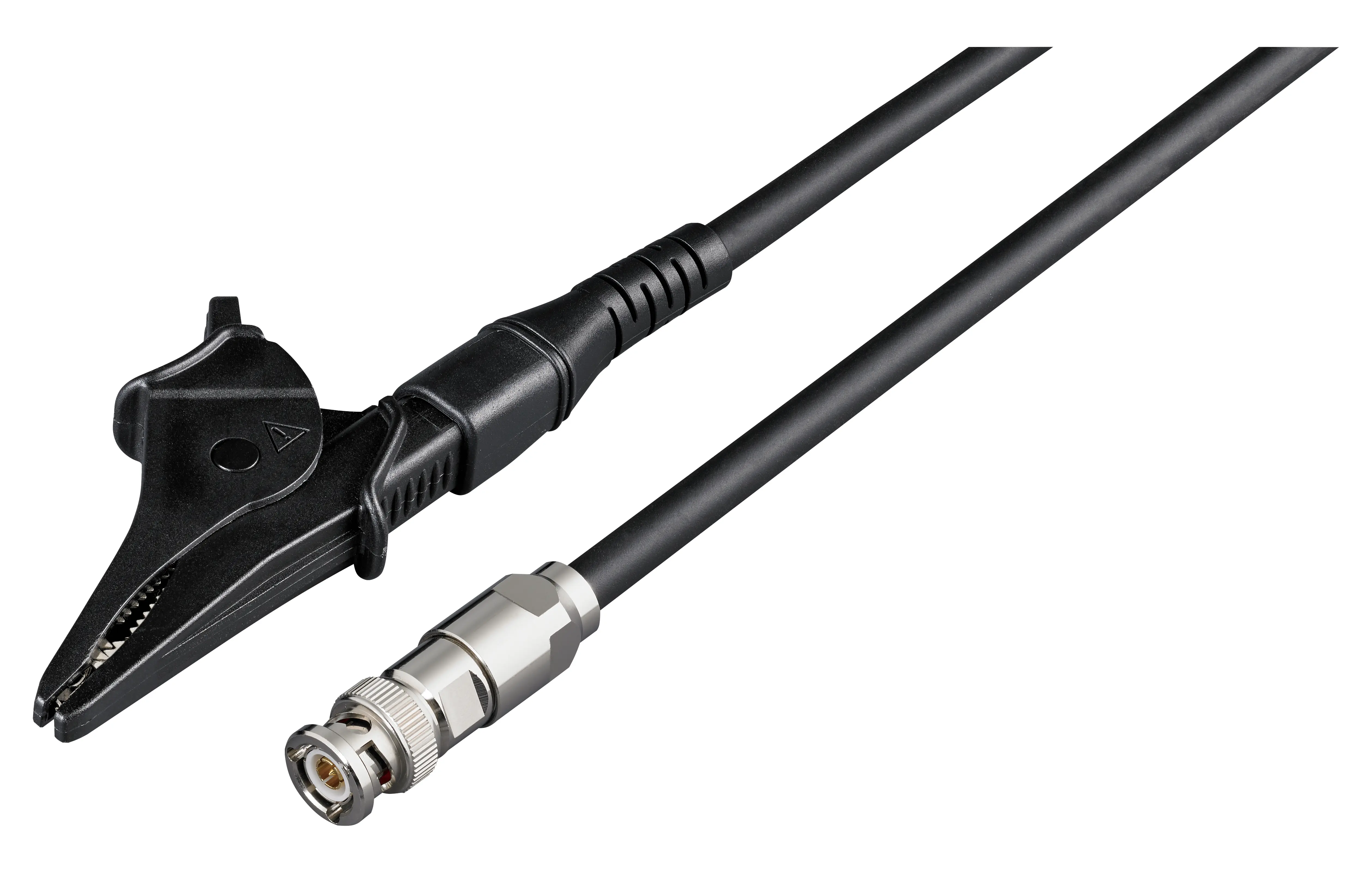

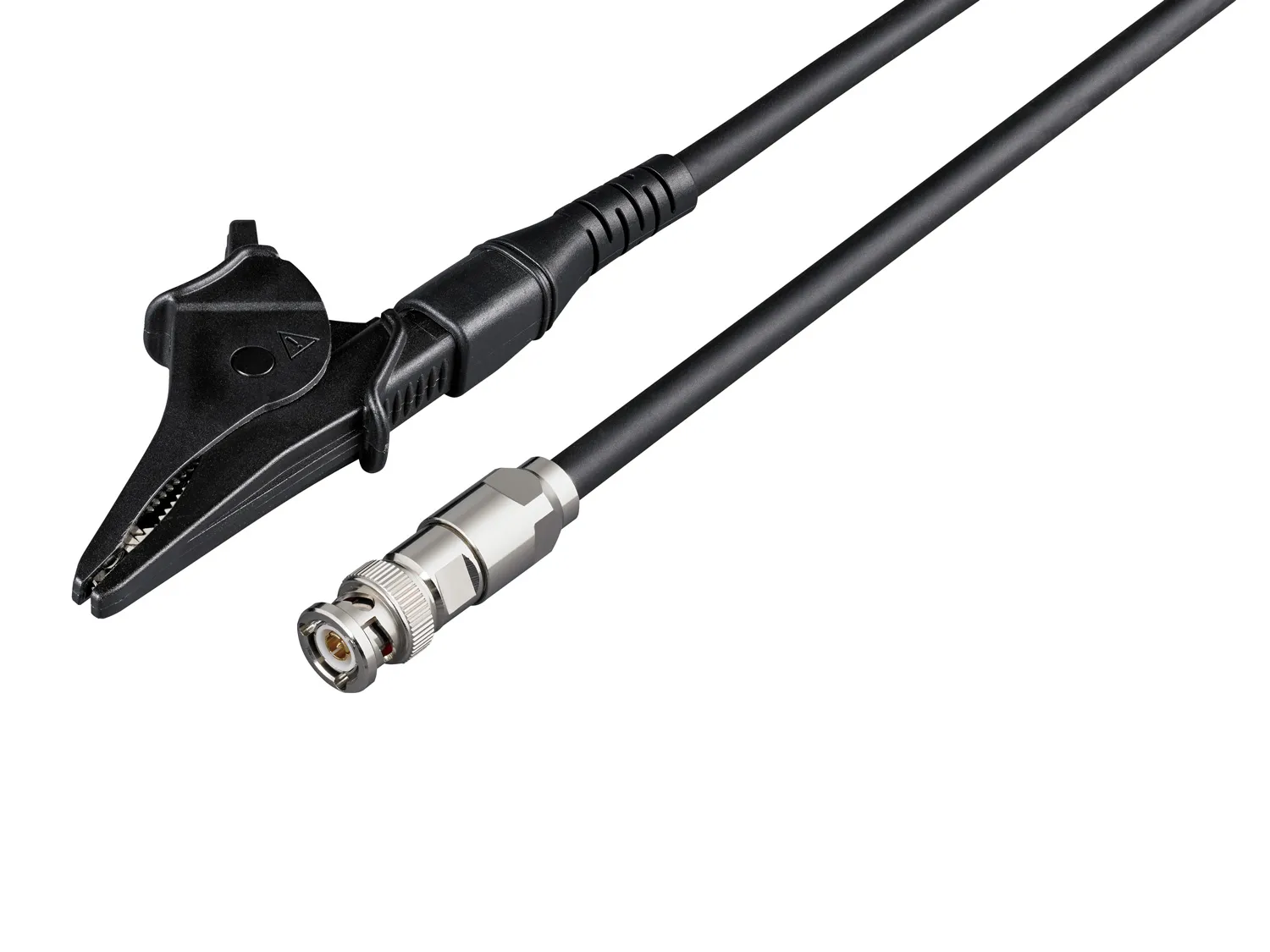

L2131 - Clip Type Lead (black)

The L2131 is a clip type measurement lead designed for connection to the LOW terminal of compatible Hioki instruments. It is equipped with a special triaxial connector on the instrument side and a clip on the DUT side. The lead has a total cable length of 1.5 m. Key SpecificationsConnector type: Triaxial connector to clipTerminal assignment: LOW Cable length: 1.5 mColor: Black Rated voltage: 500 VRated current: 50 mA Standard: EN 61010 Type A Operating temperature: 0 °C to 40 °C Operating humidity: 80% RH or less, non condensing

€758.00*

View product

L2132

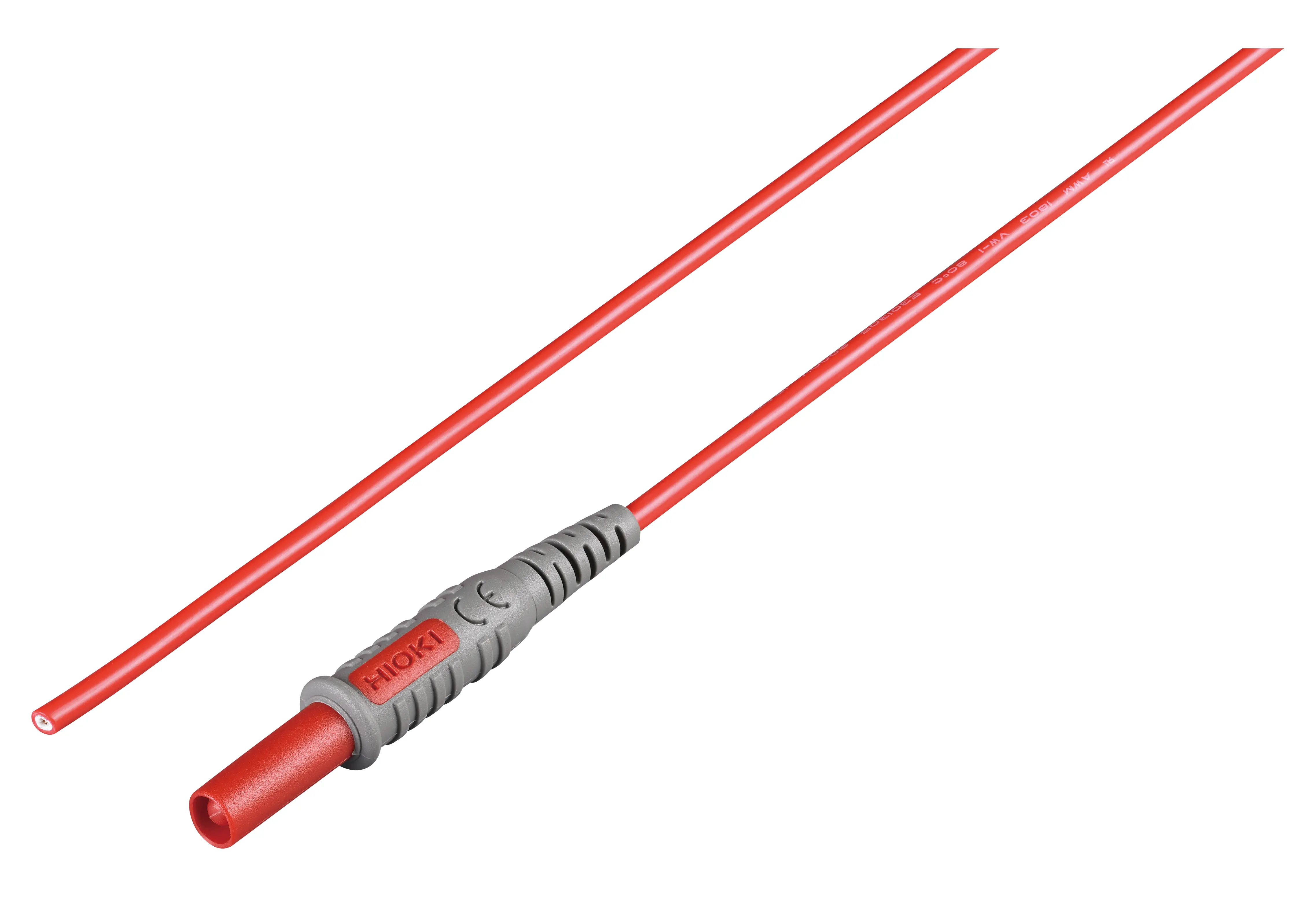

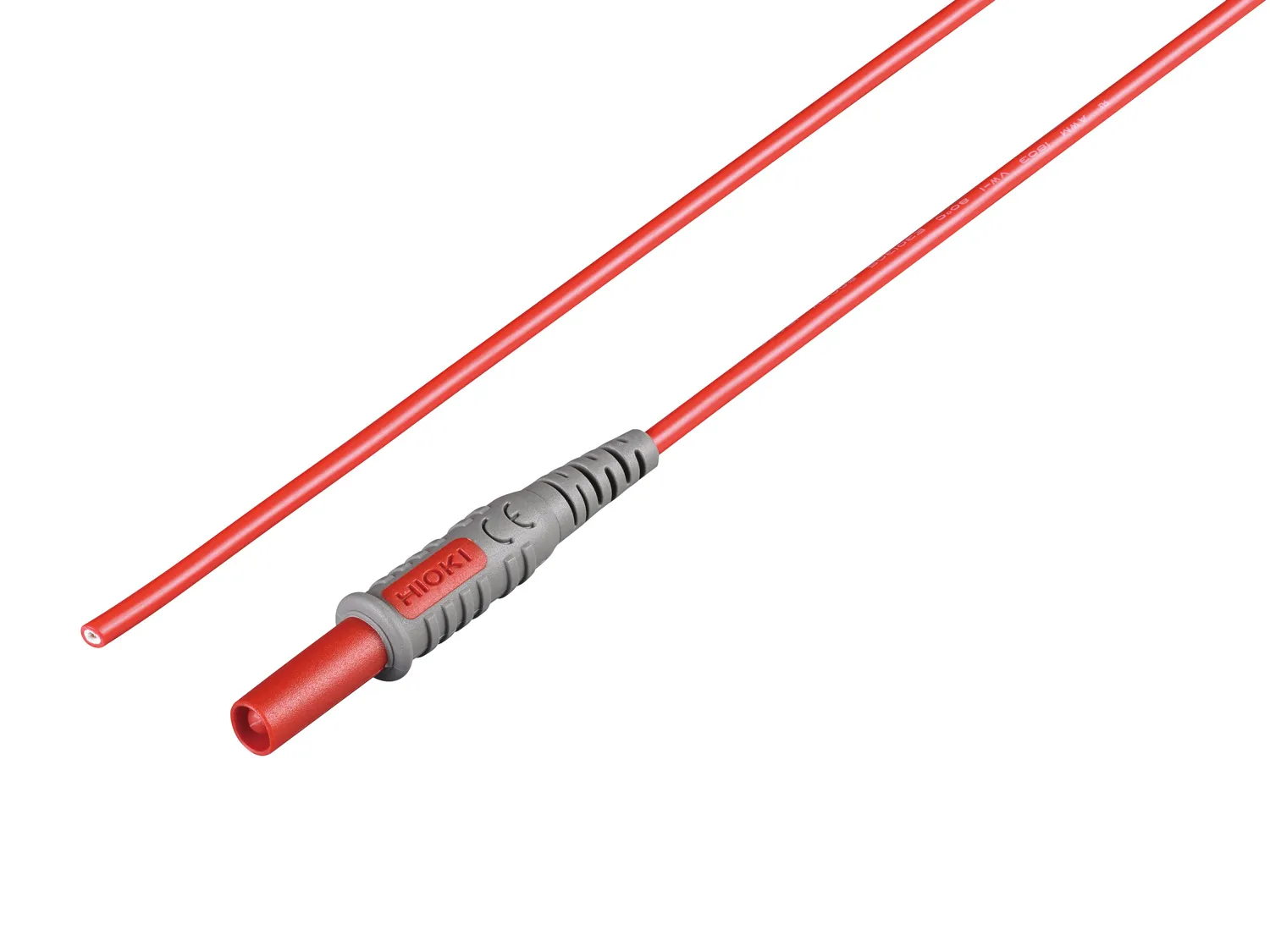

L2132 - Unterminated Lead (red)
