The 9453 is of 4-pole design. It can be used to perform the 4-pole resistance measurement method. The 9453 test lead has four separate tips in red and black. Two are small alligator clips and two are probes with tips. Technical details: Length: 1350mm Measuring devices (accuracy guaranteed): 3227, 3540, 3541, 3555, 3560, 3561, BT3562, BT3563 (operating voltage below 60V)

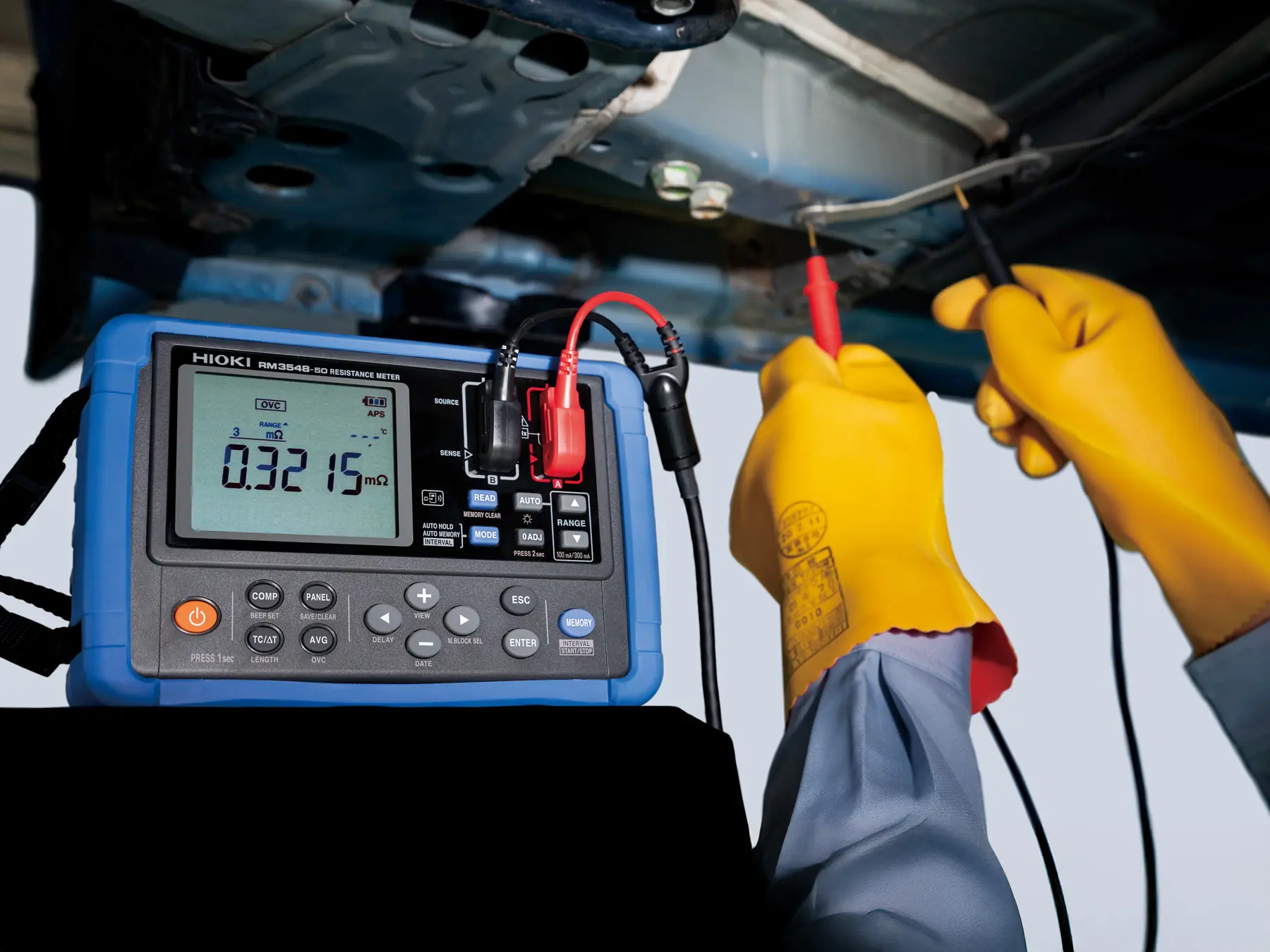

Key SpecificationsType: Four-terminal test leads with straight pogo-pin tips Measurement type: DC resistance Tip type: Gold-plated spring-loaded pogo pins (Ø 2.9 mm, length 13.5 mm) Contact pressure: Approx. 190 g to 250 g (at 1 mm stroke) Lead length: Black 3.9 m, red approx. 2.0 m (joined for 1.75 m from instrument side)Construction: Four-terminal configuration with coaxial pogo-pin tips  Detailed Product OverviewThe 9465-11 test leads are designed for precise DC four-terminal resistance measurements with the HIOKI RM3548 and RM3548-50 resistance meters. With a total cable length of 3.9 m for the black lead and approximately 2.0 m for the red lead, the 9465-11 provides convenient access to measurement points positioned farther apart. From the instrument connector, the red and black leads are joined over approximately 1.75 m before branching. The red lead extends about 5 cm beyond the split and terminates in an 18 cm handgrip with a straight pogo-pin tip. The black lead continues for about 2.0 m to an identical handgrip with a straight pogo-pin tip. This asymmetrical configuration allows measurements between test points spaced farther apart, while maintaining the mechanical stability of a partially joined cable section. Unlike the L2140 lead set, which combines a pogo-pin tip on the red lead with a crocodile clip on the black lead, both leads of the 9465-11 feature straight pogo-pin tips for precise contact on defined metallic surfaces. Each pogo-pin tip (Ø 2.9 mm) has a coaxial design, with the inner conductor acting as the SENSE line and the outer conductor as the SOURCE line. This minimizes contact resistance and noise, ensuring stable and repeatable low-resistance readings. The spring-loaded mechanism provides a defined contact pressure of approximately 190 g to 250 g at 1 mm stroke, enabling reliable connection on small pads or metallic terminals.

9465-90 replacement Tip Pin, spare part for test leads 9465-10, 9465-11, L2020 and L2140, coaxial designed pogo pin, pack of one.

The 9467 four-pole design measurement lead features large alligator clips for clamping onto lead-acid battery terminals, supporting operating voltages up to 50V.Technical details: Compatibility: Hioki 3227, 3540, 3541, 3550, 3551, 3554, 3560, 3561, BT3554, BT3554-01, BT3562, BT3563 (for operating voltages below 50V), RM3548Mass: 165g Length: 1.3m

The Hioki 9770 Pin-Type Lead is designed for precise resistance measurements on small objects, such as battery terminals. Its coaxial pin with a diameter of 1.8 mm ensures easy and accurate contact during measurements. The 9770 model utilizes a 4-terminal structure to deliver precise and reliable results in industrial applications. Technical Details: Coaxial pin, diameter: 1.8 mm Continuous current: AC/DC 3 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 gSpare parts: 9770-90 tip pin

The Hioki 9770-90 is the replacement measurement tip for the Hioki 9770. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

The Hioki 9771 Pin-Type Lead is developed for precise inspection of PCBs, through holes, and SMD components. It features parallel pins spaced 0.2 mm apart with a four-sided pyramid tip, making it ideal for measuring small objects on PCBs. This model also uses a 4-terminal structure to provide accurate and efficient measurements. Technical Details: Parallel pin, spacing: 0.2 mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 860 mm Weight: approx. 110 g Spare parts: 9771-90 tip pin Surface of contacs: gilded

The Hioki 9771-90 is the replacement measurement tip for the Hioki 9771. Technical Detail: Parallel pin, spacing: 0.2 mm Contact surface: gilded"

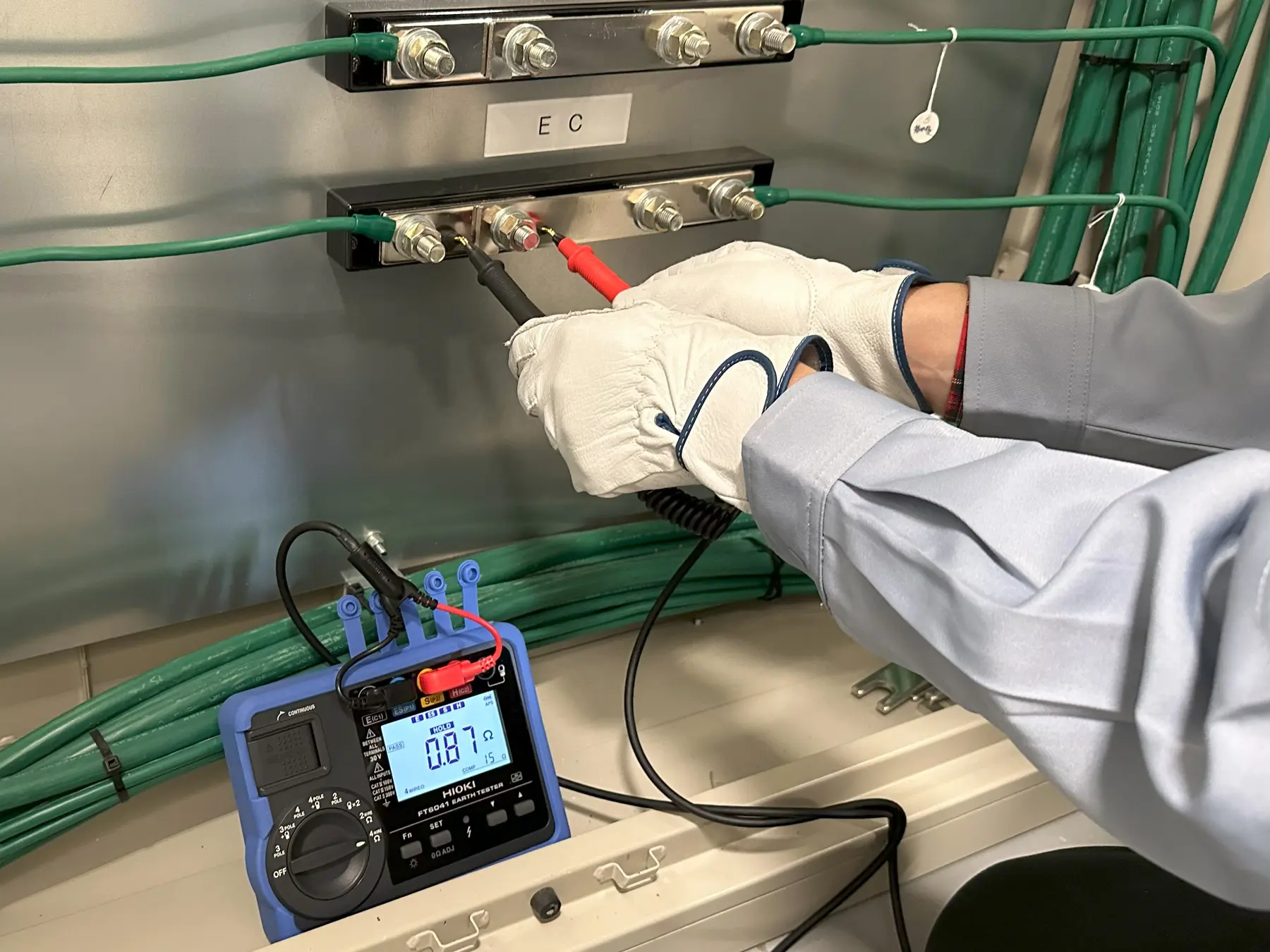

The Hioki 9772 Pin-Type Lead is designed for use in narrow spaces where making contact with the subject of measurement is difficult, such as when maintaining emergency batteries. The lead features two parallel, spring contact tips with a diameter of 1.8 mm, allowing for stable connection with the measurement object. Its four-terminal structure ensures precise measurements in confined spaces. Technical Details: Parallel tips, spacing: 2.5 mm Diameter singe tip: 1.8mm Continuous current: AC/DC 2 A Maximum rated voltage between terminal and ground: 60 V DC, 30 V AC RMS, 42.4 V AC peak Operating temperature range: 0°C to 40°C Storage temperature range: -10°C to 50°C Length: approx. 1900 mm Weight: approx. 180 g Accessories: Instruction manual Spare parts: 9772-90 tip pin

The Hioki 9772-90 is the replacement measurement tip for the Hioki 9772 test lead. Technical Detail: Coaxial pin, diameter: 1.8 mm Contact surface: gilded

The 9790-02 hook clamps are a pair of grabber clips, fully insulated in red and black, designed to attach to the ends of the L9790 cable. These clamps offer secure and reliable connections in measurement applications, providing robust insulation and compatibility with spring-loaded Ø 2 mm plugs. Technical Information: Overall length: 75 mm Socket diameter: Ø 2 mm Compatible with: L9790 cable Voltage limit: 300 V (CAT III) when attached to the L9790 cable
