HIOKI Precision Resistance Meters for R&D and Production

Resistance Measurement of Batteries, Components, and Materials

HIOKI resistance meters are engineered for fast, high-accuracy measurement of low resistance in battery production, electronic components, and material development. Whether you're evaluating weld quality, contact resistance, or terminal connections, these instruments deliver stable results with µΩ-level resolution and high noise immunity.

The RM3545A-2 is ideal for production and lab environments, combining high-speed and precision measurement with multiplexer support for up to 132 channels via external switching. The RM3544-01 offers reliable four-terminal resistance measurement in a standalone format, featuring built-in interfaces such as USB, RS-232C, and EXT I/O for flexible connectivity. For battery research, the RM2610 Electrode Resistance Measurement System is purpose-built for electrode sheet testing in lithium-ion cell development and process optimization.

Explore our resistance measurement solutions to find the right fit for your quality assurance and R&D workflows.

HIOKI RM3545A-1 resistance meter 1 nano ohm-1200mega ohm high accuracy 0-045 percent Hands measuring

RM3545A-2

HIOKI RM3545A-2 - Precision instrument for DC resistance, 13 ranges, integrated multiplexer option

Precision DC resistance meter with 13 ranges from 1 mΩ to 1200 MΩ for production testing and quality control. HIOKI RM3545A-1 available now.

€3,248.00*

View product

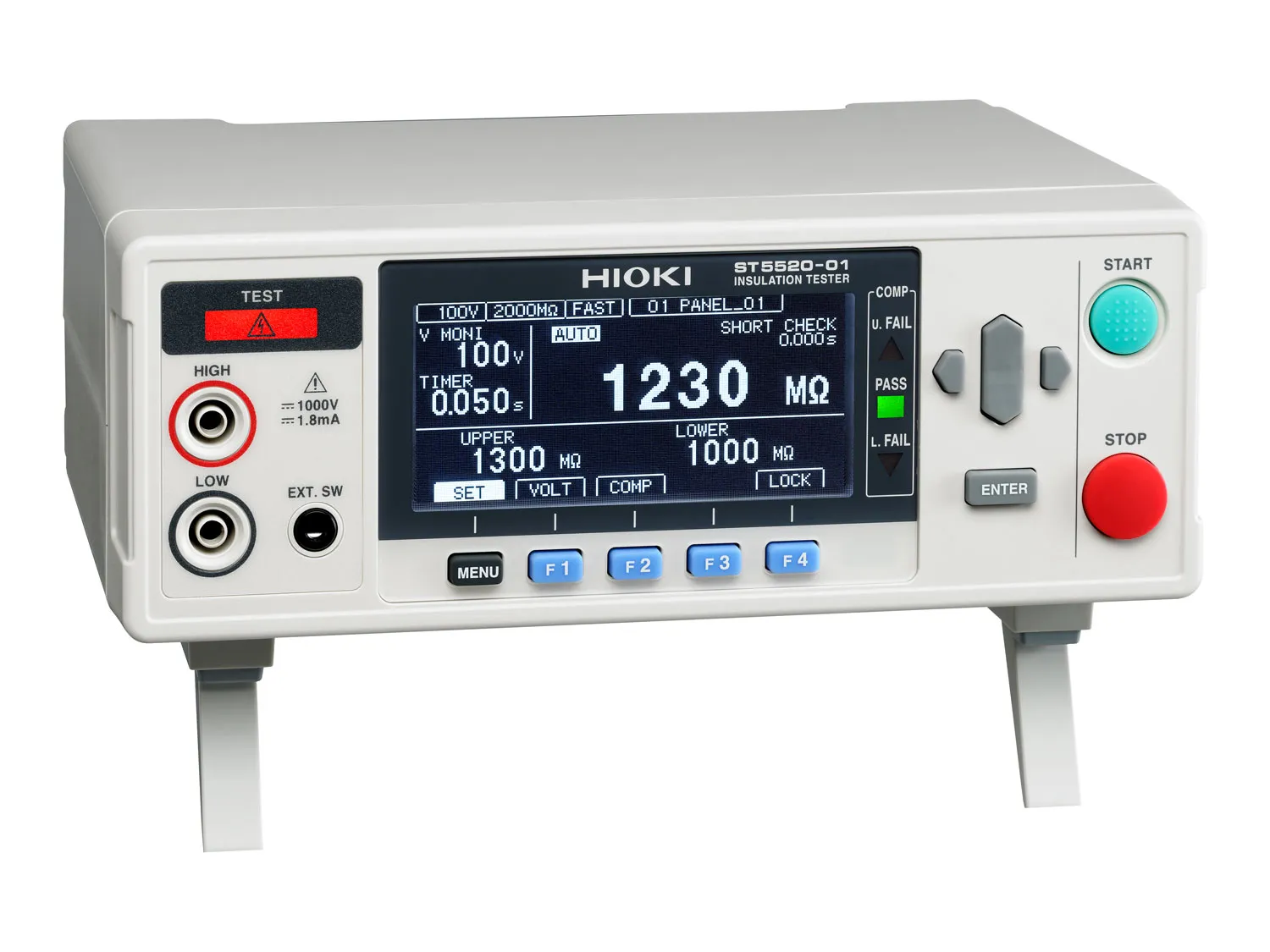

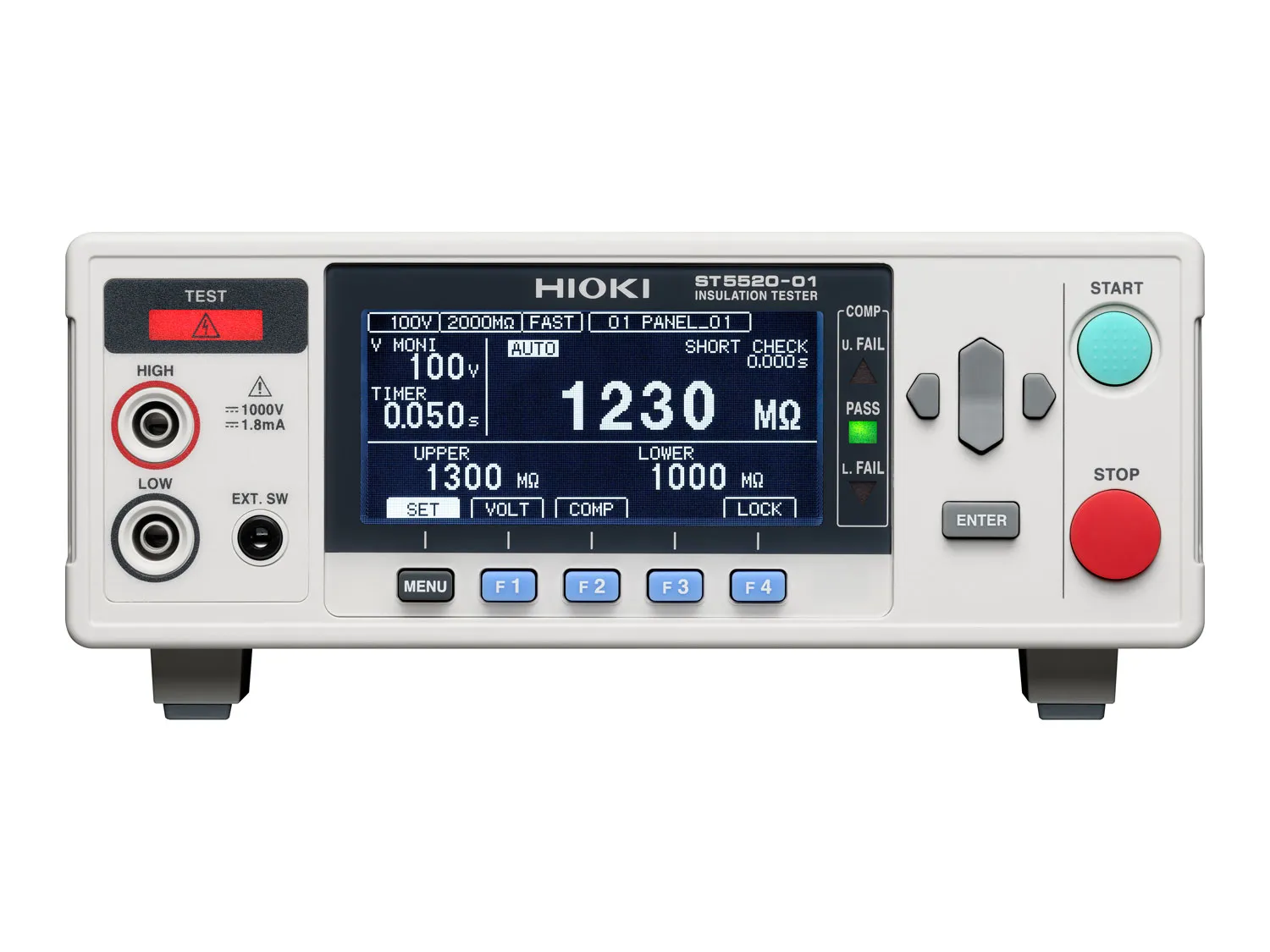

ST5520

ST5520 - Insulation Tester

The ST5520 is an insulation resistance tester designed for fast, accurate testing in production lines. It is ideal for high-throughput environments where rapid, reliable measurements are crucial.

€1,428.00*

View product

Z3003

Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire)

The HIOKI Z3003 multiplexer unit is a versatile module designed for multipoint measurements by freely combining measurement terminals.

€838.00*

View product

RM3545A-1

HIOKI RM3545A-1 - Precision instrument for DC resistance, 13 ranges from 1 mΩ to 1200 MΩ

Precision DC resistance meter with 13 ranges from 1 mΩ to 1200 MΩ for production testing and quality control. HIOKI RM3545A-1 available now.

€3,028.00*

View product

20 %

RM3544

RM3544 - Resistance Meter

The RM3544 provides precise measurements for a wide range of applications in electronics manufacturing and testing. It uses the 4-terminal measurement method with a constant current source to perform accurate resistance measurements. It is suitable for measuring electrical components such as motors, transformers, relays, switches, and wire connections. Additionally, it supports temperature measurement using thermistors, which is particularly important for applications requiring temperature compensation. With its high resolution and measurement accuracy, it is equally effective on production lines and in research laboratories. Technical details: High measurement accuracy of 0.02%Measurement range from 0.000 mΩ to 3.5 MΩSupports measurement currents up to 300 mAIdeal for simpler applications and manual operation on production linesScaling function for converting resistance values into physical quantities. Comparator function for pass/fail assessments based on predefined thresholds.Temperature compensation function to correct for temperature fluctuations.

€854.40* €1,068.00*

View product

RM3544-01

RM3544-01 - Resistance meter

The RM3544-01 is a high-precision bench-top resistance meter designed for reliable resistance measurement across a wide range of applications. It is suitable for production lines, quality inspections, and integration with automated systems. With its ability to measure resistance from microohms to megohms and an optional LED Comparator attachment for clear pass/fail judgments, this device delivers fast, stable results in even noisy environments. The RM3544-01 also features enhanced durability and noise resistance, making it a robust choice for industrial use. Technical details: Measurement range: 0.000 mΩ to 3.5000 MΩ Max. resolution: 1 μΩ Basic accuracy: 0.02% Measurement speed: Fast (21 ms at 50 Hz) to Slow (401 ms) Temperature measurement range: -10.0 °C to 99.9 °C (thermistor) Display: 5 digits/4 digits selectable Safety: EN61010, EMC: EN61326 Power supply: 100 to 240 VAC Dimensions: 215W × 80H × 166D mm Weight: Approx. 1.0 kg Selectable communication interfaces: EXT I/O, RS-232C, USB

€1,428.00*

View product

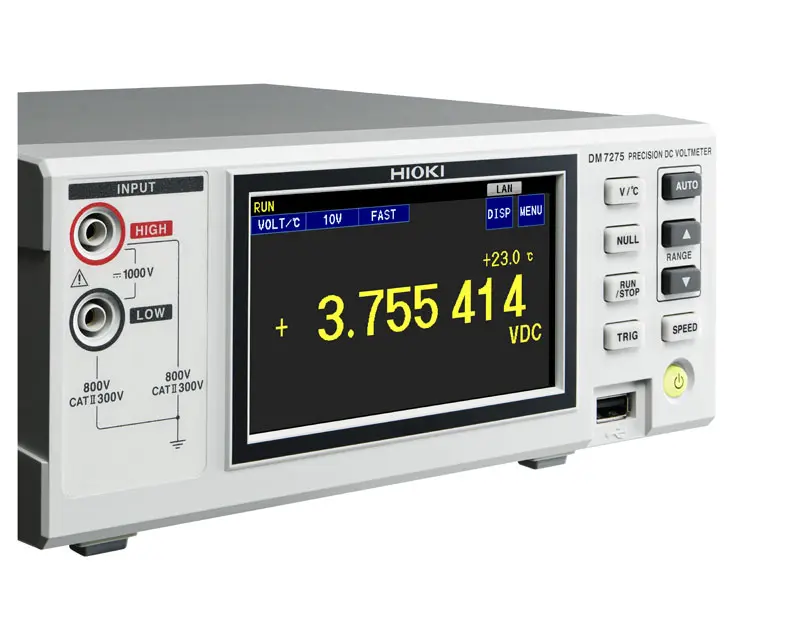

DM7275-03

DM7275-03 - Precision-DC-voltmeter

Precision DC Voltmeter, DC V only, measure DC Voltage and temperature simultaneously, 7-1/2 digit resolution, 1-year 20ppm accuracy, built-in EXT I/O, LAN, USB and RS-232C interface

€1,818.00*

View product

RM9010-02

RM9010-02 - FOUR-POINT ARRAY PROBE

Four-Point Array Probe mit 1,5mm zwischen den Kontaktpins, für das RM3545, inklusive PC-Software für die Berechnung von volume resistivity (O·m), surface resistivity (O/sq), conductivity (S/cm) und resistance (O)

€2,818.00*

View product

RM2610

HIOKI RM2610 - Measurement System for LIB battery electrode sheets

HIOKI RM2610 measurement system for resistance distribution analysis of lithium-ion battery electrodes in R&D and quality inspection. Order now from HIOKI Europe.

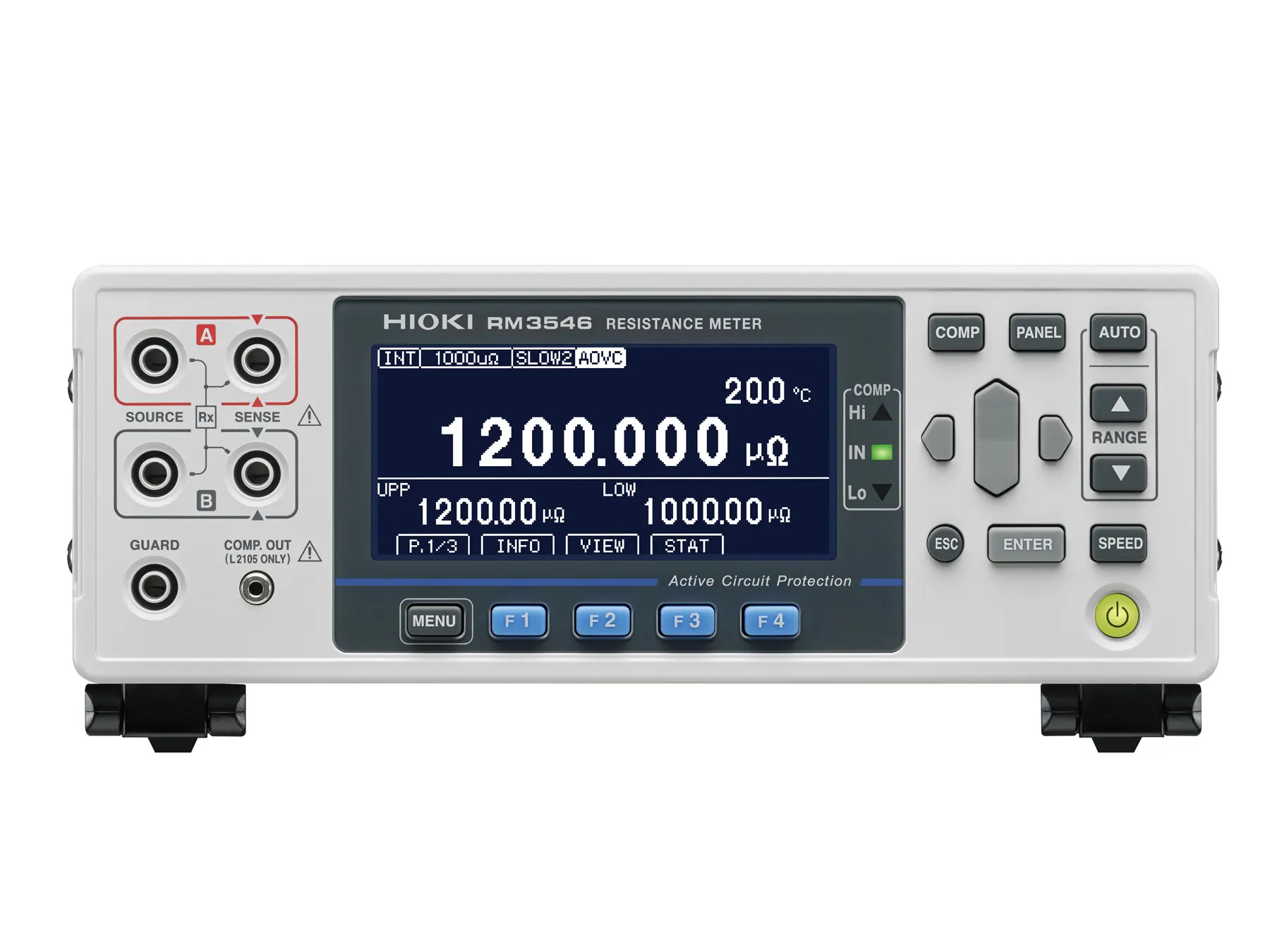

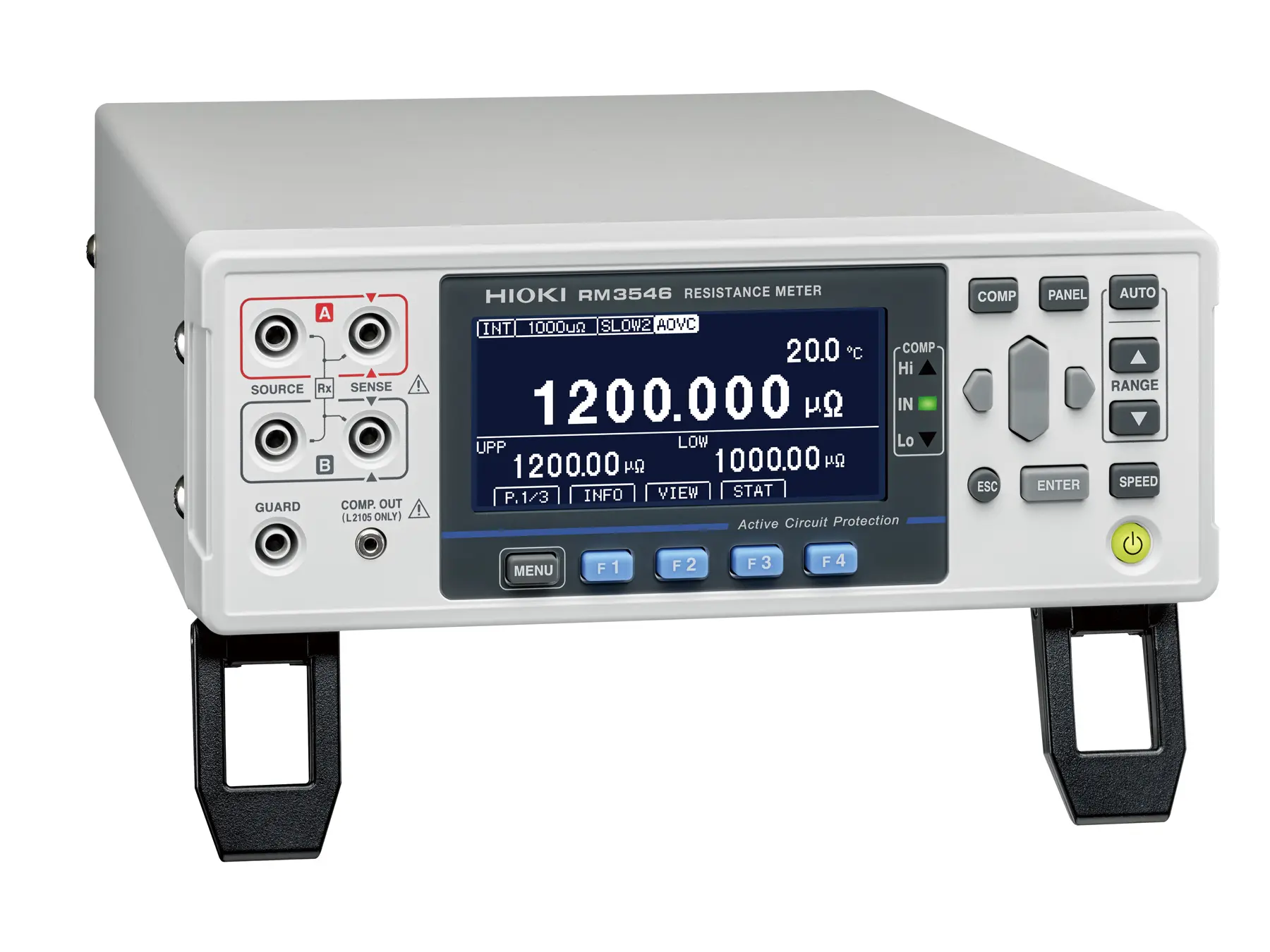

RM3546

HIOKI RM3546 - High-precision DC resistance meter optimized for weld resistance inspection

High-precision DC resistance meter optimized for weld resistance inspection in production and quality control. HIOKI RM3546 available now from HIOKI Europe.

€3,388.00*

View product

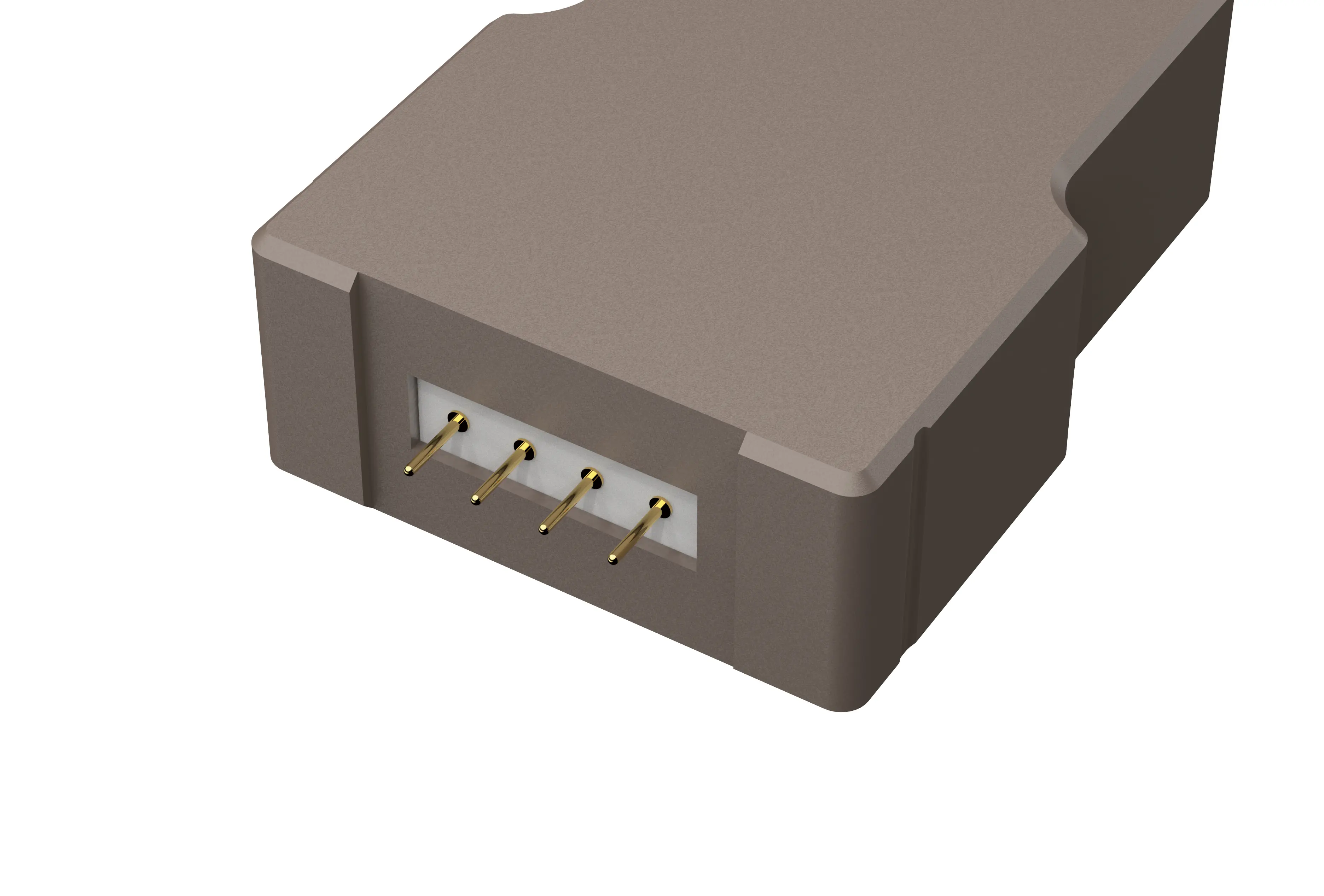

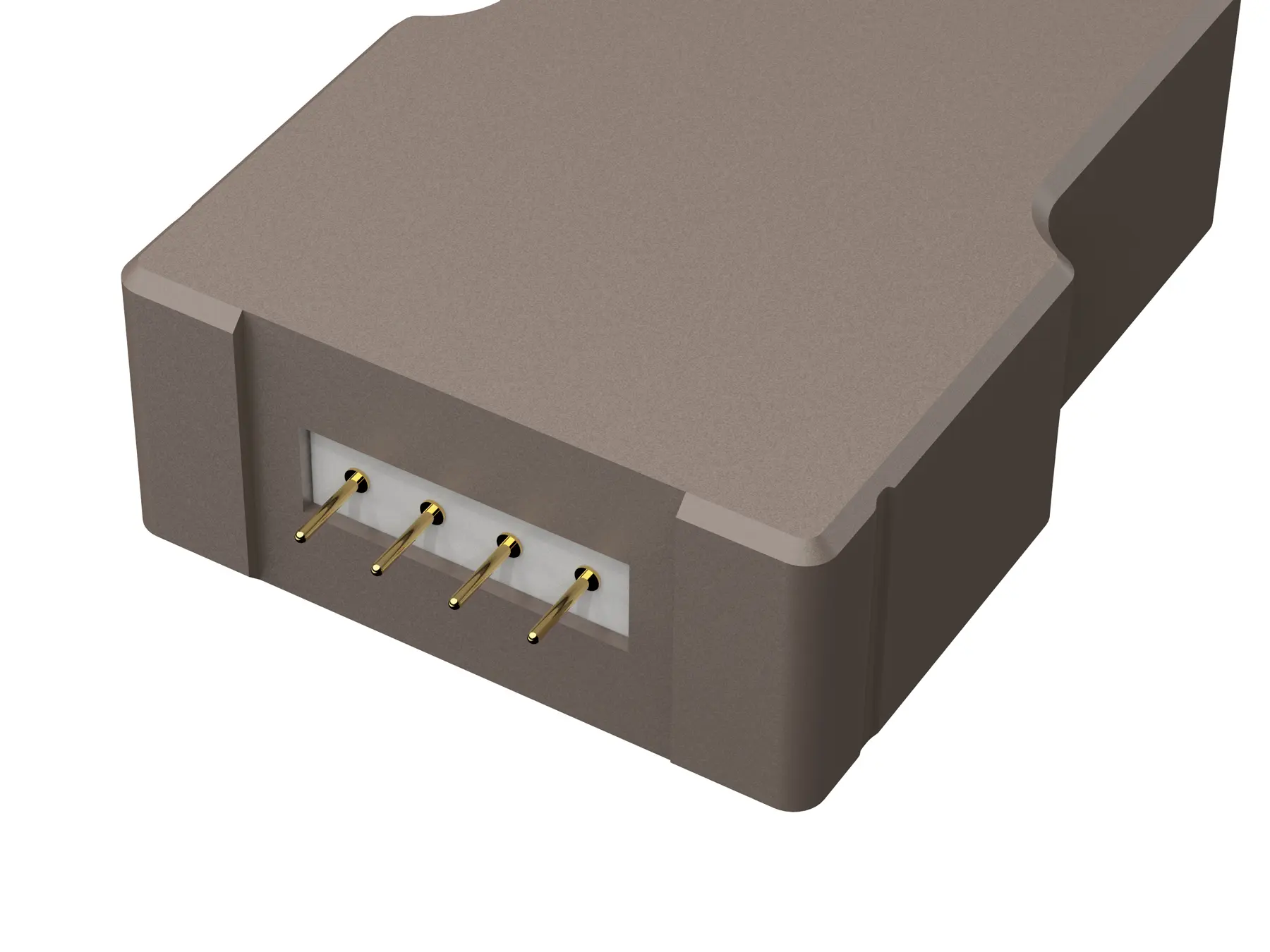

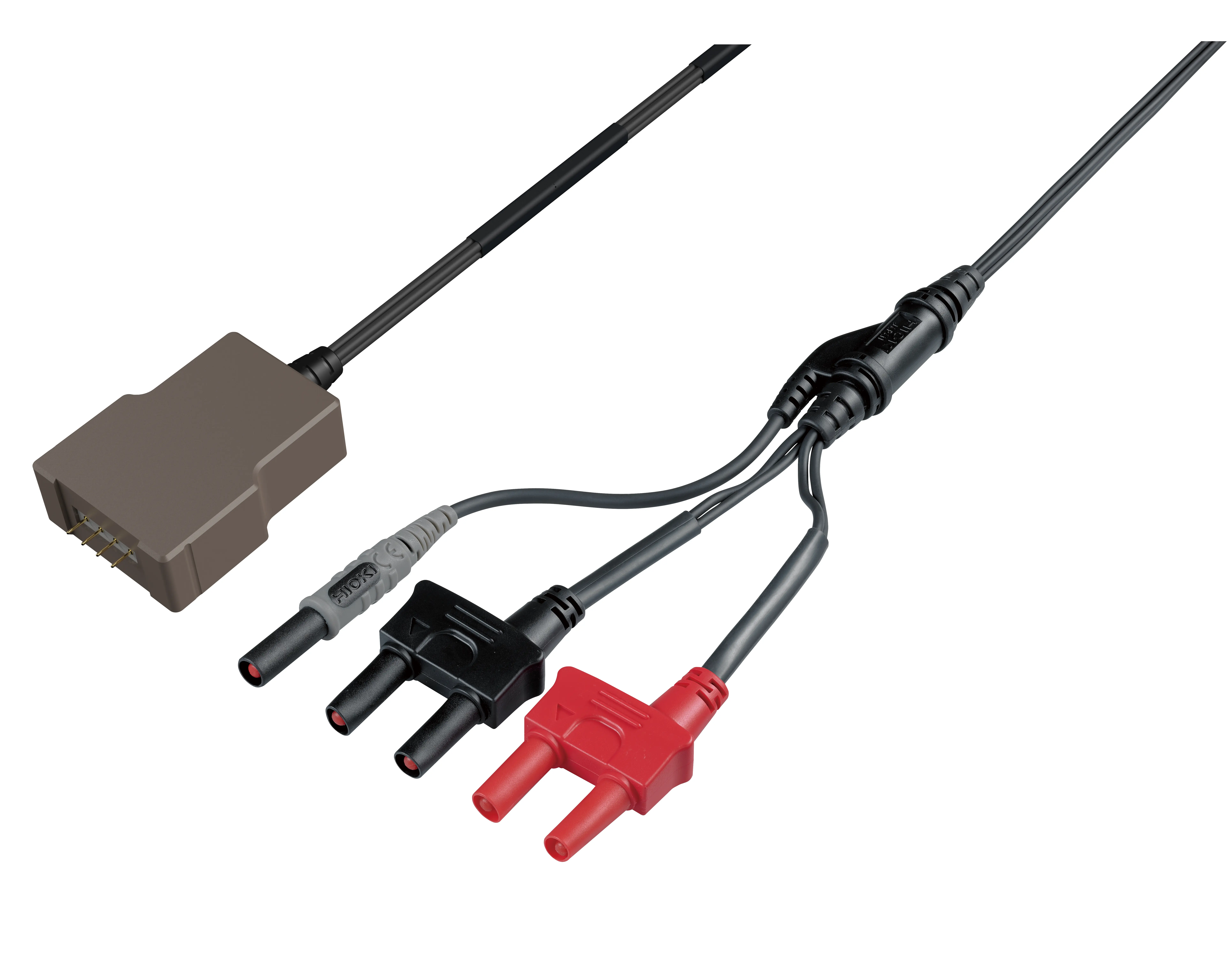

RM9010-01

RM9010-01 - Four-Point Array Probe

The RM9010-01 is a high-precision specialized probe tip designed for resistance, resistivity, and conductivity measurements using the four-terminal method. It is an optional accessory for the RM3545 precision resistance meter and its available variants, extending these instruments with a defined four-contact measurement geometry for reproducible material testing.Four precisely aligned in-line measurement contacts with a spacing of 5.0 mm ±0.1 mm ensure accurate separation of current and voltage paths. This effectively minimizes contact and lead resistance – a key requirement for stable and comparable measurement results, particularly on thin layers or delicate samples. The spherical, gold-plated measurement contacts provide uniform contact conditions. A defined spring force of approximately 1.25 N per contact ensures consistent contact pressure and supports repeatable measurement performance in laboratory and development environments.Separate SOURCE and SENSE connectors as well as a GUARD plug are precisely matched to the RM3545 input terminals, enabling direct and secure connection without additional adapters. With an overall cable length of approximately 1.5 m and a robust design, the RM9010-01 is built for professional indoor use. Replaceable measurement contacts contribute to long service life and cost-efficient operation.

€2,818.00*

View product
