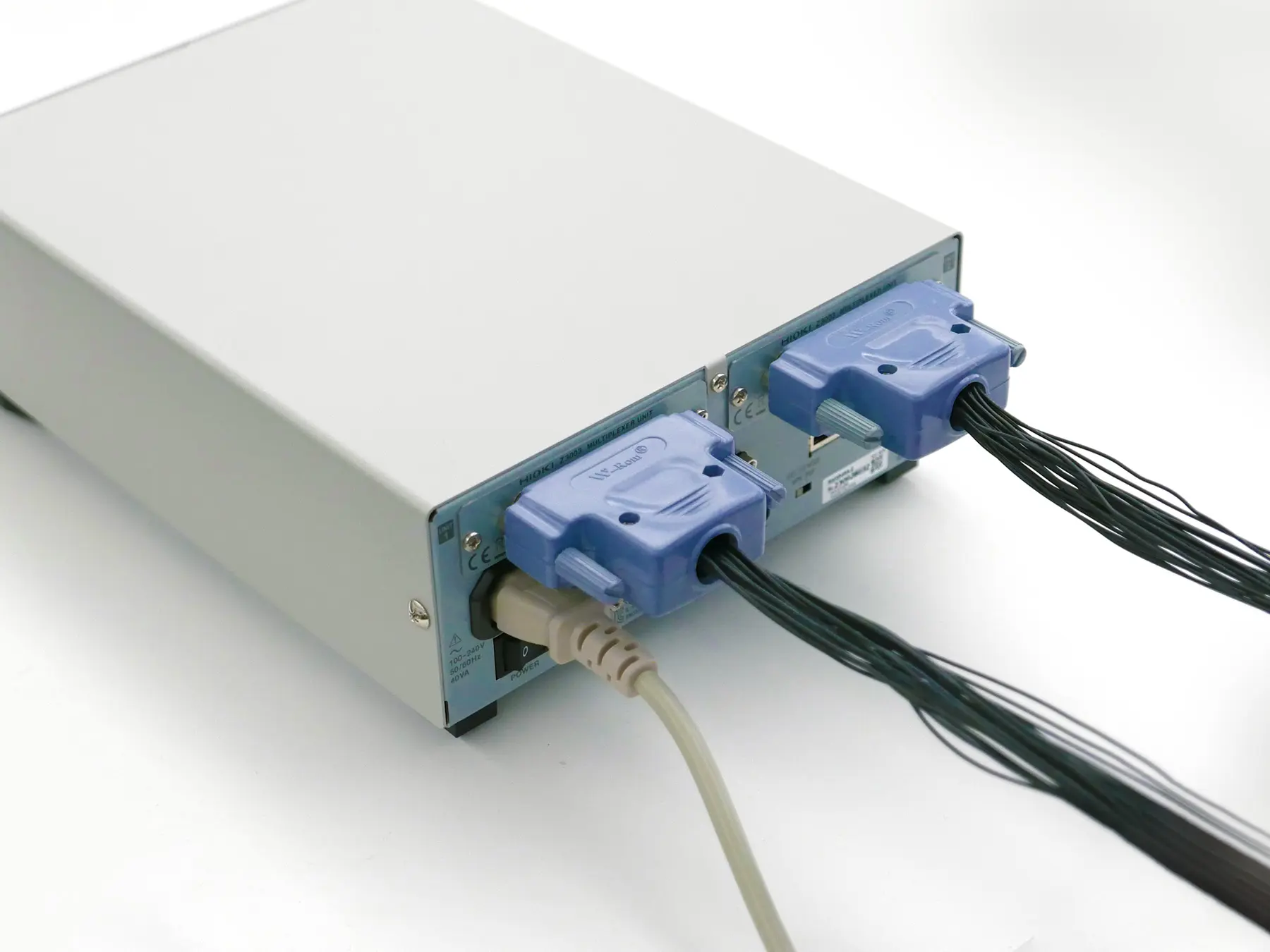

Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire)

Multiplexer card for the RM3545A-2 resistance meter, provides 10 (4-wire) or 21 (2-wire) channels per card, mechanical relays, 50-pin D-sub output

€798.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 2

Product details

Product number: Z3003

EAN: 4536036011575

Width: 1820 mm

Height: 245 mm

Weight: 0.33 kg

Product information Z3003 - Multiplexer Card for RM3545A-2, 10 Channels (4-wire)

Key Specifications

Channels (4-wire): 10 per card, up to 20 with two cards
Channels (2-wire): 21 per card, up to 42 with two cards
Output connector: 50-pin D-sub
Switching method: Mechanical relays
Accessory for: RM3545A-2

Typical Applications

Automated scanning of multiple measurement points such as busbars and weld joints
High-throughput resistance testing of components such as thermistors or connectors
Measurement of three-phase motor windings and transformers
Relay inspection

Detailed Product Overview

The Z3003 Multiplexer Card is an optional extension for the RM3545A-2 resistance meter that enables automated multi-point resistance measurements. Each card provides 10 channels for 4-terminal measurement and 21 channels for 2-terminal measurement, with switching performed by mechanical relays through a D-sub 50-pin connector.

By installing two cards in the RM3545A-2, the system can scan up to 20 channels (4-wire) or 42 channels (2-wire), significantly increasing throughput in both production and R&D environments. The 4-wire configuration is the preferred method for low-resistance measurement, ensuring high accuracy and repeatability even at milliohm levels. However, in applications such as thermistor evaluation or other moderate-resistance components, the 2- wire mode can be used to expand channel capacity while maintaining sufficient precision for comparative measurements.

Automated multi-point measurement

The Z3003 is particularly effective in applications where many samples or test points must be measured in sequence. Because the electrical resistance measurement itself is completed very quickly, overall test time is often limited by mechanical handling. By using one or two cards, multiple DUTs can be connected and measured automatically, eliminating manual reconnection and significantly shortening total measurement time in high-volume test setups. The Z3003 is compatible with both the RM3545A-2 and RM3545-02 resistance meters and can be installed in either instrument with a screwdriver in only a few minutes.

Z3003 Multiplexer Card
Instruction manual
D-SUB 50-pin connector
