HIOKI LCR Meters and Impedance Analyzers

LCR measuring device with fast measuring time (2ms at 1kHz) for production lines, measuring frequency from DC and 40Hz to 200kHz with a basic accuracy of 0.05%. It measures with voltages from 5mV to 5V and currents from µA to 50 mA.

Component tester (L, C, R) for production lines with fast measuring time (2ms at 1kHz), measuring frequency from DC and 40Hz to 200kHz with a basic accuracy of 0.05%.

The IM3533 was developed for R&D and use in the production of winding goods, transformers and passive components and, with a measurement time of 1 ms in fast mode, is ideal for production lines that require fast measurement times.

The IM3533-01 is a versatile benchtop LCR meter for precise testing in R&D and production. It measures inductors, capacitors, and resistors, and offers transformer analysis including turn ratio and mutual inductance.

The IM3536 is a versatile Component Tester (L, C, R) suitable for a wide range of applications, from R&D and quality assurance to high-volume production lines.

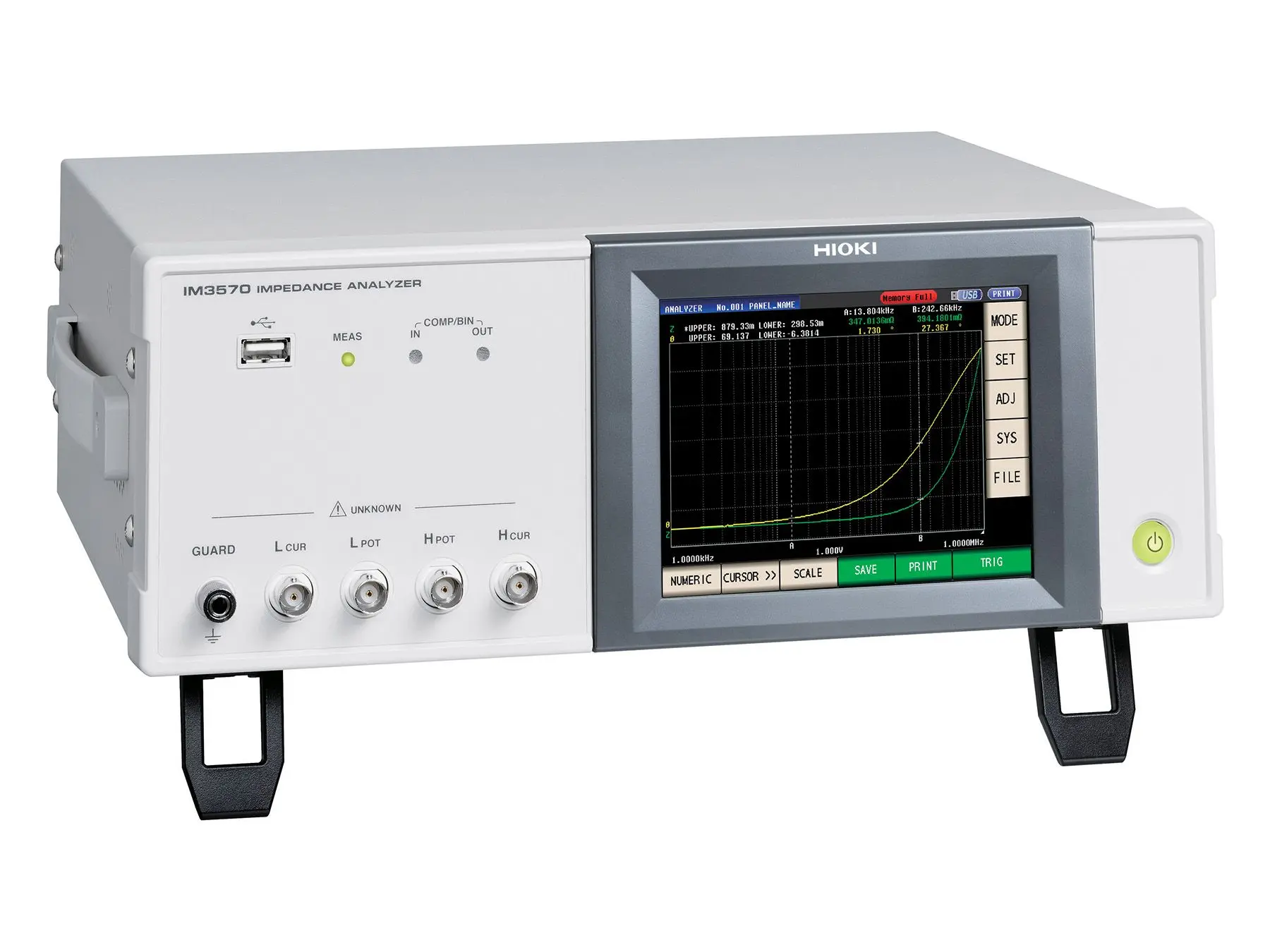

The Hioki IM3570 Impedance Analyzer is a highly versatile device that combines LCR meter and impedance analysis capabilities, making it ideal for both R&D and production environments.

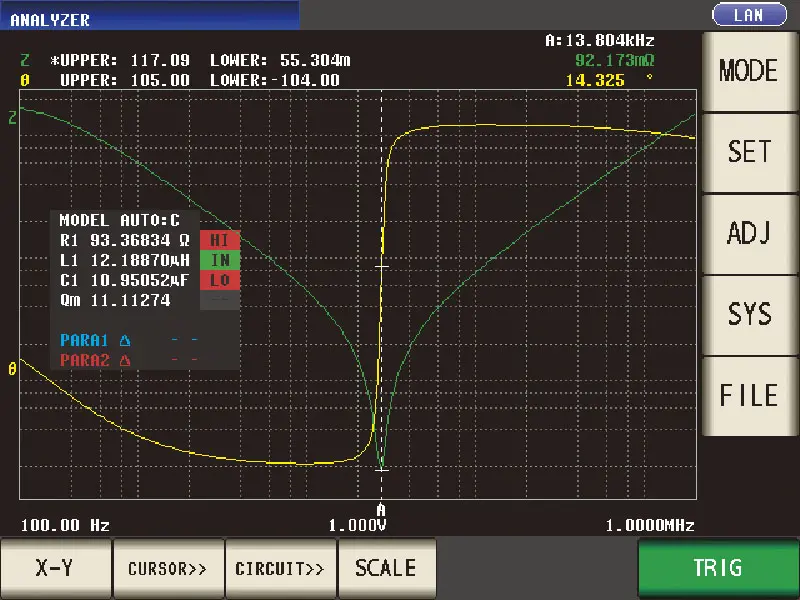

Key SpecificationsMeasurement frequency: 4 Hz to 5 MHz Equivalent Circuit Analysis: 5 circuit models Basic accuracy: Z: ±0.08%, θ: ±0.05° Guaranteed accuracy range: 1 mΩ to 200 MΩ Test signal levels: 5 mV to 5 V, 10 µA to 100 mA Typical ApplicationsDetailed impedance and frequency response analysis of capacitors, inductors, and resistors in R&D Characterization of piezoelectric components and resonant circuits using equivalent circuit models Evaluation of electrochemical and dielectric properties through Nyquist and admittance plots Investigation of material behavior and complex impedance under varying test signal conditions  Detailed Product OverviewThe HIOKI IM3570-9000 combines the precision of an LCR meter with the advanced analysis functions of an impedance analyzer. It features built-in equivalent circuit analysis and covers a frequency range from 4 Hz to 5 MHz, enabling detailed evaluation of components and materials with frequency-dependent impedance. With measurement speeds as fast as 0.5 ms at 100 kHz, a basic impedance accuracy of ±0.08%, phase accuracy of ±0.05°, and guaranteed accuracy from 1 mΩ to 200 MΩ, the IM3570-9000 provides precise and reliable measurements across a wide impedance range. Versatile and Easy to Use The instrument supports multiple modes including LCR, which is capable of simultaneously measuring DC resistance, sweep, and continuous measurement. Functions such as comparator and BIN judgments, along with frequency and level sweeps, make it suitable for both automated test systems and laboratory evaluation. The 5.7″ color TFT touchscreen simplifies operation and allows intuitive adjustment of measurement conditions. Interfaces including USB, LAN, RS-232C, GP-IB, and handler I/O provide flexible connectivity for system integration.Equivalent Circuit Analysis included The IM3570-9000 features built-in equivalent circuit analysis for in-depth evaluation of complex impedance characteristics. The firmware provides five representative circuit models and can automatically select the most suitable one based on the measurement data. In addition to basic three-element R-L-C models, it also supports a four-element model optimized for piezoelectric device analysis. The instrument can display Nyquist (Cole-Cole) and admittance plots directly, offering valuable insight into frequency-dependent behavior and material properties. Flexible Fixture Ecosystem A wide range of fixtures enable stable and repeatable connections to different device types. Options include Kelvin clip leads for standard components, direct-connection test fixture for stable measurement of leaded components, and SMD test probes for small surface-mount devices. This fixture ecosystem ensures that the IM3570-9000 can be adapted to the requirements of both development labs and automated production environments. Designed and manufactured in Japan, the IM3570-9000 combines reliable measurement performance with long-term stability, making it a versatile instrument for both R&D and production lines.

The IM3590 Chemical Impedance Analyzer is designed for precise measurement of electrochemical components and materials, including batteries and electric double-layer capacitors (EDLCs).
