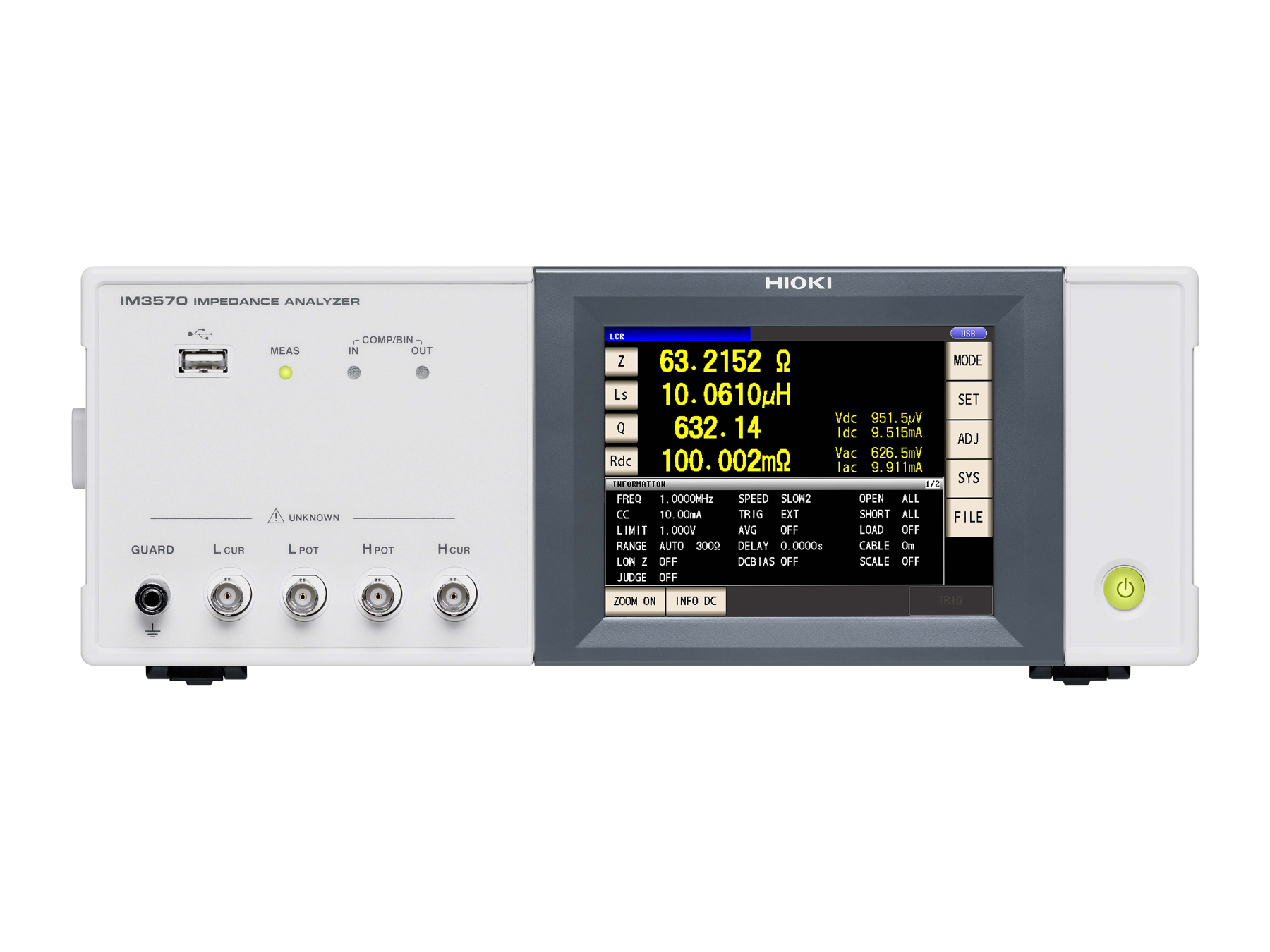

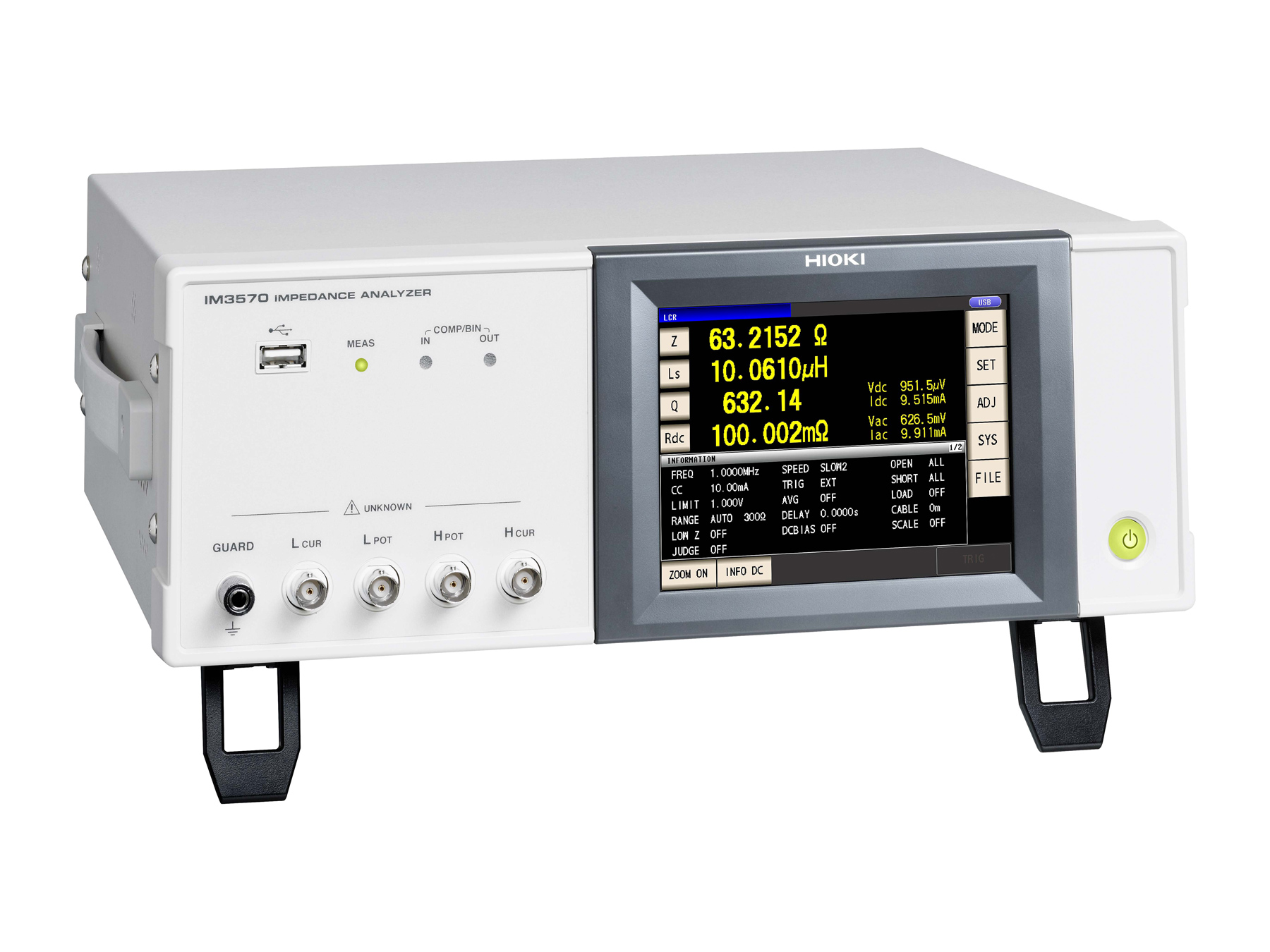

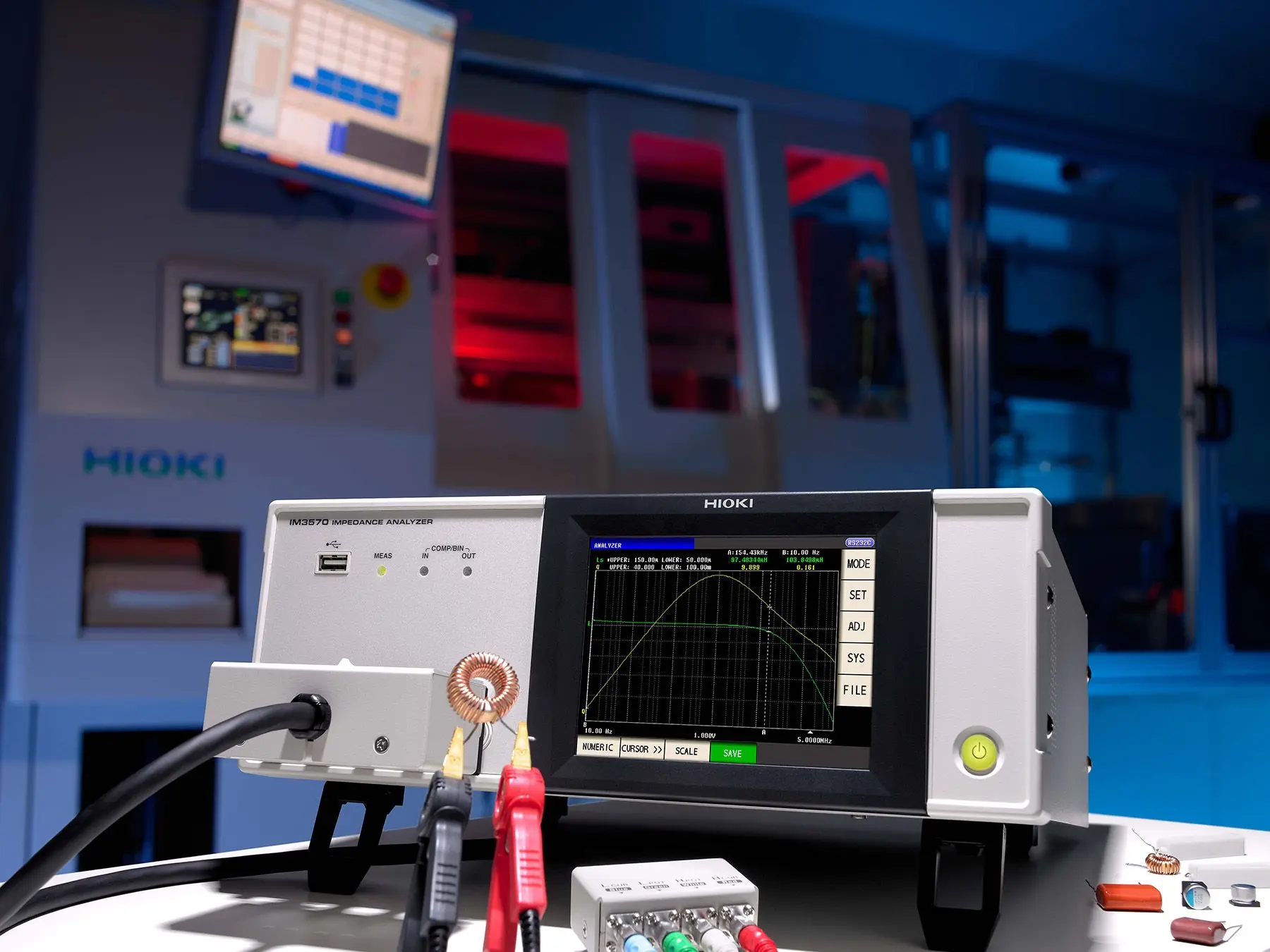

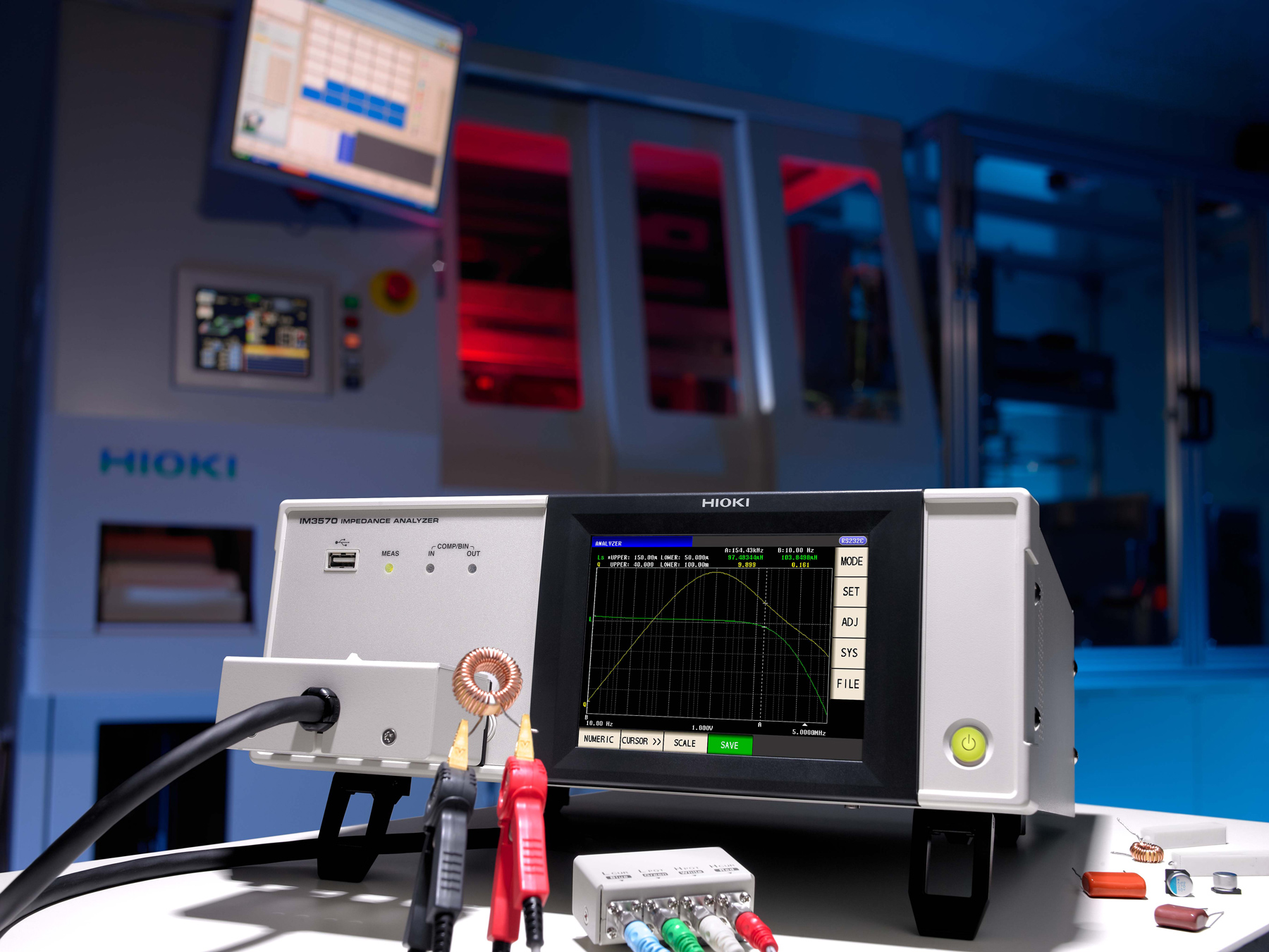

IM3570-9000 - Impedance Analyzer, 4 Hz to 5 MHz, Equivalent Circuit Analysis included

Impedance analyzer and LCR meter with Equivalent Circuit Analysis, 4 Hz to 5 MHz, basic accuracy Z: ±0.08%, θ: ±0.05°, guaranteed accuracy from 1 mΩ, comparator and BIN function, interfaces: USB, LAN, RS-232C, GP-IB, handler I/O

€9,628.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 1

Product number: IM3570-9000

EAN: 4536036010158

Length: 307 mm

Width: 330 mm

Height: 119 mm

Weight: 5.8 kg

Product information IM3570-9000 - Impedance Analyzer, 4 Hz to 5 MHz, Equivalent Circuit Analysis included

Key Specifications

Measurement frequency: 4 Hz to 5 MHz
Equivalent Circuit Analysis: 5 circuit models
Basic accuracy: Z: ±0.08%, θ: ±0.05°
Guaranteed accuracy range: 1 mΩ to 200 MΩ
Test signal levels: 5 mV to 5 V, 10 µA to 100 mA

Typical Applications

Detailed impedance and frequency response analysis of capacitors, inductors, and resistors in R&D
Characterization of piezoelectric components and resonant circuits using equivalent circuit models
Evaluation of electrochemical and dielectric properties through Nyquist and admittance plots
Investigation of material behavior and complex impedance under varying test signal conditions

Detailed Product Overview

The HIOKI IM3570-9000 combines the precision of an LCR meter with the advanced analysis functions of an impedance analyzer. It features built-in equivalent circuit analysis and covers a frequency range from 4 Hz to 5 MHz, enabling detailed evaluation of components and materials with frequency-dependent impedance. With measurement speeds as fast as 0.5 ms at 100 kHz, a basic impedance accuracy of ±0.08%, phase accuracy of ±0.05°, and guaranteed accuracy from 1 mΩ to 200 MΩ, the IM3570-9000 provides precise and reliable measurements across a wide impedance range.

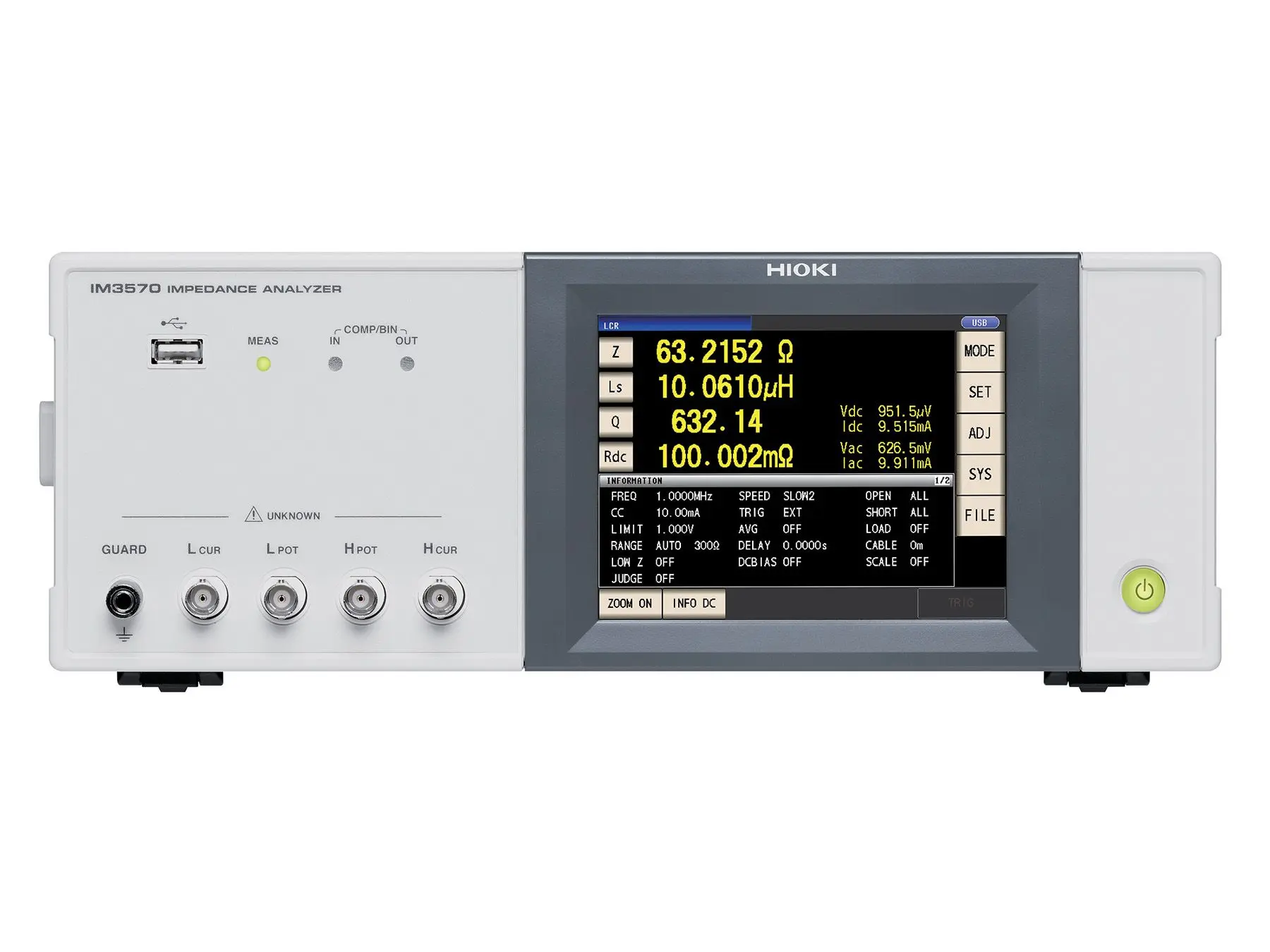

Versatile and Easy to Use

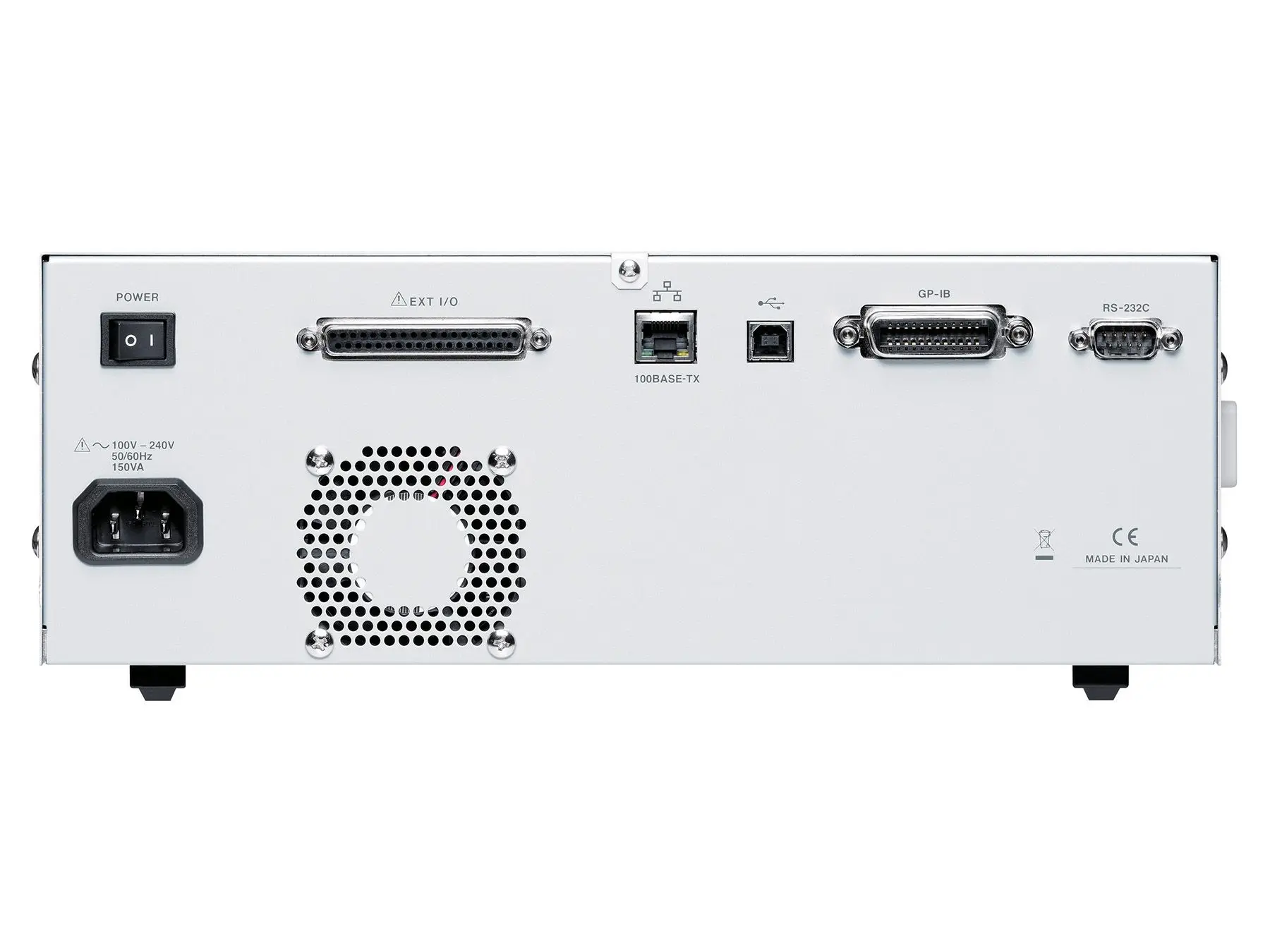

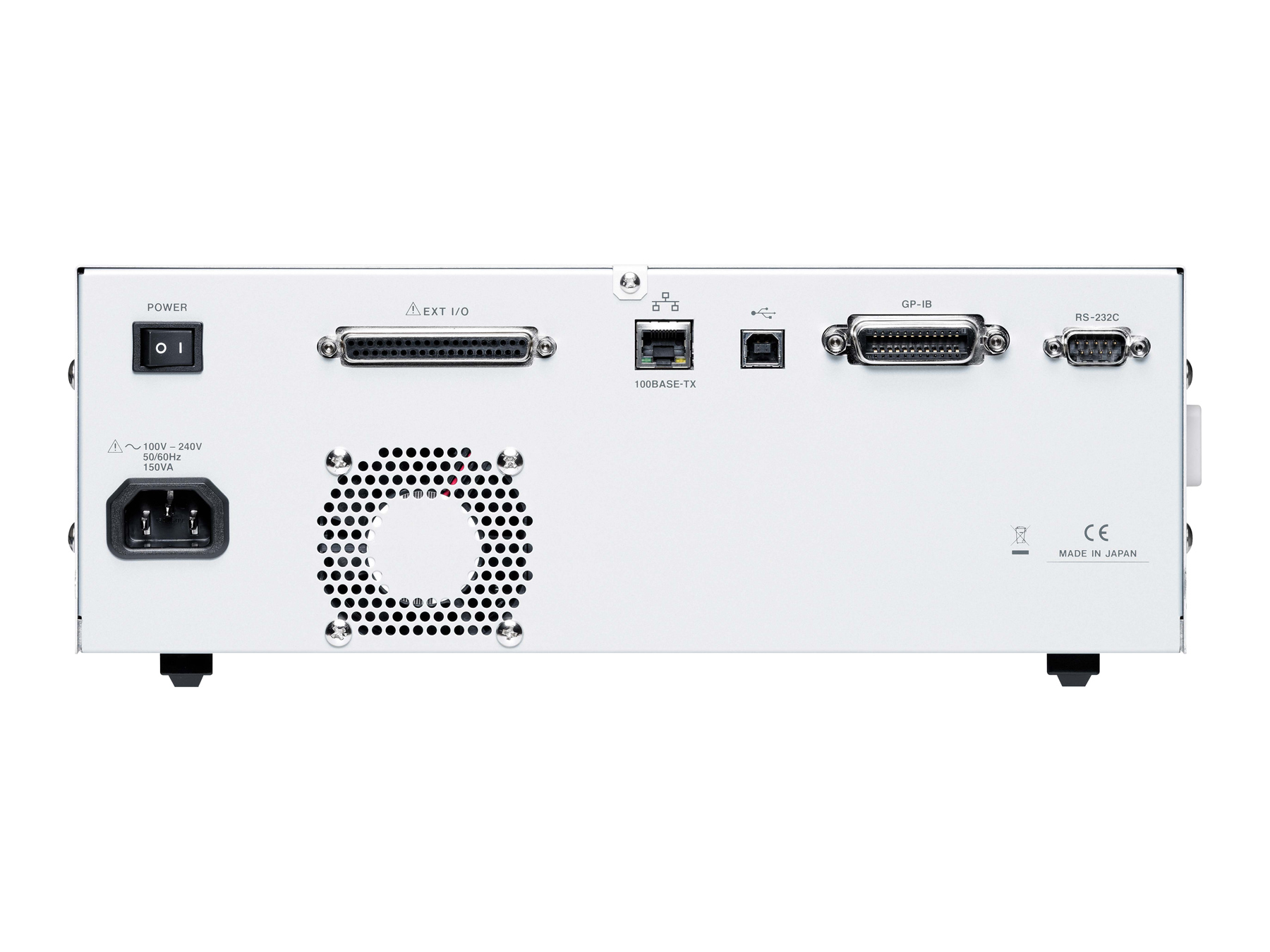

The instrument supports multiple modes including LCR, which is capable of simultaneously measuring DC resistance, sweep, and continuous measurement. Functions such as comparator and BIN judgments, along with frequency and level sweeps, make it suitable for both automated test systems and laboratory evaluation. The 5.7″ color TFT touchscreen simplifies operation and allows intuitive adjustment of measurement conditions. Interfaces including USB, LAN, RS-232C, GP-IB, and handler I/O provide flexible connectivity for system integration.

Equivalent Circuit Analysis included

The IM3570-9000 features built-in equivalent circuit analysis for in-depth evaluation of complex impedance characteristics. The firmware provides five representative circuit models and can automatically select the most suitable one based on the measurement data. In addition to basic three-element R-L-C models, it also supports a four-element model optimized for piezoelectric device analysis. The instrument can display Nyquist (Cole-Cole) and admittance plots directly, offering valuable insight into frequency-dependent behavior and material properties.

Flexible Fixture Ecosystem

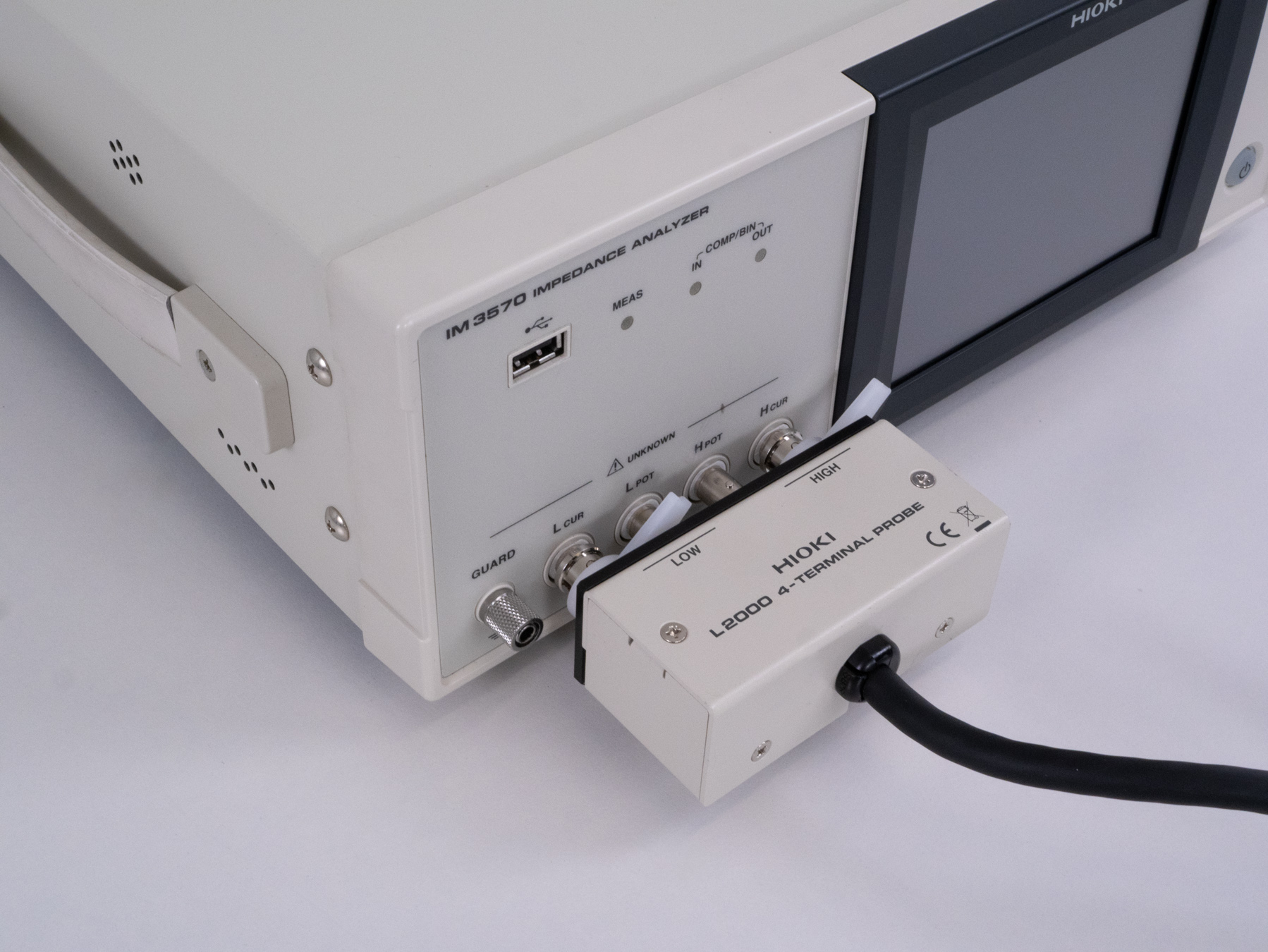

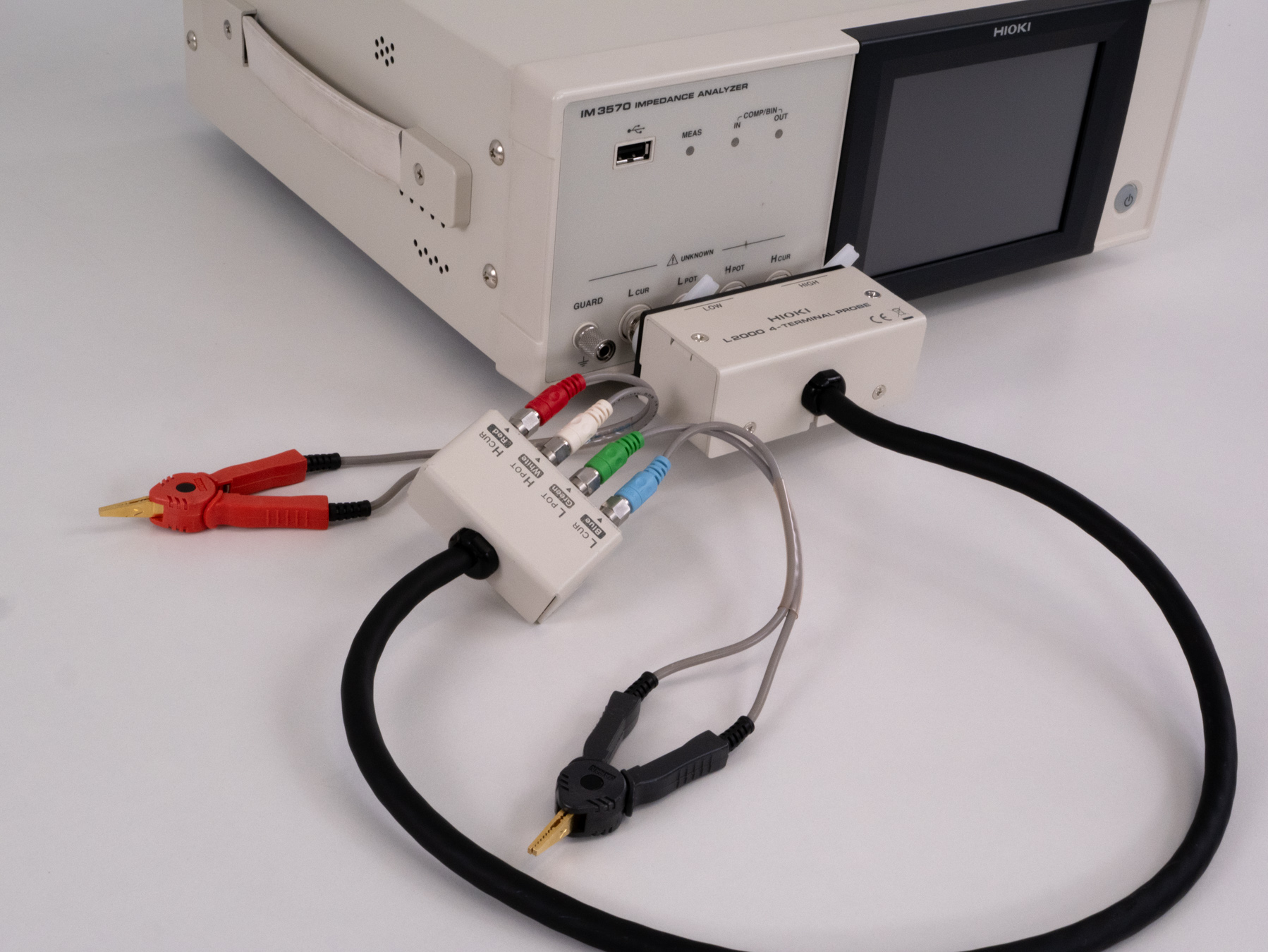

A wide range of fixtures enable stable and repeatable connections to different device types. Options include Kelvin clip leads for standard components, direct-connection test fixture for stable measurement of leaded components, and SMD test probes for small surface-mount devices. This fixture ecosystem ensures that the IM3570-9000 can be adapted to the requirements of both development labs and automated production environments.

Designed and manufactured in Japan, the IM3570-9000 combines reliable measurement performance with long-term stability, making it a versatile instrument for both R&D and production lines.

IM3570 Impedance Analyzer
IM9000 Equivalent Circuit Analysis firmware
Power cord
Instruction manual
