IM3536 - Benchtop LCR Meter, 4 Hz to 8 MHz
LCR meter, 4 Hz to 8 MHz, 1 ms measurement speed, basic accuracy ±0.05% impedance
and ±0.03° phase, guaranteed from 1 mΩ to 200 MΩ, comparator and BIN, DC bias, USB,
LAN, RS-232C, GP-IB, BCD, handler I/O.
Available stock:
2
Product number:
IM3536
EAN:
4536036002467
Width:
2300 mm
Height:
1190 mm
Weight:
5.75 kg
Product information IM3536 - Benchtop LCR Meter, 4 Hz to 8 MHz
- Measurement frequency: 4 Hz to 8 MHz
- Measurement speed: 1 ms (Fast Mode)
- Basic accuracy: Z: ±0.05%, θ: ±0.03°
- Test signal levels: 5 mV to 5 V, 10 µA to 100 mA
- Guaranteed accuracy range: 1 mΩ to 200 MΩ
Typical Applications
- Fast testing of capacitors, inductors, resistors, and wound components in production and development
- Incoming inspection of passive components and automated pass/fail checks in manufacturing
- Characterization of coils, transformers, and other wound devices in product design
- Component characterization to support analog circuit design and tuning
- Filter development and stress testing of voltage-dependent components
Detailed Product Overview
The Hioki IM3536 is a high-performance benchtop LCR meter that combines wide frequency coverage, fast measurement speed, and intuitive operation. With a range from DC and 4 Hz up to 8 MHz, it covers a broad spectrum of component testing needs from low-frequency inductive devices to capacitive components characterized at MHz frequencies. A large capacitive touch display simplifies operation even in complex test setups, while the Fast Mode delivers measurements in as little as 1 ms per point.
The Hioki IM3536 is a high-performance benchtop LCR meter that combines wide frequency coverage, fast measurement speed, and intuitive operation. With a range from DC and 4 Hz up to 8 MHz, it covers a broad spectrum of component testing needs from low-frequency inductive devices to capacitive components characterized at MHz frequencies. A large capacitive touch display simplifies operation even in complex test setups, while the Fast Mode delivers measurements in as little as 1 ms per point.
With a basic impedance accuracy of ±0.05%, phase accuracy of ±0.03°, and guaranteed
accuracy range from 1 mΩ to 200 MΩ, the IM3536 delivers precise, repeatable results for a
wide range of components including capacitors, inductors, resistors, coils, and transformers.
Its particularly high repeatability makes it ideal for low-ESR measurement of electrolytic
capacitors as well as for impedance testing of power supply coils, where stable frequency
characteristics are essential.
Frequency coverage from 4 Hz to 8 MHz
Adjustable measurement conditions include frequencies from DC and 4 Hz up to 8 MHz, test signal voltages from 10 mV to 5 Vrms, and test currents from 10 μA to 100 mArms. This flexibility makes it possible to evaluate resonance points of coils or to characterize components whose properties depend on signal amplitude, enabling realistic testing under application-specific conditions.
Adjustable measurement conditions include frequencies from DC and 4 Hz up to 8 MHz, test signal voltages from 10 mV to 5 Vrms, and test currents from 10 μA to 100 mArms. This flexibility makes it possible to evaluate resonance points of coils or to characterize components whose properties depend on signal amplitude, enabling realistic testing under application-specific conditions.
DC bias testing is supported with an internal source up to 2.5 V, such as for capacitor
measurements, while optional external units extend the range for higher voltage or current
applications. This capability enables testing under realistic operating conditions and
compliance with industry standards. In addition, the instrument can calculate material
parameters such as conductivity and dielectric constant when the geometry of the sample is
specified, extending its use beyond conventional LCR measurements.
Perfect for production integration
The IM3536 offers comparator and BIN functions, and industrial interfaces such as LAN, GPIB, RS-232C, and handler I/O that provide multiple options for integration into existing
production setups. The handler I/O supplies digital signals for external control and automated
equipment, including comparator outputs and BCD-coded measurement values for
categorization and sorting. Residual charge protection safeguards the instrument when
charged capacitors are inadvertently connected, preventing measurement errors and
possible damage to the input circuitry. The instrument can also perform DC resistance
measurements in addition to AC impedance, so that both parameters are available within a
single test sequence.
At home in laboratories
For laboratory use, the IM3536 includes a USB interface for direct PC connection. The
supplied software supports frequency, voltage, and current sweeps, and measurement data
can be logged directly into Microsoft Excel or saved as CSV files for further analysis. The
large touch display and a wide range of available test fixtures make it easy to adapt the
instrument to different component types in R&D and quality assurance labs.
Additional functions ensure stable measurements even under demanding conditions. In LowZ high-accuracy mode, the output resistance is set to 10 Ω, allowing higher test currents.
This is ideal for ESR measurement of electrolytic capacitors or inductance testing of lowinductance components. The waveform averaging function lets the user define the number of
waveforms per frequency band, reducing noise and providing more consistent results. In
addition, a contact check function with adjustable thresholds can be enabled to ensure that
the DUT is correctly contacted. This function is especially important in automated setups but
also helps avoid unnecessary measurement runs during manual testing.
Made in Japan
With its proven design and stable pricing, the IM3536 combines performance, usability, and
long-term reliability. Engineered and manufactured in Japan, it continues to offer strong value
for both demanding R&D tasks and production testing, ensuring consistent quality and
dependable operation over many years.
- 1x IM3536 LCR 1x Meter
- 1x Mains cable
- 1x Operating instructions Manual
- 1x LCR Application CD (manual control commands)
-
Product catalog with data sheet, LCR Meter series (English)3,334 KB pdf
-
Product brochure with data sheet, LCR METER IM3536 (English)4,682 KB pdf
-
Instruction Manual, LCR METER IM3536 (English)11,099 KB pdf
-
Instruction Manual, LCR METER IM3536 (German)11,196 KB pdf
-
Instruction Manual, LCR METER IM3536 (French)11,434 KB pdf
-
Instruction Manual, LCR METER IM3536 (Spanish)11,224 KB pdf
-
Motor Measurement Applications (English)6,778 KB pdf
-
LCR Meter Series Flyer (English)978 KB pdf
Optional accessories
L2000
L2000 - 4-Terminal Probe with Kelvin Clamps for LCR and Impedance Meters
4-Terminal Probe with Kelvin Clamps for Hioki LCR and Impedance Meters for precision impedance measurements, DC to 8 MHz, Kelvin Clamps with gold-plated contacts, suitable for wire diameters up to 5 mm
L2001
L2001 - 4-terminal Tweezer-type Test Fixture
4-terminal test fixture with tweezer-type test tips, for SMD components from 0.3 mm to 6 mm, frequency range DC to 8 MHz, replaceable contacts, 73 cm cable length, 50 Ω impedance, for LCR and C meters with 4-terminal BNC connectors.
9140-10
9140-10 4-Terminal Probe
The 9140-10 is a 4-terminal probe equipped with Kelvin clamps and BNC connectors, designed as an optional accessory for products like the IM3590, IM3570, IM3533, IM3523, and similar devices. It operates across a frequency range from DC to 200 kHz. The Kelvin clamps are capable of handling conductor diameters between 0.3 and 5 mm, offering flexibility for various testing needs. The probe has an impedance of 50 Ohms, ensuring reliable performance in precision measurements. Technical Details: Type: 4-terminal probe Connectors: Kelvin clamps, BNC connectors Frequency range: DC to 200 kHz Conductor diameter range: 0.3 to 5 mm Impedance: 50 Ohms Compatible devices: IM3590, IM3570, IM3533, IM3523, and similar products
9261-10
9261-10 - TEST FIXTURE
Test fixture with 4-terminal BNC connection for precision measurements from DC to 8 MHz
9262
9262 - Test Fixture for Leaded Components
Direktanschluss-Prüfvorrichtung zur Messung bedrahteter Bauteile mit 0,3–2 mm Leiterdurchmesser
9263
9263 - Test Fixture for SMD Components
Test fixture for SMD components, direct connection, 1 to 10 mm, DC to 8 MHz
9500-10
9500-10 - 4-TERMINAL PROBE
The 9500-10 4-terminal probe (alligator clip type) connects directly to the measurement terminals of the HIOKI IM series (LCR meters, impedance analyzers). Technical details Measurement frequency range: DC to 200 kHz Maximum rated voltage: ±40 V DC Maximum current: 1 A peak (measurement signal + bias current)
• Cable length: approx. 1000 mm Suitable for conductors with a diameter of 0.3 mm to 2 mm Equipped with a 50-Ω coaxial cable Operating temperature: 0°C to 40°C 2D drawing free downloadable.
20
%
9677
9677 - SMD TEST FIXTURE
The SMD Test Fixture is designed for accurate and efficient measurement of surface-mount devices (SMDs) with side electrodes. Its direct connection type ensures a reliable testing process, making it an ideal accessory for the IM3570 and similar products. Technical Details: Connection type: Direct Frequency range: DC to 120 MHz Suitable for measuring SMDs with side electrodes Test sample dimensions: 3.5 mm ± 0.5 mm Compatible with IM3570 and similar devices
20
%
9699

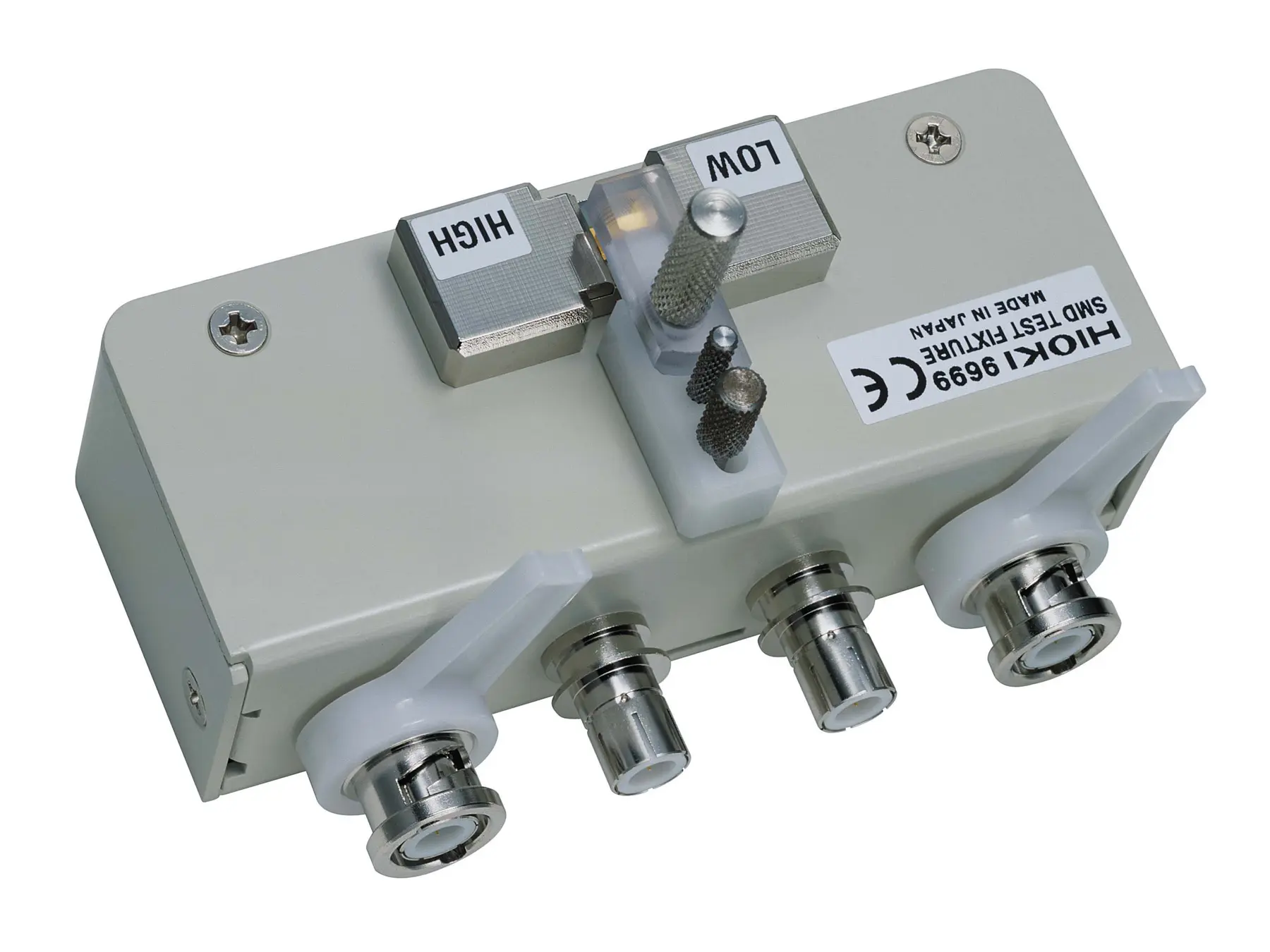

9699 - SMD TEST FIXTURE
The 9699 is a direct connection test fixture designed for measuring SMD components with a DUT (Device Under Test) size ranging from 1 mm to 4 mm and a height of 1.5 mm or less. It operates over a wide test frequency range from DC to 120 MHz, making it ideal for high-frequency component testing. The 9699 is compatible with HIOKI devices such as the IM3590, IM3533, IM3523, and related instruments, ensuring precise and reliable measurements for SMD components. Technical Details: Fixture type: Direct connection DUT size: 1 mm to 4 mm DUT height: 1.5 mm or less Test frequency range: DC to 120 MHz Compatible with: IM3590, IM3533, IM3523, and related devices
9268-10
9268 10 - DC Bias Voltage Unit
Used between impedance meter and test fixture to apply up to ±40 V DC as bias voltage
20
%
9269-10
9269-10 - DC BIAS CURRENT UNIT
The 9296-10 is an optional unit designed to be connected between various HIOKI impedance meters (such as the IM3590, IM3570, IM3533, IM3523, and similar devices) and the main test fixture. It allows the application of a DC bias current for specialized testing scenarios. With a measurement frequency range from 42 Hz to 100 kHz, it extends the functionality of impedance meters. Additionally, it supports a maximum applied voltage of ±40 V DC and a maximum current of ±2 A DC, providing flexibility for a variety of test applications. Technical Details: Measurement frequency range: 42 Hz to 100 kHz (9269-10: 40 Hz to 2 MHz) Maximum applied voltage: ±40 V DC Maximum applied current: ±2 A DC Maximum voltage to earth: ±50 V DC (between L terminal and chassis) Compatibility: Can be connected to various HIOKI impedance meters (IM3590, IM3570, IM3533, IM3523, and similar products)
IM9901
IM9901 - Replacement measuring tips for L2001
Replacement tips for L2001 (regular size) Additional information: 1 set of red and black side tips
Measurement samples: 1608 to 5750 (JIS)/ 0603 to 2220 (EIA)
"
