L9217-02 - BNC Cable, Insulated, 10 m
€128.00
Available in 21 days
€128.00
Product information L9217-02 - BNC Cable, Insulated, 10 m
- L9217-02 BNC Cabel
Related Products
.jpg "CT9557 - Current Sensor Interface, 4-Channel")
.jpg "CT9556 - Current Sensor Interface, 1-Channel, with RMS Output")
.jpg "CT9556 - Current Sensor Interface, 1-Channel, with RMS Output")
.jpg "CT9555 - Current Sensor Interface, 1-Channel")
.jpg "MR8875 - Portable memory recorder")
Insulated BNC cable, BNC plugs on both ends, plastic connector housings, ferrite for noise
suppression, 10 m cable length, rated voltage 300 V, CAT III 300 V / CAT II 600 V, made in
Japan
Content:
1 Each
L9217-02 - BNC Cable, Insulated, 10 m
Product number:
L9217-02
GTIN/EAN:
4536036014873
Length:
10000 mm
Weight:
0.44 kg
Description
The insulated connector housings embed the BNC outer contact within a plastic body,
preventing unintended contact with grounded metal surfaces and increasing electrical safety
in higher-voltage measurement setups. The cable fulfills measurement category
requirements of CAT III 300 V and CAT II 600 V.
A ferrite element on the cable increases the impedance for high-frequency common-mode
currents on the cable shield and helps reduce interference in electrically noisy environments
with fast switching signals such as inverter or motor test systems.
With its longer cable length, the L9217-02 is particularly useful when measurement
instruments must be positioned further away from the measurement point. This situation
often occurs when using a high-voltage divider such as the HIOKI VT1005, for example when
the high-voltage tap point is located in a separated or restricted-access area during
measurement.
Typical connections include linking the output of a current sensor interface to oscilloscopes
or memory recorders, transmitting synchronization signals between instruments, or
connecting the output of a high-voltage divider to a power analyzer.
The L9217-02 is manufactured in Japan.
What's in the Box
Skip product gallery
Regular price:
€78.00
Regular price:
€98.00
Regular price:
€1,618.00
Regular price:
€668.00
Regular price:
€508.00
Regular price:
€3,278.00
Regular price:
€4,998.00
Regular price:
€1,318.00
L9217

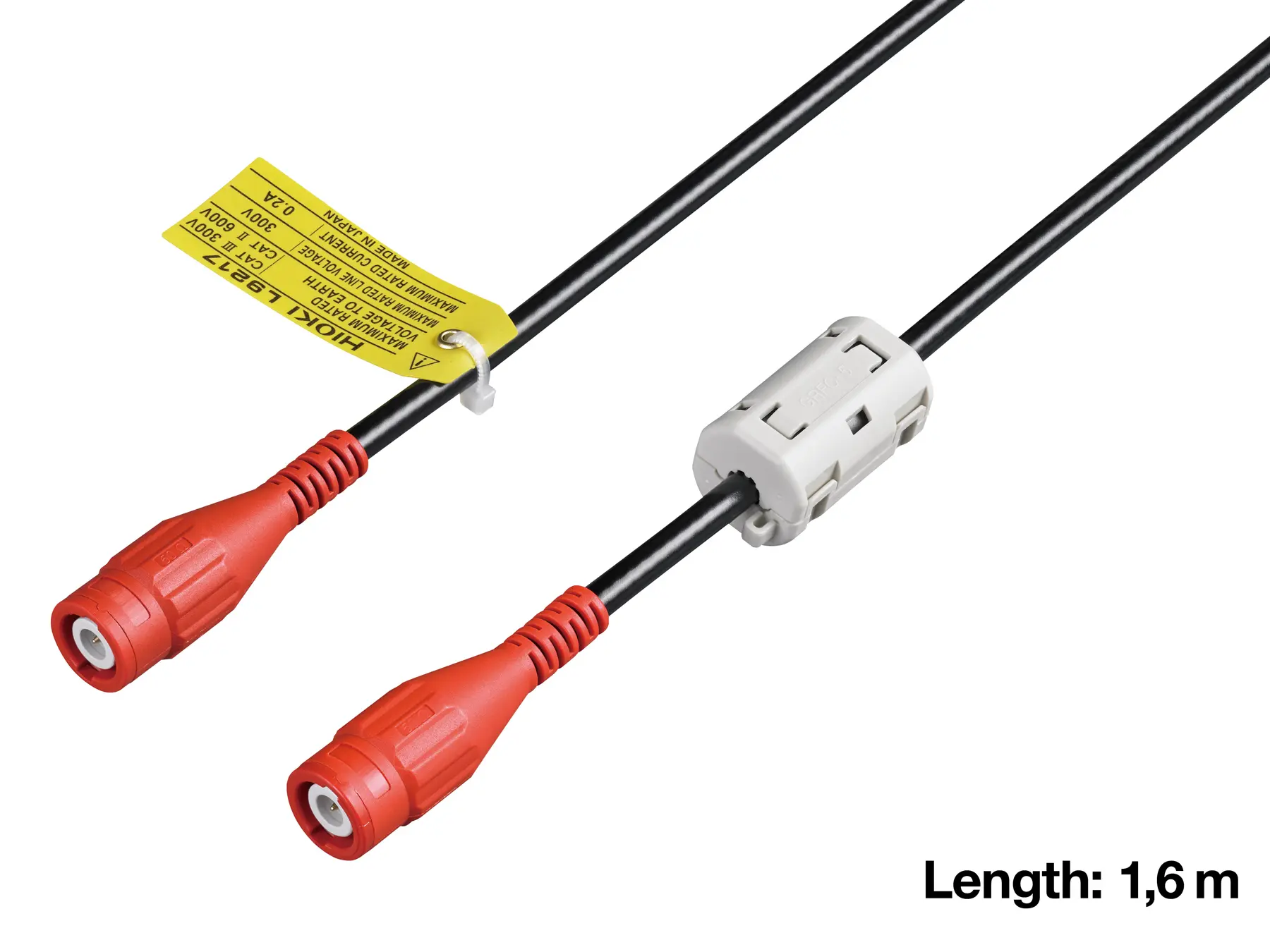

L9217 - BNC Cable, Insulated, 1.6 m
Insulated BNC cable, BNC plugs on both ends, plastic connector housings, ferrite for noise
suppression, 1.6 m cable length, rated voltage 300 V, CAT III 300 V / CAT II 600 V, made in
Japan
L9217-01

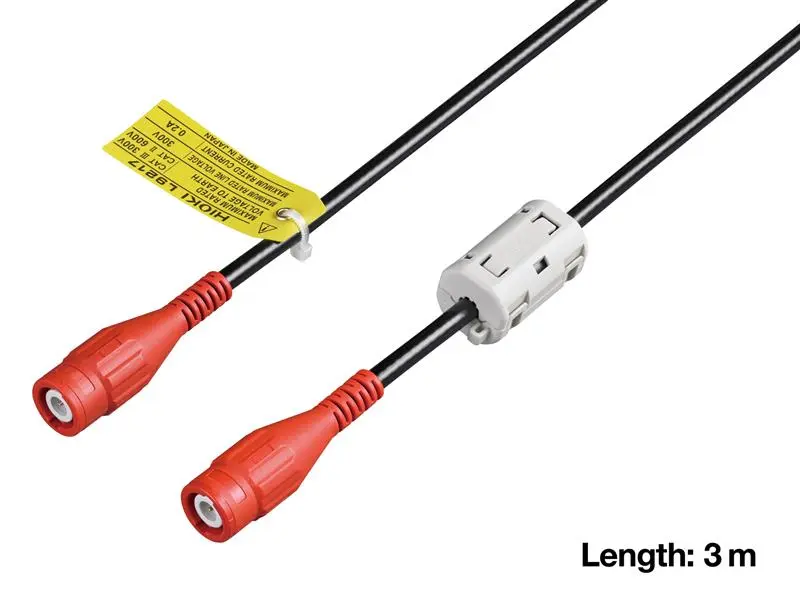

L9217-01 - BNC Cable, Insulated, 3 m
Insulated BNC cable, BNC plugs on both ends, plastic connector housings, ferrite for noise
suppression, 3 m cable length, rated voltage 300 V, CAT III 300 V / CAT II 600 V, made in
Japan
CT9557
CT9557 - Current Sensor Interface, 4-Channel
4 channel current sensor interface for current sensors, clamps and probes with ME15W
connectors, sensor power supply, 4 ch BNC waveform outputs, BNC total waveform output,
BNC total RMS output
CT9556

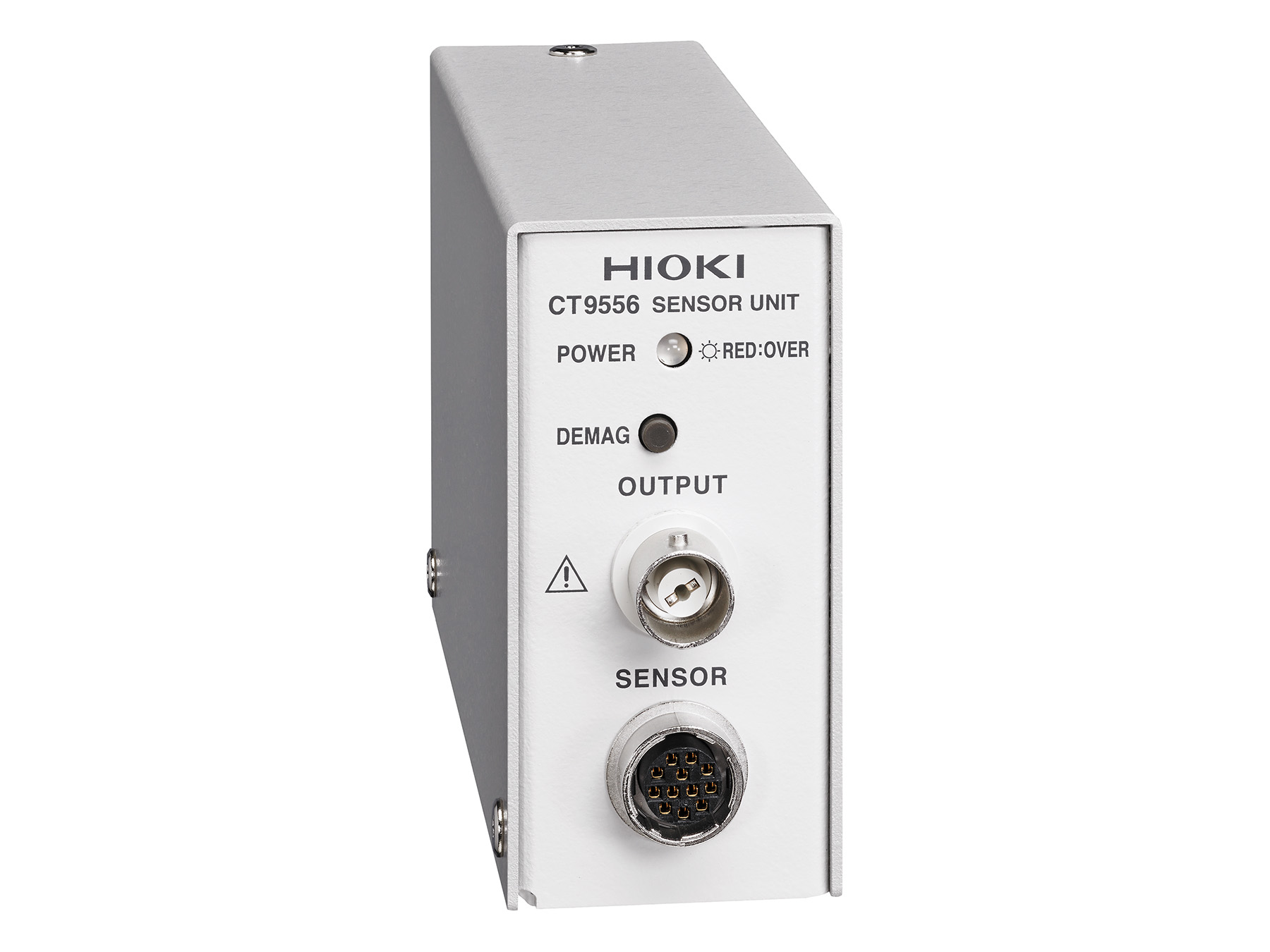

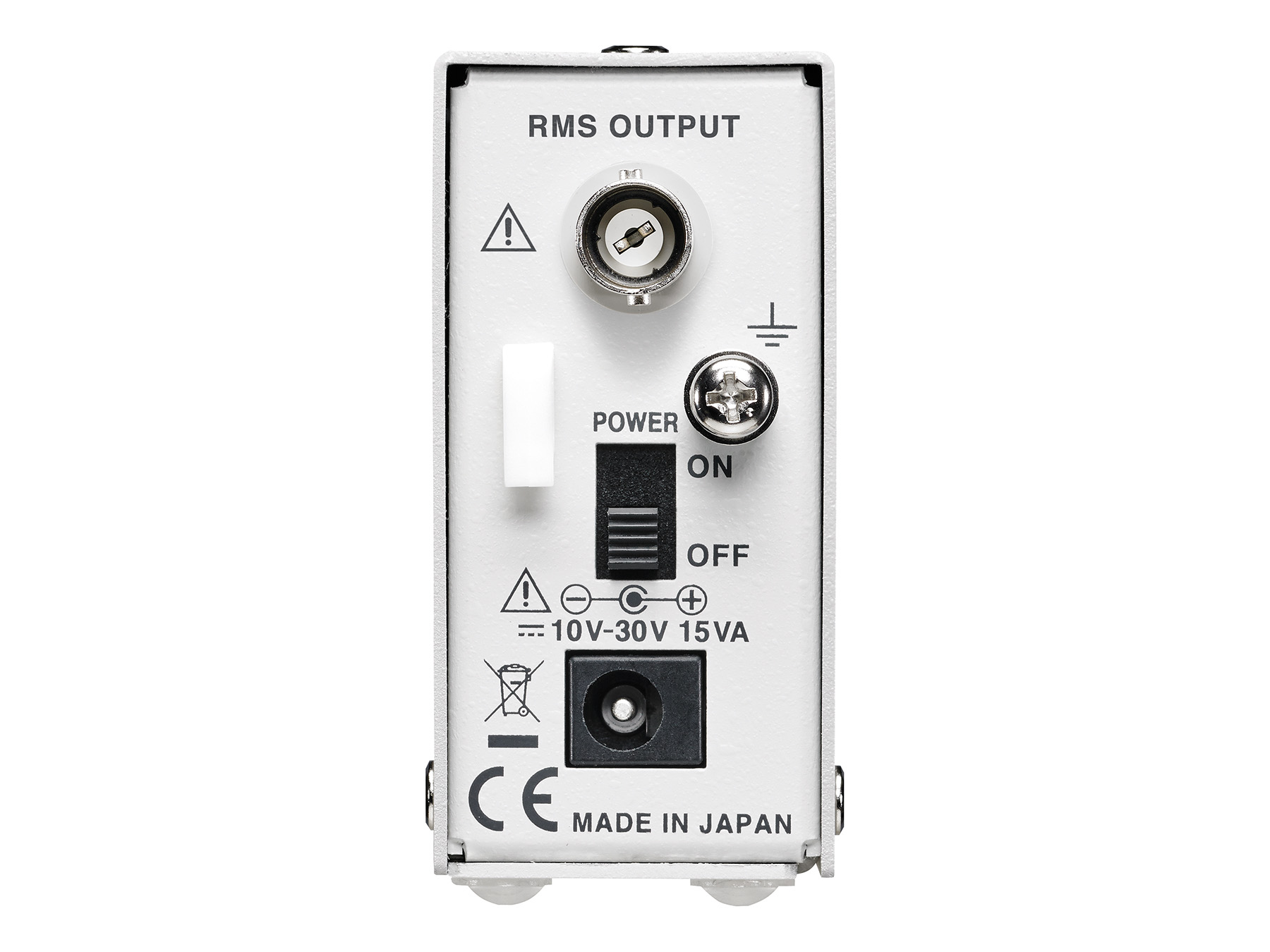

CT9556 - Current Sensor Interface, 1-Channel, with RMS Output
