L1021-01 - Red Patch Cord

€22.40

% €28.00 (20% saved)

Content: 1 Each

Available in 21 days

€22.40

% €28.00 (20% saved)

L1021-01 - Red Patch Cord

Product number: L1021-01

GTIN/EAN: 4536036011186

Weight: 0.027 kg

Product information L1021-01 - Red Patch Cord

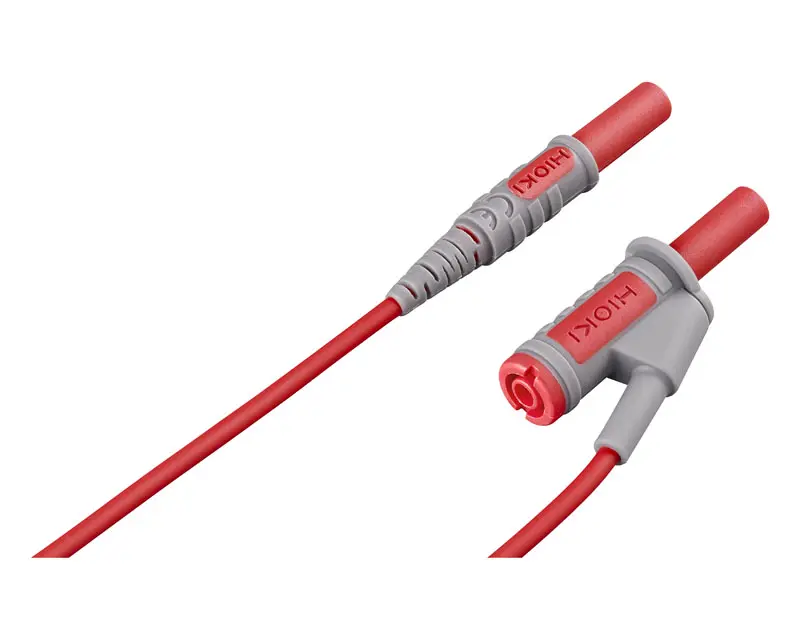

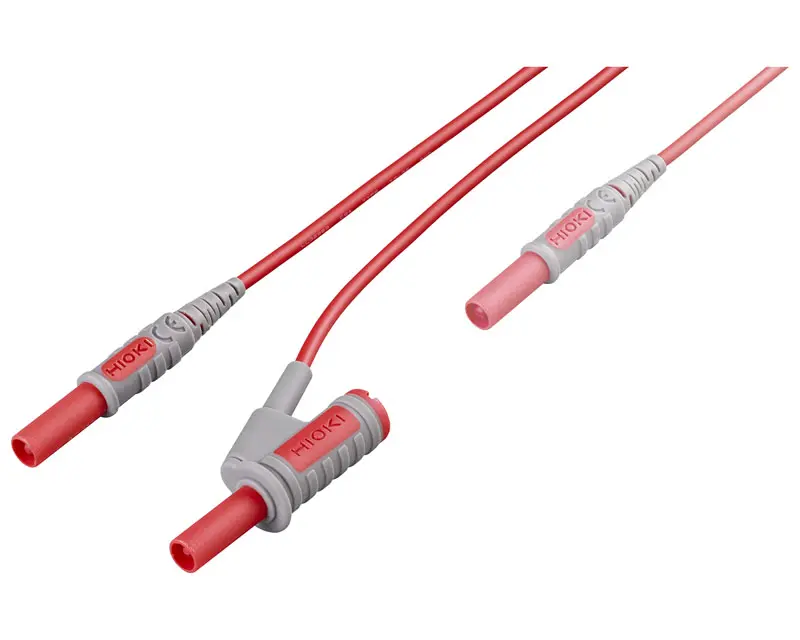

The HIOKI L1021-01 is a red patch cord for connecting and branching voltage cords such as the L9438 and L1000. For use with HIOKI Power Analysers and Power Quality Analysers, the cord features a 4 mm banana plug on one side and a stackable dual banana connector on the other side. It is designed for measurement categories CAT IV 600 V and CAT III 1000 V.

Technical Specifications

Cable length: 500 mm ±50 mm
Connectors: 4 mm banana plug to stackable dual banana connector
Measurement category: CAT IV 600 V, CAT III 1000 V
Colour: red
Protective caps: both ends
