L0220-02 - Extension cable

€308.00

Content: 1 Each

In stock in Germany

€308.00

L0220-02 - Extension cable

Product number: L0220-02

Available stock: 4

GTIN/EAN: 4536036004485

Length: 5000 mm

Weight: 0.2 kg

Product information L0220-02 - Extension cable

The L0220-02 extention cable is made for extending a sensor cable connected to Hioki Display Units equipped with HIOKI connector PL14.

Technical details:

Length: 5m
Use for: CT7631, CT7636, CT7642, CT7731, CT7736, CT7742, CM7290, CM7291
Connector type: Hioki PL14

Related products

PQ3100-94

HIOKI PQ3100-94 - Power quality measuring device with 4 flexible current transformers

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis. Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments. Technical Details:Measurement Channels: 4 voltage channels, 4 current channels Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak Current Measurement Range: Up to 6000 A (with appropriate current sensors) Frequency Range: DC, 0.1 Hz to 700 kHz Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor) Event Detection: Transients, voltage fluctuations, harmonics, inrush currents Compliance: IEC61000-4-30 Class S Waveform Recording: Up to 11 seconds for detailed event analysis Display: 6.5-inch TFT color LCD Data Storage: Internal memory and SD card support Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation) Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) Weight: 2.6 kg

€4,888.00

View product

PQ3198-94

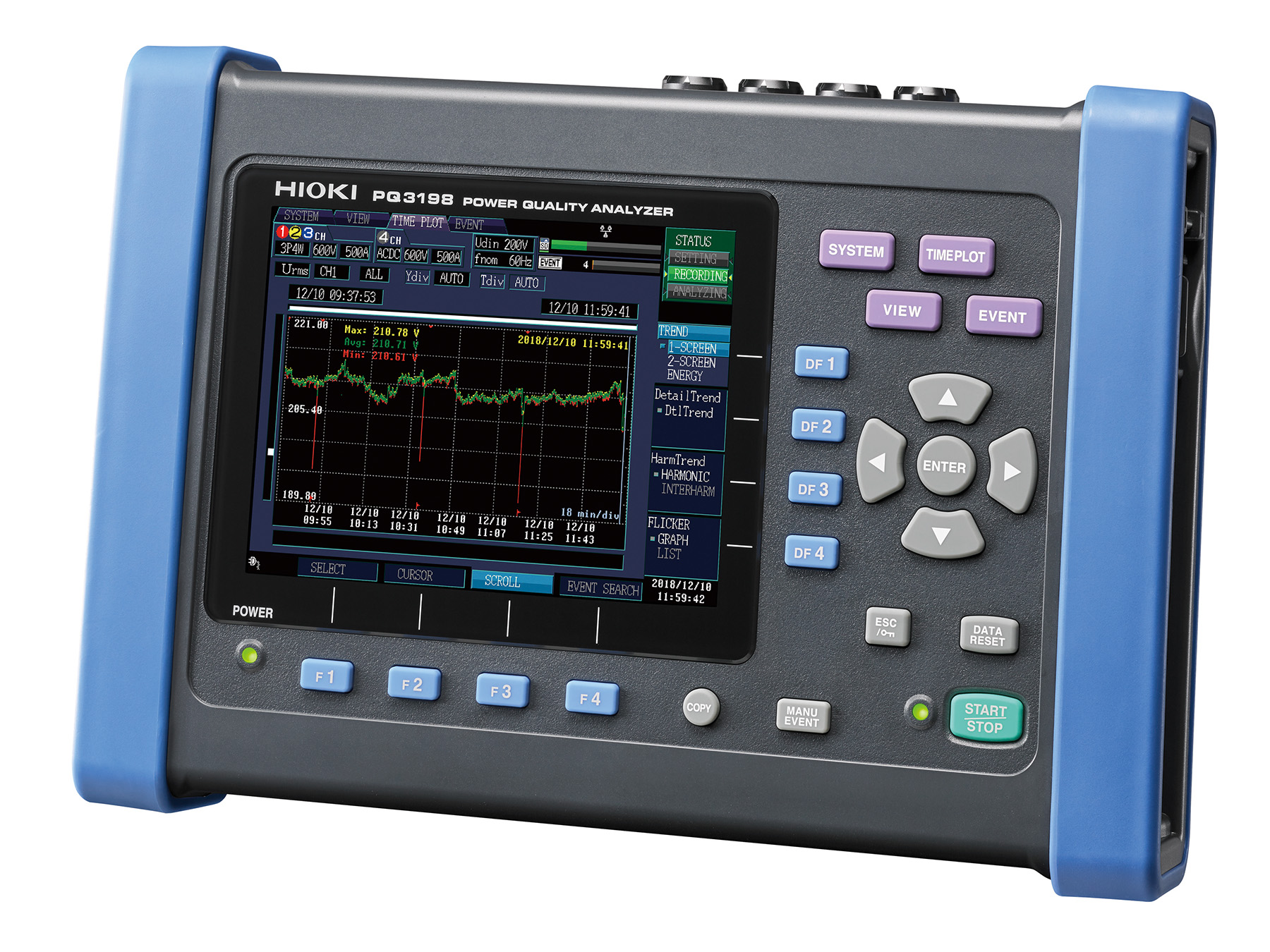

HIOKI PQ3198-94 - Power quality analyzer kit with 4 flexible current clamps
