CT9557 - SENSOR UNIT
Product details
Product number:
CT9557
EAN:
4536036010868
Width:
1320 mm
Height:
670 mm
Weight:
1.4 kg
Product information "CT9557 - SENSOR UNIT "

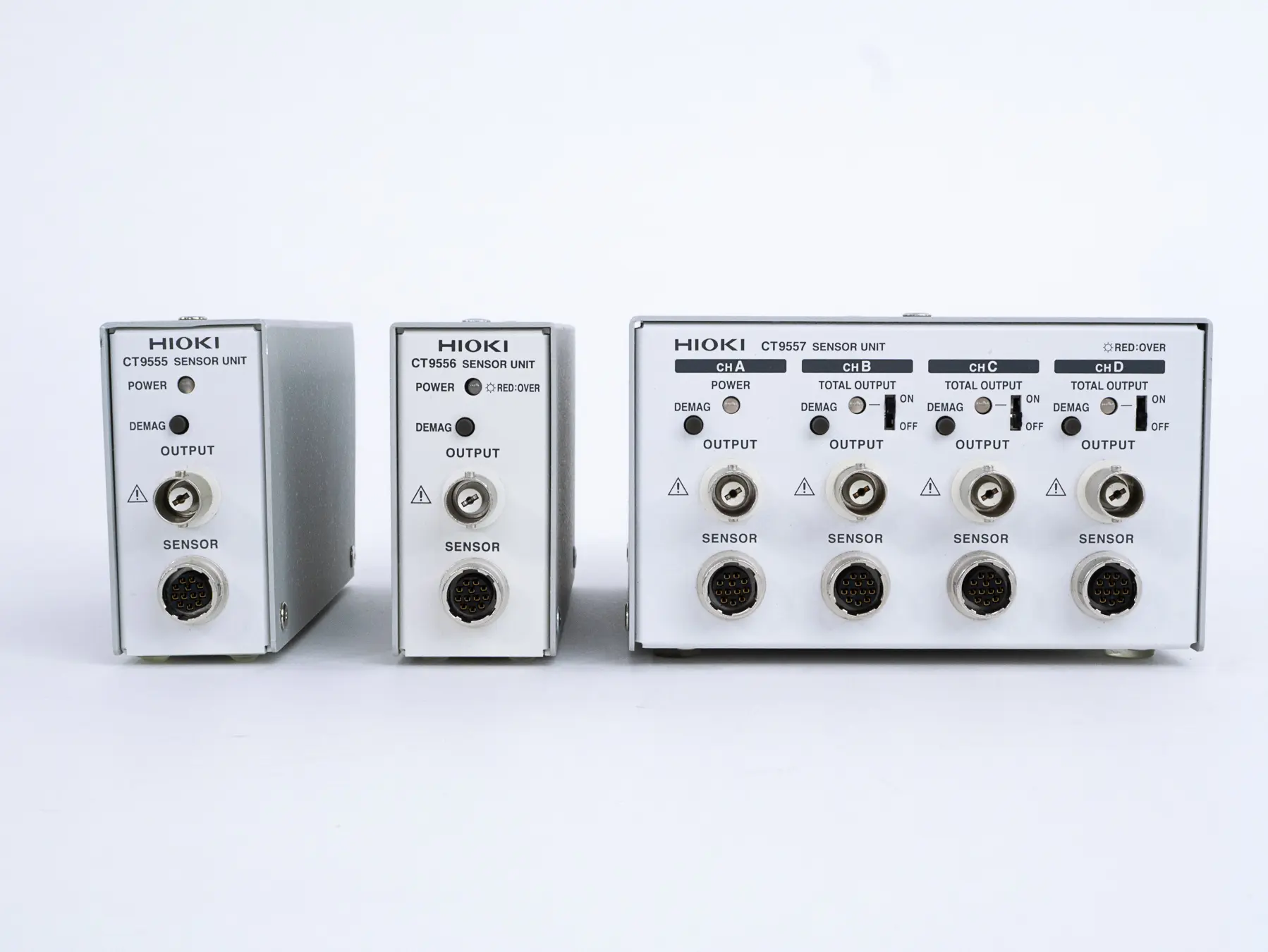

The CT9557 is a power supply unit that supports up to four Hioki current sensors. It can aggregate the provided waveforms for total output. It is ideal for large current or multi-cable circuits.
More than specs – find more details here:
🔗 Zero-flux Current Clamps: Accuracy without effort from mA to kA
Technical details
- Channels: 4
- Output: Waveform, total waveform, and total RMS (BNC terminals)
- Power consumption: 155 VA max
- Power supply: AC Adapter Z1002
- Input connector type: Hioki ME15W female terminal • Output connector type: BNC
- Dimensions: 116 x 67 x 132 mm
- Weight: 420 g
- Supported sensors: 9272-05, CT684x-05, CT684xA, CT686x-05, 9709-05, CT687x, CT687xA, PW9100, CT6904A
🔗 Zero-flux Current Clamps: Accuracy without effort from mA to kA
- CT9557
- AC Adapter Z1002
- Power cord
- Instruction manual
-
Product catalog with data sheet, current sensors & current probes series (English)15,035 KB pdf
-
Product brochure with data sheet, Sensor Unit CT9555, CT9556, CT9557 (English)1,716 KB pdf
-
Instruction Manual, Sensor Unit CT9555, CT9556, CT9557 (English, Japanese, Chinese)10,604 KB pdf
-
Product brochure with data sheet, comptact current probes/current sensors CT6830, CT6831, CT6833, CT6834, CT7812, CT7822 (English)2,568 KB pdf
