HIOKI CM4141-50 - True RMS Clamp Multimeter, 2000 A AC with 3 Current Ranges

True RMS clamp multimeter with 3 AC current ranges (60 A, 600 A, 2000 A) and voltage up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 55 mm conductor diameter; resistance, continuity, diode test, inrush, Bluetooth optiona
Skip image gallery
HIOKI CM4141-50 true rms clamp multimeter 2000a ac compact design

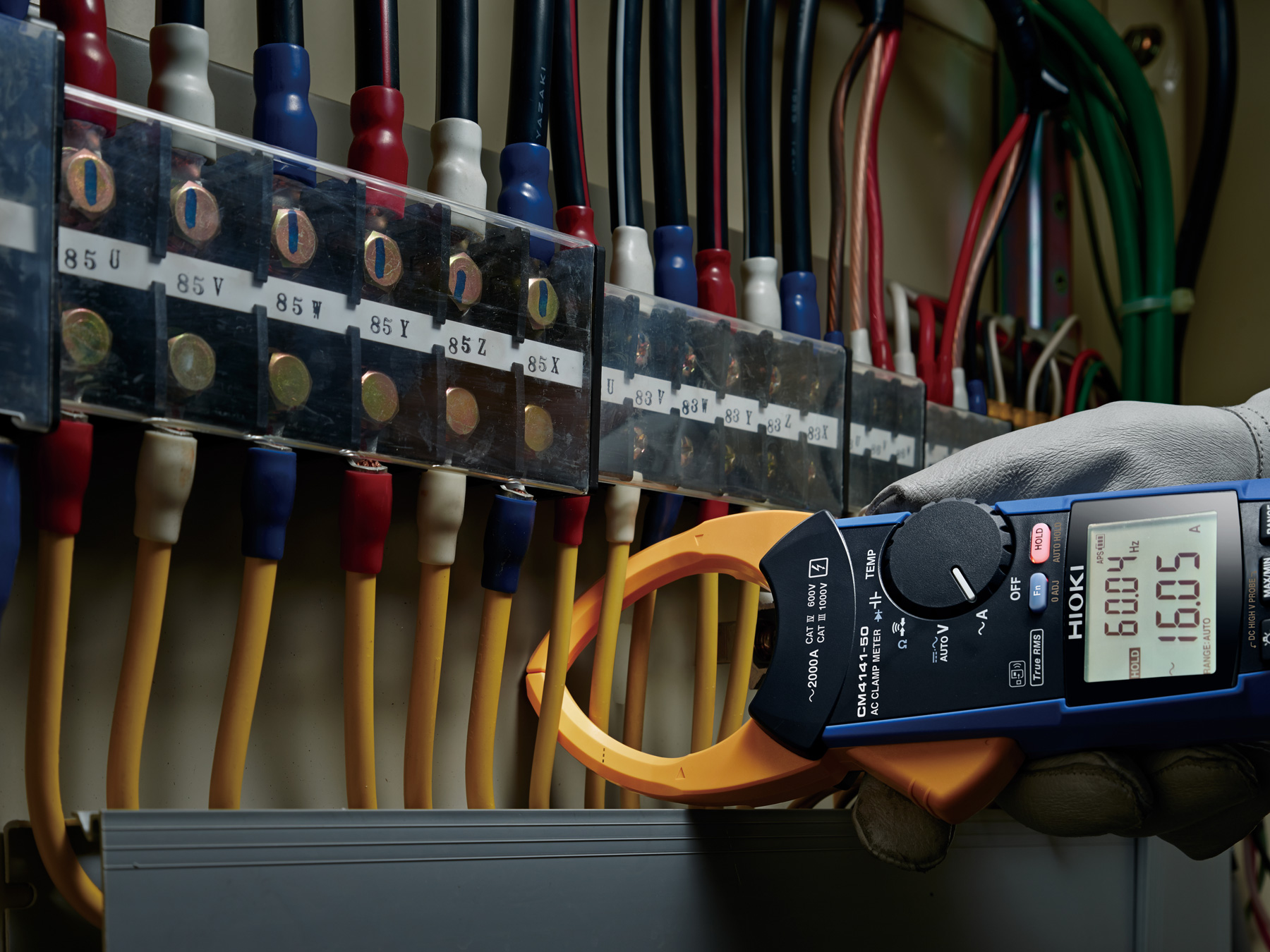

HIOKI CM4141-50 true rms clamp multimeter 2000a ac low current

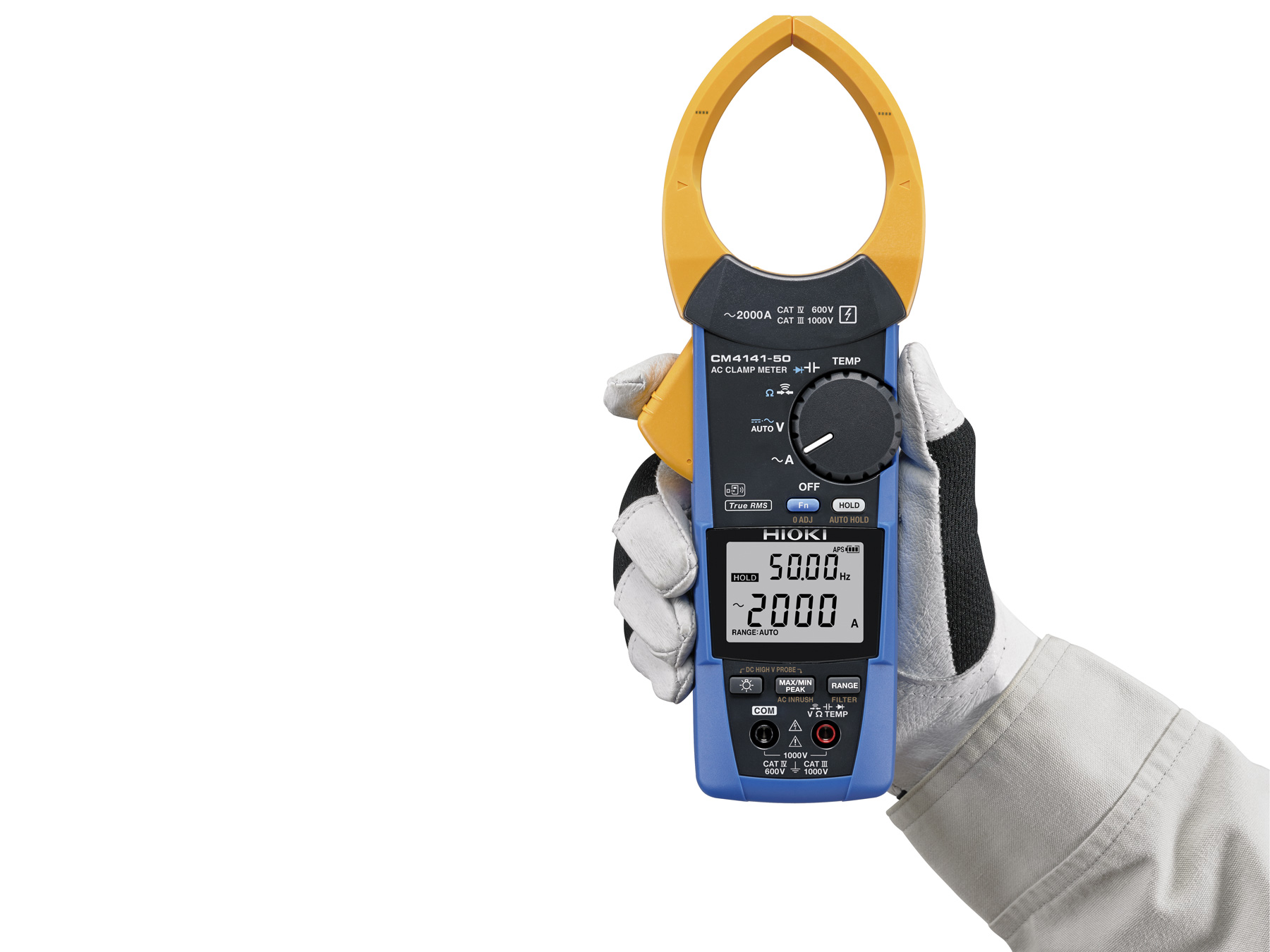

HIOKI CM4141-50 true rms clamp multimeter 2000a ac handheld
HIOKI CM4141-50 true rms clamp multimeter 2000a ac high sensitivity

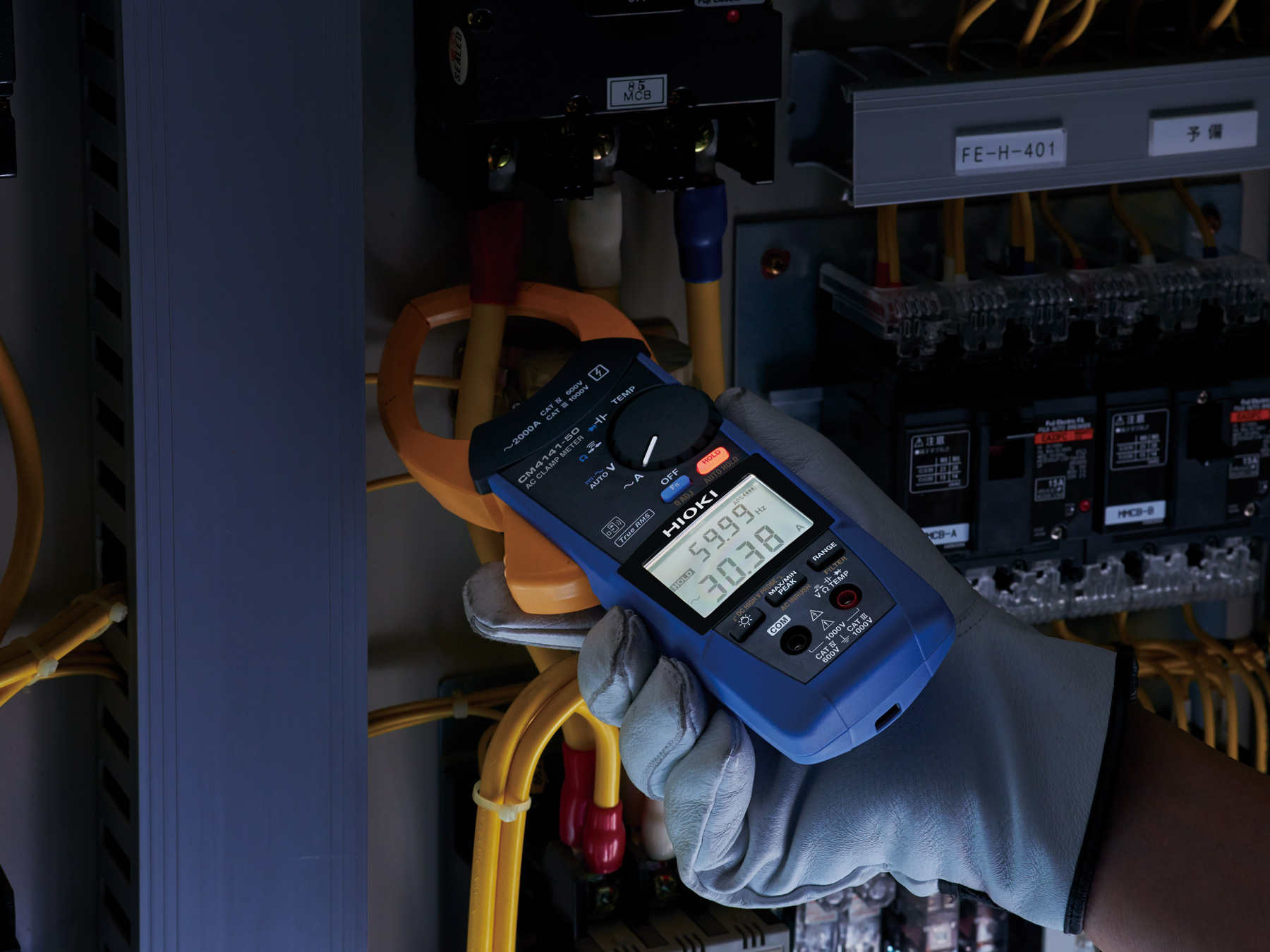

HIOKI CM4141-50 true rms clamp multimeter 2000a ac 3 current ranges
HIOKI CM4141-50 true rms clamp multimeter 2000a ac compact design
HIOKI CM4141-50 true rms clamp multimeter 2000a ac low current
HIOKI CM4141-50 true rms clamp multimeter 2000a ac handheld
HIOKI CM4141-50 true rms clamp multimeter 2000a ac high sensitivity
HIOKI CM4141-50 true rms clamp multimeter 2000a ac 3 current ranges

€398.00

Content: 1 Each

In stock in Germany

€398.00

HIOKI CM4141-50 - True RMS Clamp Multimeter, 2000 A AC with 3 Current Ranges
Product number: CM4141-50
Available stock: 2
GTIN/EAN: 4536036013586
Length: 247 mm
Width: 65 mm
Height: 35 mm
Weight: 0.3 kg
Description

Product information HIOKI CM4141-50 - True RMS Clamp Multimeter, 2000 A AC with 3 Current Ranges

Key Specifications

  • AC current measurement with 3 ranges: 60 A, 600 A, 2000 A
  • Voltage measurement up to 1000 V AC/DC
  • 55 mm conductor diameter
  • Safety rated CAT IV 600 V / CAT III 1000 V
  • Optional Bluetooth communication with Z3210 adapter

Typical Applications

  • Measurements in utility and power distribution systems
  • Maintenance and testing of substations and transformers
  • Inrush current testing on large AC equipment
  • Grid service provider fieldwork

Feature CM4141-50
CM4141-90		 CM3291 CM3281 CM3289 3280-10F
3280-70F
AC Current 2000 A 1000 A
True RMS yes yes - yes -
Conductor diameter 55 mm 46 mm 33 mm
Voltage
(AC / DC)		 1000 V 600 V
Safety Rating CAT IV 600 V
CAT III 1000 V 		CAT IV 300 V
CAT III 600 V 		CAT IV 300 V / CAT III 600 V (current)
CAT III 300 V (voltage)
Bluetooth available or included -


Detailed Product Overview

The HIOKI CM4141-50 AC Clamp Multimeter is designed for AC current measurements in utility and power distribution systems. With three dedicated current ranges of 60 A, 600 A and 2000 A, it is suited for measurements on feeders, transformers and large AC loads where AC current measurement is the main requirement. Its narrow jaw design accommodates conductors up to 55 mm in diameter and, with a minimum jaw cross section of 11 mm, supports access between closely spaced cables in crowded switchgear and distribution panels.


AC current measurement in utility and distribution systems

The CM4141-50 measures AC current in three ranges from 60 A to 2000 A and combines this with voltage measurement up to 1000 V AC/DC. This covers typical measurement tasks in substations, energy distribution systems and industrial power installations. The safety rating of CAT IV 600 V / CAT III 1000 V supports measurements close to the source of installation as well as in distribution environments.
With the 55 mm jaw opening, the instrument accommodates larger conductors and busbar connections, while the narrow jaw design supports access in compact installation spaces. This makes the instrument suitable for current measurements in power distribution equipment where conductor size and accessibility are both relevant.


Multimeter functions for electrical maintenance

In addition to AC current measurement, the instrument provides voltage measurement up to 1000 V AC/DC together with resistance, continuity, diode test, frequency, temperature and inrush current measurement. Temperature measurement uses a K thermocouple such as the optional DT4910 Thermocouple (K). Automatic AC/DC detection, Max/Min/Avg, PEAK values, filter function and manual or auto hold support routine troubleshooting and maintenance work.
These functions allow the CM4141-50 to be used not only for current measurements on large AC conductors but also for standard electrical test tasks during service and inspection work. This reduces the need to switch between a clamp meter and a separate multimeter in everyday field use.


Bluetooth communication

Bluetooth communication is available with the optional Z3210 Bluetooth Adapter. Measurement values can be transferred to a smartphone or tablet for logging, documentation and report creation using the free GENNECT Cross app for iOS and Android. The app also supports harmonic analysis from the 1st to the 30th order. The Z3210 also supports HID functionality.
HIOKI clamp meters and clamp multimeters are developed and manufactured in Japan. At the company’s site in Nagano Prefecture, development, mechanics, electronics and current sensing technology are combined within one organization.
What's in the Box
  • CM4141-50 AC Clamp Multimeter
  • L9300 Test leads
  • C0203 Carrying Case
  • 2 × AAA (LR03) batteries
  • Instruction manual
  • Safety instructions
