9631-01 Temperature sensor for the IR3455
€46.40*
% €58.00* (20% saved)
Content:
1 Each
In stock, delivery time: Ready for dispatch
Available stock:
1
Product details
Product number:
9631-01
EAN:
4536036008155
Weight:
0.02 kg
Product information "9631-01 Temperature sensor for the IR3455"

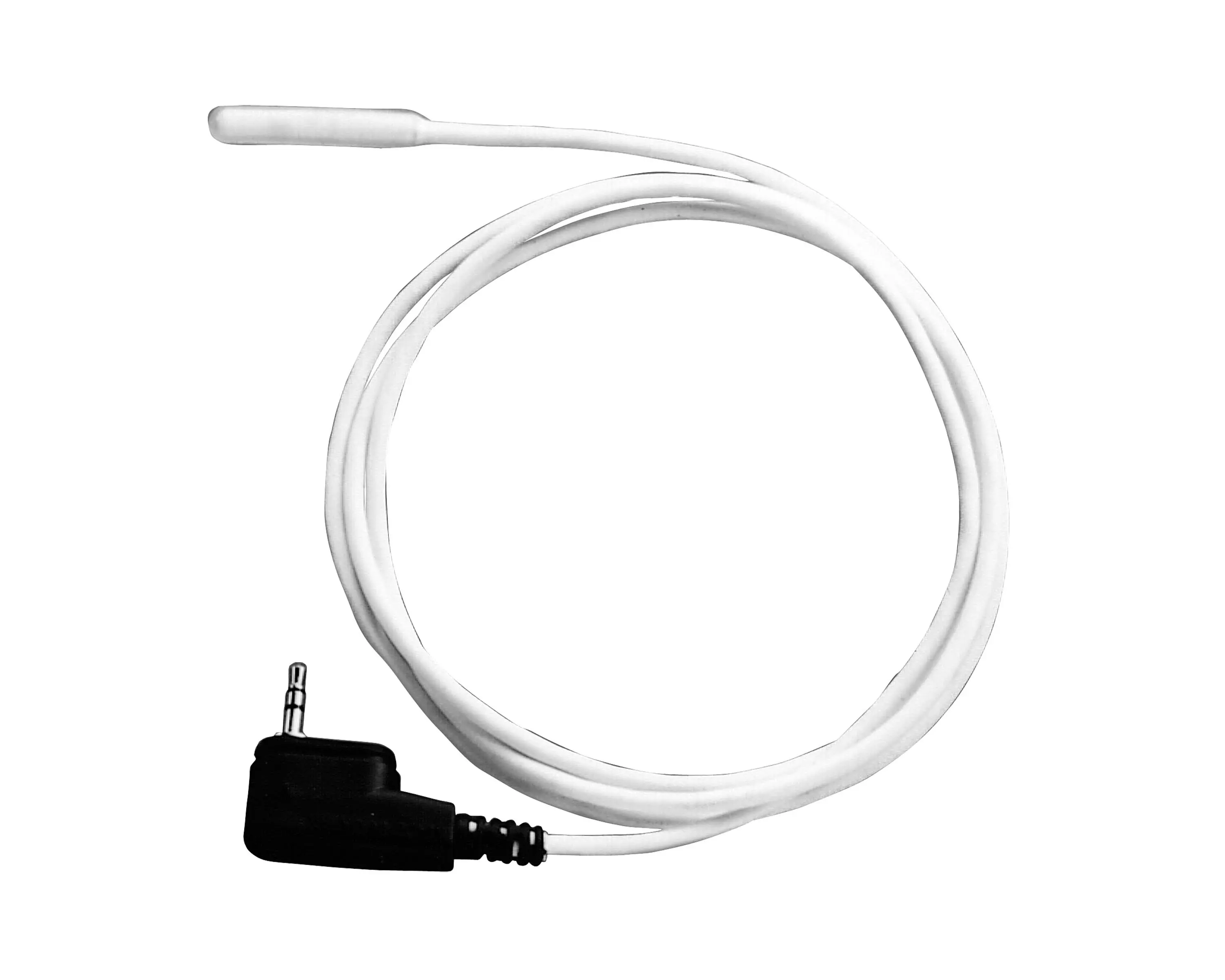

The Temperature Sensor 9631-01 is designed for use with the IR3455 High Voltage Insulation Tester. It features a molded type construction, ensuring durability and reliability in various testing environments.
Technical Details:
- Temperature Range: -40 to 180 °C
- Length: 1 meter
- Response Time: 100 seconds
- Sensor Part Dimensions: Diameter 6 mm × Length 28 mm
- Connector Pin Diameter: 2.5 mm
- Additional Information: 2D Diagram available "
- 9631-01
Products of the main unit
IR3455
IR3455 - High Voltage Insulation Tester
The Hioki IR3455 is a digital insulation tester designed for high-voltage equipment such as transformers, cables, and motors. It offers 5 test voltage ranges from 250 VDC to 5000 VDC, and can measure resistance up to 10 TΩ. The tester features a bright LED scale, bar graph display, and built-in memory, providing users with the ability to perform leakage current and voltage tests. Automatic calculations for DAR (Dielectric Absorption Ratio) and PI (Polarization Index) enhance its utility for insulation testing. The IR3455’s high performance and user-friendly interface make it a reliable choice for high-voltage equipment maintenance.
Technical Details (IR3455):
• Test voltage ranges: 250 VDC to 5000 VDC
• Resistance range: Up to 10 TΩ
• Display: Bright LED scale, bar graph
• Additional features: Built-in memory, leakage current and voltage tests, DAR and PI automatic calculations
