L9787 - TEST LEAD
€48.00*
Content:
1 Each
In stock in Germany
€48.00*
L9787 - TEST LEAD
Available stock:
12
Product number:
L9787
EAN:
4536036001750
Length:
1260 mm
Weight:
0.105 kg
Product information L9787 - TEST LEAD
The L9787 Test lead set is an option for Hioki Insulation Testers and Earth Testers, applicable for the simplified measurement method and indoor use only! Part of the set is a crocodile clip.
Technical Information:
- Length: 1.2 m
- Cable and Tip colour: red/black Aligator clip: black, one pcs. Measurement Tips: one black, one red Usage: Indoor only
- Voltage safety category: Lead: CATIII 1000V, CATIV 600V, Tip /w cover CATII 600V, Tip w/o cover CATII 600V, Clip CATIII 1000V, CATIV 600V
- Max current: 10A Option for: IR4016, 3490, IR4016, IR4017, IR4018, IR4053, IR4056, IR4057-50, IR4059, IR4059, IR5050, IR5051, FT3151, FT6031-50, FT6041
-
Product Catalog with data sheet, Field Measuring Instruments (English)39,121 KB pdf
-
Product brochure with data sheet, Analog earth tester FT3151 (English)2,194 KB pdf
-
Product Catalog with Data Sheet, Earth Tester Series (English)8,083 KB pdf
-
Product Catalog, INSULATION TESTER Series (English)6,116 KB pdf
-
Product brochure with data sheet, 2- and 3-pole earth tester FT6031-50 (English)3,272 KB pdf
Related Products
L9787-91
L9787-91 - Push-on tip for L9787
The L9787-91 is a test tip for checking breaker terminals. It is detacable for use with compatible test leads. Technical information:Length with handle: 128mm Tip diameter: 2.6 mm Tip surface: gildedVoltage safety category: CAT III 600V Max current: 10A Compatible to: L2200, L4930, L4931, L4943, L9257, L9787Colour: red
IR4056-20
IR4056 - Digital Portable Insulation Tester, 50 V to 1000 V, up to 4000 MΩ
Digital insulation tester, 5 test voltages from 50 V to 1000 V, insulation resistance measurement up to 4000 MΩ, PASS/FAIL judgment, 200 mA protective conductor (PE) testing, AC/DC voltage verification up to 600 V, battery-powered
IR4057-50
IR4057-50 - Digital Insulation Tester with Bar Graph, 50 V to 1000 V
Digital insulation tester with bar graph display, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, operating temperature from -25 °C to 65 °C, Bluetooth optional with Z3210
IR4057-90
HIOKI IR4057-90 Digital Insulation Tester with Bar Graph and Bluetooth, 50 V to 1000 V
Digital insulation tester with bar graph display and integrated Bluetooth, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, operating temperature from -25 °C to 65 °C
IR4053-10
IR4053 - Digital Insulation Tester with PVΩ Function, 50 V to 1000 V
Digital insulation tester with PVΩ function for measurements on live PV strings, 5 test voltages from 50 V to 1000 V, insulation resistance measurement up to 4000 MΩ, AC/DC voltage measurement up to 600 V, battery-powered
IR4059
HIOKI IR4059 - Digital Insulation Tester with Bar Graph and Remote Switch, 50 V to 1000 V
Digital insulation tester with bar graph display, 5 test voltages from 50 V to 1000 V, insulation resistance up to 4000 MΩ, PASS/FAIL comparator, 200 mA protective conductor test, integrated remote switch in test lead, Bluetooth optional with Z3210
20
%

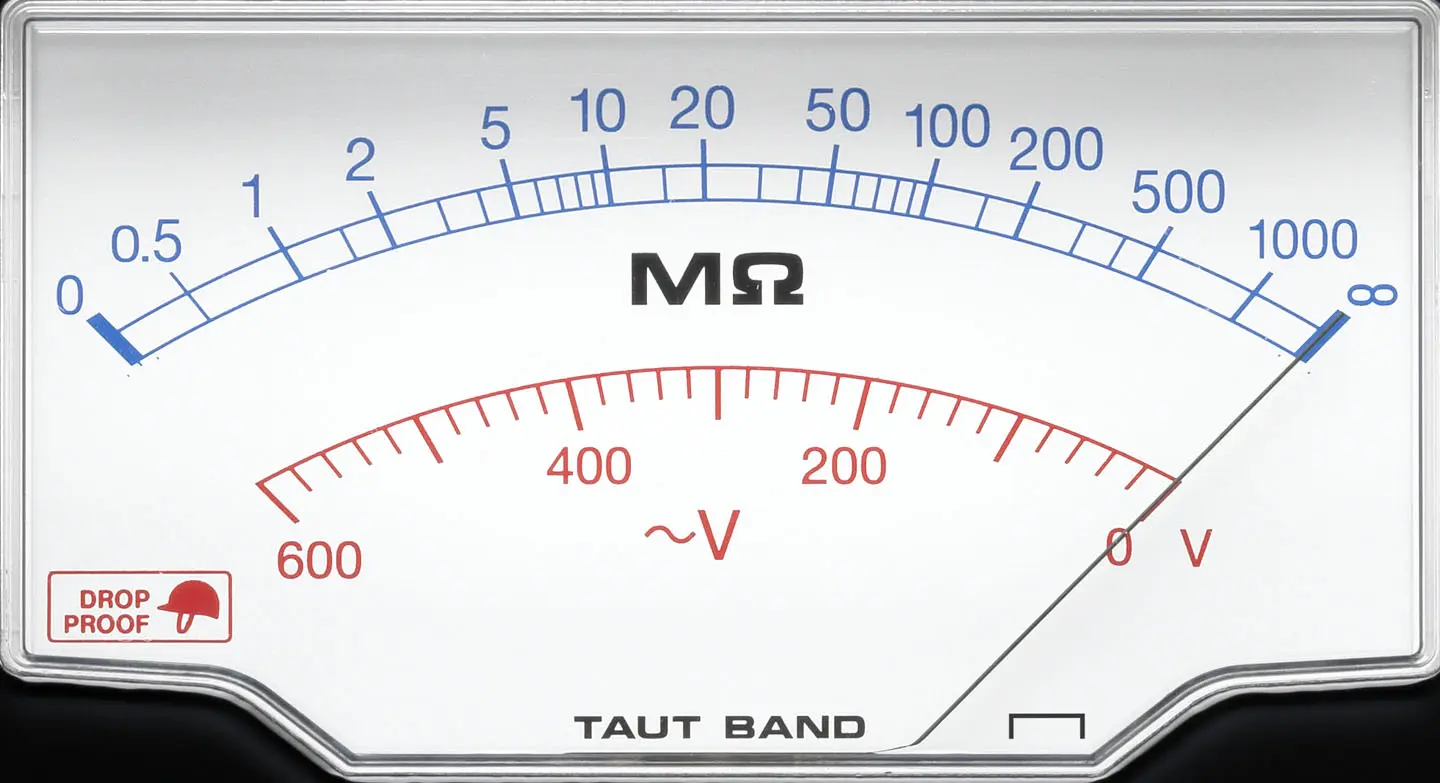

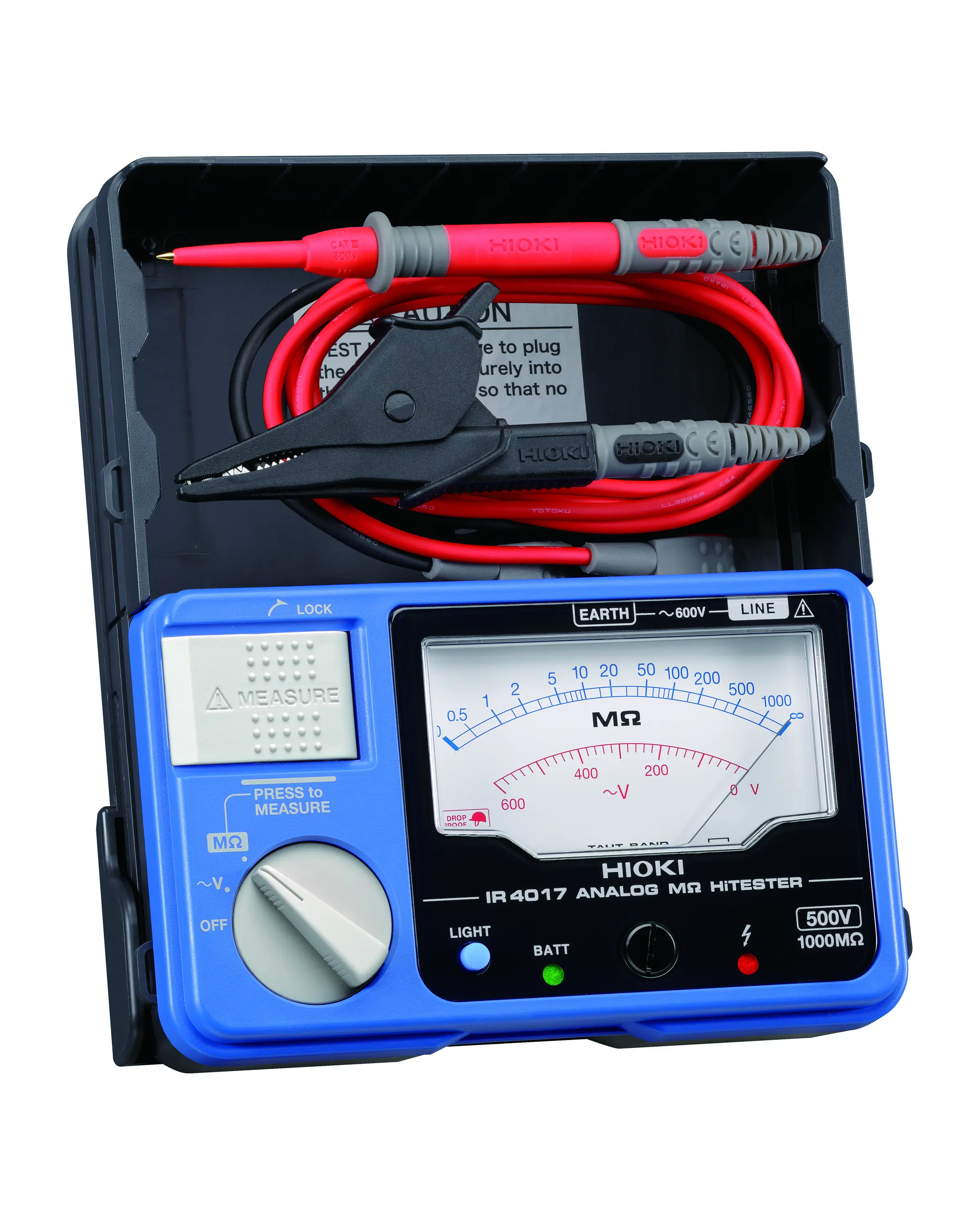

IR4017-20
IR4017 - Analog Insulation Tester
Key SpecificationsInsulation resistance measurement (500 V DC) up to 1000 MΩ Voltage measurement up to 600 V ACMeasurement category: CAT III 600 V Display: illuminated analog meter The HIOKI IR4017-20 is a rugged analog insulation tester designed for fast and reliable insulation resistance testing in electrical installations and equipment. With a 500 V DC test voltage and a measurement range up to 1000 MΩ, it is ideal for maintenance, service, and safety inspections in the field. The easy-to-read illuminated analog meter enables quick and confident evaluation of insulation measurements, even in low-light environments. For added safety, the integrated live circuit indicator reliably warns when hazardous voltage is present. After testing, the automatic discharge function ensures safe discharge of the device under test. Built for demanding everyday use, the IR4017-20 is drop-proof (1 m onto concrete) and meets the requirements of CAT III 600 V. Its IP40 protection rating (excluding terminals) makes it well suited for typical maintenance work. In addition, the instrument features AC voltage measurement up to 600 V and a practical housing design that allows test leads to be stored quickly without disconnecting them.A wide range of optional accessories is available for the IR4017-20, including test pins, alligator clips, and additional connection adapters. Especially useful are the remote switch test lead (L9788-10) or the complete set including an additional black lead (L9788-11).
20
%

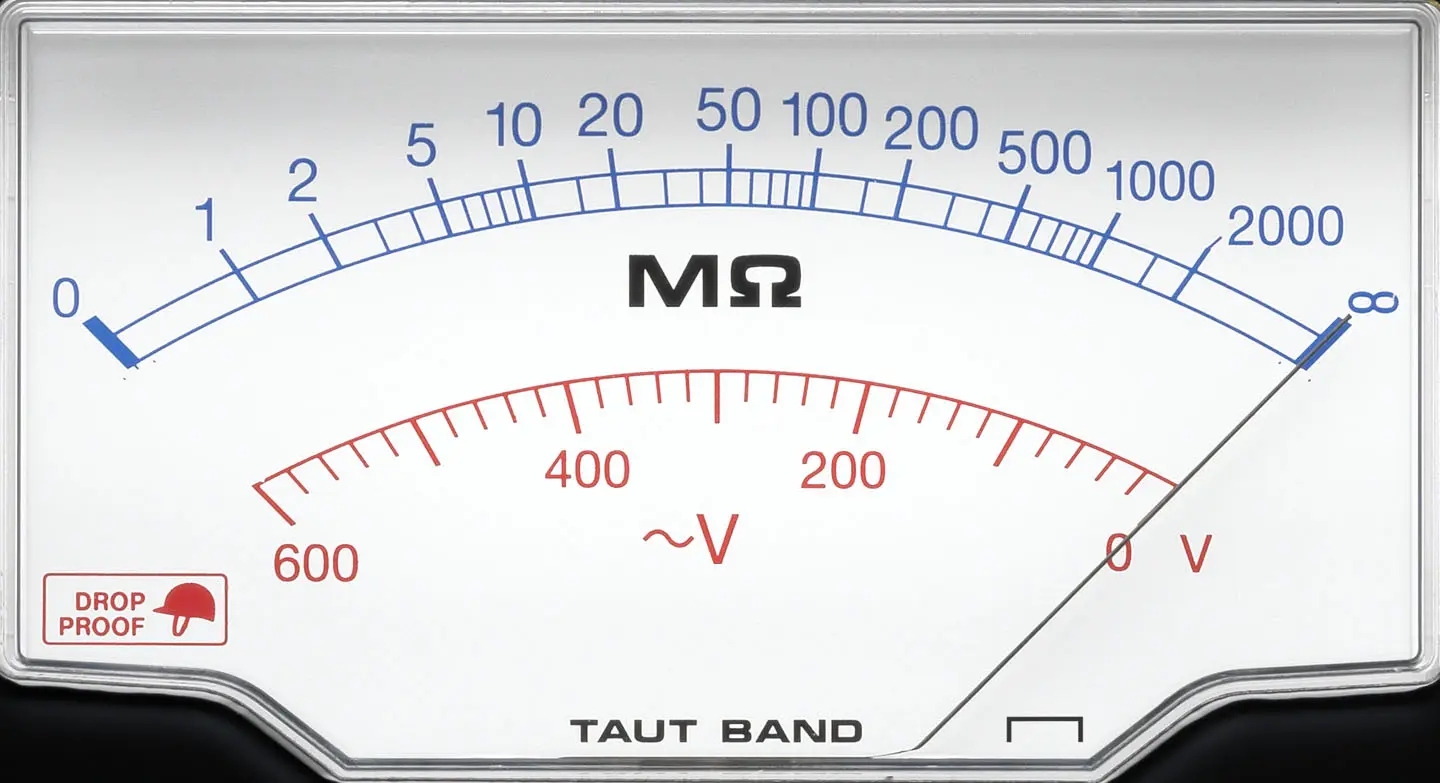

IR4018-20
IR4018 - Analog Insulation Tester
Key SpecificationsInsulation resistance measurement (1000 V DC) up to 2000 MΩVoltage measurement up to 600 V AC Measurement category: CAT III 600 V Display: illuminated analog meterThe HIOKI IR4018-20 is a rugged analog insulation tester designed for reliable insulation resistance testing in electrical installations and equipment. With a 1000 V DC test voltage and a measurement range up to 2000 MΩ, it is particularly well suited for applications with higher insulation requirements. The easy-to-read illuminated analog meter enables quick and confident evaluation of insulation measurements, even in low-light environments. For added safety, the integrated live circuit indicator reliably warns when hazardous voltage is present. After testing, the automatic discharge function ensures safe discharge of the device under test. Built for demanding everyday use, the IR4018-20 is drop-proof (1 m onto concrete) and meets the requirements of CAT III 600 V. Its IP40 protection rating (excluding terminals) makes it well suited for typical maintenance work. In addition, the instrument features AC voltage measurement up to 600 V and a practical housing design that allows test leads to be stored quickly without disconnecting them. A wide range of optional accessories is available for the IR4018-20, including test pins, alligator clips, and additional connection adapters. Especially useful are the remote switch test lead (L9788-10) or the complete set including an additional black lead (L9788-11).
3490
3490 - Insulation Tester
The 3490 Analog Insulation Tester offers reliable and precise insulation resistance measurements in three selectable ranges (250 V, 500 V, 1000 V). Its durable design, including a bright LED display and drop-proof construction, makes it ideal for industrial use. With CAT III 600 V safety ratings, the 3490 ensures safe operation during testing, while its compact form allows for easy handling in various environments. This tester is an essential tool for electrical inspections, providing insulation resistance measurements up to 4000 MΩ. Technical Specifications: Testing Voltage (DC): 250 V, 500 V, 1000 V Effective Maximum Indicated Value: 100 MΩ (250 V), 4000 MΩ (1000 V) Measurement Range: 0.05 MΩ to 50 MΩ (250 V), 2 MΩ to 1000 MΩ (1000 V) Accuracy: ±2% of scale length (1st effective measuring range) AC Voltage Measurement: 0 to 600 V Operating Temperature: 0°C to 40°C, 90% RH or less (non-condensing) Dustproof and Waterproof Rating: IP40 (excluding measuring terminals)Safety Category: CAT III 600 V Power Supply: 4 × LR6 alkaline batteries (20 hours continuous use) Dimensions: 162 mm (W) × 167 mm (H) × 52 mm (D) Weight: 840 g
IR5050
IR5050 - Portable 5 kV high voltage insulation tester
Portable high voltage insulation tester, five test voltage ranges from 250 V to 5 kV, seven insulation resistance ranges from 10 MΩ to 10 TΩ, CAT III 2000 V, CAT IV 1000 V, IP65, optional Bluetooth communication
IR5051
IR5051 - Portable high voltage insulation tester with PV function
Portable high voltage insulation tester with dedicated PV function, insulation testing up to 5 kV and 10 TΩ, PV testing up to 2000 V even during power generation, IP65 rated, CAT III 2000 V, optional Bluetooth communication
20
%
FT3151
FT3151 - ANALOG EARTH TESTER
The Classic Ground Resistance Tester FT3151 is equipped with an Easy Cord Winding System and operates using the AC potentiometer method. It offers both three-electrode and two-electrode measurement methods, which can be switched according to your needs. With measuring frequencies of 575 Hz and 600 Hz, the tester is designed for accurate and reliable ground resistance measurements. The measurement current is 15 mA rms or less for the three-electrode method and 3 mA rms or less for the two-electrode method. The open circuit voltage is 50 V AC rms or less, and the available resistance measurement ranges are 10, 100, and 1000 Ohm.Technical Details: Measurement methods: AC potentiometer method, Three-electrode method, Two-electrode method (switchable) Measuring frequency: 575 Hz / 600 Hz Measurement current: o Three-electrode method: 15 mA rms or less o Two-electrode method: 3 mA rms or less Open circuit voltage: 50 V AC rms or less Resistance measurement ranges: 10/100/1000 Ohm

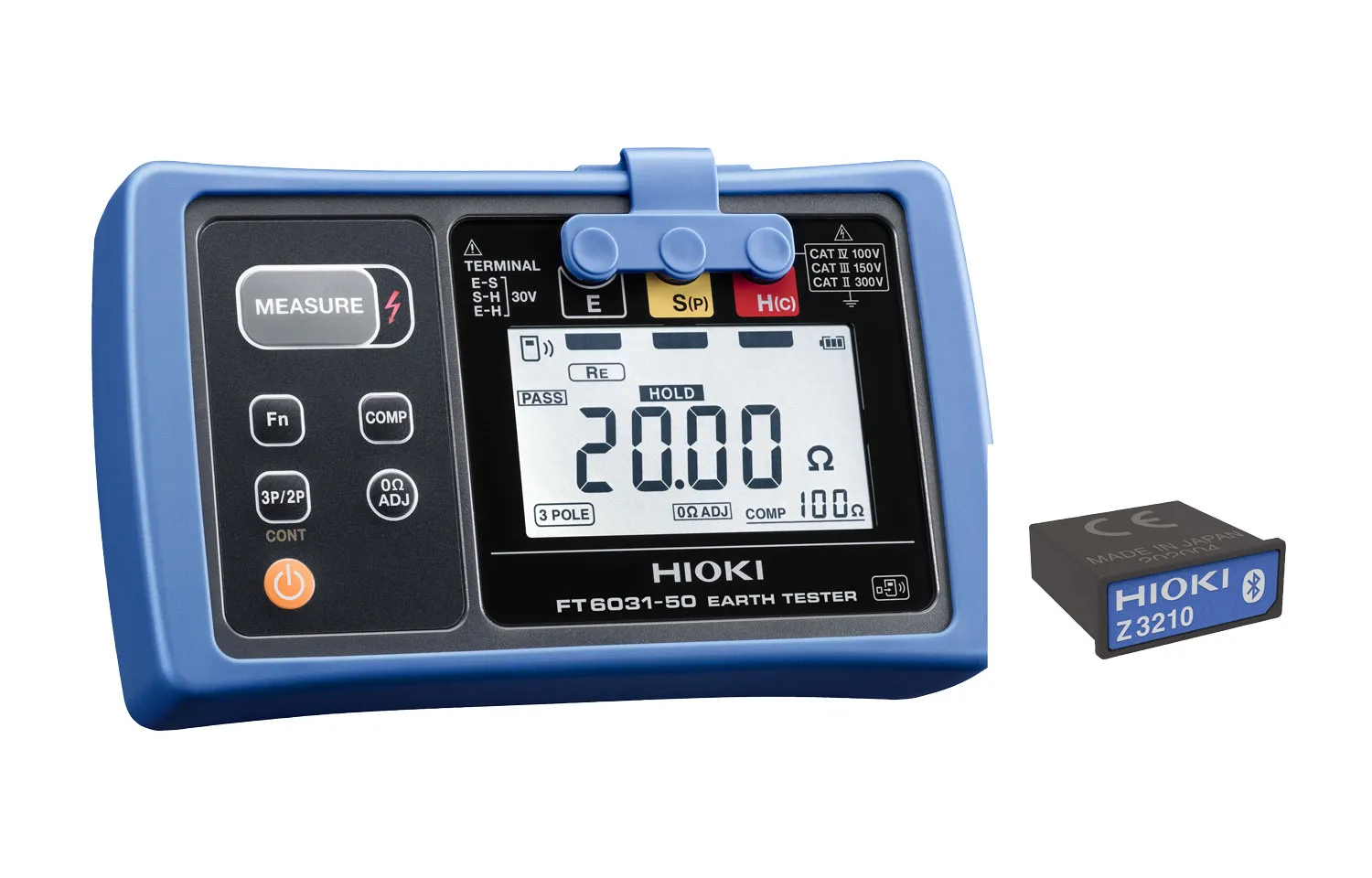

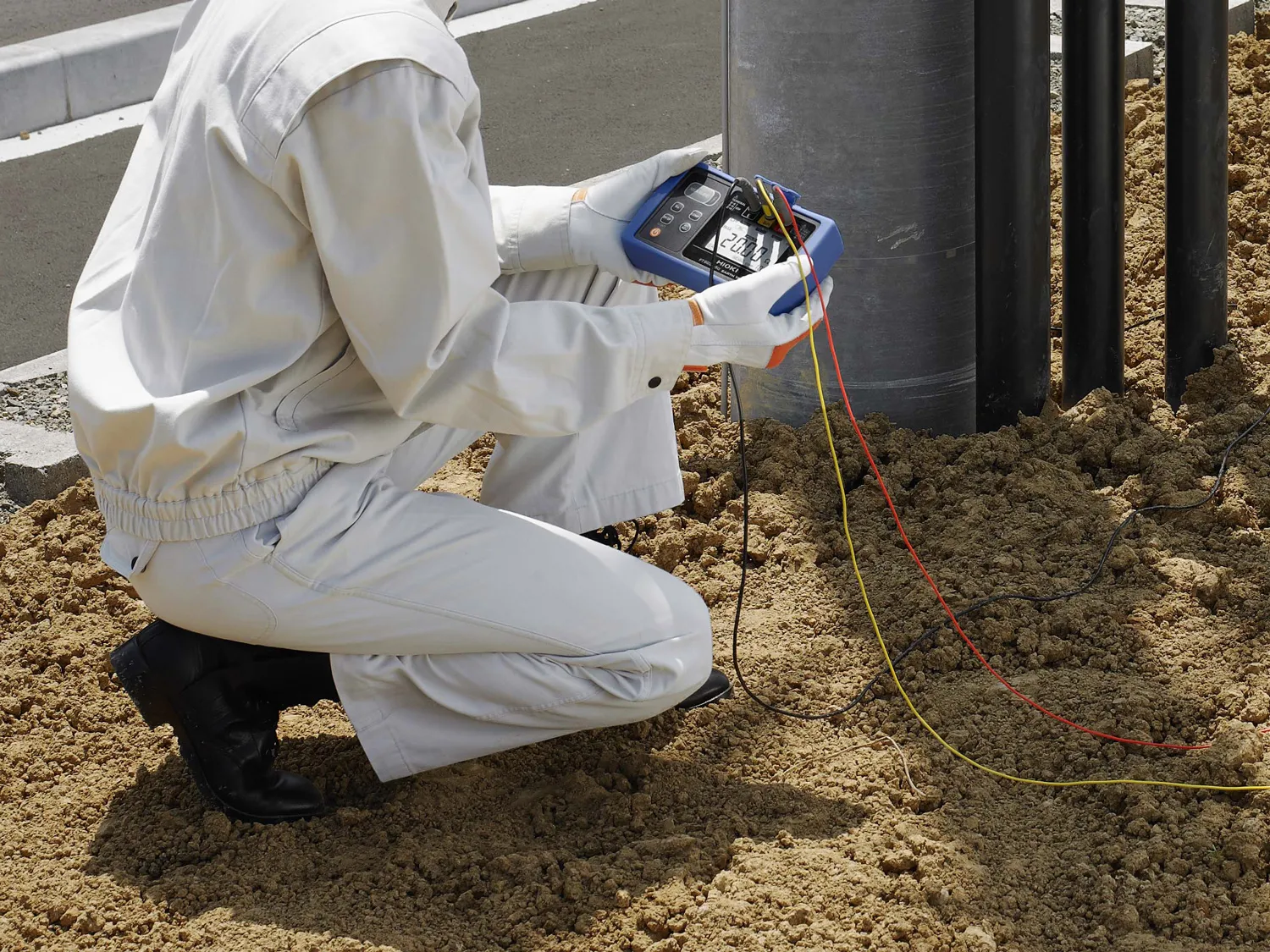

FT6031-50
