L2101 - CLIP TYPE LEAD

€178.00

Content: 1 Each

In stock in Germany

€178.00

L2101 - CLIP TYPE LEAD

Product number: L2101

Available stock: 2

GTIN/EAN: 4536036001231

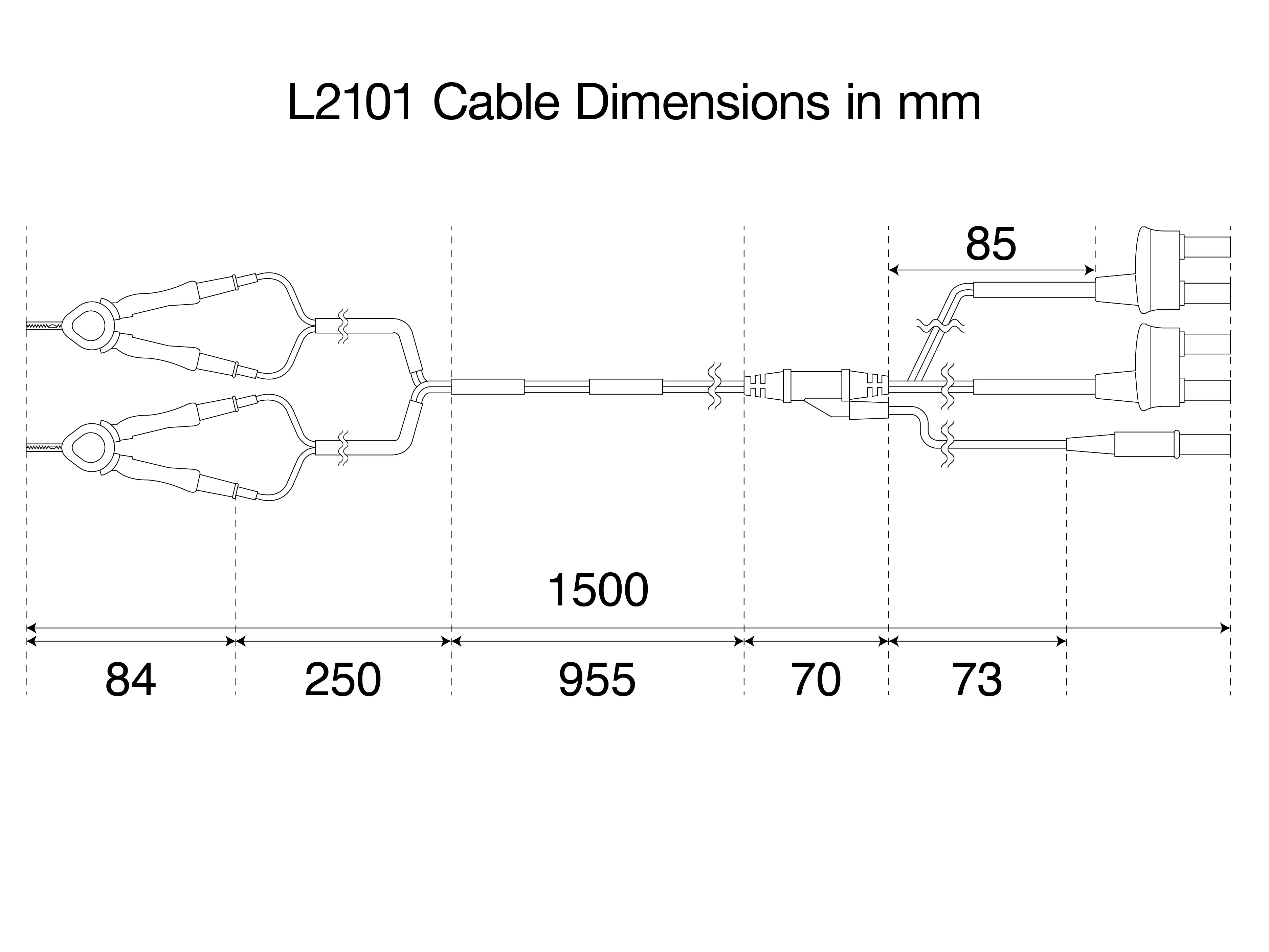

Length: 1500 mm

Weight: 0.18 kg

Product information L2101 - CLIP TYPE LEAD

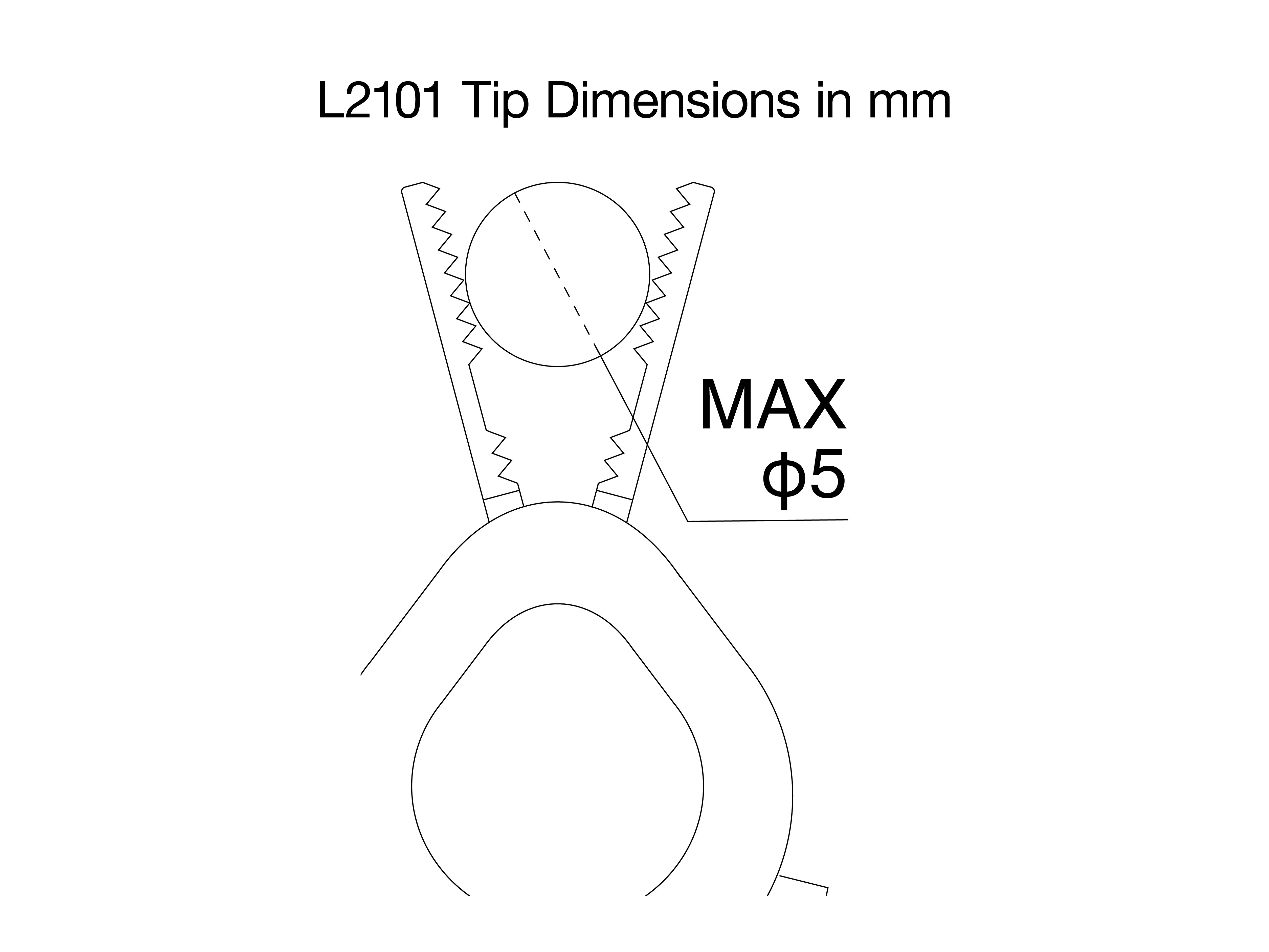

The L2101 clip type lead features Kelvin clamps, providing precision measurements for resistance testing, designed specifically for the RM3544 and RM3545 series.

Technical Details:

Compatibility: RM3544, RM3545 series
