L2003 - Measuring cable with tips for BT4560 and BT4560-50
Test lead with pogo pins, gold-plated contact surfaces, 4-wire measurement, 4-terminal pair technique, AC-IR measurement 0.1 Hz to 1050 Hz, precise measurement on battery terminals, BNC connectors
Available stock:
1
Product number:
L2003
EAN:
4536036002115
Weight:
0.42 kg

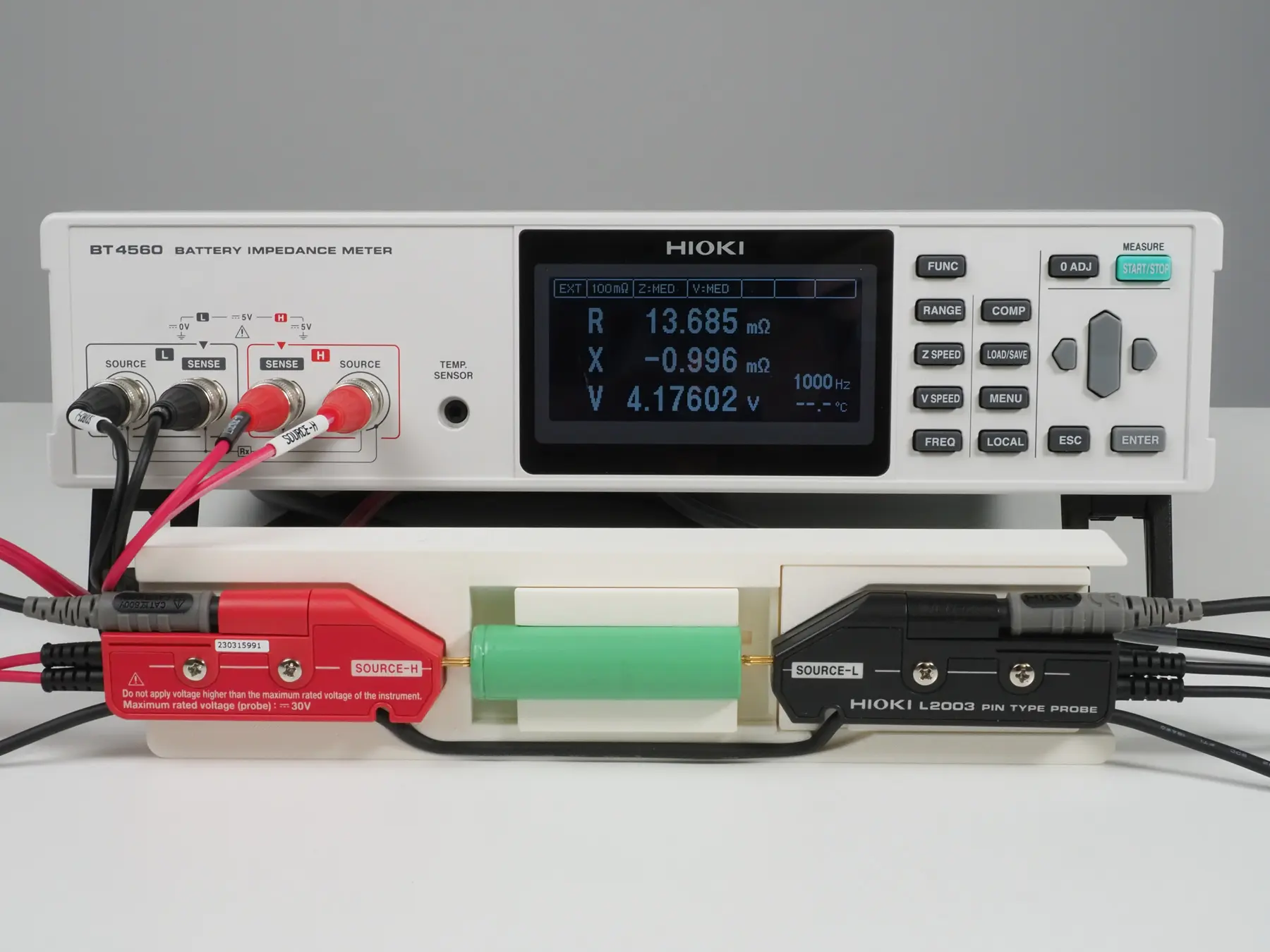

Product information L2003 - Measuring cable with tips for BT4560 and BT4560-50

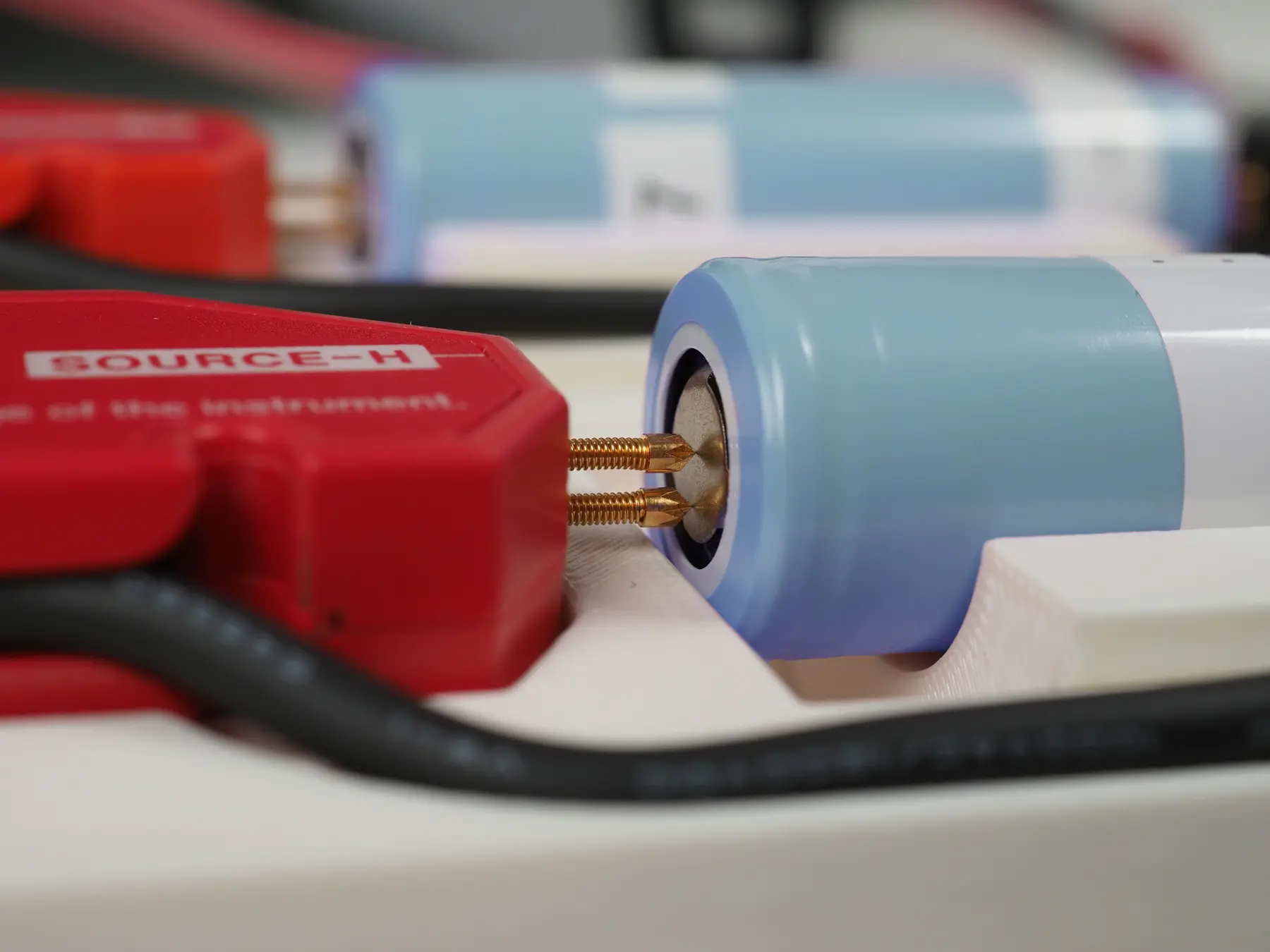

The L2003 is a high-quality test lead fitted with two robust, gold-plated pogo pins that ensure a stable, low-resistance connection to the test object. The spring-loaded pins maintain reliable contact even on uneven or slightly movable test points. Gold plating minimizes contact resistance and ensures high corrosion resistance.
The lead is based on the 4-wire measurement principle (Kelvin measurement) and uses the 4-terminal pair principle to further reduce external influences. AC-IR measurement is performed in the frequency range from 0.1 Hz to 1050 Hz. Connection to the measuring instrument is made via BNC connectors.
- L2003 Test Lead with Pogo Pins
-
Product catalog with data sheet, Battery Tester Series (English)11,268 KB pdf
-
Product brochure with data sheet, battery impedance meter BT4560-50 (English)4,853 KB pdf
-
Product Catalog, Measuring Instruments for the Battery Industry (English)6,753 KB pdf
-
Instruction Manual, Measuring cable with tips L2003 (English)2,123 KB pdf
