HIOKI L9769 - Conversion cable
Description
Product information HIOKI L9769 - Conversion cable

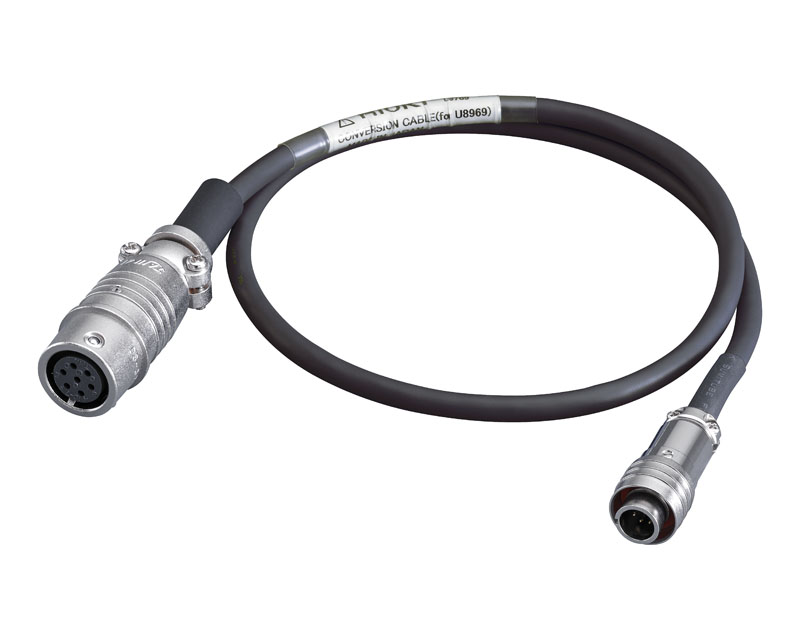

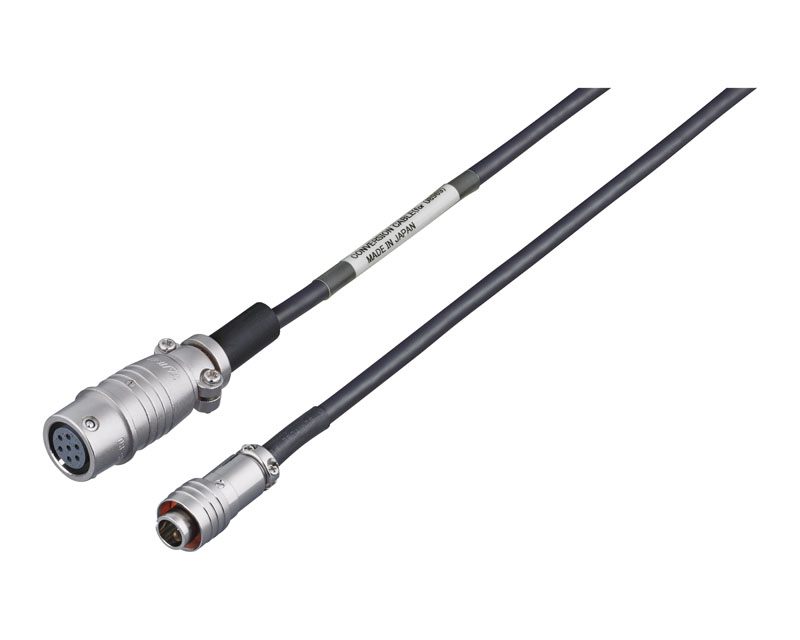

The L9769 is a conversion cable for the U8969 Strain Unit. It is equipped with a 9-pin m connector and a 7-pin f connector from the Tajimi PRC connector series. The U8969 strain unit can be used with compatible memory recorders including the MR6000, MR6000-01, MR8740, MR8741, MR8827, MR8847A and MR8848.
Technical specifications
- Type: Conversion cable
- Cable length: 600 mm ±50 mm
- Connectors: 9-pin m / 7-pin f (Tajimi PRC series)
- For U8969 strain unit only
Related products
- U8969 Strain Unit
- MR6000 Memory Recorder
- MR6000-01 Memory Recorder
- MR8740 Memory Recorder
- MR8741 Memory Recorder
- MR8827 Memory Recorder
- MR8847A Memory Recorder
- MR8848 Memory Recorder
What's in the Box
- L9769 Conversion cable
