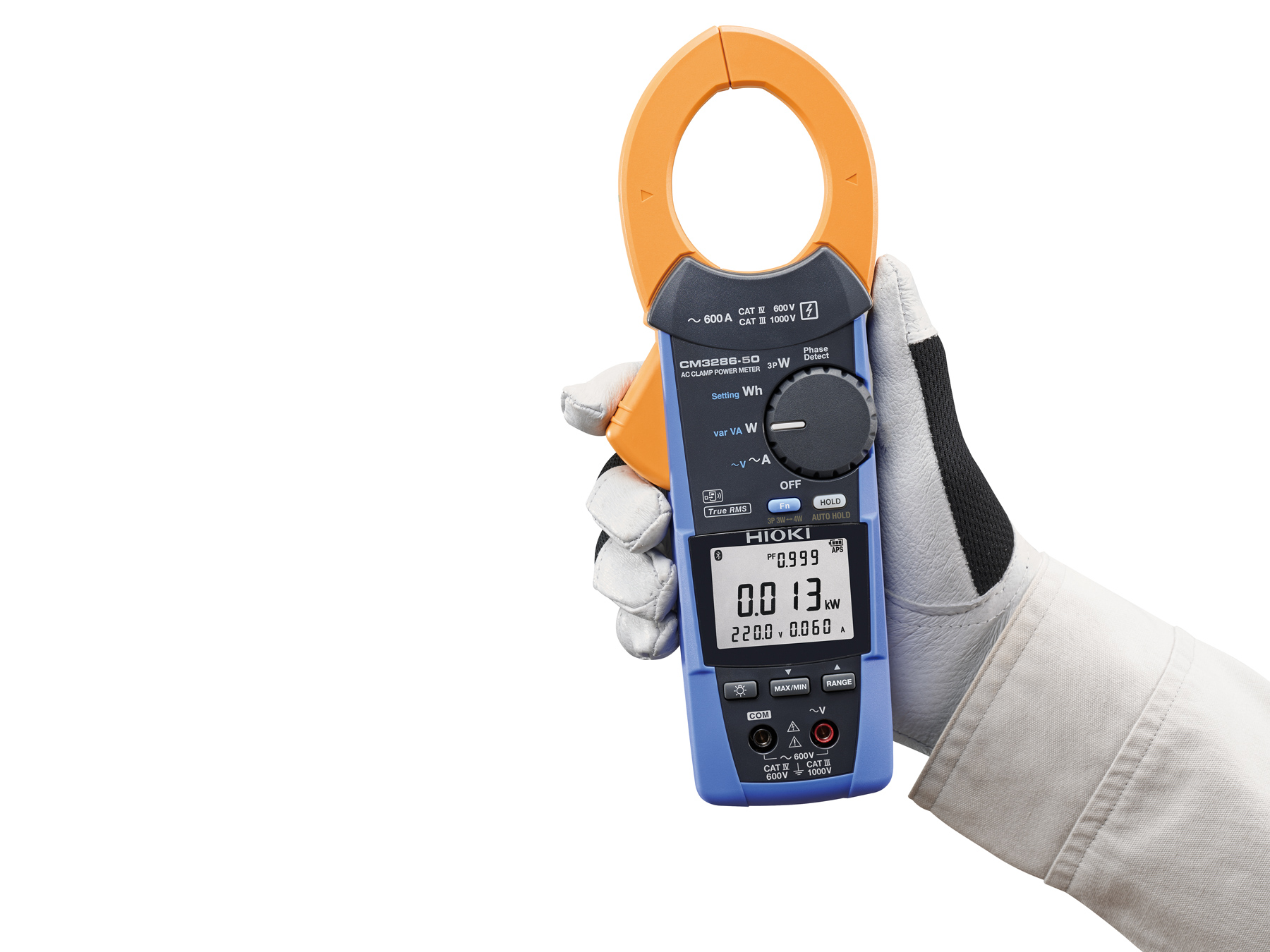

CM3286-90 - Clamp Power Meter with Bluetooth, 600 A, 360 kW
Clamp power meter with Bluetooth communication for active, reactive and apparent power,
power factor and phase angle, current 60 mA to 600 A, voltage 80 V to 600 V, single phase
energy measurement, CAT IV 600 V, CAT III 1000 V
€738.00*
Content:
1 Each
Available in 21 days
€738.00*
CM3286-90 - Clamp Power Meter with Bluetooth, 600 A, 360 kW
Product number:
CM3286-90
EAN:
4536036014231
Length:
65 mm
Width:
35 mm
Height:
241 mm
Weight:
0.91 kg
Product information CM3286-90 - Clamp Power Meter with Bluetooth, 600 A, 360 kW
Key Specifications
- Active, reactive and apparent power, power factor and phase angle
- Current 60 mA to 600 A, voltage 80 V to 600 V
- Power measurement 5 W to 360 kW, single phase energy measurement
- Sequential measurement of three phase systems (3P3W and 3P4W)
- Harmonic analysis via Bluetooth app (Z3210 included)
Typical Applications
- Load and power consumption checks on single phase circuits
- Verification of power factor and electrical load on motors and equipment
- Troubleshooting of electrical installations using power and phase measurements
- Power evaluation in balanced and unbalanced three phase systems
Detailed Product Overview

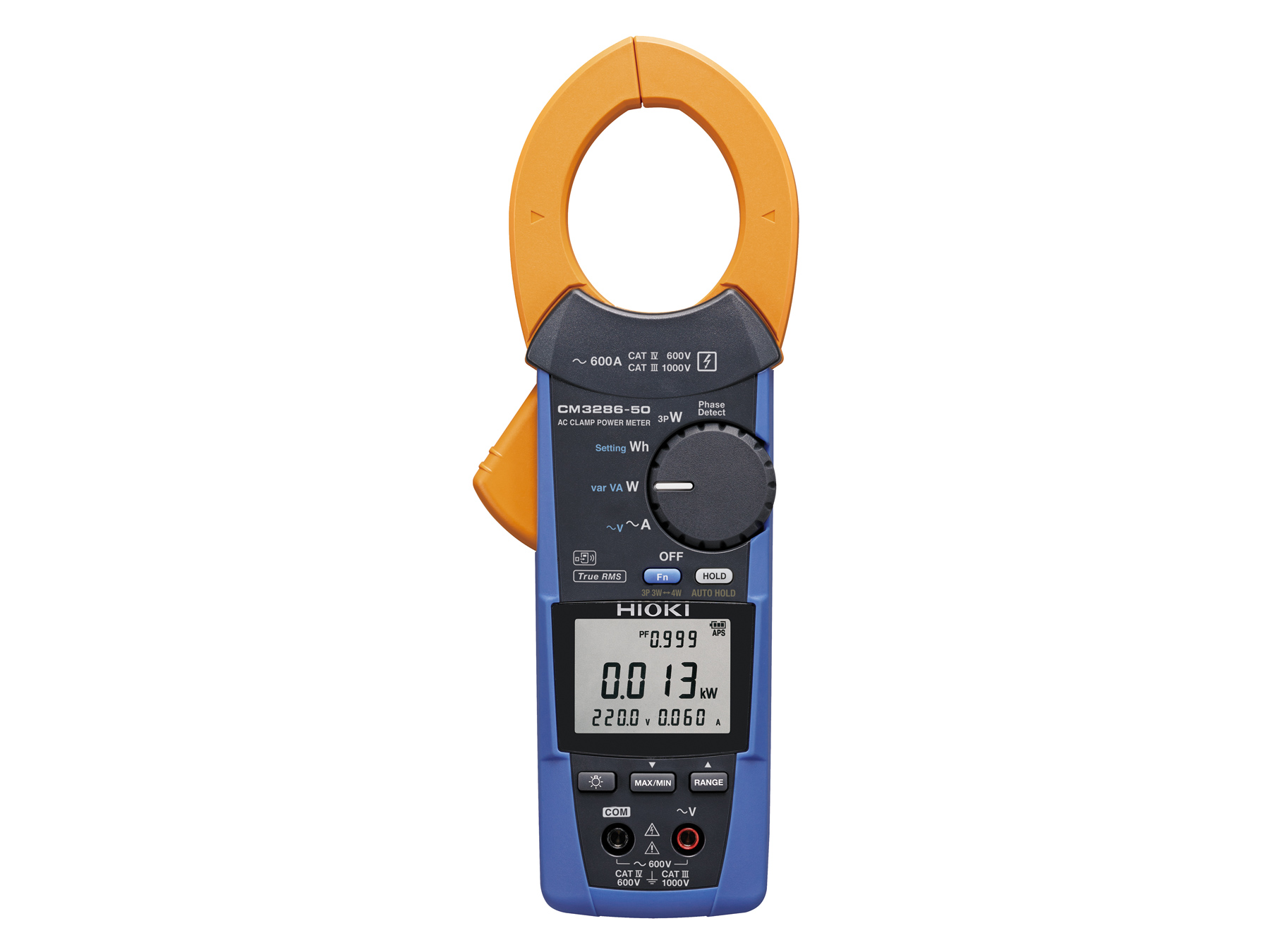

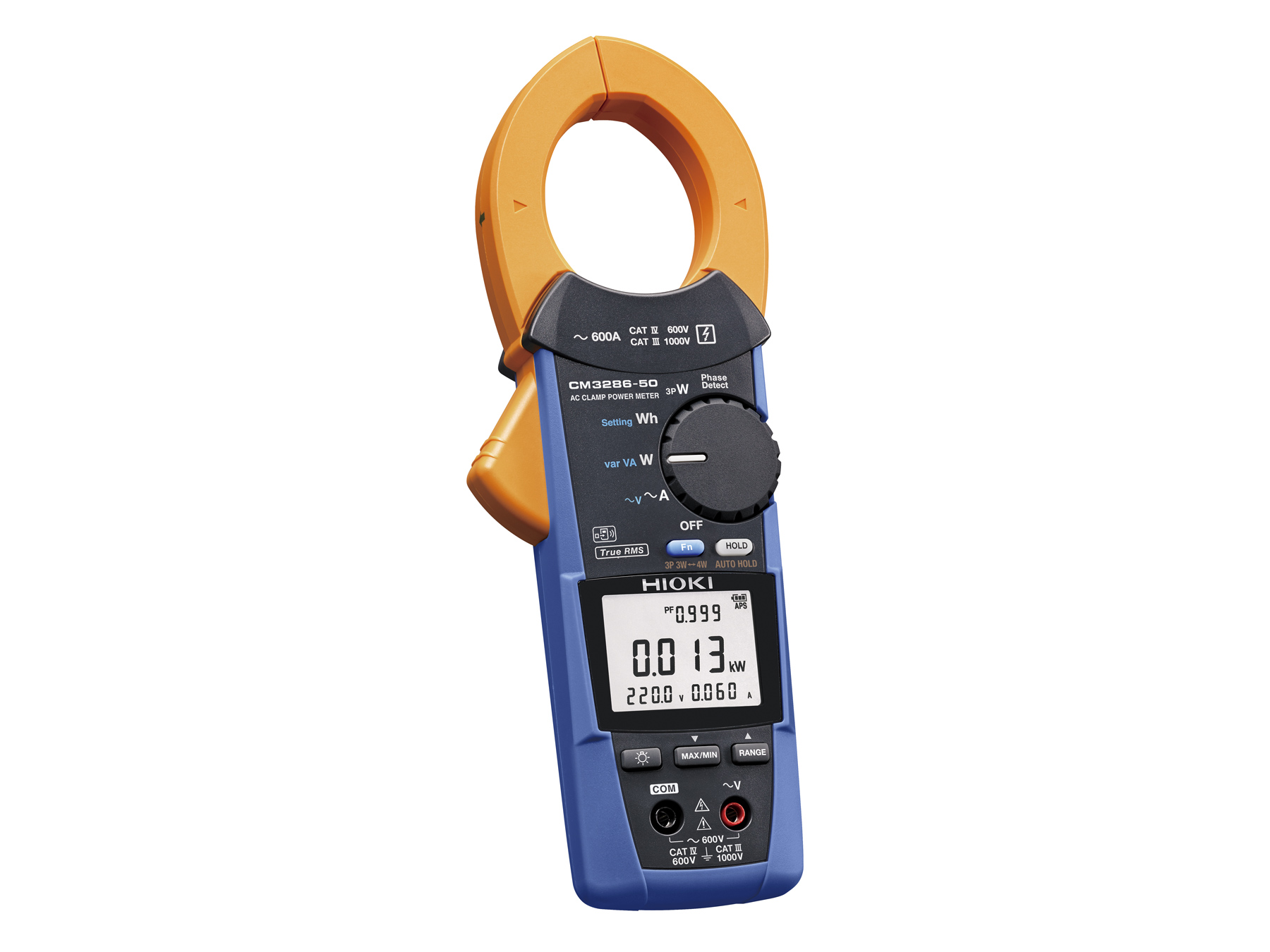

The CM3286-90 is a bundle consisting of the CM3286-50 Clamp Power Meter and the Z3210 Wireless Adapter. With the included adapter, measurement data can be transferred via Bluetooth to the free GENNECT Cross smartphone app for harmonic analysis, wireless data logging and documentation of measurement results.Electrical power parameters are measured by combining clamp current measurement with
voltage measurement via test leads. The instrument determines active, reactive and
apparent power as well as power factor and phase angle. The current measurement range is
60 mA to 600 A with a clamp opening of 46 mm, while the voltage measurement range is 80
V to 600 V. In single phase systems the CM3286-90 supports power measurements from
0.005 kW to 360 kW and integrates active energy.
Unlike conventional clamp meters that approximate power by multiplying current and voltage,
the CM3286-90 also measures the phase angle between both signals. This allows active
power, reactive power, apparent power and power factor to be determined and enables a
realistic assessment of the electrical load of a circuit during operation.
Power Measurement in Three Phase Systems
The CM3286-90 supports power evaluation in three phase systems using single phase measurements. In balanced three phase three wire systems such as motors, the instrument measures the power of one phase, which can be used as a representative value for the system. In unbalanced three phase three wire systems such as industrial loads, two measurements are required and the measured power values are added. For three phase four wire systems such as distribution circuits, three measurements are performed and combined to determine the total power.When performing sequential measurements, the display provides wiring indications that
support correct connections. Since the single phase measurements in unbalanced systems
are carried out sequentially, the loads should remain as stable as possible during the
measurement process to ensure reliable results.
Wireless Data Transfer and Harmonic Analysis
With the included Z3210 Wireless Adapter, the CM3286-90 supports Bluetooth communication with the free GENNECT Cross smartphone app, which is available for Android and iOS. Measurement values can be transferred wirelessly to a smartphone or tablet for further analysis and documentation.The app enables harmonic analysis of voltage and current up to the 30th order and supports
wireless logging of measurement values. Results such as harmonic levels, harmonic content
and total harmonic distortion (THD) can be displayed as numerical values, graphs or
harmonic spectra. Logged measurement data can be exported as CSV files for further
processing in other software environments. The use of the GENNECT Cross app and the
export of measurement data do not require any subscription.
In addition, the CM3286-90 supports HID communication via Bluetooth. This allows
measurement values to be transmitted directly to a PC and entered into spreadsheet
software such as Excel or other applications.
Phase Check and High Current Measurements
The CM3286-90 includes a phase detection function for checking the phase sequence of three phase systems. By comparing the phase relationship between two voltage inputs, the instrument indicates the phase order on the display.For current measurements above the internal clamp range of 600 A, the CM3286-90 can be
used with the optional 9290-10 clamp adapter. This accessory operates as a current
transformer with a ratio of 10:1 and converts high primary currents into a proportionally lower
secondary current that can be measured by the instrument.
The adapter supports continuous currents up to 1000 A AC and up to 1500 A AC for short
durations. It also allows measurements on larger conductors and busbars that cannot be
accommodated by the standard clamp opening.
Rugged Design for Field Use
The CM3286-90 is designed for use in industrial and electrical environments. A bright backlight and a wide viewing angle display ensure that measurement values remain easy to read even in dim locations or inside distribution panels.With a safety rating of CAT IV 600 V (CAT III 1000 V), the instrument is suitable for
measurements on service lines and distribution circuits and is designed to withstand
transient overvoltages up to 8 kV. If excessive current or voltage is detected, the instrument
alerts the user with a red backlight and an audible warning.
The specified operating temperature range of −25 °C to +65 °C allows reliable use in indoor
and outdoor electrical installations. Developed and manufactured in Japan, the CM3286-90
reflects HIOKI’s long-standing commitment to precision, reliability and controlled production
quality.
- CM3286-50 Clamp Power Meter
- Z3210 Wireless Adapter
- L9257 Test Lead Set
- C0203 Carrying Case
- Instruction Manual
- Operating Precautions
- 2 × LR03 (AAA) alkaline batteries
-
Product catalog with data sheet, Clamp Meter Series (English)9,893 KB pdf
-
Product Catalog with data sheet, Field Measuring Instruments (English)39,121 KB pdf
-
Product catalog with datasheet, Selection guide, Power Quality Analyzers / Power Loggers (English)3,380 KB pdf
-
Product brochure with data sheet, AC CLAMP POWER METER CM3286-50 (English)3,470 KB pdf
-
Instruction Manual, AC CLAMP POWER METER CM3286-50 (English)8,483 KB pdf
-
Instruction Manual, AC CLAMP POWER METER CM3286-50 (Spanish)9,944 KB pdf
