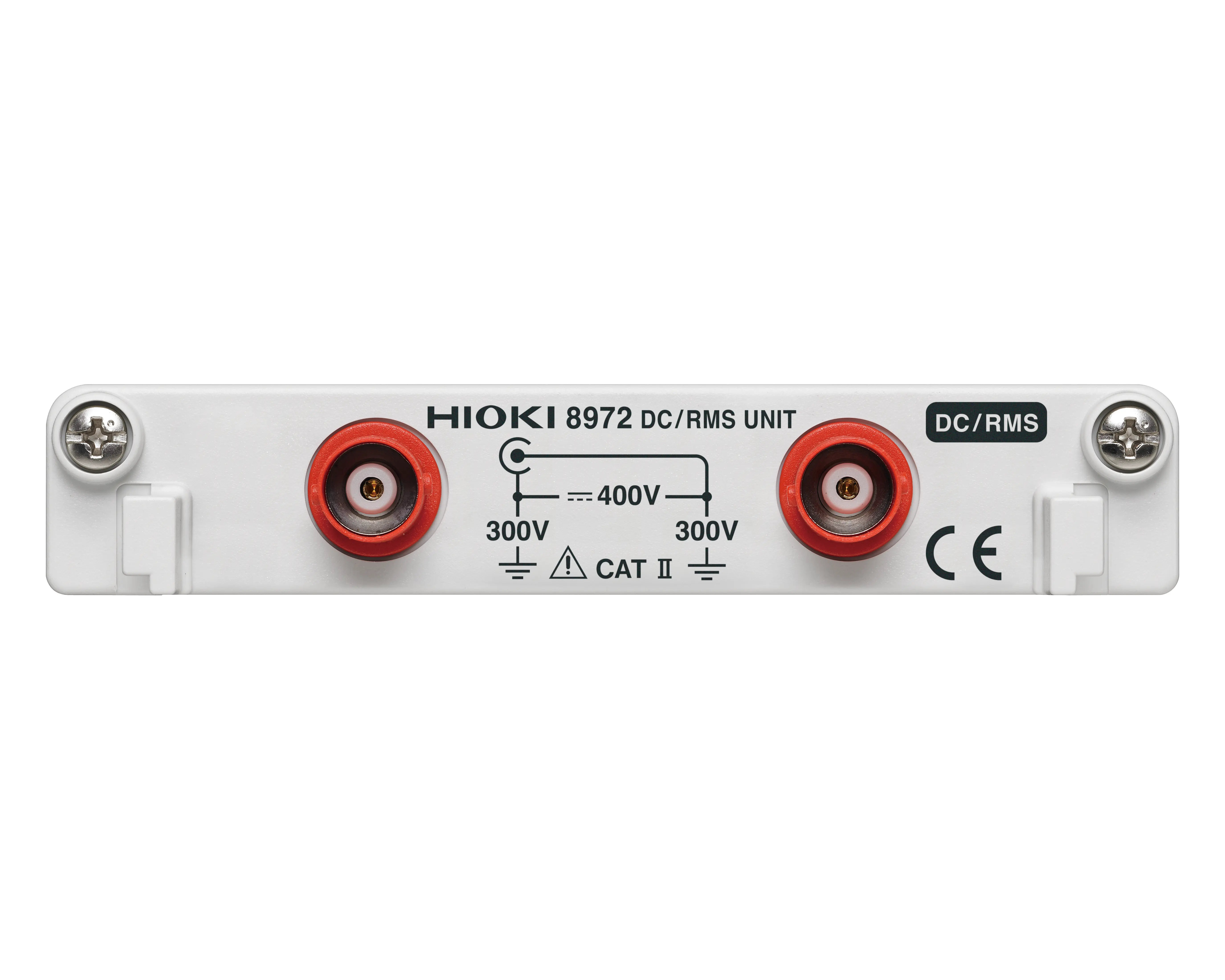

8972 - DC/RMS Unit
Product number:
8972
Length:
207.5 mm
Width:
106 mm
Height:
19.8 mm
Product information 8972 - DC/RMS Unit
Typical Applications
- Include comprehensive DC and AC voltage monitoring
- RMS waveform analysis
- Verification of PWM and switching signals
- Performance evaluation in power electronics and test bench environments.
Technical Specifications
- RMS measurement bandwidth: DC, 30 Hz to 100 kHz
- Measurement range: 5 mV/div to 20 V/div (12 ranges)
- Maximum sampling rate: up to 1 MS/s
- RMS amplitude accuracy: ±1 % f.s.
- Input connectors: Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF)
- Low-pass filter: 5 Hz, 50 Hz, 500 Hz, 5 kHz, 100 kHz
- Maximum rated voltage to ground: 300 V AC/DC (CAT II)
- Maximum allowable input voltage between terminals: 400 V DC
The module features a wide-bandwidth RMS measurement circuit that supports DC and AC signals from around 30 Hz up to 100 kHz without requiring external signal conditioning. With a measurement range from 5 mV to 20 V/div and 12 selectable ranges, it can capture everything from small signal details to higher voltages. Simultaneous sampling at up to 1 MS/s on both channels allows detailed waveform and RMS analysis.
The high isolation rating of up to 300 V AC/DC to ground and maximum allowable input voltage of 400 V DC between input terminals ensures safe operation even in demanding electrical environments. RMS amplitude accuracy supports precise evaluation of both DC and AC components.
Compatible memory recorders
- MR6000
- MR6000-01
- MR8740T
- MR8740
- MR8741
- MR8827
- MR8847A
- MR8848
- 8972 DC/RMS Unit
