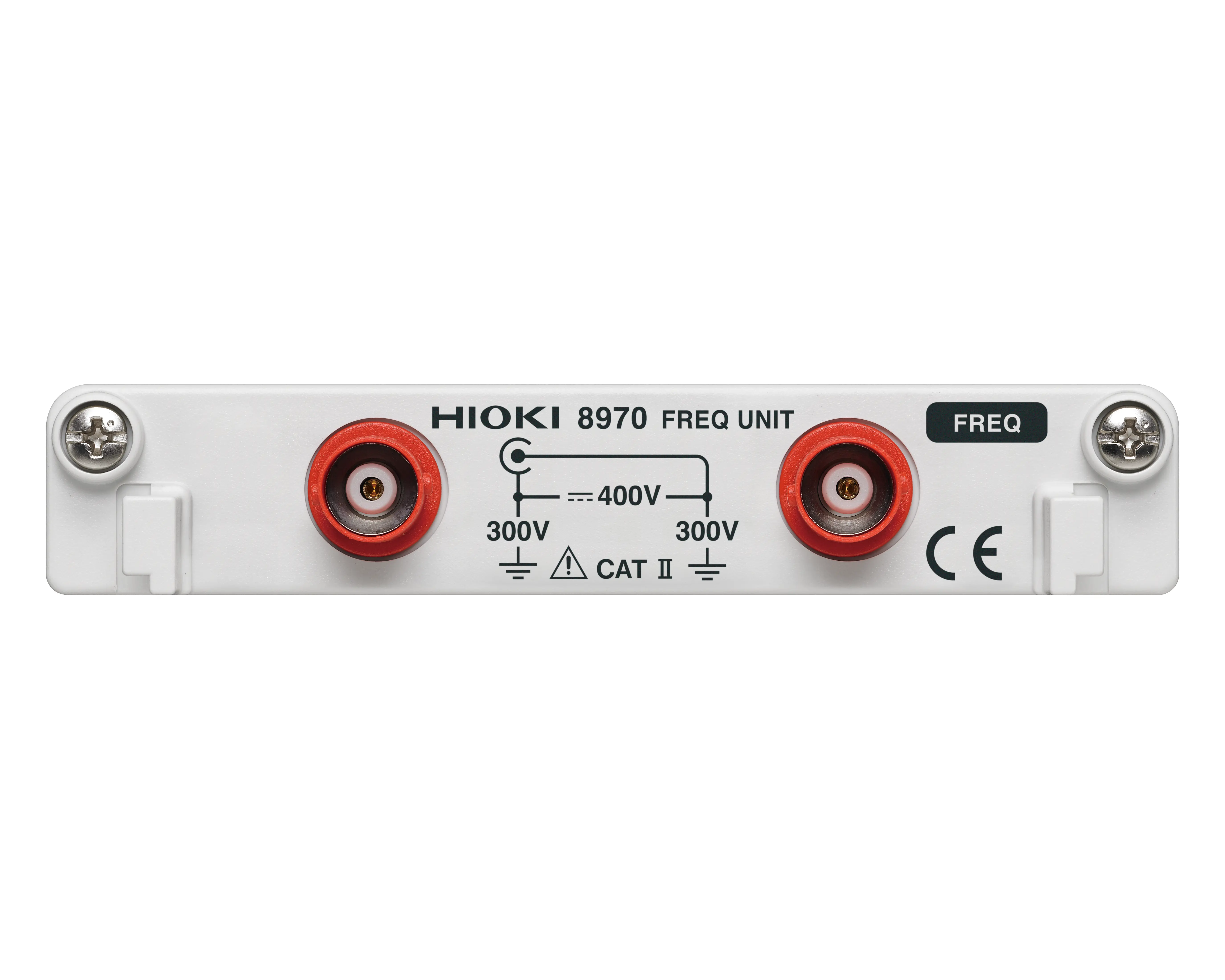

8970 - Freq Unit
Product number:
8970
Length:
196.5 mm
Width:
106 mm
Height:
180 mm
Product information 8970 - Freq Unit
Typical Applications
- Include RPM analysis
- Motor and inverter testing
- Pulse evaluation
- Flow meter pulse analysis
- Encoder signal evaluation
- Validation of control and switching signals
Technical Specifications
- 2-channel isolated frequency and pulse input
- Input connector: insulated BNC
- Input impedance: 1 MΩ / 30 pF
- Frequency mode range: DC to 100 kHz (minimum pulse width 2 µs)
- Frequency accuracy: ±0.1 % f.s.
- Measurement functions: frequency, RPM, pulse width, duty ratio, integration, pulse counting
- Maximum rated voltage to earth: 300 V AC/DC
The 8970 Freq Unit is a 2-channel frequency and pulse measurement module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It enables accurate measurement of frequency, rotational speed (RPM), pulse width and duty ratio via two electrically isolated input channels.
With a measurement range for pulse and frequency signals from very low frequencies up to 100 kHz, the module supports reliable acquisition of repetitive and pulse-based signals. In addition to frequency and RPM measurement, integration and pulse counting functions allow evaluation of accumulated events such as total rotations or pulses from flow meters, supporting detailed system analysis.
The module also supports encoder signal measurement, allowing evaluation of rotational speed and position from incremental encoder outputs.
A dedicated power frequency measurement mode enables precise monitoring of 50 Hz, 60 Hz and 400 Hz power systems.
Isolation up to 300 V AC/DC to ground allows safe operation in electrically demanding environments. Flexible trigger settings ensure stable and reproducible measurements.
Compatible memory recorders
- MR6000
- MR6000-01
- MR8848
- MR8847A
- MR8827
- MR8740
- MR8741
- MR8740T
