Product number: 8967
Length: 204.5 mm
Width: 106 mm
Height: 19.8 mm

Product information 8967 - Temp Unit


Typical Applications

  • Thermal testing
  • Temperature monitoring in electronic systems
  • Environmental testing
  • Long-term temperature recording in research and development

Technical Specifications

  • 2-channel thermocouple temperature input
  • Supported thermocouple types: K, J, E, T, N, R, S, B, W
  • Reference junction compensation: internal or external
  • Data refresh rate: Fast approx. 1.2 ms / Normal approx. 100 ms / Slow approx. 500 ms
  • Input resistance: ≥ 5 MΩ
  • Maximum rated voltage to earth: 300 V AC/DC

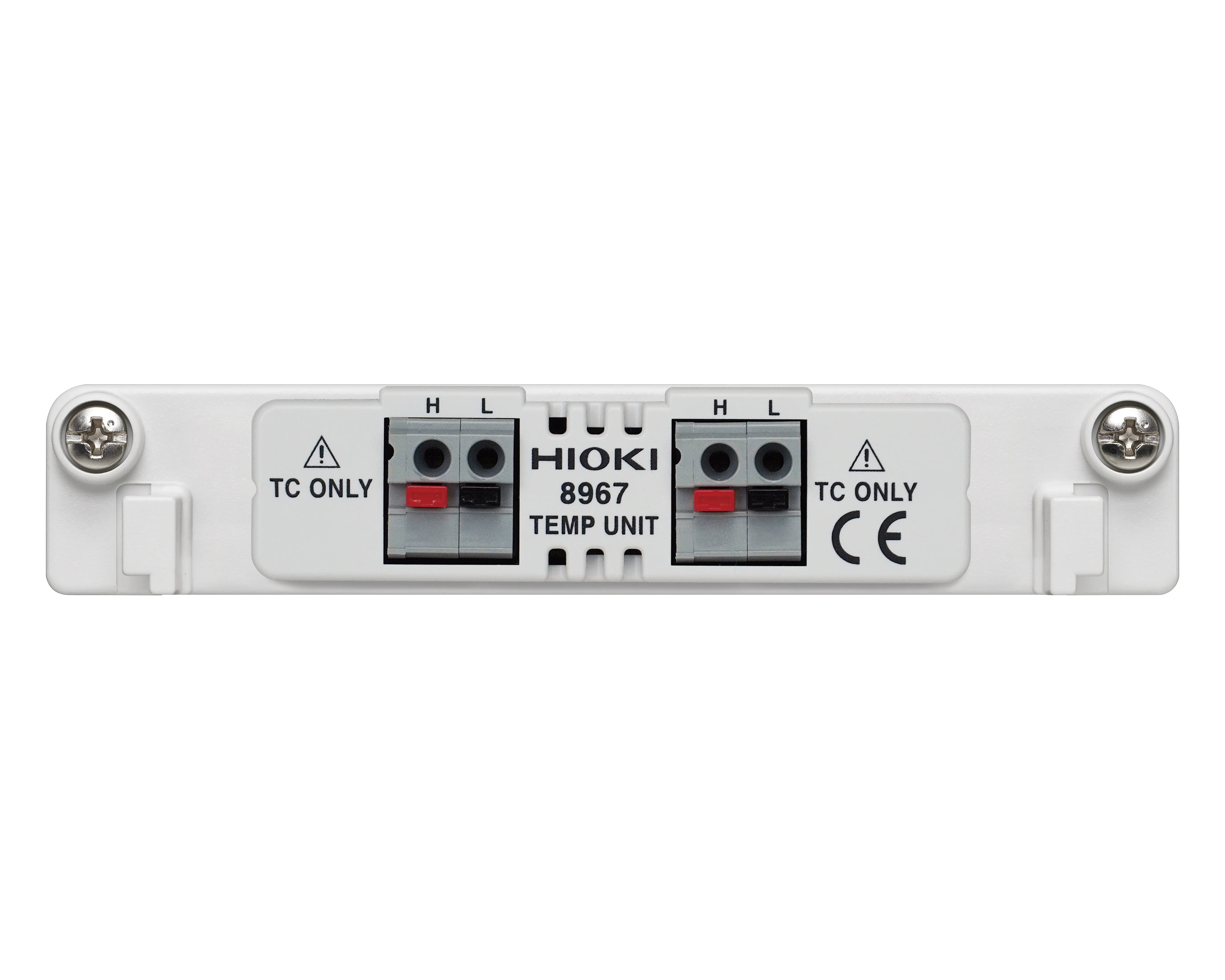

The 8967 Temp Unit is a 2-channel temperature input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It expands these instruments with two thermocouple measurement channels and is designed for precise temperature monitoring in laboratory, development and industrial measurement applications. The module supports a wide range of thermocouple types including K, J, E, T, N, R, S, B and W, enabling flexible temperature measurements across various environments and applications. Reference junction compensation can be configured for internal or external operation, ensuring reliable temperature measurements under different installation conditions. Included two ferrite clamps help suppress high-frequency noise on thermocouple leads and improve measurement stability in electrically noisy environments.

Compatible memory recorders
  • MR6000
  • MR6000-01
  • MR8848
  • MR8847
  • MR8827
  • MR8740
  • MR8741
  • MR8740T
  • 8967 Temp Unit Ferrite clamp-on choke ×2
