Product number: 8966
Length: 207.5 mm
Width: 106 mm
Height: 19.8 mm
Weight: 0.49 kg

Product information 8966 - Analog Unit


Typical Applications

  • Include high-speed voltage measurement,
  • Transient waveform capture,
  • Signal integrity analysis
  • Validation of analog and control circuits

Technical Specifications

  • 2-channel isolated voltage input
  • Input connector: insulated BNC
  • A/D resolution: 12-bit
  • Maximum sampling rate: 20 MS/s
  • Frequency bandwidth: DC to 5 MHz (–3 dB)
  • Measurement accuracy: ±0.5% of full scale
  • Measurement range: 5 mV to 20 V/div (12 ranges)
  • Maximum allowable input: 400 V DC

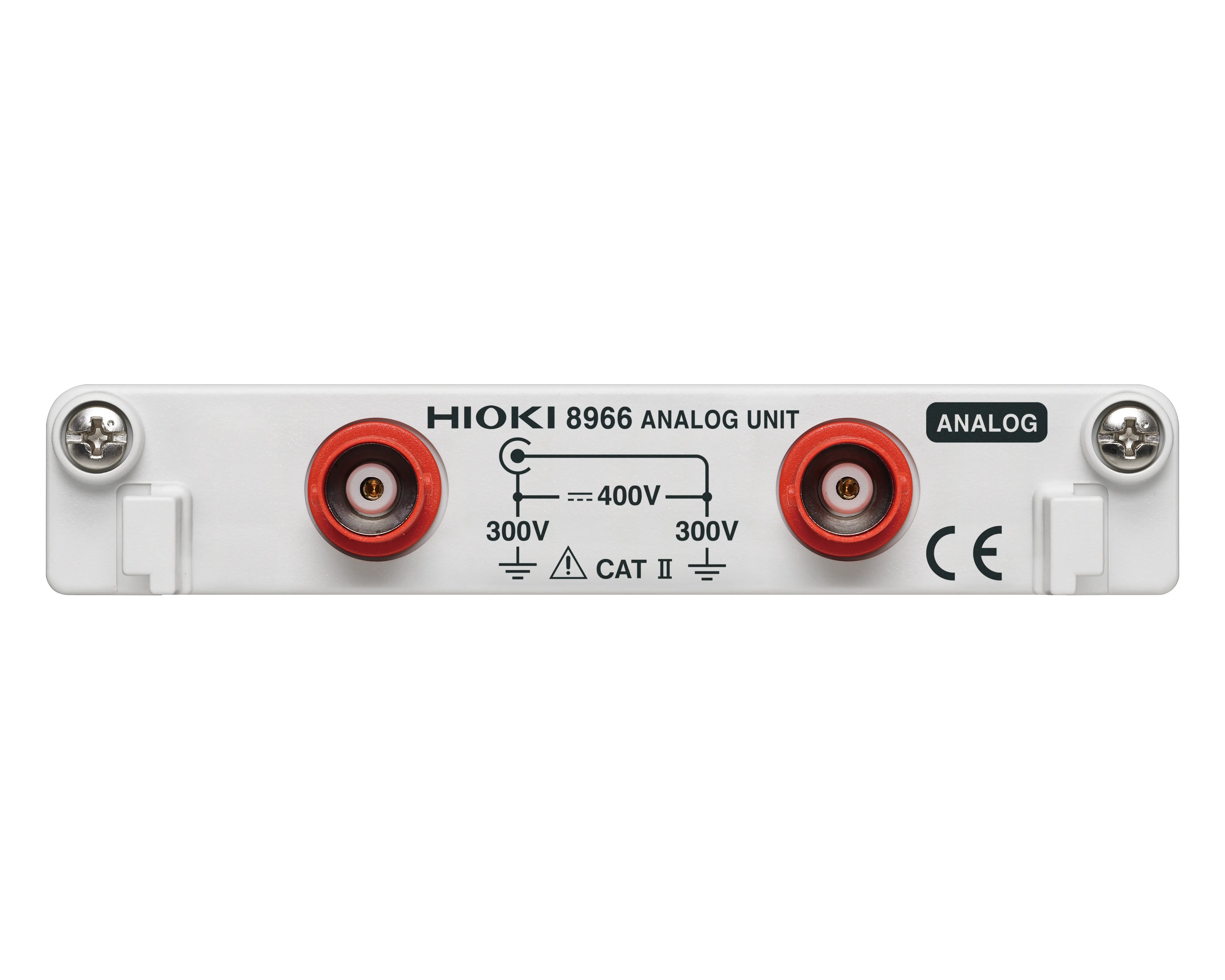

The 8966 Analog Unit is a 2-channel voltage input module for the memory recorders MR6000, MR6000-01, MR8847A, MR8848, MR8827, MR8740, MR8741 and MR8740T. It expands these instruments with two electrically isolated voltage input channels and is designed for high-speed, multi-channel measurements in development, testing and analysis applications.

With a maximum sampling rate of up to 20 MS/s and a frequency bandwidth of DC to 5 MHz (–3 dB), the module is suited for capturing fast signal transitions and transient events in power electronics, control systems and general waveform analysis. Multiple measurement ranges up to 400 V DC enable flexible integration into various measurement environments. Channel-to-channel isolation allows safe parallel measurements at different potentials.

Compatible memory recorders:
  • MR6000
  • MR6000-01
  • MR8848
  • MR8847A
  • MR8827
  • MR8740
  • MR8741
  • MR8740T
  • 8966 Analog Unit
