SP9900 - Split cable for SP7100 CAN interface

Split cable for SP7100 CAN interface; separates 2 CAN channels into two output connectors; input: 9-pin D-sub male, outputs: two 9-pin D-sub female; length approximately 390 mm

€58.00*

Content: 1 Each

*Prices excl. VAT plus shipping costs

In stock in Germany

Available stock: 1

Product details

Product number: SP9900

EAN: 4536036012404

Weight: 0.1 kg

Product information SP9900 - Split cable for SP7100 CAN interface

Detailed Product Overview

The HIOKI SP9900 Split Cable is designed for use with the SP7100 CAN Interface. It separates the two CAN channels provided by the interface into two independent 9-pin D-sub output connectors, allowing each channel to be accessed individually.

This cable is required when the connected measurement system can process only one CAN bus per input, or when different CAN signals need to be routed to separate instruments. Typical examples include setups where one CAN bus provides high-voltage battery data to a HIOKI PW4001 Power Analyzer, while another bus is simultaneously recorded by a data logger such as the HIOKI LR8450.

The SP9900 features a 9-pin D-sub male connector on the input side and two 9-pin D-sub female connectors on the output side. With a total length of approximately 390 mm, it offers sufficient flexibility for orderly and low-strain wiring in bench or in-vehicle environments.

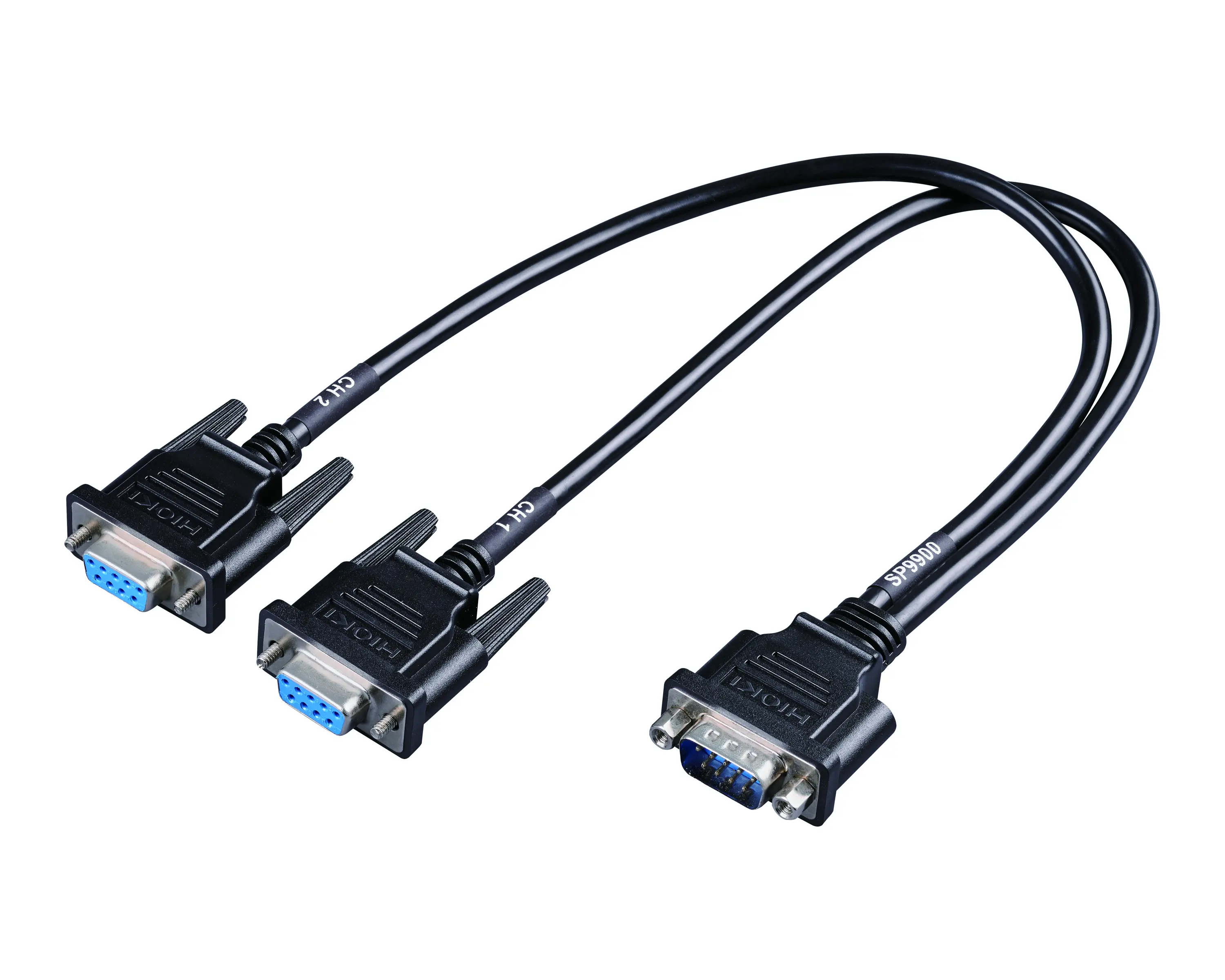

SP9900 Split Cable

Related products

SP7100

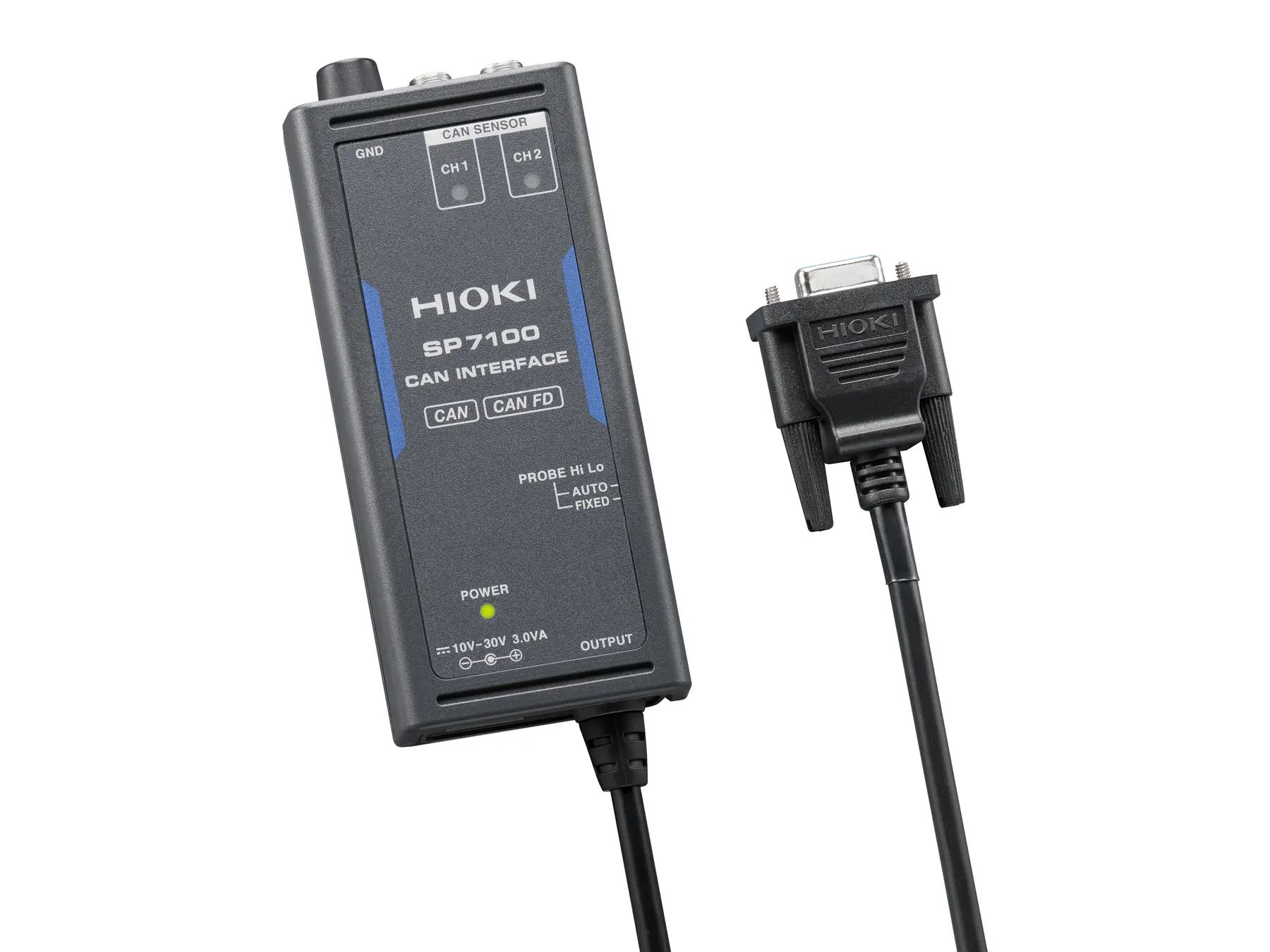

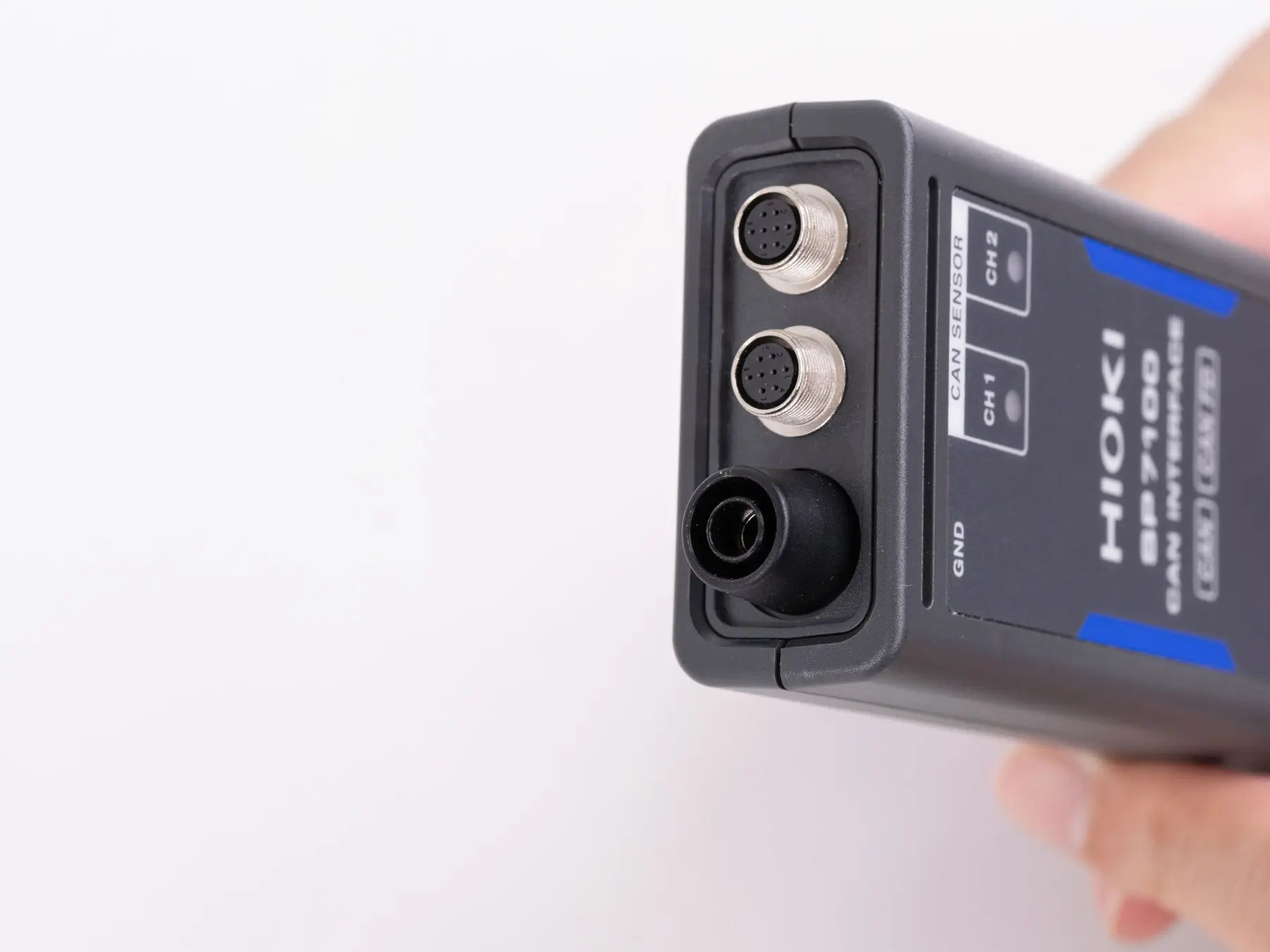

SP7100 - 2-channel CAN/CAN FD Interface for Non-Contact Signal Acquisition
