L2105 LED COMPARATOR ATTACHMENT
Available stock:
1
Product details
Product number:
L2105
EAN:
4536036001279
Weight:
0.05 kg
Product information L2105 LED COMPARATOR ATTACHMENT

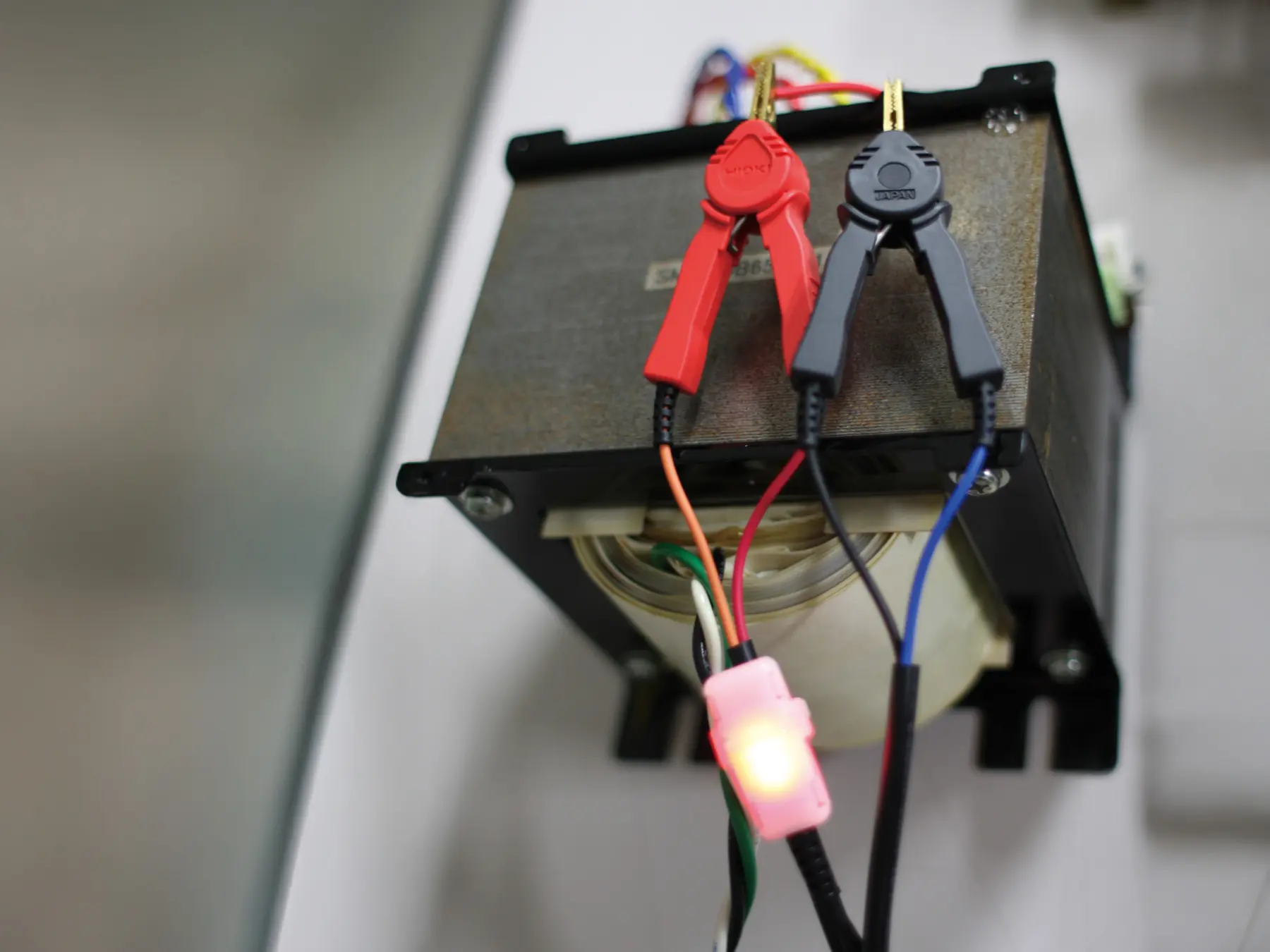

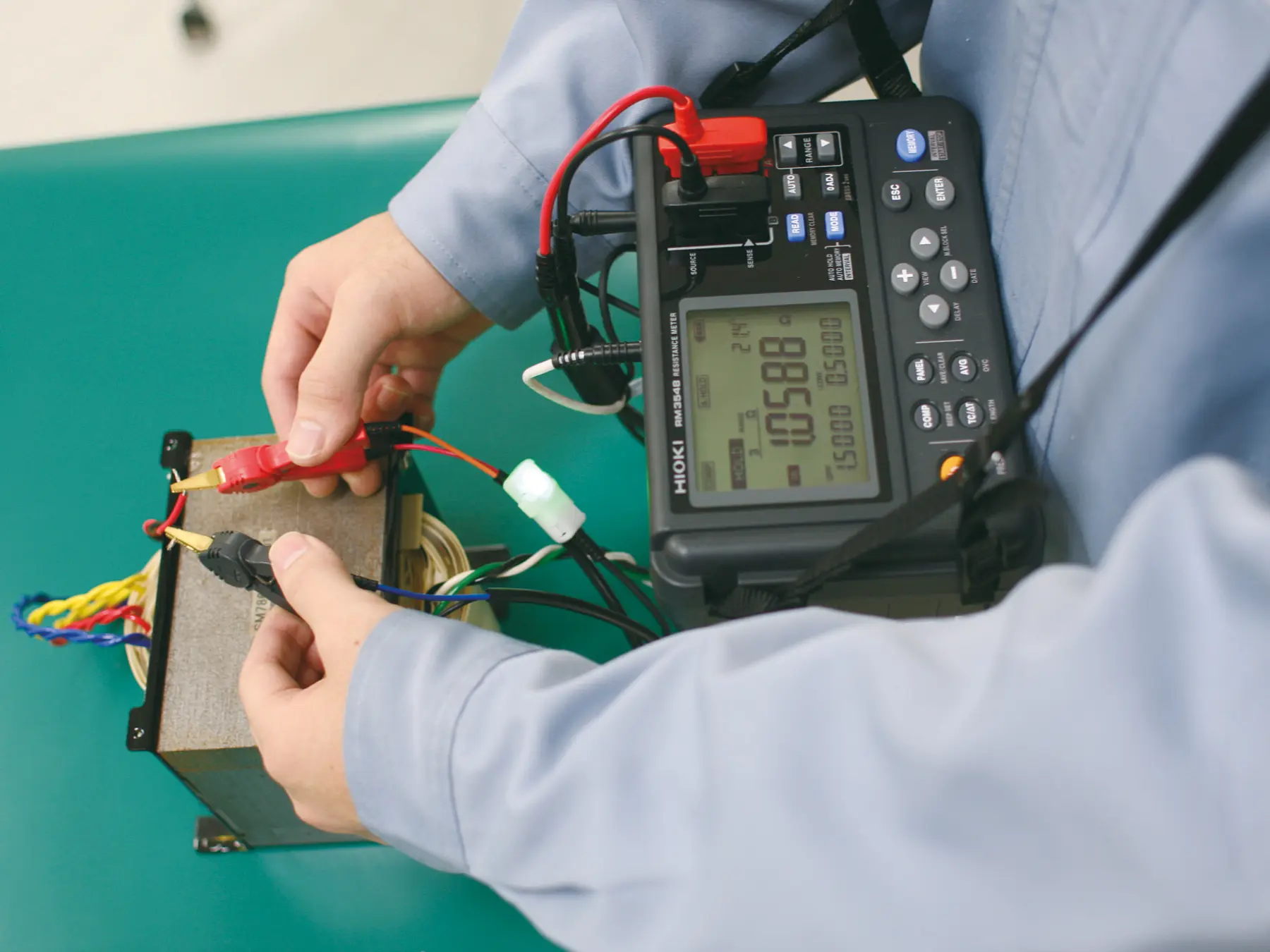

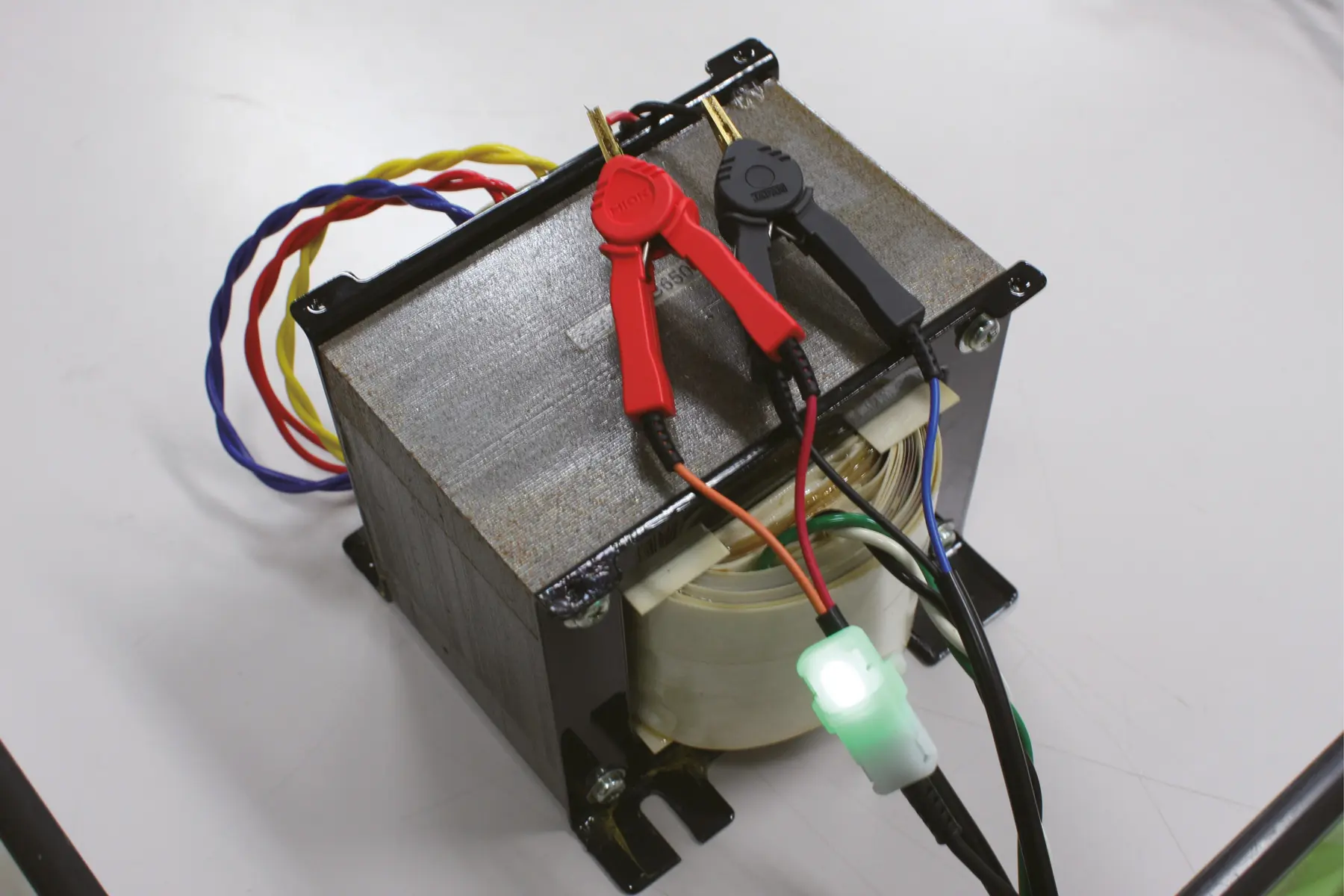

The Hioki L2105 LED Comparator Attachment is designed for efficient judgment indication when connected to the COMP.OUT jack of compatible instruments. It allows users to easily check measurement results from a distance, with the LED indicator showing green for acceptable (IN) results and red for high (Hi) or low (Lo) readings.
- L2105 LED
-
