C0203 - Carrying Case for Clamp Multimeters and similar devices
Available stock:
3
Product details
Product number:
C0203
EAN:
4536036003785
Length:
150 mm
Width:
70 mm
Height:
290 mm
Weight:
0.12 kg
Product information C0203 - Carrying Case for Clamp Multimeters and similar devices
The C0203 carrying case is supplied as standard with compatible HIOKI instruments and is
also available separately as a replacement or when an additional case is required. It fits the
HIOKI 9322 Differential Probe, the CM3286-50 AC Clamp Power Meter, the CM4371-50,

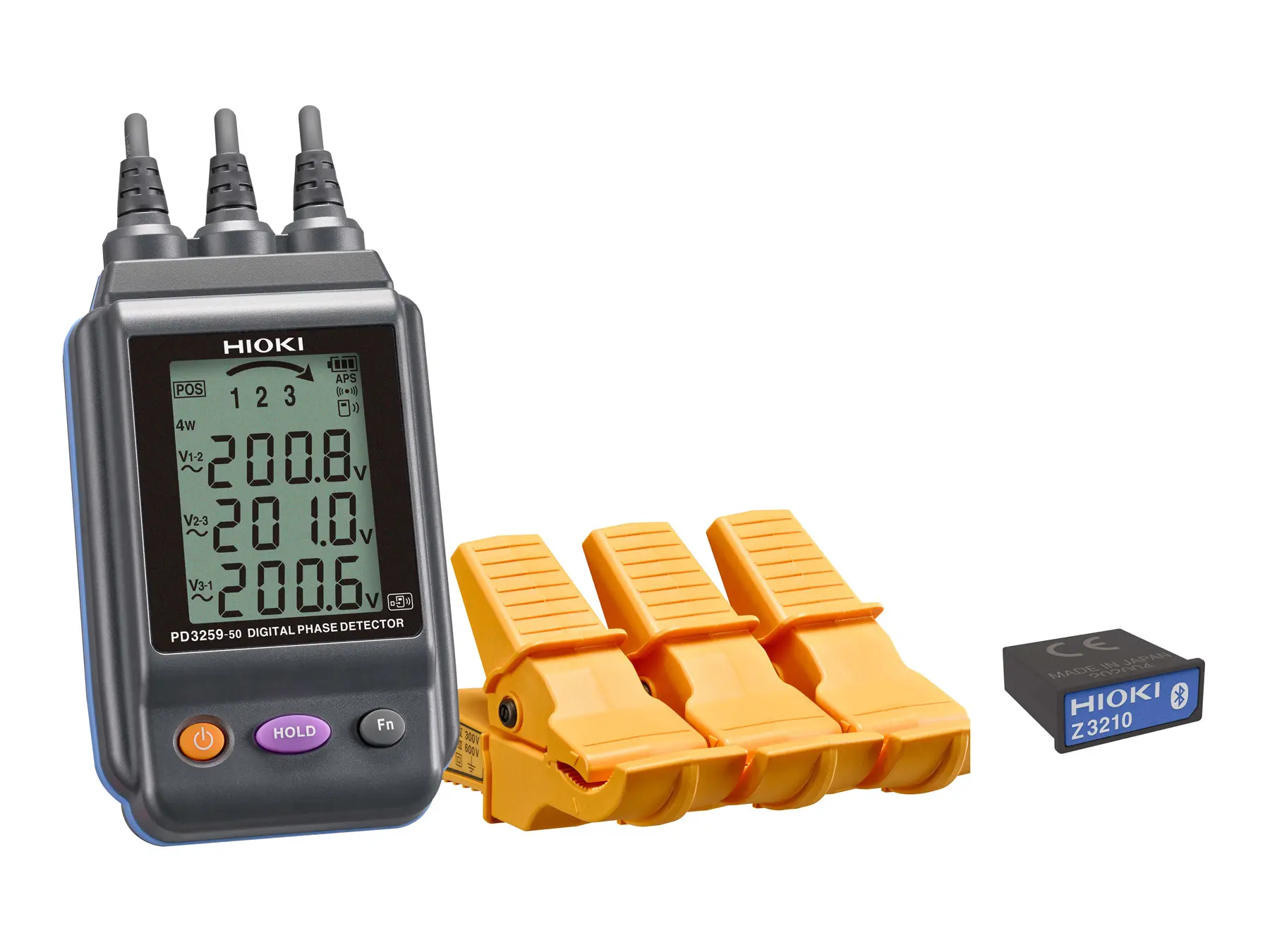

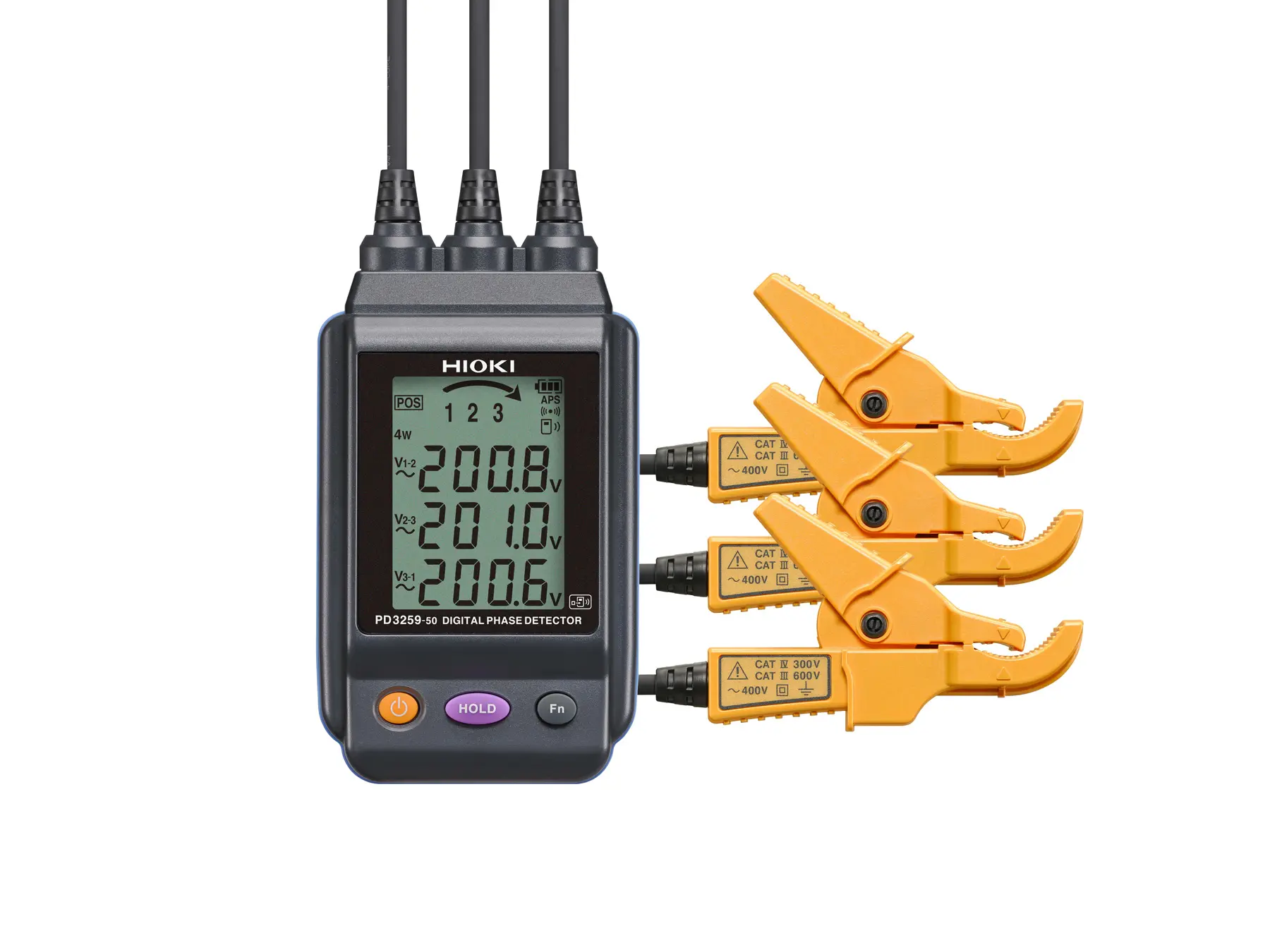

CM4373-50 and CM4375-50 Clamp Multimeters, the PD3259-50 Digital Phase Detector, and
other devices of similar size. The sturdy fabric, zippered closure, and carrying strap ensure
convenient handling and protection during transport.
The case is also suitable for earlier models including the CM3286 AC Clamp Power Meter,
the CM4371, CM4373 and CM4375 Clamp Multimeters, and the PD3259 Digital Phase
Detector.
- C0203 CARRYING CASE
-
Product catalog with data sheet, Clamp Meter Series (English)9,946 KB pdf
-
Product brochure with datasheet, DIFFERENTIAL PROBE 9322 (English)1,171 KB pdf
-
Product brochure with data sheet, DC HIGH VOLTAGE PROBE P2010 (English)1,666 KB pdf
-
Product brochure with data sheet, DC HIGH VOLTAGE PROBE P2010 (Spanish)1,679 KB pdf
