9804-02 - Magnetic Clip for Test Leads, black, 4 mm Anschluss

The 9804 Magnetic Clip Set consists of one red and one black magnetic clip for magnetic fixation of test leads on ferromagnetic components. The clips attach to test leads with 4 mm connectors and allow hands-free positioning on steel enclosures, machine frames or switch cabinets. The 11 mm concave magnetic contact surface enables centered positioning on pan head screws or comparable raised ferromagnetic contact points. Pan head screws up to size M6 provide the most suitable contact geometry. Due to the surrounding insulating plastic rim, no defined electrical contact is established on flat surfaces.Both magnetic clips comply with CAT IV 1000 V and 2 A. They serve as mechanical positioning aids for voltage and insulation measurements and for applications in high-resistance ranges. For low-resistance protective conductor testing or precision milliohm measurements, suitable clamps or probe tips should be used.The set is compatible with test leads from HIOKI and other manufacturers featuring 4 mm safety or standard banana plugs.

The red 9804-01 Magnetic Clip is designed for magnetic fixation of test leads on ferromagnetic components. It attaches to test leads with 4 mm connectors and allows handsfree positioning on steel enclosures, machine frames or switch cabinets. The magnetic contact surface has a diameter of 11 mm and features a concave geometry. This design enables centered positioning on pan head screws or comparable raised ferromagnetic contact points. Pan head screws up to size M6 provide the most suitable contact geometry. The magnetic surface is surrounded by an insulating plastic rim that slightly protrudes beyond the contact area. As a result, no defined electrical contact is established on flat surfaces. The magnetic clip complies with CAT IV 1000 V and 2 A. It serves as a mechanical positioning aid for voltage and insulation measurements and for applications in highresistance ranges. For low-resistance protective conductor testing or precision milliohm measurements, suitable clamps or probe tips should be used.The 9804-01 is compatible with test leads from HIOKI and other manufacturers featuring 4 mm safety or standard banana plugs.

The PQ3100-94 Kit builds on the PQ3100, combining its powerful capabilities with essential accessories for high-current measurements. This complete solution includes 4 CT7045 Flexible Current Sensors, enabling precise measurements up to 6000 A. The PQ3100’s intuitive setup, extensive waveform recording, and compliance with IEC61000-4-30 Class S make it perfect for professionals who demand accuracy and reliability in power quality analysis. Whether for EV charging stations, renewable energy systems, or industrial equipment, the PQ3100-94 Kit ensures you’re equipped for every challenge in high-power electrical environments. Technical Details:Measurement Channels: 4 voltage channels, 4 current channels Voltage Measurement Range: 1 V to 1000 V AC/DC, ±6000 V peak Current Measurement Range: Up to 6000 A (with appropriate current sensors) Frequency Range: DC, 0.1 Hz to 700 kHz Basic Accuracy: Voltage ±0.2%, Current ±0.2% (with sensor) Event Detection: Transients, voltage fluctuations, harmonics, inrush currents Compliance: IEC61000-4-30 Class S Waveform Recording: Up to 11 seconds for detailed event analysis Display: 6.5-inch TFT color LCD Data Storage: Internal memory and SD card support Power Supply: AC Adapter Z1002, Battery Pack Z1003 (up to 3 hours operation) Dimensions: 264 mm (W) × 150 mm (H) × 68 mm (D) Weight: 2.6 kg

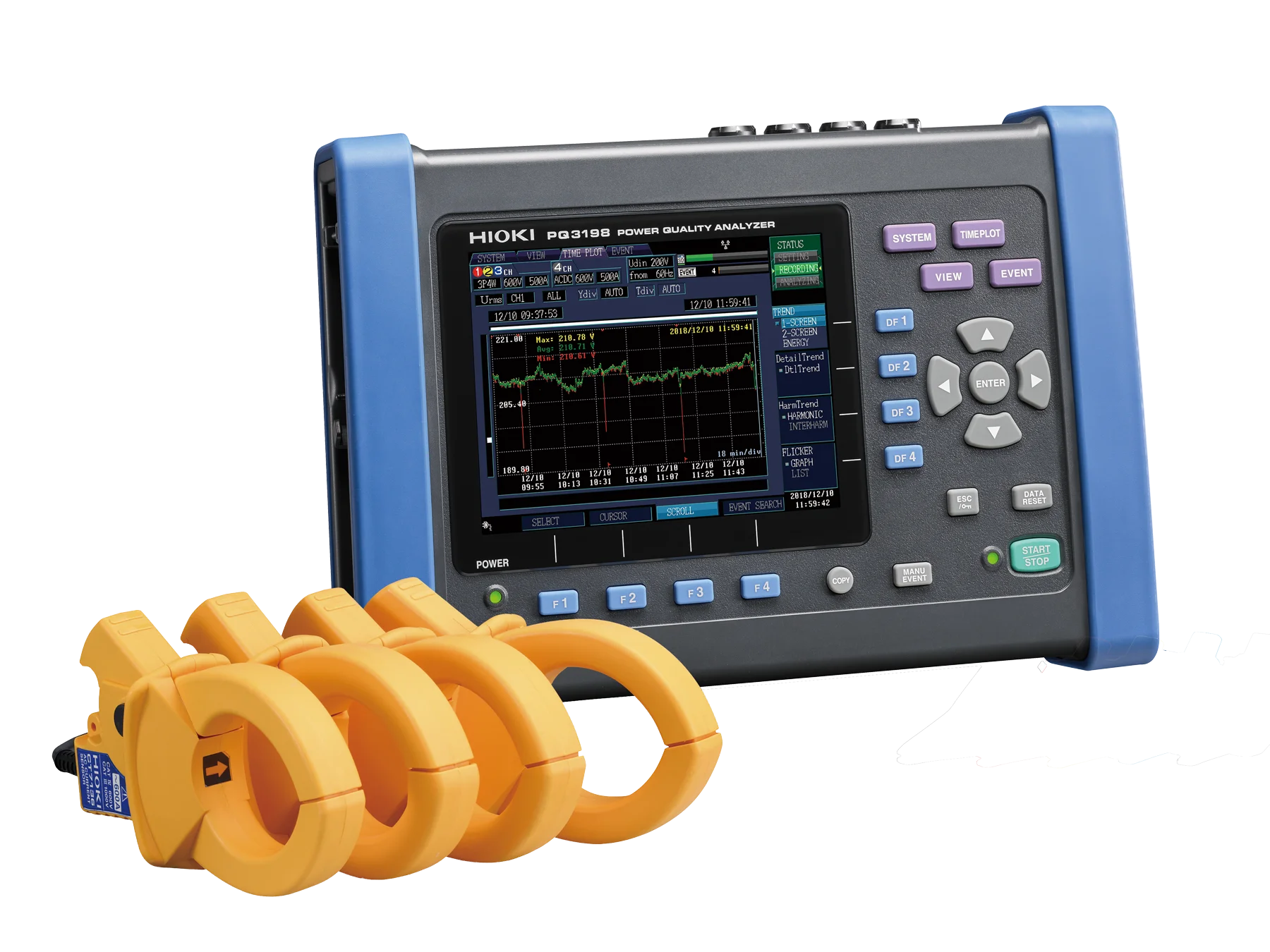

The PQ3198-92 Power Quality Analyzer Kit is a ready-to-use complete solution for Class A compliant power quality measurements and detailed analysis of electrical networks. The kit combines the high-performance PQ3198 Power Quality Analyzer with four 100 A AC current sensors (CT7136), making it ideal for energy audits, load studies, troubleshooting, and compliance testing according to EN 50160. The PQ3198 enables simultaneous recording of voltage, current, power, harmonics, flicker, and transients with high accuracy. It captures power disturbances such as voltage dips, swells, interruptions, and frequency variations while continuously logging trend data. With detailed waveform recording and advanced harmonic analysis, the system provides full visibility into network behavior. The -92 kit configuration is specifically designed for applications up to 100 A and is ideal for building installations, distribution panels, and precise energy analysis. Supplied in a durable, padded carrying bag, the kit is ideal for mobile use and fast deployment on site.

The Hioki PQ3198-94 Kit is a complete solution for monitoring and analyzing power quality. Equipped with all essential accessories, it enables professionals to perform high current measurements up to 6000 A in demanding electrical systems.

Portable 3-phase 4-wire Clamp-on Power Logger, voltage range 600 V, current measurement with external sensors, ranges from 50 mA up to 5 kA, frequency measurement 40 to 70 Hz, with SD card slot, LAN and USB

Compact three-phase power logger with harmonic analysis for energy monitoring and load studies in industrial facilities. HIOKI PW3360-21 available now.

Non-contact 3-phase 4-wire Clamp-on Power Logger, 90 V to 520 V at 50/60 Hz, 50 mA to 5 kA using external current sensors, harmonic measurement up to the 13th order, SD memory card slot (max. 8 GB), LAN and USB interface

The CM3286-50 AC Clamp Power Meter is designed to measure AC current, voltage, and power with a broad range, from 5 W to 360 kW, and currents from 60 mA to 600 A. It offers quick and accurate readings with true RMS measurement and can measure simple integral power consumption and phase sequence. The device features a large jaw diameter of 46 mm, allowing it to measure large-diameter cables, and its backlit display ensures easy reading even in dimly lit environments.With Bluetooth® communication (available via the optional Z3210 wireless adapter), data can be easily transferred for analysis. This versatile tool is ideal for applications ranging from manufacturing plants to household measurements. Technical Details: Model: CM3286-50 Current Measurement Range: 60 mA to 600 A AC Voltage Measurement Range: 80 V to 600 V AC Power Measurement Range: o Single-phase: 5 W to 360 kW o Balanced three-phase 3-wire: 20 W to 623.5 kW o Balanced three-phase 4-wire: 40 W to 1080 kW Frequency Range: 45 Hz to 999.9 Hz Maximum Rated Voltage to Ground: 600 V CAT IV, 1000 V CAT III Operating Temperature: -25°C to 65°C Jaw Diameter: 46 mm Dimensions: 65 mm (W) × 241 mm (H) × 35 mm (D) Weight: 450 g Power Supply: 2 × LR03 Alkaline batteries (25 hours continuous use) Optional Wireless Adapter: Z3210 for Bluetooth® connectivity

AC/DC True RMS clamp multimeter with 20 A and 600 A ranges for precise current measurement in electrical maintenance and testing. HIOKI CM4371-50 available now.

True RMS AC/DC clamp multimeter for current measurement up to 2000 A in electrical maintenance and power systems testing. HIOKI CM4373-50 available now.

True RMS clamp multimeter with 1000 A AC/DC current range, voltages up to 1000 V AC/DC. CAT IV 600 V / CAT III 1000 V, 34 mm conductor diameter; resistance, capacitance, continuity, diode test, inrush, Bluetooth optional

True RMS AC clamp multimeter with 2000 A range and three current ranges for electrical maintenance and load measurement. HIOKI CM4141-50 available now.

Digital insulation tester with Bluetooth® and five test ranges (50–1000 V) for fast, accurate measurements in lab and industrial environments. Order now from HIOKI Europe.

Digital insulation tester with Bluetooth and bar graph for measurements from 50 V to 1000 V in installation and maintenance testing. HIOKI IR4057-90 available now.

Key Specifications5 test voltages from 50 V to 1000 V Insulation resistance up to 4000 MΩSafety category CAT III 600 V Digital bar graph display200 mA protective conductor test in accordance with EN 61557-4 Typical Applications Inspection and maintenance of low-voltage electrical installations Troubleshooting insulation faults in wiring, motors, and equipment Field testing of machinery, control panels, and distribution boards Periodic inspection of plant and equipment Feature IR4053 IR4056 IR4057-50 IR4057-90 IR4059 PVΩ Function Yes – Bar Graph Display – Yes Bluetooth – Optional (Z3210) Yes (Z3210 included) Optional (Z3210) Housing Integrated hard case Compact housing with silicone protector L9788-10 Test Lead with Remote Switch Optional Yes Detailed Product OverviewIn installation and maintenance work, insulation resistance testing is required when checking wiring, distribution boards, motors and electrical equipment after repairs or during periodic inspections. A dedicated insulation tester is often the practical choice without the need for a multifunction installation tester or combined test instrument. The IR4057-50 is a digital, battery-powered insulation tester with five test voltages from 50 V to 1000 V. It measures insulation resistance up to 4000 MΩ and is used for testing electrical installations, motors, machinery and control systems. The instrument complies with EN 61557 requirements for insulation resistance and protective conductor continuity testing in low-voltage installations.Digital Bar Graph and Fast PASS/FAIL Evaluation In addition to the numeric display, the IR4057-50 features a digital bar graph that provides immediate visual indication of insulation resistance during measurement. Changes in resistance are visible directly on the scale display. The integrated comparator evaluates the insulation measurement in approximately 0.3 seconds and indicates PASS or FAIL. PASS and FAIL are signaled acoustically, and in the event of a FAIL result, the display backlight turns red. The PASS/FAIL threshold can be set individually for each test voltage range and remains stored even after switching the instrument off or changing the range. With the comparator function switched off, the instrument instead displays the insulation resistance value after 60 seconds during an ongoing measurement. This supports time-based evaluation when longer test durations are required. Protective Conductor (PE) and Voltage CheckProtective conductor testing is performed with a 200 mA test current in accordance with EN 61557-4. The defined test current applies sufficient load to the protective conductor connection to detect increased contact resistance, loose connections and oxidized terminals. This provides a more reliable assessment than a low-current continuity check performed with a standard digital multimeter.In addition to insulation and low-resistance measurement, the instrument includes AC and DC voltage testing up to 600 V. This allows verification that the test object is not live before starting an insulation measurement. For added safety, the 500 V and 1000 V test voltages must be manually unlocked before the first measurement. This prevents accidental activation of higher test voltage levels. For Daily Field Work The IR4057-50 complies with CAT III 600 V and has been tested for a 1 m drop onto concrete. It is specified for operation in ambient temperatures from -25 °C to 65 °C. The instrument is integrated into a robust hard case that forms a single protective unit and provides storage space for test leads and accessories. The leads remain connected during transport, allowing the tester to be stored and carried as one complete unit.The display offers high contrast and includes a backlight for work in distribution boards and poorly lit technical rooms. With the optional Z3210 wireless adapter, measured values can be transferred via Bluetooth to the free GENNECT Cross app on iOS or Android devices. An optional L9788-10 test lead with integrated LED illumination and measurement trigger allows measurements to be started directly from the probe.Like all HIOKI insulation testers, it is designed and made in Japan at HIOKI’s own factories in Nagano Prefecture.

The HIOKI IR4056 is a digital insulation resistance tester with efficient functions and features to help shorten work time associated with field insulation testing.

Key SpecificationsPVΩ function for live PV strings50 V to 1000 V test voltagesInsulation resistance measurement up to 4000 MΩ AC/DC voltage measurement up to 600 V CAT III 600 V Typical ApplicationsInsulation testing of PV strings under DC voltageVerification of open-circuit voltage and polarity of PV stringsTesting of low-voltage installationsMaintenance and troubleshooting of electrical systems Feature IR4053 IR4056 IR4057-50 IR4057-90 IR4059 PVΩ Function Yes – Bar Graph Display – Yes Bluetooth – Optional (Z3210) Yes (Z3210 included) Optional (Z3210) Housing Integrated hard case Compact housing with silicone protector L9788-10 Test Lead with Remote Switch Optional Yes Detailed Product OverviewInsulation resistance testing of PV systems is often carried out during daytime service work. PV strings generate DC voltage as long as they are exposed to light, even when the inverter is switched off. Standard insulation or installation testers will not start the test if external voltage is detected. The IR4053 includes a PVΩ function that allows insulation testing of PV strings even when DC voltage is present. The instrument measures the existing string voltage and takes it into account during the test. The displayed insulation value is based only on the applied test voltage.Full Insulation Tester for Low-Voltage Systems The IR4053 is a battery-powered insulation tester for low-voltage installations and is used for standard insulation testing of distribution boards, motors, cables and electrical equipment in addition to PV measurements. The instrument provides five selectable test voltages from 50 V to 1000 V and measures insulation resistance up to 4000 MΩ. It also measures AC and DC voltage up to 600 V. When measuring DC voltage, reversed polarity is clearly indicated. This supports verification of open-circuit voltage and correct polarity of PV strings before commissioning or maintenance. Fast PASS/FAIL EvaluationFor routine testing, the IR4053 includes an integrated comparator function. The measured insulation value is automatically evaluated against a user-defined threshold and indicated as PASS or FAIL. The threshold can be set individually for each test voltage. The settings remain stored even after the instrument is switched off. An acoustic signal supports quick assessment during measurement. Designed for Everyday Use The IR4053 complies with CAT III 600 V and has been tested for a 1 m drop. An integrated hard case forms a single unit with the instrument and provides storage space for test leads and accessories. The leads remain connected to the tester during transport. The display offers high contrast for clear readability under varying lighting conditions. An integrated backlight supports measurements in poorly lit distribution boards and technical cabinets. An optional L9788-10 test lead with built-in LED illumination and remote measurement trigger is available. Measurements can be initiated directly from the probe, which is useful when both hands are needed to secure the test leads on the test object. The IR4053 supports insulation test voltages up to 1000 V and is suitable for PV strings and low-voltage systems within this range. For PV systems with higher string voltages up to 2000 V, HIOKI offers the IR5051 high voltage insulation tester. Like all HIOKI insulation testers, it is designed and manufactured in Japan at HIOKI’s own facilities in Nagano Prefecture.
