Electrochemical Testing Solutions
Key to assessing material quality
Electrochemical measurements are vital for understanding and optimizing material properties in batteries, capacitors, and other energy devices. HIOKI’s solutions provide quantitative insight into conductivity, dispersion, and interface resistance - key parameters for performance and quality. The SA2634-KIT Slurry Analysis System evaluates slurry properties before coating, combining advanced software and precise hardware for standardized analysis.
The RM2610 Electrode Resistance Measurement System isolates composite layer and interface resistances after coating to ensure consistent electrode quality. Complementary instruments like the IM3590 Impedance Analyzer expand electrochemical evaluation across research and production. Browse our solutions and contact us for more information.

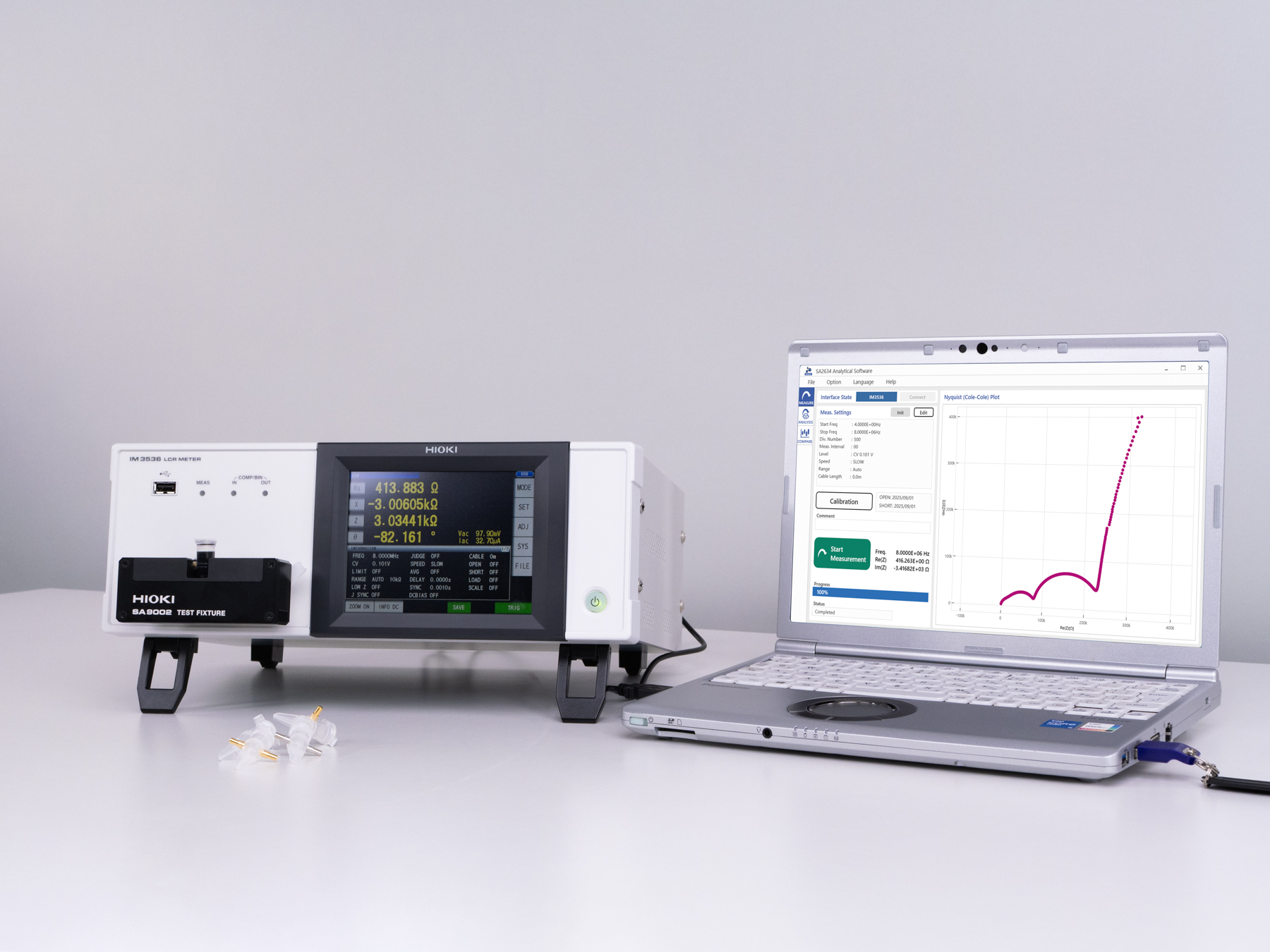

SA2634-KIT

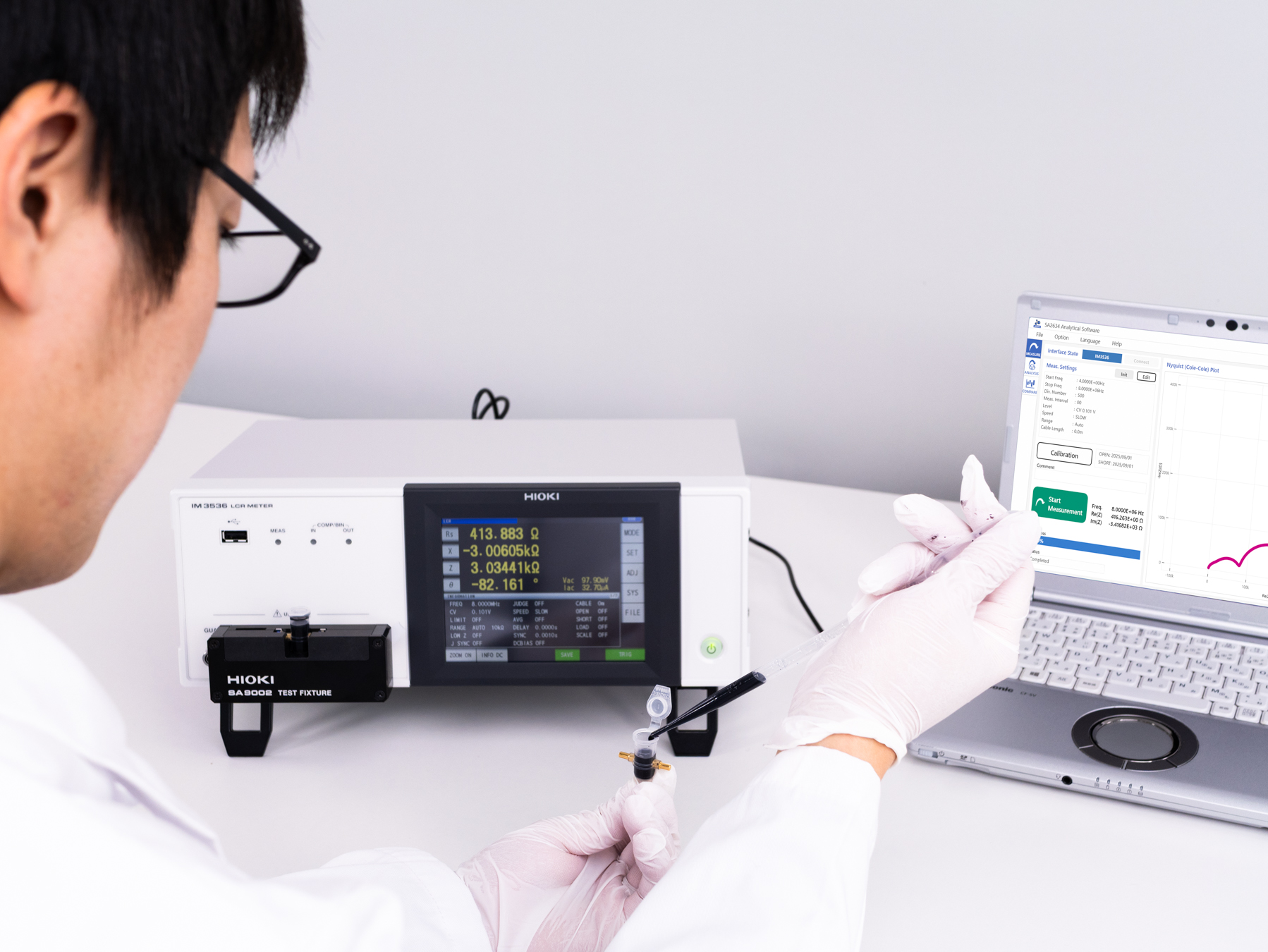

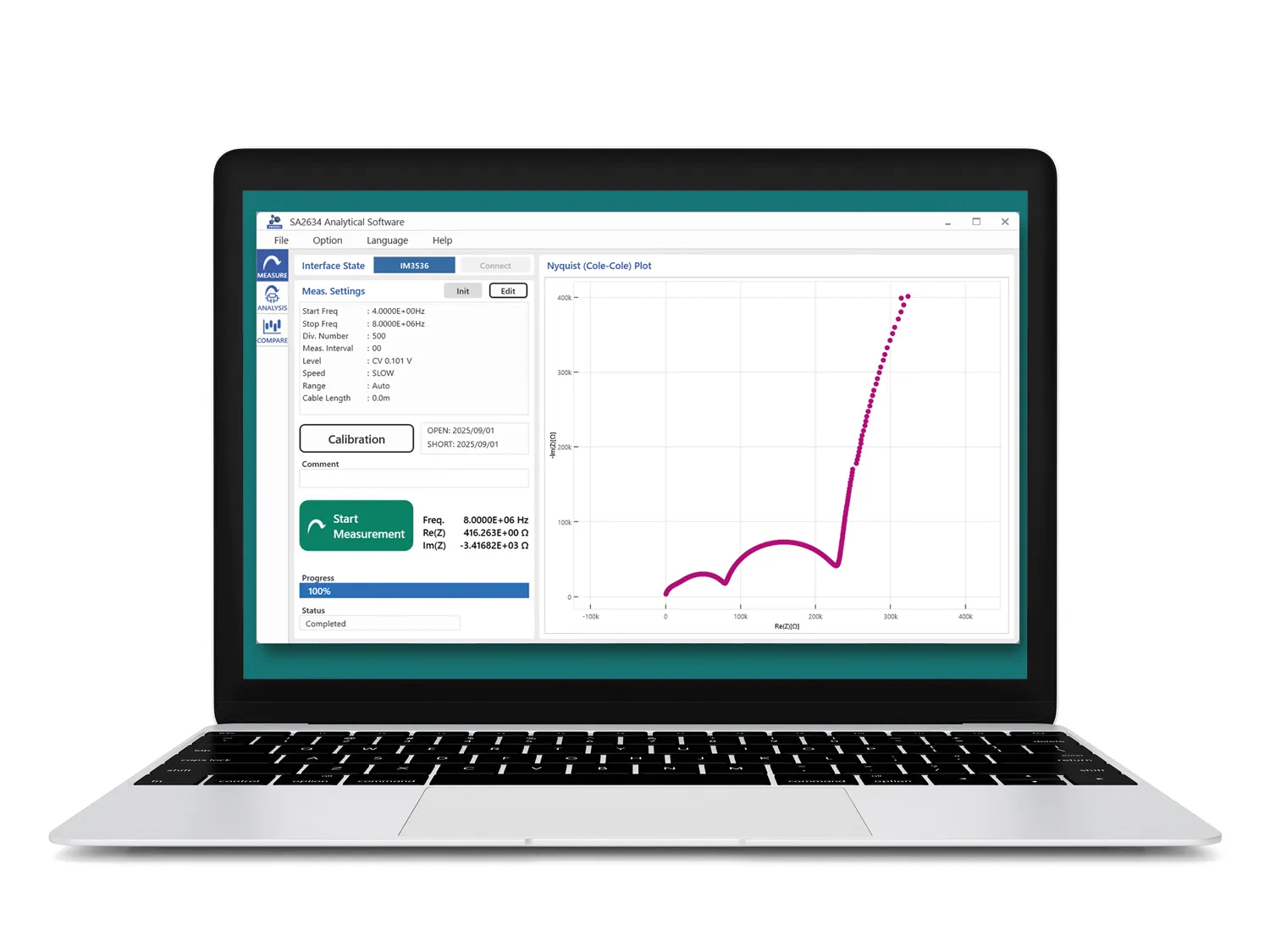

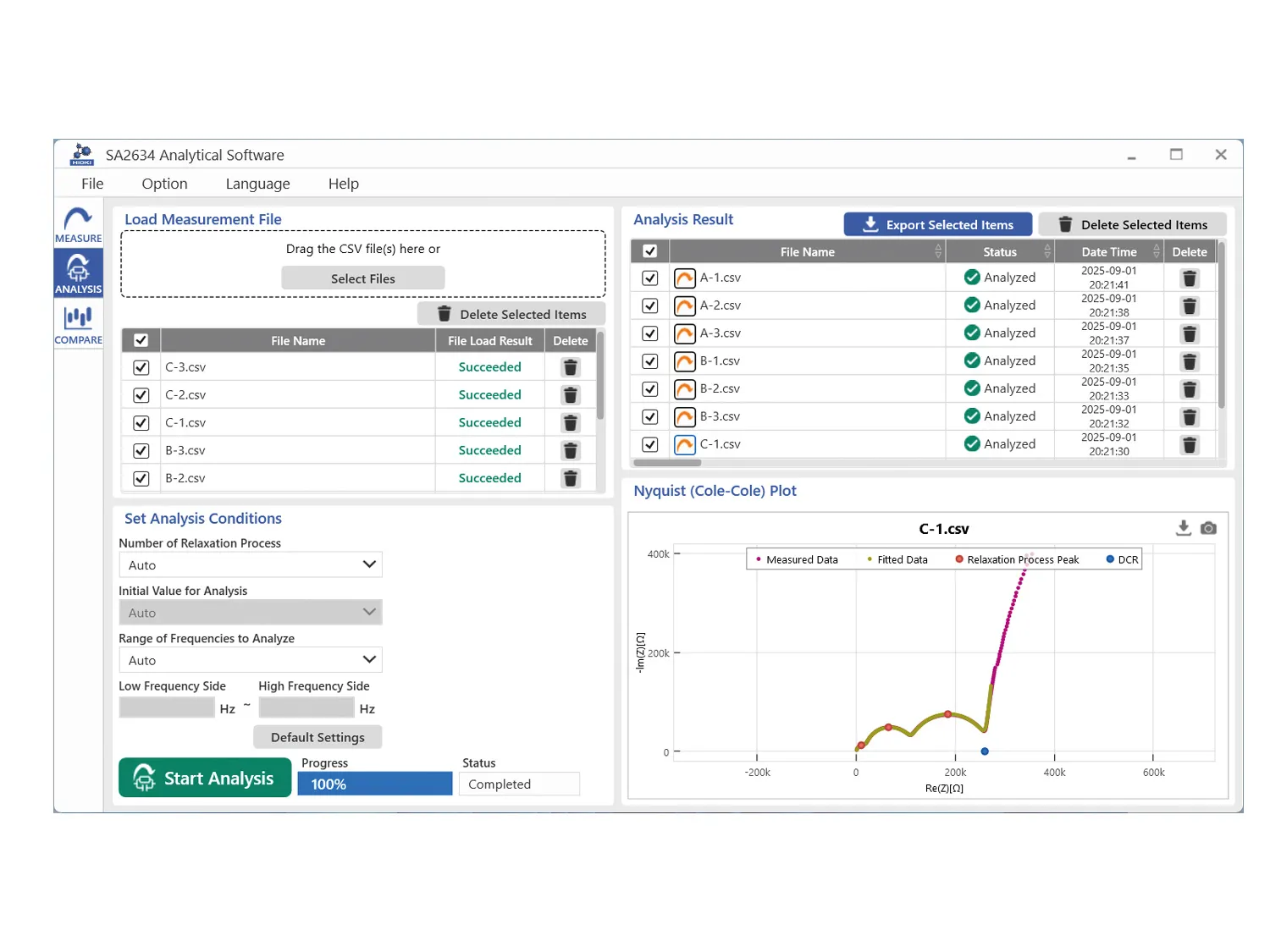

HIOKI SA2634-KIT - Slurry Analysis System for LiB Conductivity Evaluation
Slurry analysis system for lithium-ion battery electrode development and production. Discover the HIOKI SA2634 KIT and request a quote from HIOKI Europe.
RM9004
RM9004 - Probe Head for RM2610 Electrode Sheet Measurement System
Replaceable probe head for the RM2610 Electrode Sheet Measurement System with 46 spring-loaded measurement pins (75 µm each) and a contact area of just 1 mm²
20
%
IM3590
IM3590 - Chemical Impedance Analyzer, 1 mHz to 200 kHz
The IM3590 Chemical Impedance Analyzer is designed for precise measurement of electrochemical components and materials, including batteries and electric double-layer capacitors (EDLCs).
RM2610
HIOKI RM2610 - Measurement System for LIB battery electrode sheets
HIOKI RM2610 measurement system for resistance distribution analysis of lithium-ion battery electrodes in R&D and quality inspection. Order now from HIOKI Europe.

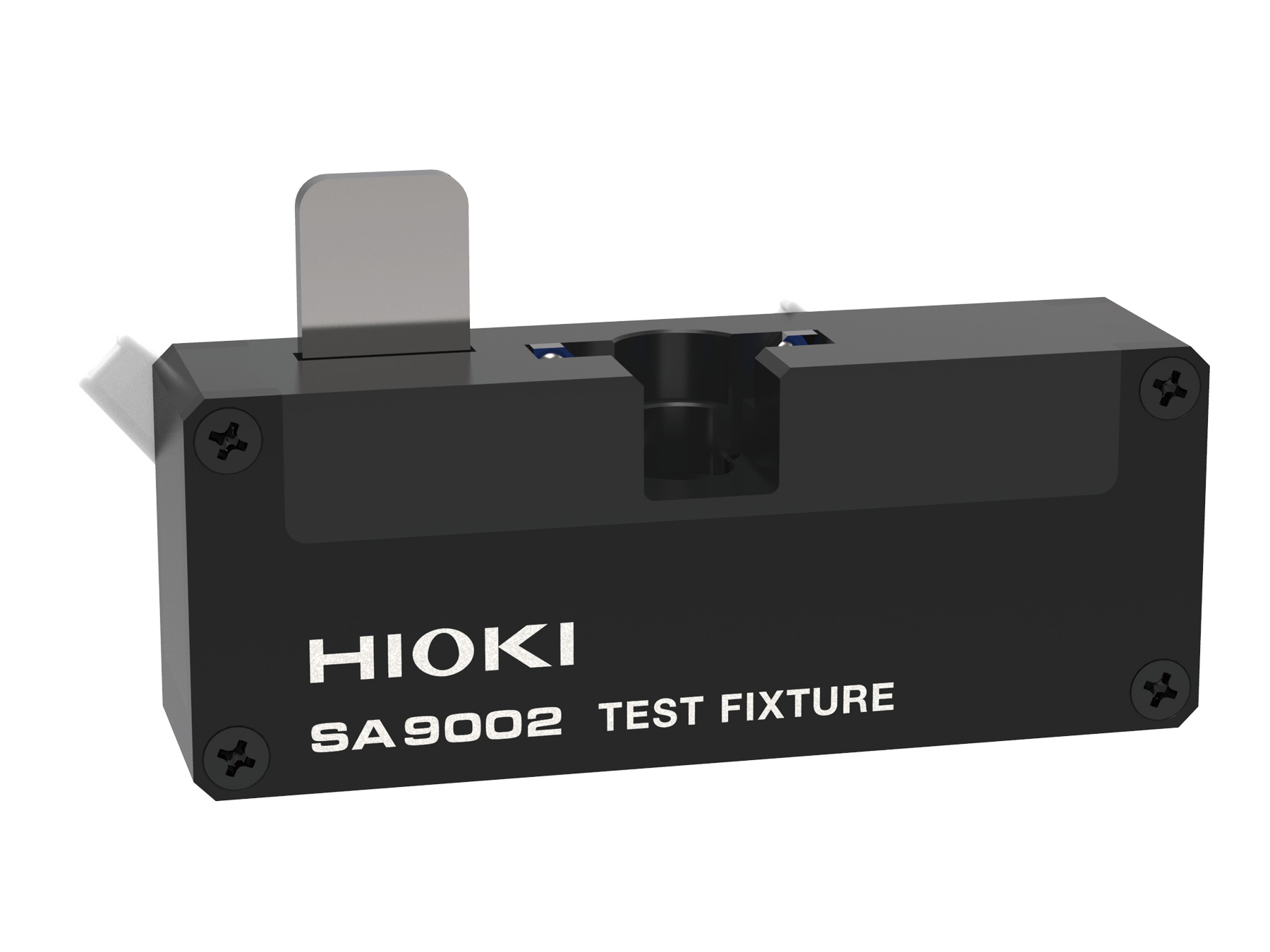

SA9002

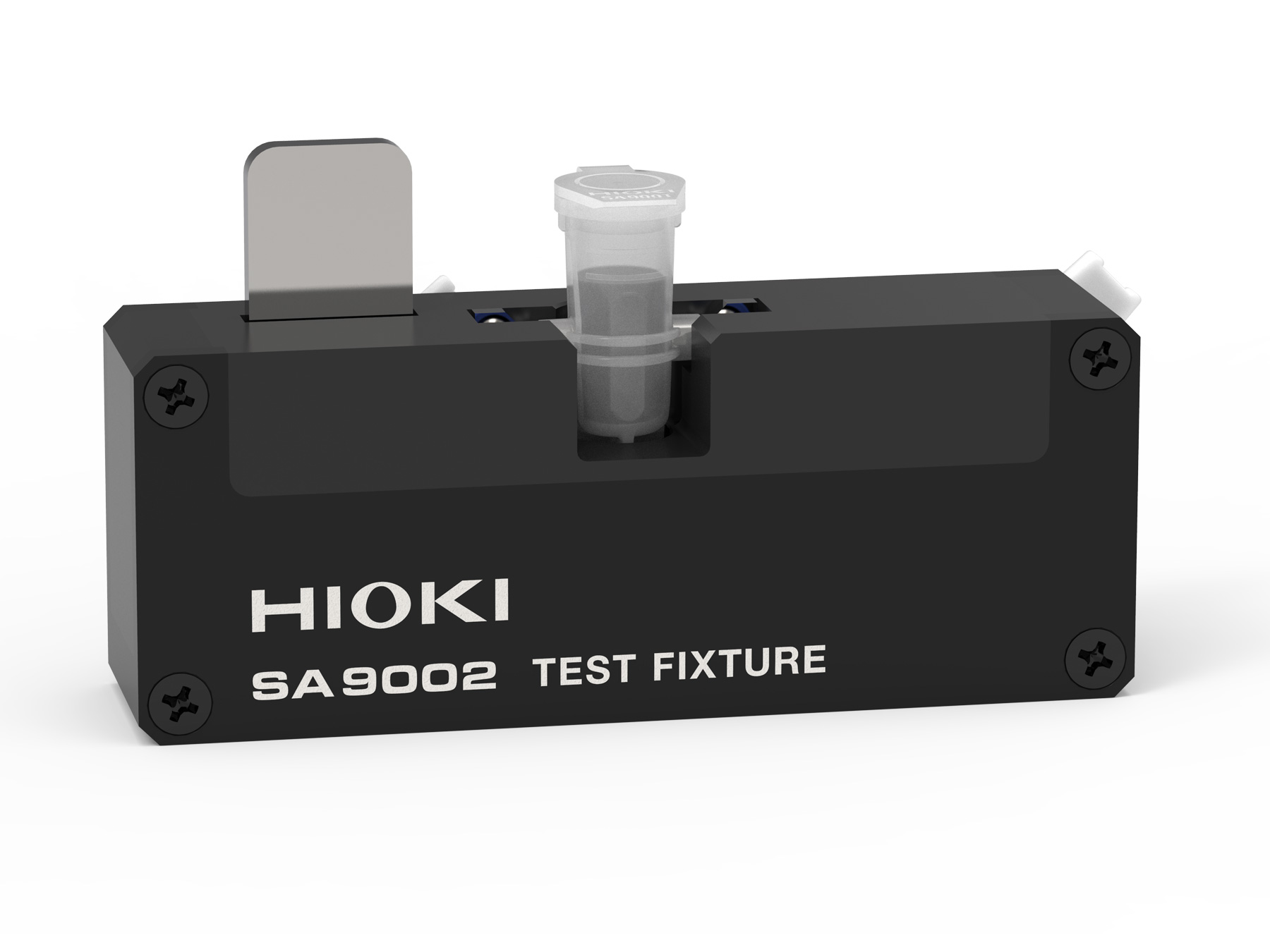

SA9002 - Fixture for slurry measurement with IM3536

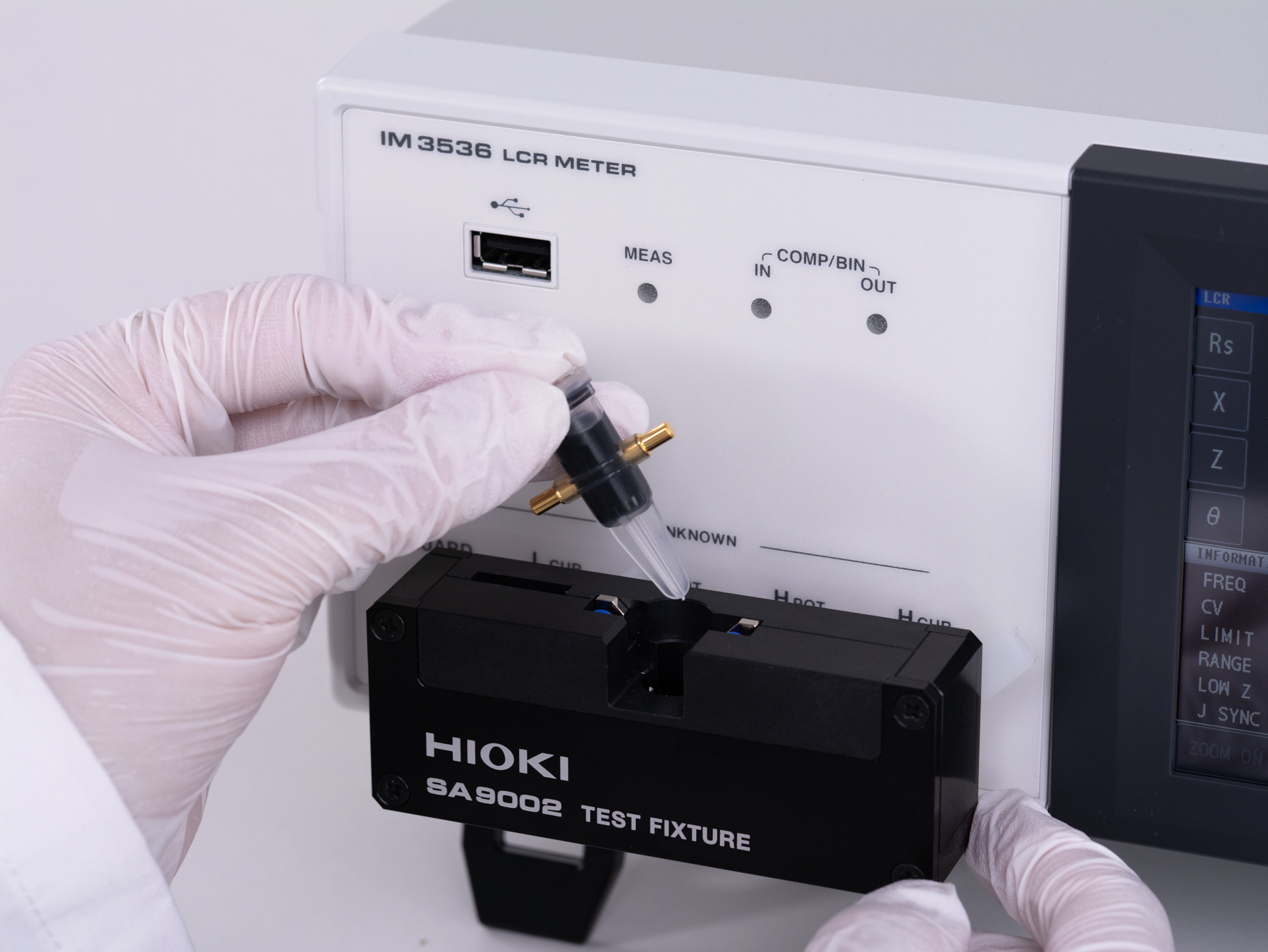

Detailed Product OverviewThe SA9002 Test Fixture is an integral component of HIOKI’s SA2634-KIT Slurry Analysis System. It connects to the IM3536 LCR Meter via four BNC terminals and provides secure mounting for the disposable Slurry Sample Containers (SA9001 or SA9001-01) containing the slurry sample.Although part of the SA2634-KIT Slurry Analysis System, the SA9002 can also be purchased separately as a replacement fixture or used independently with other HIOKI LCR Meters, the IM3570 Impedance Analyzer or the IM3590 Chemical Impedance Analyzer in combination with the disposable sample containers. This enables users to build customized measurement setups tailored to their specific evaluation requirements. The SA9002 Test Fixture and the associated sample containers are optimized for use with slurry materials. The nickel- or gold-plated electrode surfaces of the containers ensure stable contact and reproducible impedance results under defined slurry conditions. Use with other pastes or conductive materials may result in different contact characteristics and is not covered by HIOKI specifications.
SA9001-01

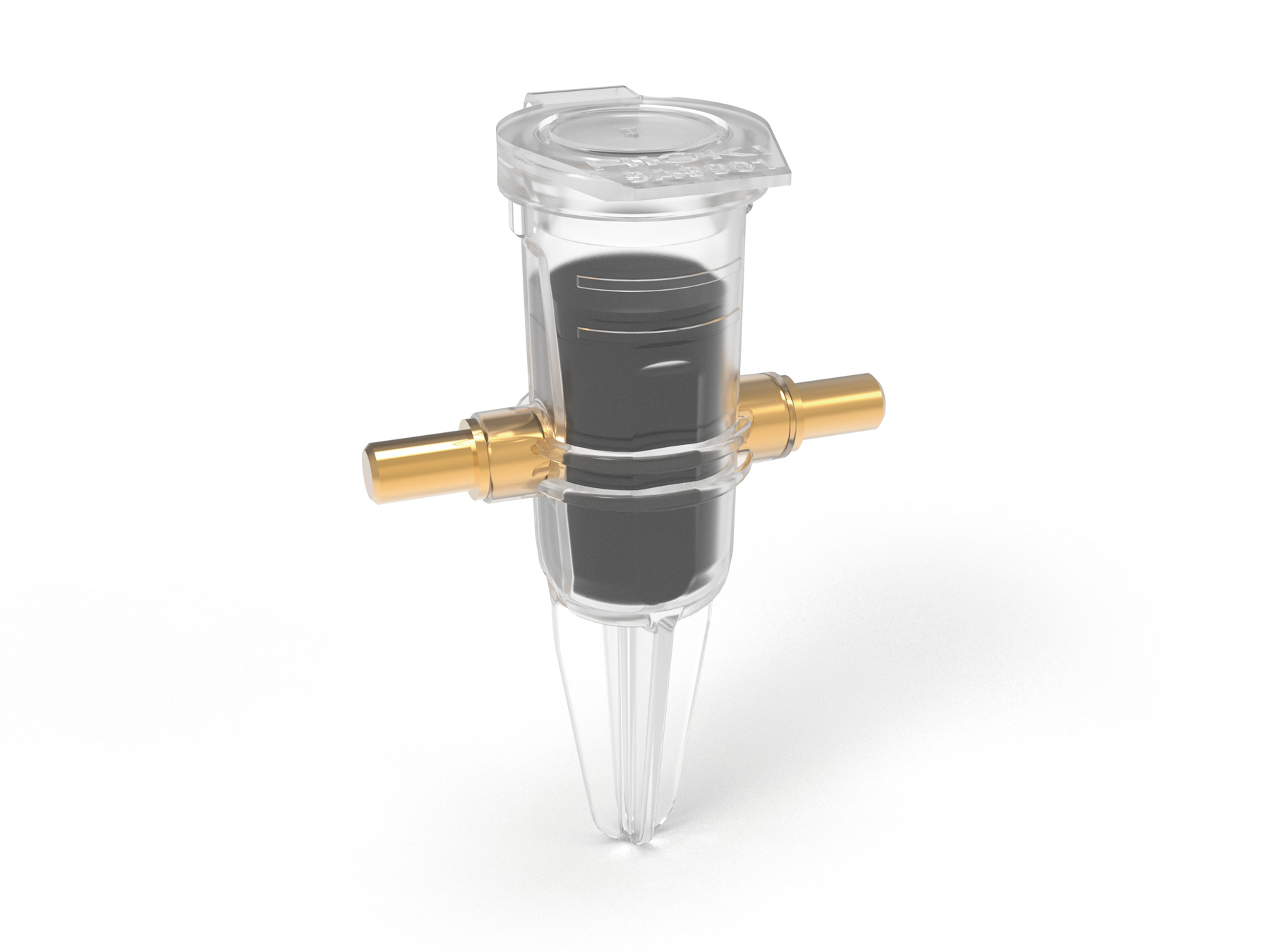

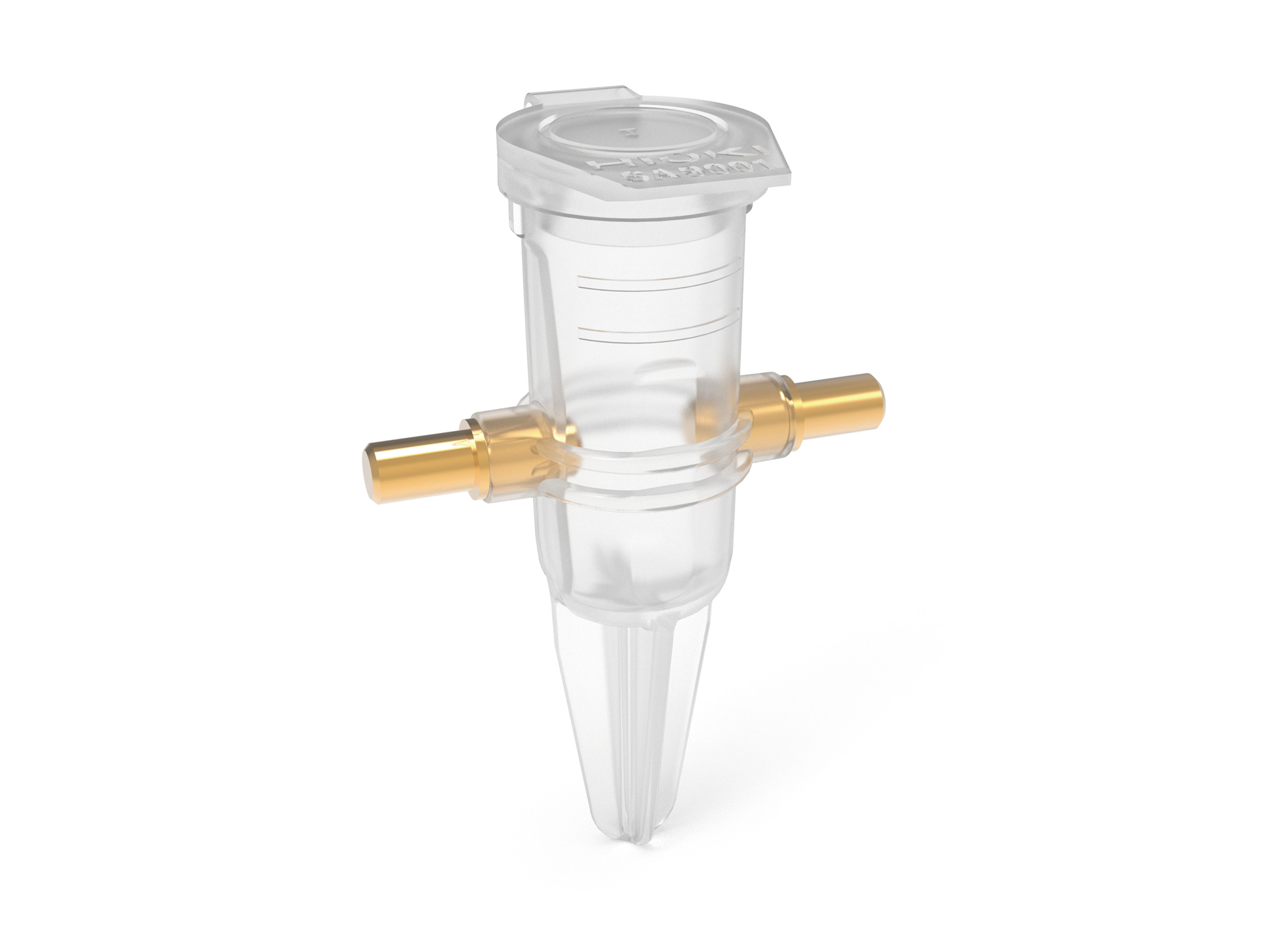

SA9001-01 - Slurry sample container for aqueous slurry measurement
Detailed Product OverviewThe SA9001-01 is used together with the SA9002 Test Fixture as part of HIOKI’s SA2634- KIT Slurry Analysis System. Each pack contains 50 slurry sample containers (also referred to as electrode cells) for impedance measurement of aqueous (water-based) lithium-ion battery slurries. The gold-plated electrode surfaces provide corrosion-resistant, low-resistance contact optimized for impedance analysis of aqueous slurries. Aqueous slurries are primarily used in the development and production of anode materials such as graphite or silicon-based composites. Since these systems use water as a solvent instead of N-Methyl-2-Pyrrolidone (NMP), they are environmentally safer and require electrodes that maintain stable electrical properties even in the presence of moisture. Gold plating prevents oxidation and ensures consistent measurement results over repeated use in wet environments. Each container holds approximately 1 ml of slurry and is intended for single use to avoid cross-contamination between measurements. When mounted in the SA9002 Test Fixture, it defines the electrode geometry and ensures consistent contact conditions for reproducible impedance measurements. Although part of the SA2634-KIT Slurry Analysis System, the SA9001-01 sample containers can also be purchased separately or used independently with other HIOKI LCR Meters and impedance analyzers in combination with the SA9002 Test Fixture. The containers are optimized for slurry materials; use with other conductive pastes may lead to different contact characteristics and is not covered by HIOKI specifications.
SA9001

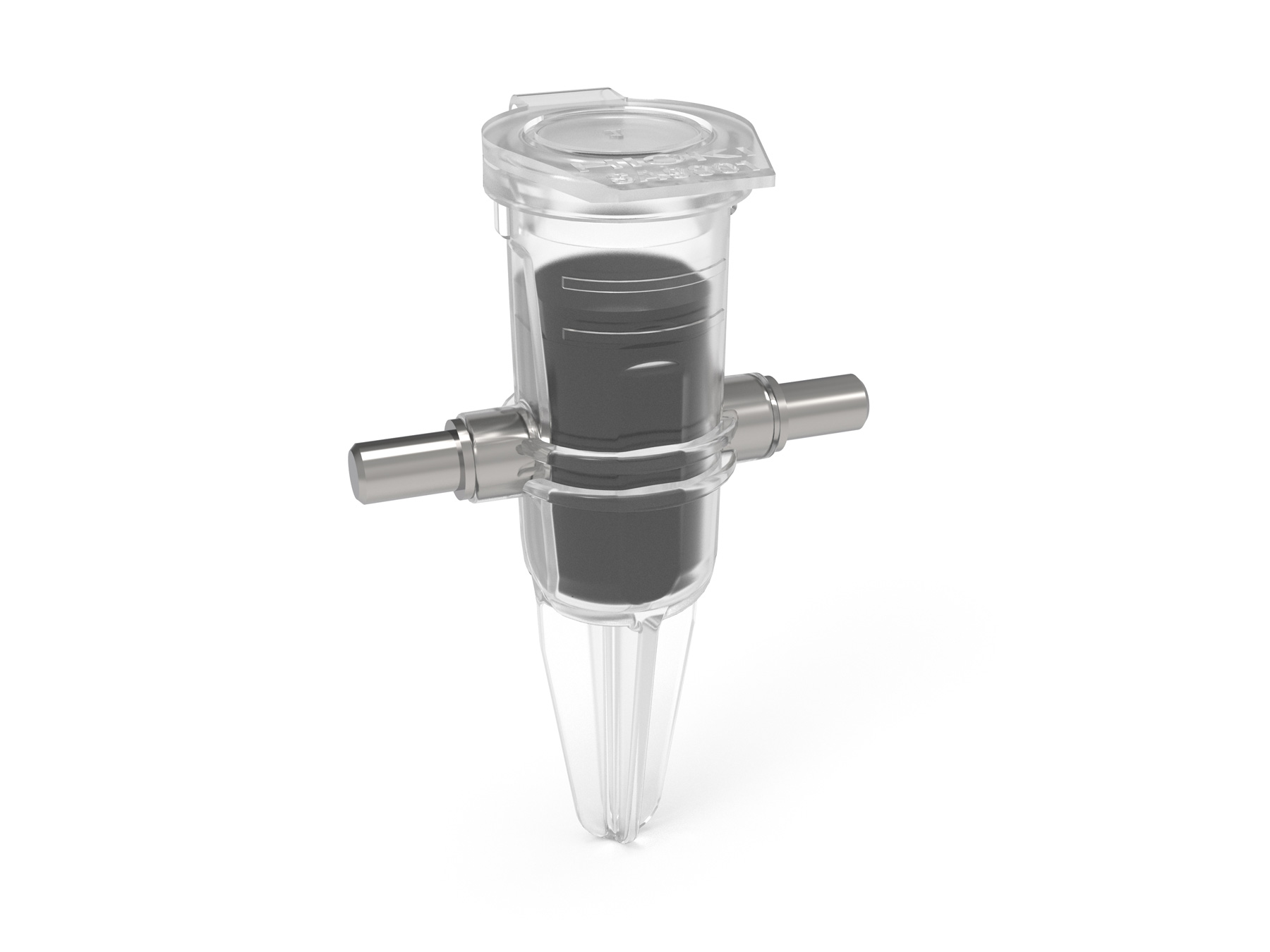

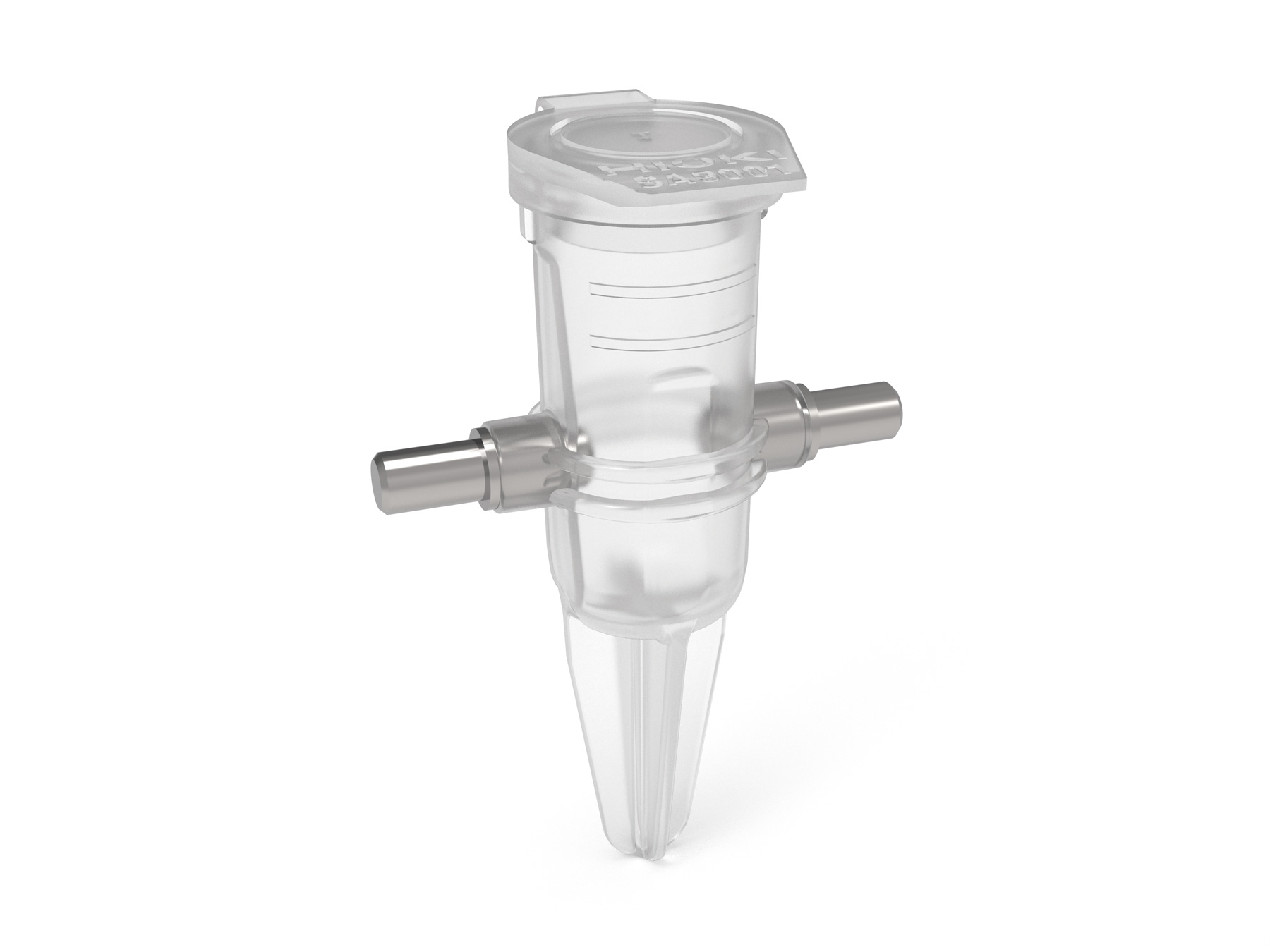

SA9001 - Slurry sample container for NMP-based slurry measurement
Detailed Product OverviewThe SA9001 is used together with the SA9002 Test Fixture as part of HIOKI’s SA2634-KIT Slurry Analysis System. Each pack contains 50 slurry sample containers (also referred to as electrode cells) for impedance measurement of N-Methyl-2-Pyrrolidone (NMP)-based lithiumion battery slurries. The nickel-plated electrode surfaces provide durable, low-resistance contact optimized for impedance analysis of NMP-based slurries. NMP-based slurries are mainly used in the development and production of cathode materials such as Nickel-Cobalt-Manganese (NCM) and Nickel-Cobalt-Aluminum (NCA). The performance of these electrodes strongly depends on the homogeneous dispersion of conductive additives within the slurry. Because NMP effectively dissolves binder materials, it enables uniform dispersion and coating, making impedance characterization a key tool for process optimization. Each container holds approximately 1 ml of slurry and is intended for single use to avoid cross-contamination between measurements. When mounted in the SA9002 Test Fixture, it defines the electrode geometry and ensures consistent contact conditions for reproducible impedance measurements. Although part of the SA2634-KIT Slurry Analysis System, the SA9001 sample containers can also be purchased separately or used independently with other HIOKI LCR Meters and impedance analyzers in combination with the SA9002 Test Fixture. The containers are optimized for slurry materials; use with other conductive pastes may lead to different contact characteristics and is not covered by HIOKI specifications.
