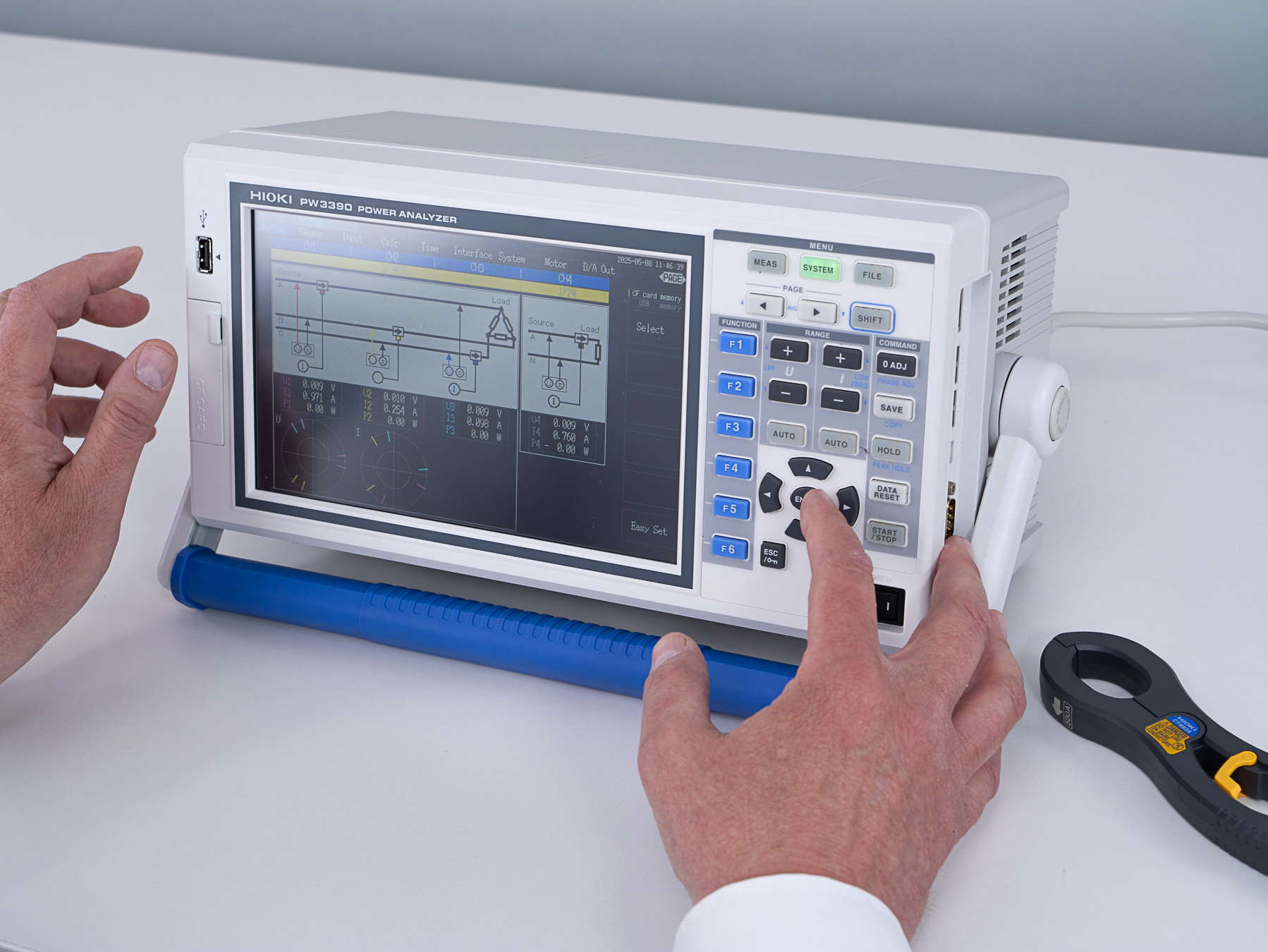

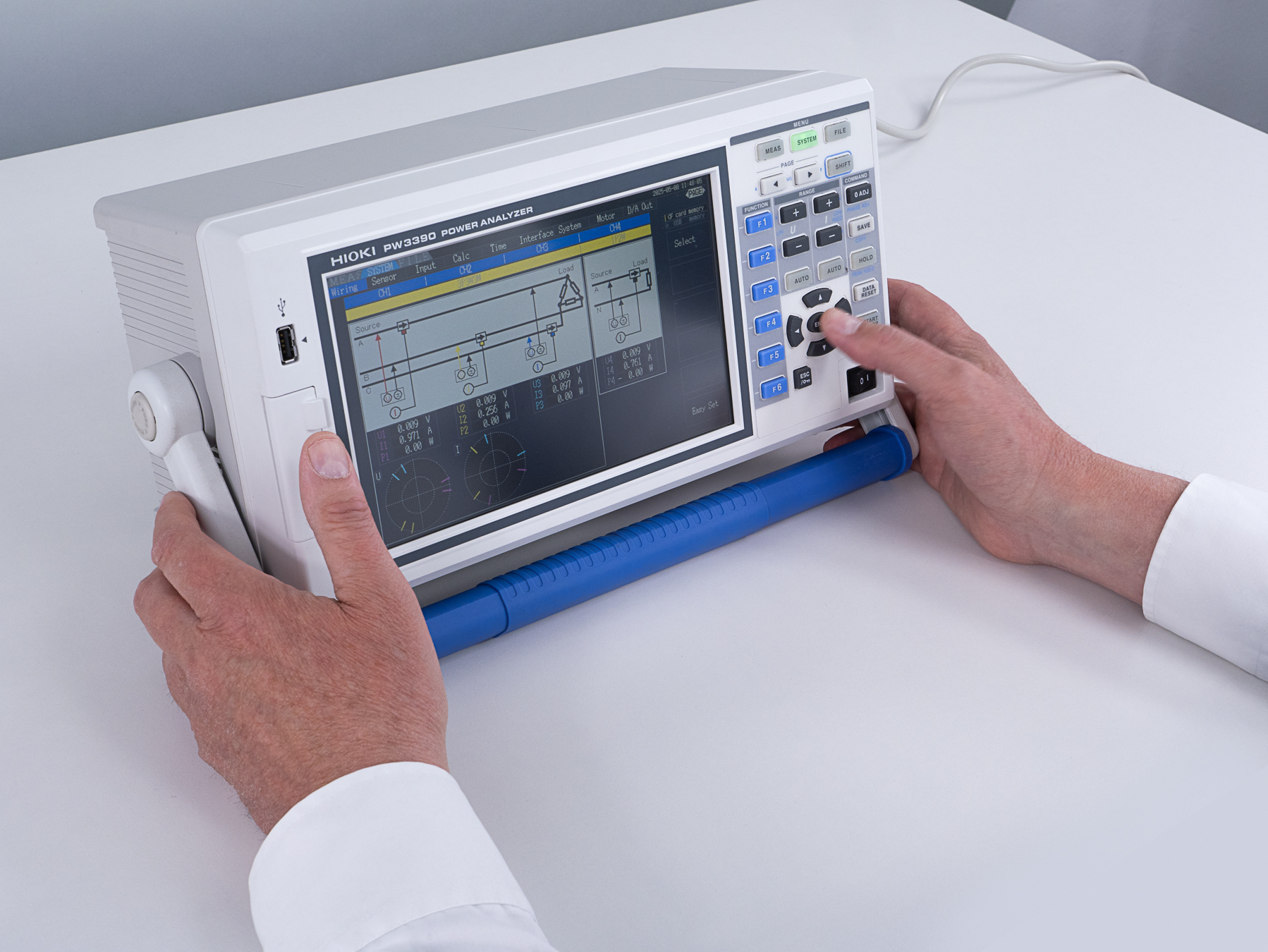

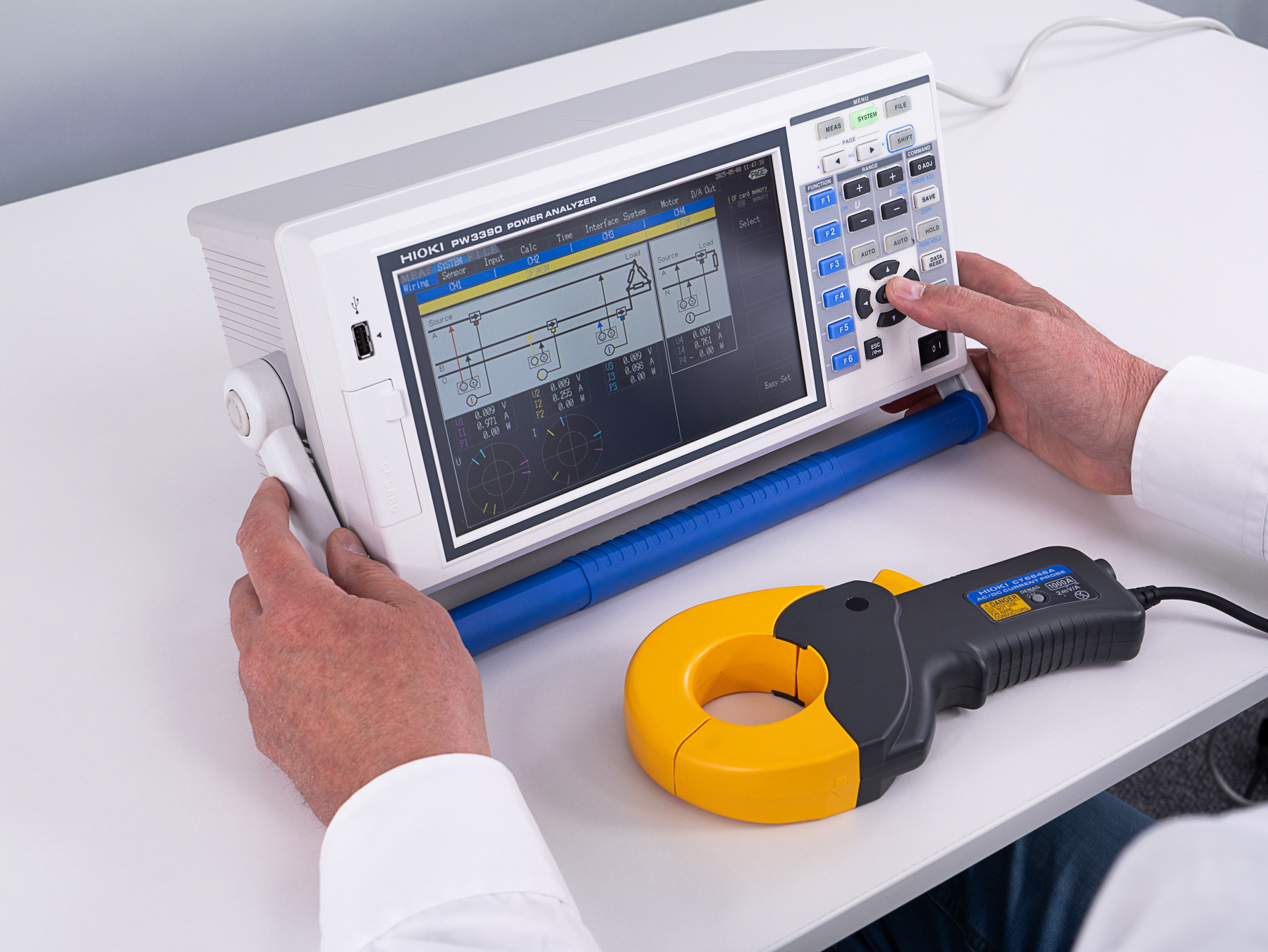

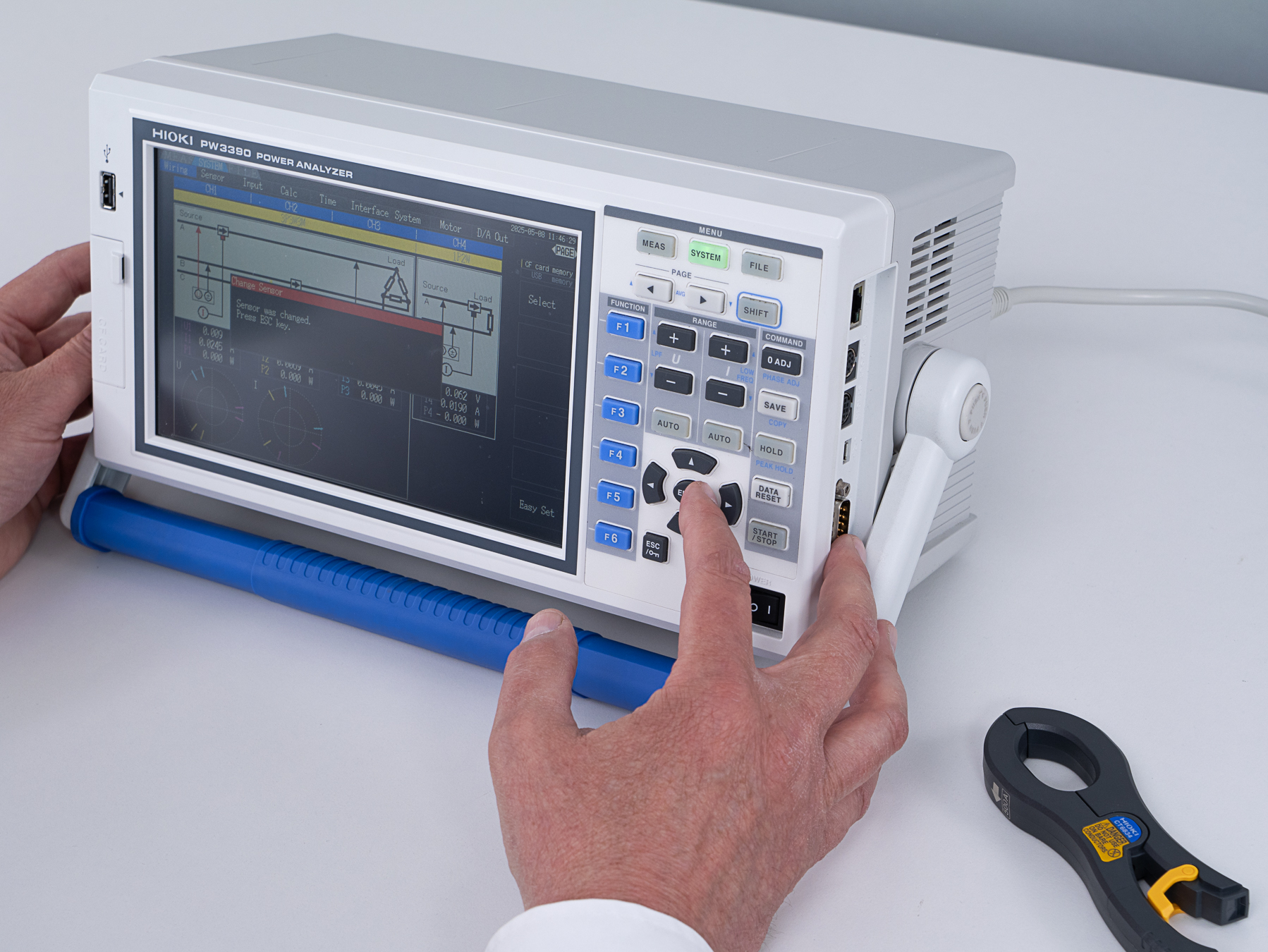

PW3390 - Portable 4-channel Power Analyzer

High precision power analyzer for power converter and inverter efficiency analysis, ±0.03% basic accuracy, 15 MHz sampling rate, 18-bit conversion, automatic phase shift correction for HIOKI current sensors, 1 ms data update rate and excellent noise resistivity of 110 dB @ 100 kHz.Technical details:Basic power accuracy ±0.03%8 power channels combined with motor analysisExcellent noise resistivity of 110 dB @ 100 kHz5 MHz frequency measurement band for powerStable and accurate measurement at 1 ms data update rateFunctions:8 power channels in combination with motor analysis for dual drivetrain analysisUnique power range with 2 A to 2 kA high accuracy HIOKI current sensorsPlug & Play connectivity with HIOKI current sensorsAutomatic Phase Shift Correction secures accurate high-frequency power measurementVisualize high-frequency loss with Power Spectrum Analysis measurementApplications:R&D and production line testing of high efficiency power converters and invertersLoss measurement of transformers and other inductive components under loadMotor efficiency measurementDetailed Description:The HIOKI PW8001 Power Analyzer is a state-of-the-art measurement instrument designed for the most demanding power analysis tasks, providing precise measurement results when evaluating efficiency of latest high accuracy electrical devices and systems. The PW8001 has 8 slots for power input units, which all can be used in combination with the motor analysis function.For the configuration of the PW8001, two types of input units are available that can freely be combined in one instrument according to the application requirements.The U7005 High Bandwidth input unit offers ultimate precision with ±0.03% basic accuracy, a sampling frequency of 15 MHz, 18-bit A/D conversion and a maximum input voltage of 1000 VAC. It is suitable for applications such as efficiency measurements of SiC and GaN based inverters motor drives, and accurate inductor loss measurement of inductors under load. Excellent resistivity for external noise of 110 dB at 100 kHz, ensure accurate and stable results even in the proximity to high frequency power switching semiconductors. For high-voltage applications, the U7001 input unit provides ±0.07% basic accuracy, a maximum input voltage of 1500 VDC, a sampling frequency of 2.5 MHz, 16-bit A/D conversion and a maximum voltage to ground of 1500 VDC CAT II. It is a suitable unit for applications which need less bandwidth, such as testing of the efficiency of industrial motor drives using IGBTs, or wind turbines and PV power converters. Combined with HIOKI’s extensive lineup of high-accuracy and high-bandwidth current sensors, probes and direct connection current boxes, the PW8001 offers a unique and comprehensive solution for reliably measuring applications from small electronic devices to large-scale power systems. The PW8001 power analyzer and the current sensors are developed and produced by HIOKI, making the advanced automatic phase shift correction function possible. This ensures accurate phase angle measurement between the voltage and current, even at high frequencies and low power factors. The PW8001 offers the unique Power Spectrum Analysis function. While the traditional FFT function determines the harmonics based on the fundamental frequency, limiting the frequency range, this new function covers the entire frequency spectrum of the analyzer. The Power Spectrum Analysis function delivers quick visibility into the high frequency power, providing developers with valuable data for further system efficiency improvements. Other advanced functions like wideband harmonic analysis, and motor analysis, ensure precise and reliable power analysis results for a wide range of applications in the power electronics industry, such as the development of high efficiency power converters, electrical drivetrains and electrical motors. The 1 ms update rate enables high-speed data refresh, allowing precise detection and analysis of rapid power fluctuations, such as those occurring during battery charging or discharging in EVs. This feature ensures unprecedented updates without compromising on measurement accuracy. The optical link function allows the connection of two PW8001 power analyzers to increase the maximum number of measurement channels to 16. It enables synchronized power measurements and efficiency calculation from multiple inputs, optimizing measurement setup and eliminating timing differences in data collection because the sampling of all inputs is synchronized.

The CT6872 is a high-precision AC/DC current sensor designed for detailed waveform observation and harmonic analysis. With a frequency range of up to 10 MHz, it is ideal for high-frequency power electronics testing. It supports automatic phase shift correction (APSC). Technical Details: Current Rating: 50 A AC/DC Frequency Range: DC to 10 MHz Accuracy: ±0.03% rdg, ±0.002% f.s. Maximum Conductor Diameter: 24 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher

The CT6873A is an advanced current sensor that provides high-precision AC/DC current measurements for power analysis applications. Its wide frequency range and excellent phase accuracy make it suitable for complex waveform and harmonic studies. It supports automatic phase shift correction (APSC).Technical Details Current Rating: 200 A AC/DC Frequency Range: DC to 10 MHz Accuracy: ±0.03% rdg, ±0.002% f.s. Maximum Conductor Diameter: 24 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher

The CT6875 AC/DC Current Sensor is designed for accurate current measurements across a broad frequency range, from DC to 2 MHz (Model CT6875-01: DC to 1.5 MHz). With a rated current of 500 A, it is ideal for R&D, quality evaluation, manufacturing, and maintenance in industries such as wireless charging systems, inverter motors, PV power conditioners, and EV quick charging facilities. In combination with the Power Analyzer PW8001, the sensor allows for precise high-frequency and low power factor measurements. Technical Details: Rated Current: 500 A Frequency Bandwidth: CT6875: DC to 2 MHzBasic Accuracy: Amplitude: ±0.04 % rdg. ±0.008 % f.s., Phase: ±0.08° Maximum Conductor Diameter: 36 mm Maximum Rated Voltage to Ground: 1000 V CAT III Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher Output Terminal: ME15W Cable length: 3m

Product Description for CT6876 AC/DC Current Sensor The CT6876 AC/DC Current Sensor is designed for accurate current measurements with a broad frequency range from DC to 1.5 MHz. With a rated current of 1000 A, it is ideal for demanding applications in industries such as inverter motors, electric vehicles, and power electronics.The sensor offers excellent noise resistance and high precision, making it a top choice for high-current, high-speed measurements. When combined with Hioki's Power Analyzers, it ensures accurate power conversion efficiency measurements, especially in high-frequency environments. Technical Details: Model: CT6876 Rated Current: 1000 A Frequency Bandwidth: DC to 1.5 MHzBasic Accuracy: Amplitude: ±0.04% rdg. ±0.008% f.s. Phase: ±0.1° Maximum Conductor Diameter: 36 mm Maximum Rated Voltage to Ground: 1000 V CAT III Operating Temperature: -40°C to 85°CInput Impedance Requirement: 1 MΩ or higher Output Terminal: ME15W

Banner Specs (= Attributes): High Accuracy ±0.3 % Measurable current 100 µA to 2 A Ultra small size sensor with slide open/lock mechanismWide temperature range -40 to 85 oC Bandwidth DC to 100 kHz USPs: Easy installation, even in tight spaces Accurate low current measurement Automatic recognition by HIOKI Power Analyzer PW8001Allows for stable measurement from Alaska to the Sahara Applications: Development and analysis tool for improving the fuel efficiency of electrical vehicles Consumption measurement of low power EV circuits like ECUs, interior lighting etc.Optimizing the overall energy consumption of low power circuits in EVs to extend the driving rangeOptimizing the overall energy consumption of low power circuits in electrical construction vehicles or electrical agricultural vehicles to extend the time between charging In detail:The ultra-small CT6830 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents from 100 µA to 2 A AC/DC and frequencies up to 100 kHz are possible even in the most confined spaces with a basic accuracy of ±0.3 %. This compact sensor gives development engineers of EVs, electrical trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor energy consumption under the most extreme temperature conditions. Designed to be used in combination with a HIOKI Power Analyzer, Memory Recorder or Data Logger, the CT6830 provides detailed energy consumption insight for example of a vehicle under test. Combined with a CT9555, CT9556 or CT9557 Power Supply Unit, the CT6830 Current Probe can also be connected to third party equipment like for instance a DAQ system or an oscilloscope.

Banner Specs: High Accuracy ±0.3 % Measurable current 1 mA to 20 A Ultra small size sensor with slide open/lock mechanism Wide temperature range -40 to 85 oC Bandwidth DC to 100 kHz USPs:Easy installation, even in tight spacesAccurate low current measurement Automatic recognition by HIOKI Power Analyzer PW8001Allows for stable measurement from Alaska to the Sahara Applications:Development and analysis tool for improving the fuel efficiency of electrical vehicles Consumption measurement of low power EV circuits like wipers, entertainment system, seat heating, power steering etc. Optimizing the overall energy consumption of low power circuits in EVs to extend the driving range Optimizing the overall energy consumption of low power circuits in electrical construction vehicles or in electrical agricultural vehicles to extend the time between charging In detail:The ultra-small CT6831 Current Probe with its slide-open/lock feature is one of the smallest high-accuracy sensors on the market. Contactless measurement of currents from 1 mA to 20 A AC/DC and frequencies up to 100 kHz are possible even in the most confined spaces with a basic accuracy of ±0.3 %. This compact sensor gives development engineers of EVs, electrical trucks, buses, construction, and agricultural vehicles the possibility to accurately monitor energy consumption under the most extreme temperature conditions. Designed to be used in combination with a HIOKI Power Analyzer, Memory Recorder or Data Logger, the CT6831 helps provide detailed energy consumption insight for example of a vehicle under test. Combined with a CT9555, CT9556 or CT9557 Power Supply Unit, the CT6831 Current Probe can also be connected to third party equipment like for instance a DAQ system or an oscilloscope.

The CT6841A is a high-precision AC/DC current sensor designed for a wide range of applications, including industrial and automotive fields. It provides reliable and accurate measurements even under extreme conditions with its broad frequency range and robust construction. This sensor is suitable for detailed current waveform observation and load current measurements. It supports automatic phase shift correction (APSC). Technical Details: Current Rating: 20 A AC/DC Frequency Range: DC to 2 MHz Accuracy: ±0.2% rdg, ±0.05% f.s. Maximum Conductor Diameter: 20 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher

The CT6843A is a versatile AC/DC current sensor for measuring current in industrial and automotive applications. With its wide frequency band and high measurement accuracy, it excels in capturing current fluctuations in both high- and low-frequency ranges, making it suitable for comprehensive electrical testing. It supports automatic phase shift correction (APSC). Technical Details: Current Rating: 200 A AC/DC Frequency Range: DC to 700 kHz Accuracy: ±0.2% rdg, ±0.02% f.s. Maximum Conductor Diameter: 20 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher

The CT6844A is a robust AC/DC current sensor, designed for high-current measurements up to 500 A. Its broad frequency range and high accuracy make it ideal for testing and analysis in automotive and industrial applications. It can handle challenging environments with its durable construction and wide operating temperature range. It supports automatic phase shift correction (APSC).Technical Details: Current Rating: 500 A AC/DC Frequency Range: DC to 500 kHz Accuracy: ±0.2% rdg, ±0.02% f.s. Maximum Conductor Diameter: 20 mm Operating Temperature: -40°C to 85°C • Input Impedance Requirement: 1 MΩ or higher

The CT6845A is a high-performance AC/DC current sensor capable of measuring currents up to 500 A. It offers high accuracy and a broad frequency range, making it an excellent choice for a variety of power measurement applications. The sensor is built to perform reliably under harsh environmental conditions. It supports automatic phase shift correction (APSC). Technical Details: Current Rating: 500 A AC/DC • Frequency Range: DC to 200 kHz Accuracy: ±0.2% rdg, ±0.02% f.s. Maximum Conductor Diameter: 50 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher

The CT6846A is a robust AC/DC current sensor, designed to measure high currents up to 1000 A. With its broad frequency range and precision, it is ideal for industrial and power electronics applications, providing accurate measurements even in harsh environments. It supports automatic phase shift correction (APSC). Technical Details: Current Rating: 1000 A AC/DC Frequency Range: DC to 100 kHz Accuracy: ±0.2% rdg, ±0.02% f.s. Maximum Conductor Diameter: 50 mm Operating Temperature: -40°C to 85°C Input Impedance Requirement: 1 MΩ or higher
