PD3259-90 - Safe Non-Contact Phase Detection with True Voltage Measurement
Digital phase detector with non-contact voltage clamps for safe one-step checks of phase sequence, line-to-line voltage, frequency, and missing-phase detection; CAT IV 600 V, IP54, Bluetooth connectivity (Z3210 included)
Product details
Product number:
PD3259-90
EAN:
4536036013753
Weight:
0.91 kg
Product information PD3259-90 - Safe Non-Contact Phase Detection with True Voltage Measurement
Banner Specs
- 90 to 520 V AC measurement range
- Non-contact voltage detection clamps (6–30 mm cable diameter)
- CAT IV 600 V safety rating
- IP54 dust/water resistant housing
- Bluetooth communication to smart devices (Z3210 included)
USPs
- Safe, non-contact voltage detection
- Phase sequence detection with true line-to-line voltage measurement
Applications
- Installation and maintenance of three-phase wiring and equipment
- Troubleshooting phase errors, supply interruptions, and missing phases
- Verification of EV charging stations and infrastructure
- Commissioning and inspection of machinery and plant systems
In detail:
The PD3259-90 is a bundle that combines the PD3259-50 Digital Phase Detector for threephase systems with the Z3210 Bluetooth adapter. Unlike basic devices that only indicate phase sequence, it also measures true line-to-line voltages, frequency, and missing phases. Since all of these values are obtained through non-contact measurement and in a single step, technicians save valuable time in their daily work while also reducing costs for installation, maintenance, and troubleshooting.
The PD3259-90 is a bundle that combines the PD3259-50 Digital Phase Detector for threephase systems with the Z3210 Bluetooth adapter. Unlike basic devices that only indicate phase sequence, it also measures true line-to-line voltages, frequency, and missing phases. Since all of these values are obtained through non-contact measurement and in a single step, technicians save valuable time in their daily work while also reducing costs for installation, maintenance, and troubleshooting.

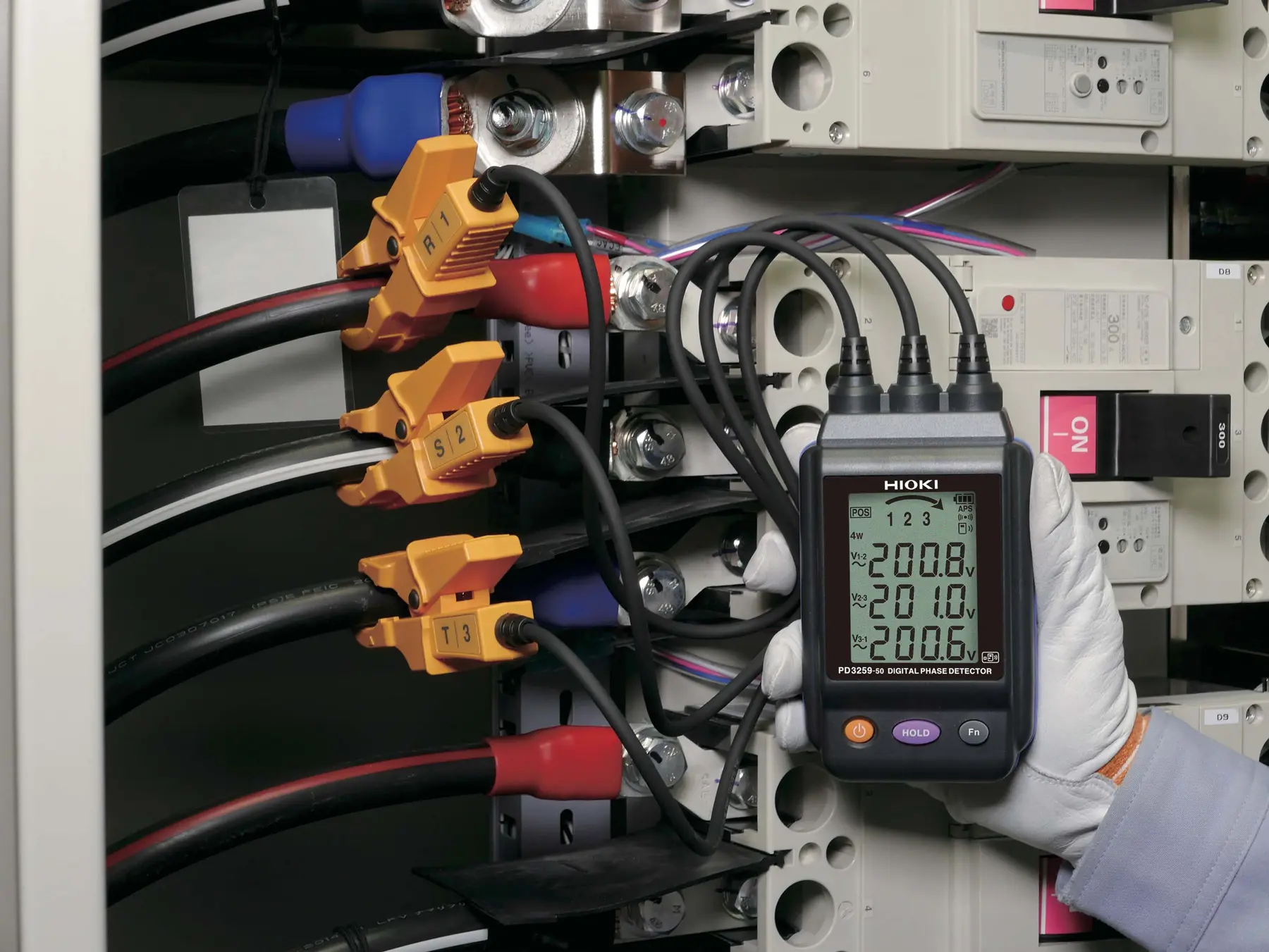

Faster, safer testing with non-contact clamps
The non-contact voltage clamps can simply be placed around insulated conductors,
eliminating the need to expose live parts. This makes phase and voltage checks quicker, safer, and possible even in situations where direct electrical contact would normally require
higher qualifications or additional protective measures.
By combining the base unit with the Z3210 Bluetooth adapter, the PD3259-90 offers a
practical all-in-one solution for field use. Rugged and reliable, it is rated CAT IV 600 V and

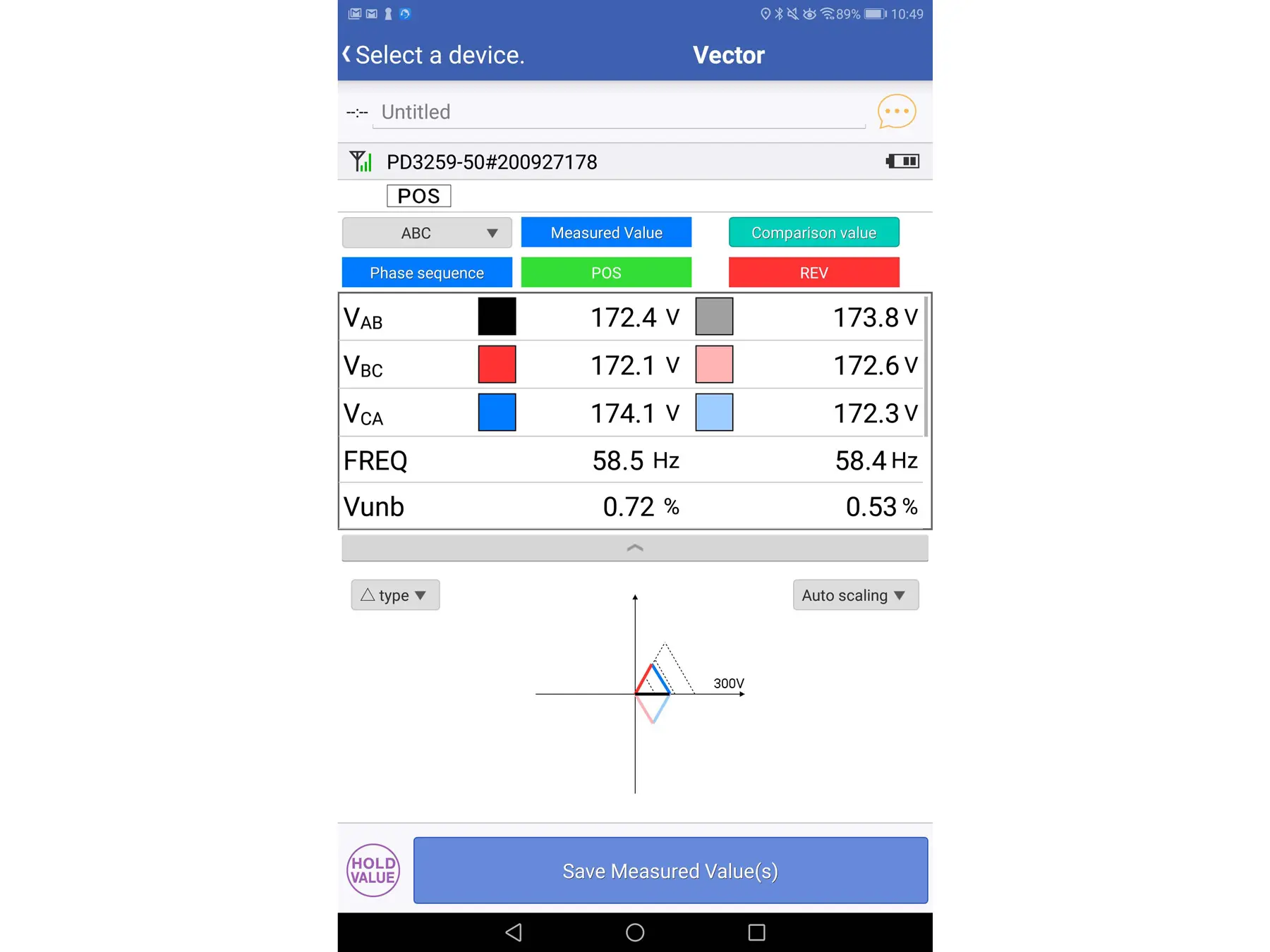

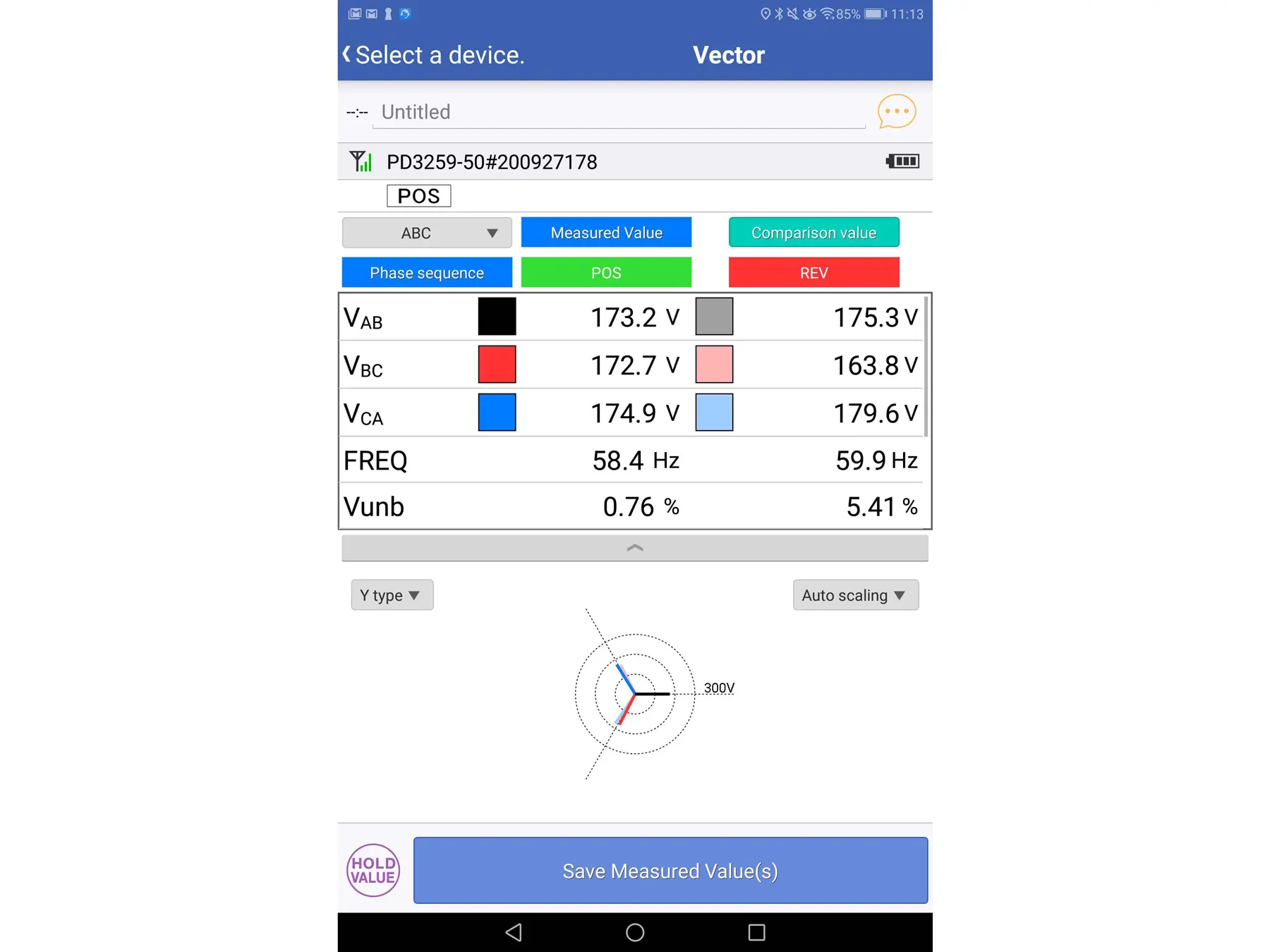

IP54 for operation in demanding environments. With the Z3210 included, it connects
instantly to smart devices, allowing measurements to be logged via HIOKI’s GENNECT
Cross app or transferred directly to Excel (HID) for straightforward documentation and
analysis.
The PD3259-90 was designed in Japan and is manufactured at HIOKI’s own factories in
Nagano Prefecture, ensuring the highest standards of lasting precision, reliability, and
quality.
- PD3259-50 Digital Phase Detector
- Z3210 Bluetooth Adapter
- C0203 Carrying Case
- 4 × LR6 alkaline batteries
- Instruction manual / Safety notes
- Spiral tubes (black)
- Color-coded cable markers (white, red, blue, yellow; 2 each)
