HIOKI Digital Multimeters for Precision Maintenance

Precision Measurement for Development, Maintenance, and Field Use

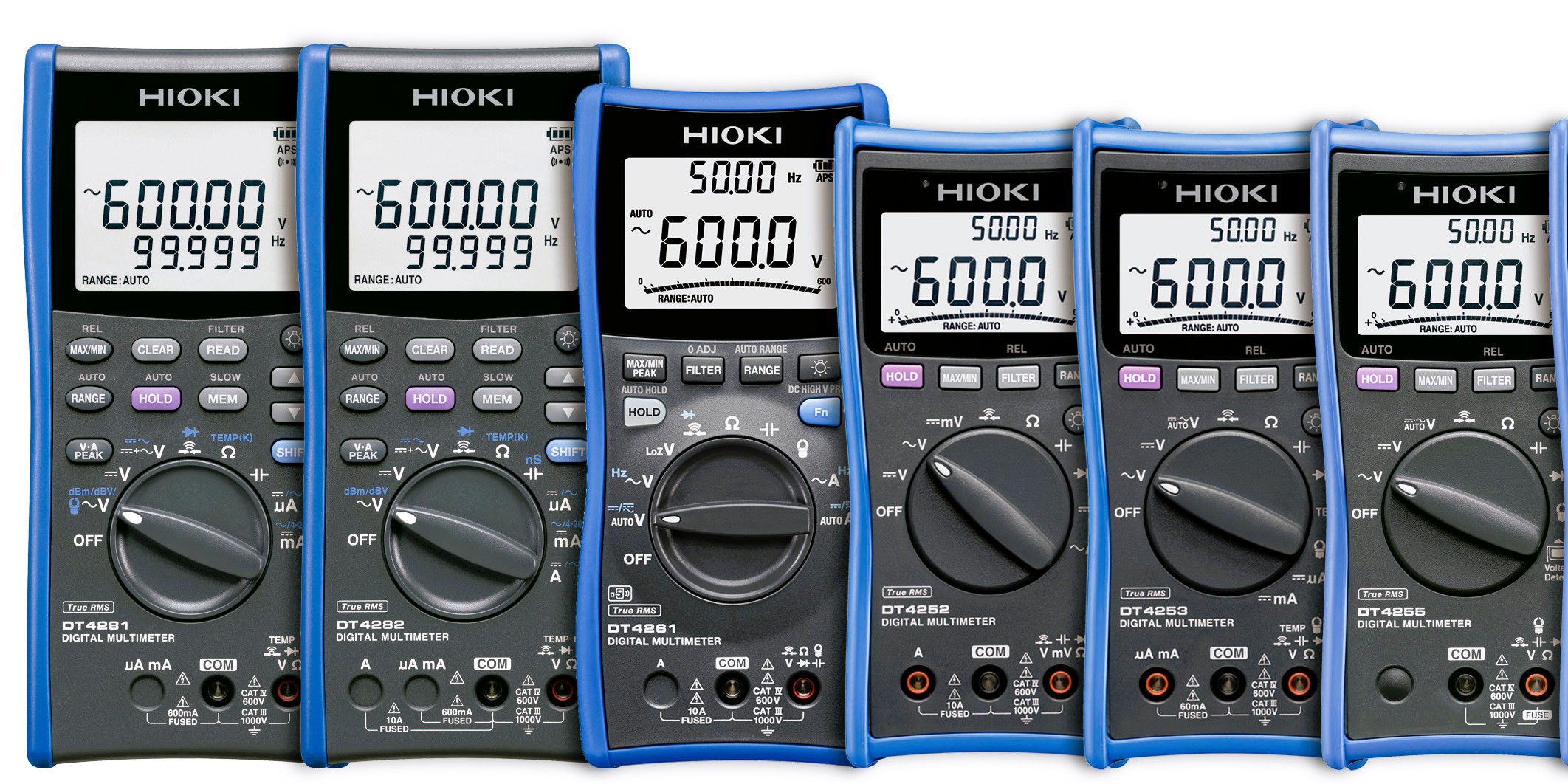

HIOKI’s Digital Multimeters deliver reliable, high-accuracy measurements for R&D, industrial maintenance, and electrical troubleshooting. The DT4282 offers 60,000-count precision for testing and development. Designed for industrial use, models like the DT4261 and DT4256 support a full-range 10 A input and clamp sensors up to 1000 A. The DT4261 adds Bluetooth® capability for wireless data acquisition and advanced troubleshooting.

Compact meters such as the DT4222 are ideal for workshops and mobile service. All DT4200 series multimeters provide True RMS measurement and advanced safety features, including socket interlock to prevent misconnected test leads. Discover the ideal Digital Multimeter for your application.

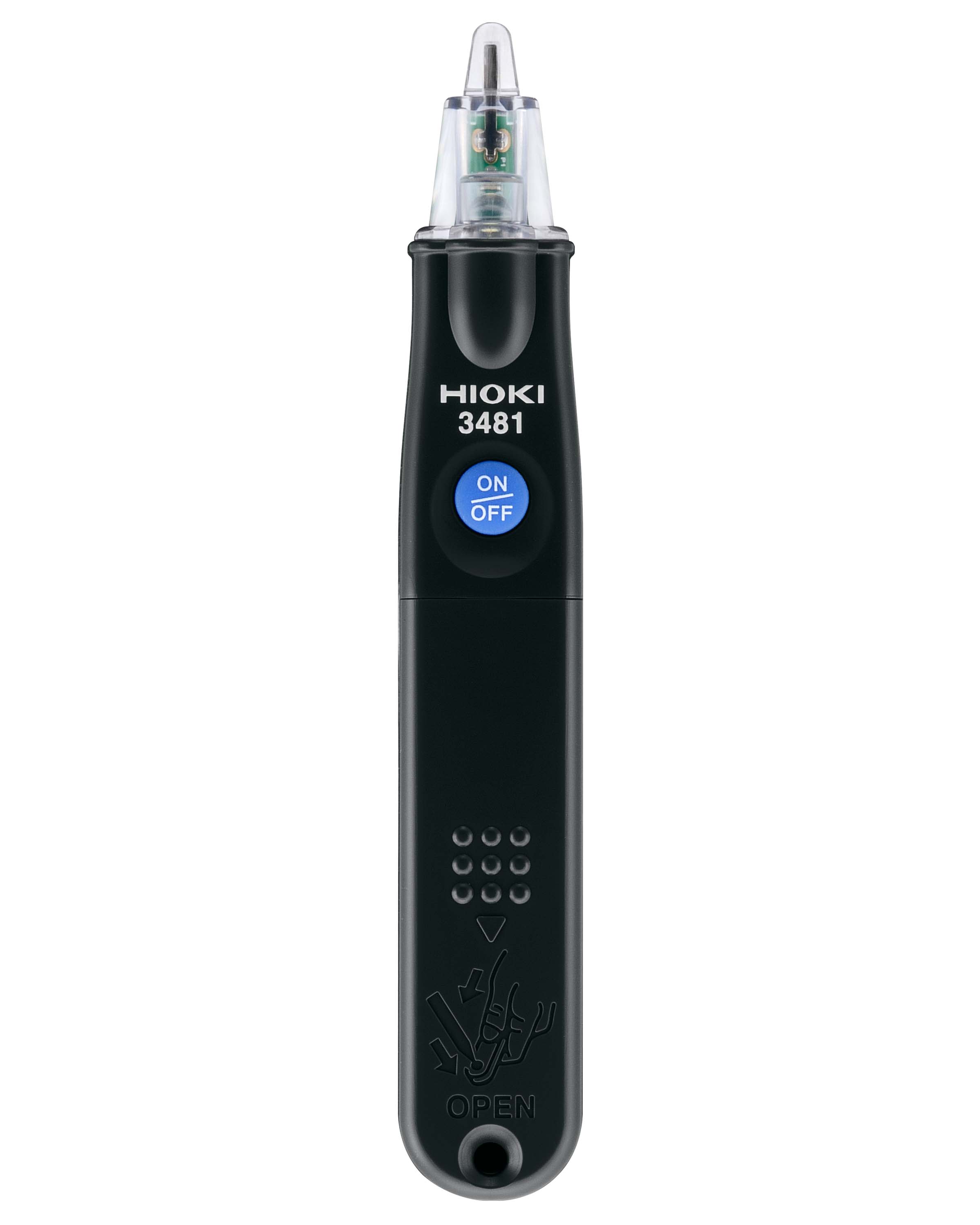

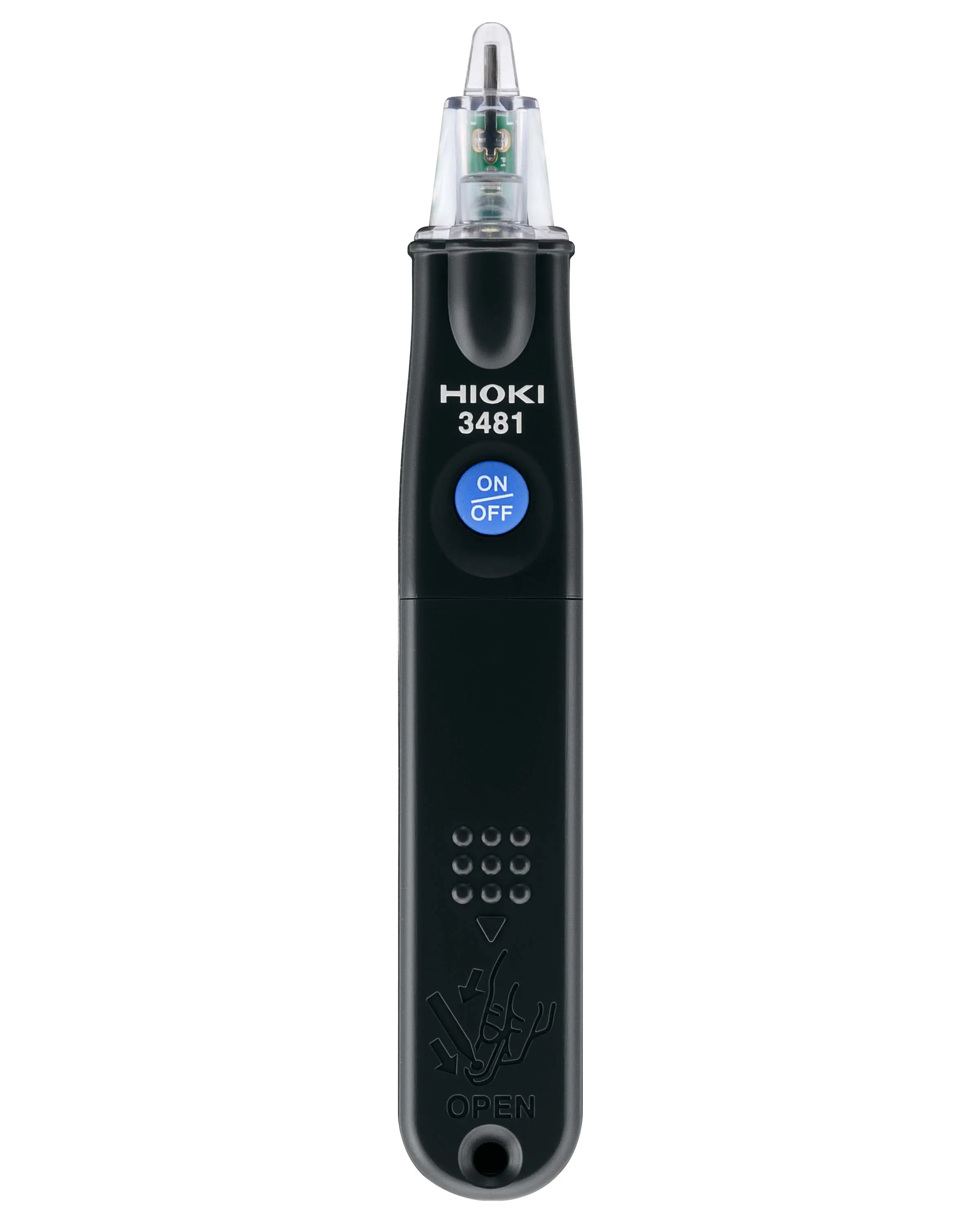

3481 - Non Contact Voltage Detector with Adjustable Sensitivity

3481-20

3481 - Non Contact Voltage Detector with Adjustable Sensitivity

Key SpecificationsOperating voltage range 40 V to 600 V AC Measurement category CAT IV 600 V Adjustable sensitivity Integrated white LED work lightManufactured in Japan Typical Applications Non contact voltage checks on insulated cables, terminals, switches, distribution boards and outlets, including outlets with child protection Detailed Product OverviewThe HIOKI 3481 is a compact non contact voltage detector for everyday use in electrical installation and service work. About the size of a permanent marker and weighing less than 30 g including batteries, it is equipped with a pen style pocket clip and easy to carry in a shirt pocket for quick checks at any time. The detector features adjustable sensitivity and is rated for voltage checks from 40 V to 600 V AC, CAT IV. If you mainly work on sockets, a higher sensitivity helps ensure reliable voltage detection, even when child protection limits direct access. If most work is done in distribution panels with many live conductors close together, a lower sensitivity usually gives cleaner indication. The sensitivity is adjusted using a screwdriver via the adjustment trimmer located beneath the battery clip. Bright LED Work Light for dark work areasVoltage presence is indicated by a red LED and an audible buzzer. An integrated white LED work light illuminates sockets, terminals and distribution cabinets, making everyday work much easier in poorly lit environments. Developed and manufactured in Japan at HIOKI’s own facility, the 3481 fits naturally into the shirt pocket of professionals who deliver high quality work every day.

€48.00*

View product

DT4221

DT4221 - Digital Multimeter

Digital Multimeter, DCV 600V, ACV 600V, voltage detector, frequency, continuity, low-pass filter function, true RMS, 6000 count display, CAT III 600 V, CAT IV 300V

€118.00*

View product

DT4222

DT4222 - Digital-Multimeter

Digital Multimeter, voltage, resistance, capacitance, frequency, diode testing, continuity, low-pass filter function, true RMS, 6000 count display, CAT III 600 V, CAT IV 300V

€158.00*

View product

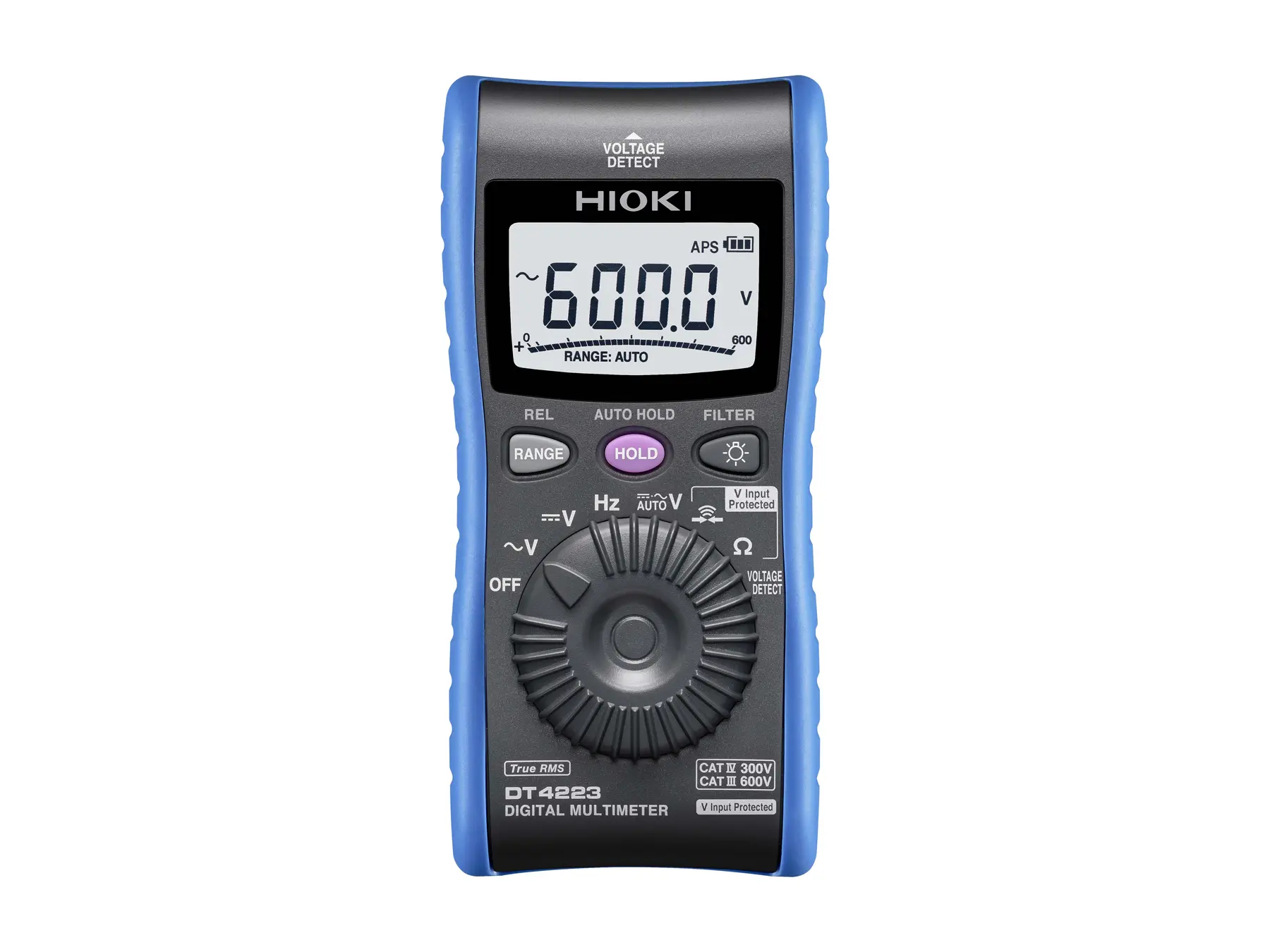

HIOKI DT4223 digital multimeter cat iii 600v cat iv 300v installation and service

HIOKI DT4223 digital multimeter cat iii 600v cat iv 300v

DT4223-20

DT4223 - Pocket Digital Multimeter for Installation and Service

Key Specifications Automatic AC/DC voltage detection Voltage detection function (NCV) DC and AC voltage ranges 600 mV, 6 V, 60 V, 600 V True RMS measurement CAT III 600 V, CAT IV 300 V Typical ApplicationsElectrical installation and service work Fast checks on cables, terminals, outlets and distribution boardsVoltage verification in unknown or changing installation conditions Detailed Product OverviewThe HIOKI DT4223 is a pocket digital multimeter designed for installation and service work. It allows fast AC and DC voltage checks with automatic AC/DC detection and non contact voltage detection, making it well suited for installation and service tasks where the applied voltage is not known. With its extremely compact design, the DT4223 takes up very little space in a tool bag or jacket pocket. With battery installed and test leads connected, it weighs approximately 210 g, making it easy to carry without adding noticeable bulk. The instrument is powered by a single AAA battery and is protected by a silicone cover, supporting reliable use in everyday installation and service applications. Measurement Ranges and Safety The DT4223 features a clear 6000 count display and a straightforward operating concept for quick checks in everyday work. AC and DC voltage ranges from 600 mV to 600 V allow reliable measurements on control circuits as well as on mains voltage. Safety is ensured by measurement categories up to CAT III 600 V and CAT IV 300 V, allowing use on distribution boards and fixed installations. Although extremely compact, the DT4223 is a high quality digital multimeter designed for professional installation, service and troubleshooting work. Like all HIOKI digital multimeters, the DT4223 is developed in Japan and manufactured at HIOKI’s own production facilities in Japan.

€138.00*

View product

HIOKI DT4224 digital multimeter cat iv 300v cat iii 600v includes dt4911 testlead

HIOKI DT4224 digital multimeter cat iii 600v cat iv 300v portable

DT4224 (ENG)

DT4224 - Universal Pocket Digital Multimeter

Key SpecificationsVoltage, resistance, capacitance and frequency Diode test and continuityDC and AC voltage ranges 600 mV, 6 V, 60 V, 600 V True RMS measurement CAT III 600 V, CAT IV 300 V Typical Applications Electrical installation and service work Troubleshooting and verification of electrical circuits Versatile measurement tasks in field and workshop environments Detailed Product OverviewThe HIOKI DT4224 is a universal pocket digital multimeter designed for a wide range of electrical measurement tasks. In addition to AC and DC voltage checks, it supports resistance, capacitance, frequency and diode testing, making it well suited as a first tool for troubleshooting and initial analysis in both field and workshop environments. With its compact design, the DT4224 takes up very little space in a tool bag or pocket. With battery installed and test leads connected, it weighs approximately 210 g, making it easy to carry for everyday work. Powered by a single AAA battery and protected by a silicone cover, it is suitable for regular use in installation, service and workshop applications. Measurement Ranges and Safety The DT4224 is equipped with a clear 6000 count display and an intuitive operating concept that supports efficient troubleshooting and verification tasks. AC and DC voltage ranges from 600 mV to 600 V cover a wide range of measurement situations, from low level signals to mains voltage. With measurement categories up to CAT III 600 V and CAT IV 300 V, it is suitable for work on distribution boards and fixed installations. Although extremely compact, the DT4224 is a high quality digital multimeter designed for professional installation, service and troubleshooting work. Like all HIOKI digital multimeters, the DT4224 is developed in Japan and manufactured at HIOKI’s own production facilities in Japan.

€168.00*

View product

DT4255 - True RMS Digital Multimeter for Reliable and Safe Operation in Industrial Environments

DT4255 (ENG)

DT4255 - True RMS Digital Multimeter for Reliable and Safe Operation in Industrial Environments

Rugged digital multimeter with accurate True RMS measurement, voltage detection, and integrated protection features. Optimized for field diagnostics, maintenance, and training environments.

€188.00*

View product

DT4281 (ENG)

DT4281 - Digital-Multimeter

Hioki DT4281 Digital Multimeter offers a versatile and reliable solution for precision electrical measurements. Equipped with a 5-digit display and advanced features, this multimeter is ideal for professionals handling a variety of applications.

€478.00*

View product

DT4282

DT4282 - DIGITAL MULTIMETER

The DT4282 Digital Multimeter offers a versatile and reliable solution for precision electrical measurements. Equipped with a 5-digit display and advanced features, this multimeter is ideal for professionals handling a variety of applications, from basic voltage and current measurements to more complex functions such as capacitance, frequency, and data logging. Its robust safety ratings ensure secure usage in demanding environments.Technical Details: Display: 5-digit, 60,000 counts Measurement functions: AC/DC voltage, AC/DC current, resistance, conductance, capacitance, temperature, frequency, diode test, continuity test Additional functions: dB (voltage), % (current), data memory, auto range, true RMS Safety range: CAT III 1000V, CAT IV 600V Basic accuracy: ±0.025 % (DC voltage)

€568.00*

View product
